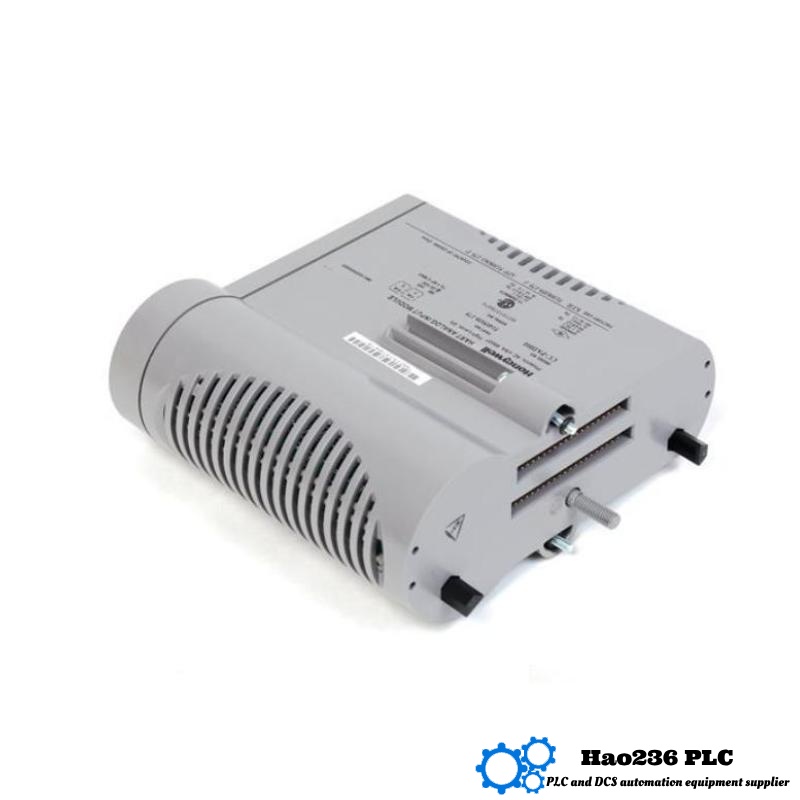

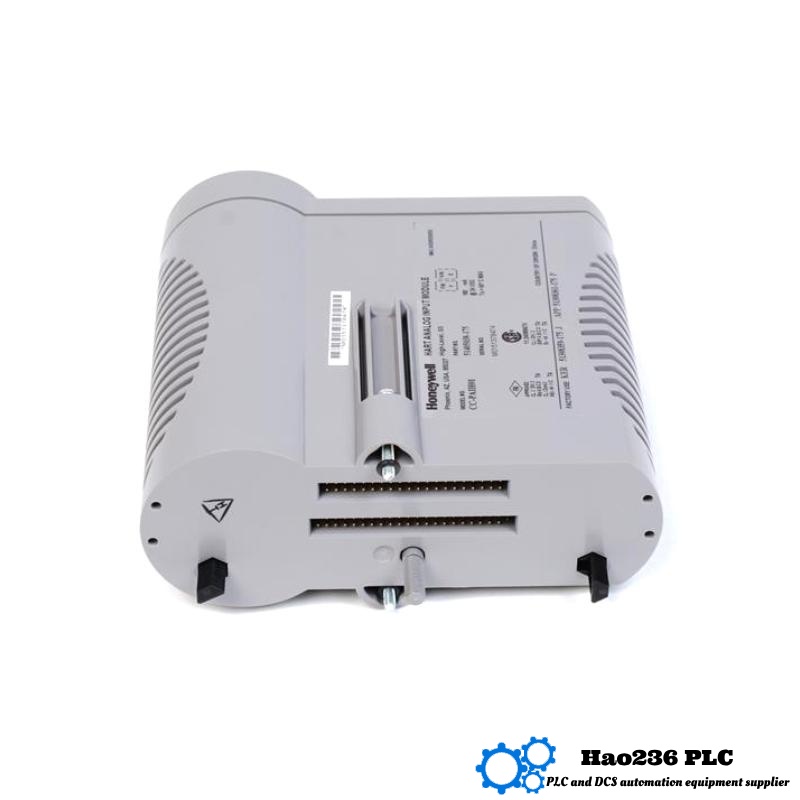

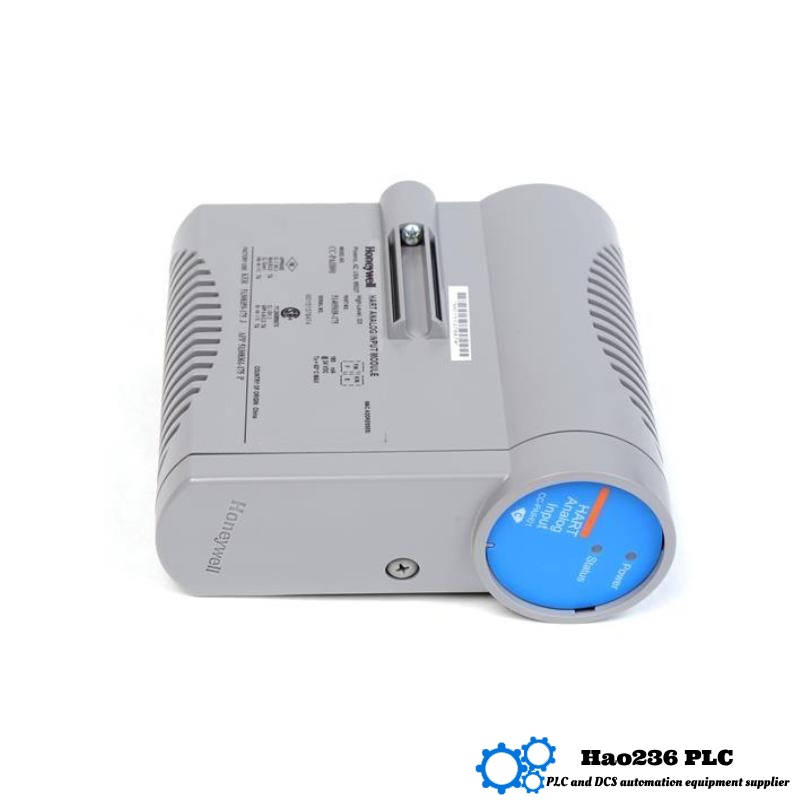

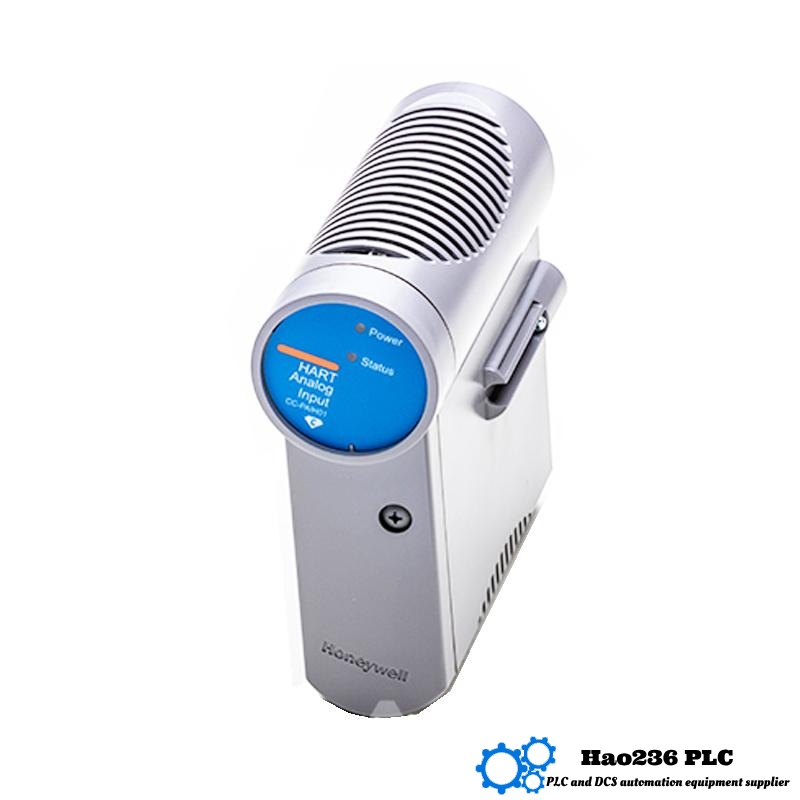

Honeywell CC-PAIH01 51405038-175 Analog Input Module
Product Description
The Honeywell CC-PAIH01 51405038-175 is an advanced analog input module designed for seamless integration into industrial control systems. It allows for the connection of various field devices that output analog signals, such as sensors, transducers, and transmitters, providing reliable data transmission to control systems. With a compact design (120 x 90 x 35 mm) and lightweight (0.25 kg), this module is easy to install and offers flexibility in a variety of industrial applications.
The CC-PAIH01 provides high accuracy and low noise performance, ensuring that the analog signals from the field devices are transmitted without distortion. It supports a wide range of input types, including voltage, current, and resistance, making it suitable for use in many different industries, such as manufacturing, energy, and process control.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions | 120 x 90 x 35 mm |
| Weight | 0.25 kg |
| Input Channels | 8 Analog Inputs |
| Input Types | Voltage, Current, Resistance |
| Voltage Range | ±10 VDC |
| Current Range | 4-20 mA |
| Accuracy | ±0.1% of Full Scale |
| Power Supply | 24 VDC ± 20% |
| Mounting | DIN rail or panel mountable |
| Temperature Range | -20°C to +60°C |
| Interface | Modbus RTU |
| Environmental Rating | IP20 |
Product Applications
The Honeywell CC-PAIH01 analog input module is designed for use in various industrial applications requiring accurate, reliable data collection and transmission. Some common applications include:
-
Industrial Process Control: Collects analog data from sensors and other devices, enabling real-time process monitoring and control.
-
Building Automation Systems: Used for monitoring environmental parameters like temperature, humidity, and pressure in HVAC systems and other building control systems.
-
Energy Management: Integrates with energy meters and other power monitoring devices to provide accurate data on energy consumption, helping with energy optimization.
-
Manufacturing and Assembly Lines: Collects and transmits data from various sensors, enabling equipment health monitoring and system performance tracking.
-
Laboratory and Testing Equipment: Used in laboratories for accurate data acquisition from measurement instruments, ensuring precision in tests and experiments.
Product Advantages
-
High Accuracy: With an accuracy of ±0.1% of full scale, the CC-PAIH01 ensures reliable and precise data acquisition, even in demanding applications.
-
Wide Input Range: Supports a wide range of input types including voltage, current, and resistance, making it highly versatile for various industrial and process control applications.
-
Compact and Lightweight: The module’s compact size (120 x 90 x 35 mm) and lightweight design (0.25 kg) make it easy to install in a variety of environments, even in space-constrained control panels.
-
Flexible Integration: Easily integrates into existing systems via Modbus RTU, offering compatibility with a wide range of industrial control systems and devices.
-
Durable and Reliable: Designed to withstand harsh industrial conditions, the CC-PAIH01 operates within a wide temperature range of -20°C to +60°C and is built to last, ensuring long-term reliability.
-
Energy Efficient: With a low power requirement of 24 VDC ± 20%, the module is energy-efficient, reducing operational costs.
Brand Information
Honeywell is a globally recognized leader in industrial automation, control, and measurement technologies. With over a century of experience, Honeywell is known for developing cutting-edge solutions that optimize efficiency, safety, and performance across industries such as energy, manufacturing, chemicals, and aerospace. The CC-PAIH01 is part of Honeywell’s comprehensive portfolio of industrial automation solutions, offering reliable data acquisition and integration for critical systems.
Recommended Related Models from the CC Series
| Model | Description | Specifications |
|---|---|---|
| CC-PAIH02 | Analog input module with extended input range | 120 x 90 x 35 mm; 0.25 kg; ±10 VDC, 4-20 mA |
| CC-PAIH03 | Multi-channel analog input module for larger systems | 130 x 95 x 40 mm; 0.3 kg; 8 channels |
| CC-PAIH04 | Advanced analog input module with higher resolution | 120 x 90 x 35 mm; 0.25 kg; ±5 VDC, 4-20 mA |
| CC-PAIH05 | High-performance analog input module with low noise | 120 x 90 x 35 mm; 0.3 kg; ±10 VDC, 4-20 mA |
| CC-PAIH06 | Modular analog input system with easy scalability | 130 x 100 x 40 mm; 0.35 kg; 8 channels |
Recommended Popular Models from Honeywell
| Model | Product Type | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| CC-PAIH01 51405038-175 | Analog Input Module | 120 x 90 x 35 | 0.25 | High precision, modular design, easy installation |
| CC-PAIX02 51405038-176 | Analog Input Module | 120 x 90 x 35 | 0.25 | Suitable for multiple input configurations |
| CC-PDIL01 51405038-177 | Digital Input Module | 130 x 100 x 40 | 0.3 | Flexible connectivity options, reliable |
| CC-PSV201 51405038-178 | Process Signal Output | 125 x 95 x 30 | 0.2 | Strong performance in demanding environments |
| CC-PCNT02 51405038-179 | Counter Module | 110 x 85 x 40 | 0.22 | High-speed counting, industrial-grade durability |
FAQ (Frequently Asked Questions)
-
Q: What is the primary function of the Honeywell CC-PAIH01 module?
A: The CC-PAIH01 is an analog input module designed to acquire and transmit signals from various field devices such as sensors and transmitters to control systems. -
Q: What types of input signals can the CC-PAIH01 handle?
A: It can handle voltage, current, and resistance inputs, making it versatile for a wide range of industrial applications. -
Q: What is the temperature range of the CC-PAIH01?
A: The module operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments. -
Q: How many input channels does the CC-PAIH01 support?
A: The module supports up to 8 analog input channels. -
Q: What is the accuracy of the CC-PAIH01?
A: The module provides an accuracy of ±0.1% of full scale for precise measurements. -
Q: How does the CC-PAIH01 communicate with control systems?
A: It uses Modbus RTU communication protocol, ensuring easy integration with other industrial control systems. -
Q: What is the power supply requirement for the CC-PAIH01?
A: The module operates with a 24 VDC power supply, with a ±20% tolerance. -
Q: Can the CC-PAIH01 be used in hazardous environments?
A: While the module is designed for industrial environments, it is recommended to check for compatibility with hazardous conditions based on the application. -
Q: What is the mounting type for the CC-PAIH01?
A: The module can be mounted on DIN rails or directly on panels, offering flexibility in installation. -
Q: Is the CC-PAIH01 compatible with other Honeywell products?
A: Yes, it integrates seamlessly with other Honeywell systems, providing a reliable and flexible solution for industrial automation.
