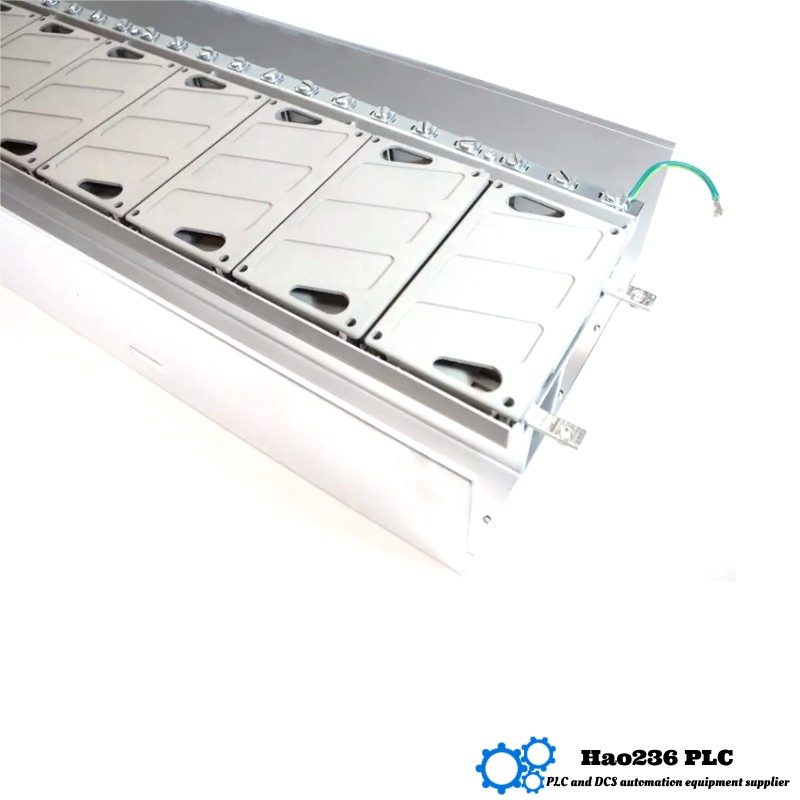

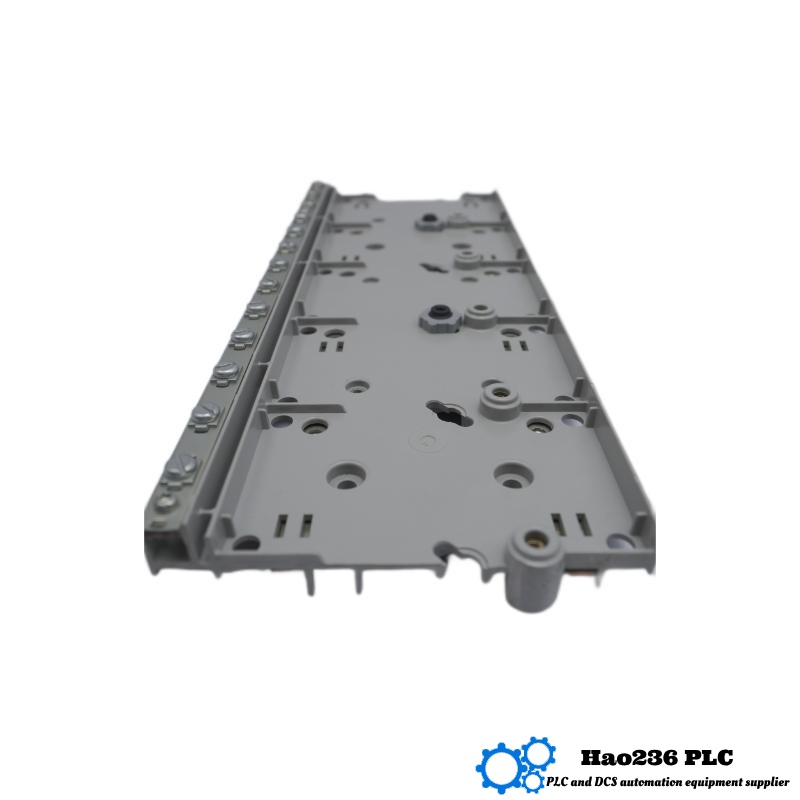

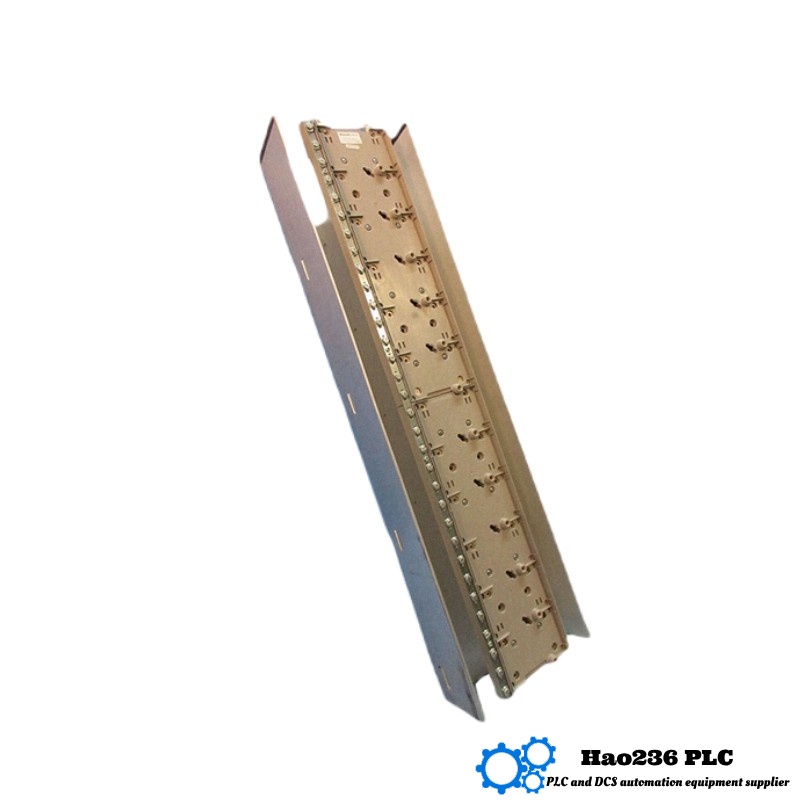

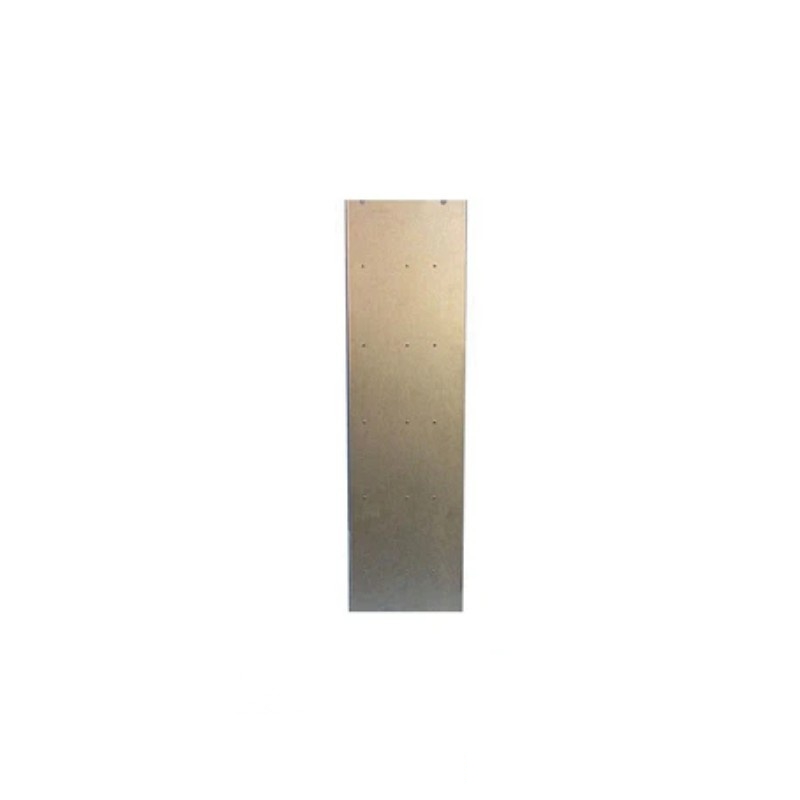

The CC-MCAR01 is a high-capacity carrier channel assembly designed for Honeywell’s Experion® PKS Series C I/O racks. It provides the mechanical and electrical backbone for mounting up to 16 I/O modules, ensuring reliable signal routing and power distribution. Its rugged steel construction, standardized connectors, and precision-machined guide rails simplify module insertion and removal during maintenance.
Centralized I/O distribution in oil & gas upstream and downstream process control systems.
Modular skid-mounted control packages for chemical and petrochemical plants.
Large-scale water and wastewater treatment automation requiring high channel counts.
Pharmaceutical manufacturing suites demanding validated, repeatable I/O performance.
Power generation control rooms integrating mixed analog, digital, and bus-communication modules.
Honeywell is a global leader in industrial automation and control technology, with over four decades of innovation in DCS hardware. The Experion PKS platform, supported by robust carrier assemblies like the CC-MCAR01, underpins mission-critical operations in energy, chemicals, utilities, and life sciences.
High Module Density: Accommodates up to 16 Series C I/O modules in a single 914.4 mm-wide chassis.
Robust Construction: Heavy-gauge steel frame resists vibration and shock in harsh industrial environments.
Precision Alignment: Guide rails and board stops ensure reliable connector engagement and minimize wear.
Simplified Maintenance: Quick-release clips and front-accessible wiring terminals reduce downtime during module swaps.
Integrated Diagnostics: Built-in LEDs on the backplane monitor power status and module presence for rapid fault isolation.
Specification | Details |
---|---|
Model Number | CC-MCAR01 (51403892-100) |
Function | Carrier channel assembly for Series C I/O modules |
Module Capacity | Up to 16 I/O modules |
Connector Type | Proprietary blade-and-socket backplane interface |
Power Distribution | Dual redundant 24 V DC bus |
Status Indicators | Power OK and module-presence LEDs |
Mounting | 19″ rack, 17″ panel, or skid-mount brackets included |
Operating Temperature | 0 °C to 60 °C |
Storage Temperature | –40 °C to 85 °C |
Relative Humidity | 5 % to 95 % RH, non-condensing |
Dimensions (W × H × D) | 914.4 × 228.6 × 101.6 mm |
Weight | 9.07 kg |
Model | Description |
---|---|
CC-MCAR00 | Basic carrier assembly for up to 8 Series C modules |
CC-MCAR02 | High-density carrier for 24-slot I/O installations |
CC-PANEL01 | Panel-mount carrier with integrated backplane diagnostics |
CC-SKID01 | Skid-mount carrier with vibration-dampening feet |
CC-RCU01 | Redundant carrier assembly supporting dual backplane feeds |
Model | Description | Function | Dimensions (mm) | Weight |
---|---|---|---|---|
CC-HCN911 | High-speed ControlNet Interface Module | Control network communication | 267 × 175 × 50 | 0.6 kg |
CC-GDIL11 | Graphic Display Interface Module | HMI display interface & visualization | 280 × 180 × 45 | 0.55 kg |
CC-KREBR5 | Redundant Ethernet Bridge Module | Dual-path Ethernet redundancy | 265 × 160 × 40 | 0.58 kg |
CC-PDOB01 | Profibus-DP Output Bus Interface | Field device digital communication | 270 × 170 × 50 | 0.62 kg |
CC-MEMC01 | Memory Expansion Module with Real-Time Buffering | Memory backup & real-time logging | 260 × 160 × 45 | 0.5 kg |
Q: How many modules can CC-MCAR01 support?
A: It supports up to 16 Series C I/O modules in a standard 19″-wide rack.
Q: What power rails does it provide?
A: Dual redundant 24 V DC buses feed all module slots for high availability.
Q: Are diagnostic LEDs included?
A: Yes—power-OK and per-slot presence LEDs report backplane health and module insertion.
Q: What mounting options are available?
A: It ships with hardware for 19″ rack, 17″ panel, or skid mounting with vibration isolation.
Q: Can I hot-swap modules?
A: Yes—modules can be safely inserted or removed while the backplane remains energized.
Q: What environmental conditions does it tolerate?
A: Rated for 0 °C to 60 °C and up to 95 % non-condensing humidity.
Q: How is vibration handled?
A: Precision guide rails, board stops, and optional dampening feet minimize shock and vibration effects.
Q: Does it support mixed module types?
A: Yes—you may combine analog, digital, and bus-protocol modules in any configuration up to 16 slots.
Q: How do I perform backplane maintenance?
A: Quick-release clips allow removal of the entire assembly without disturbing wiring terminals.
Q: What is the weight and footprint?
A: The assembly measures 914.4 × 228.6 × 101.6 mm and weighs 9.07 kg.
