Product Overview

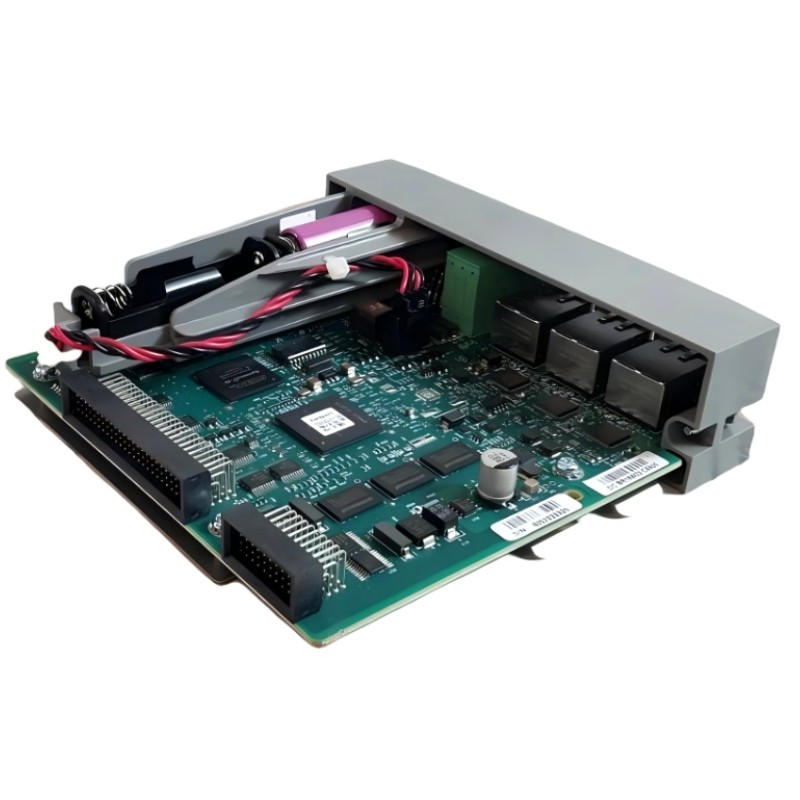

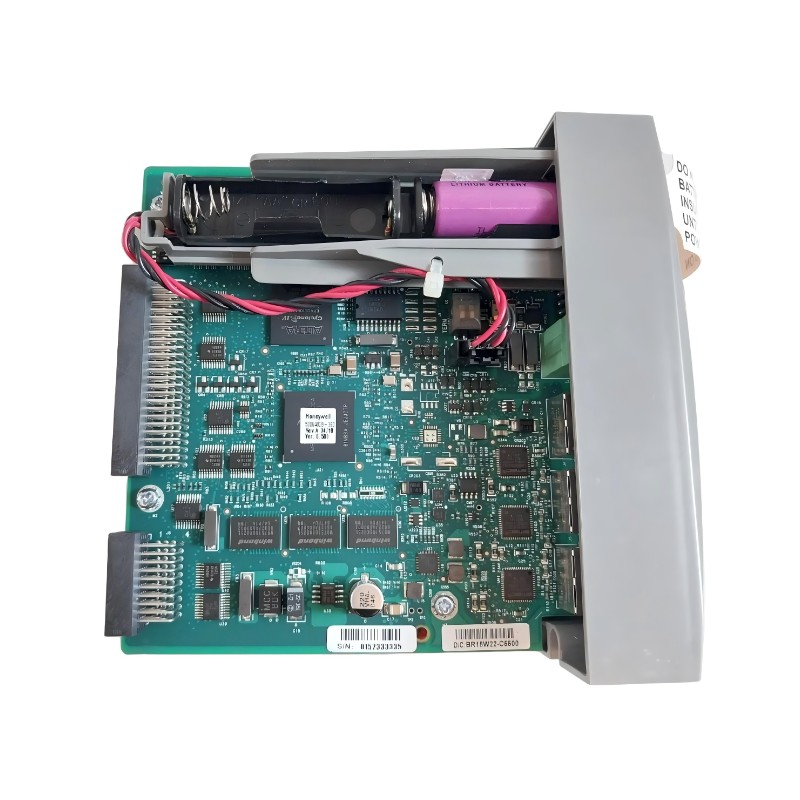

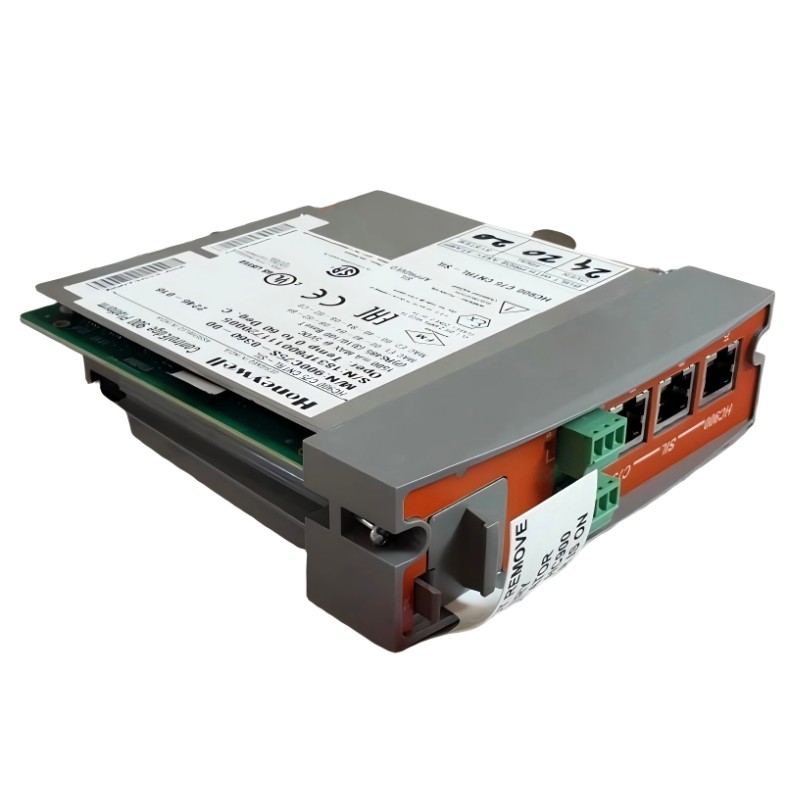

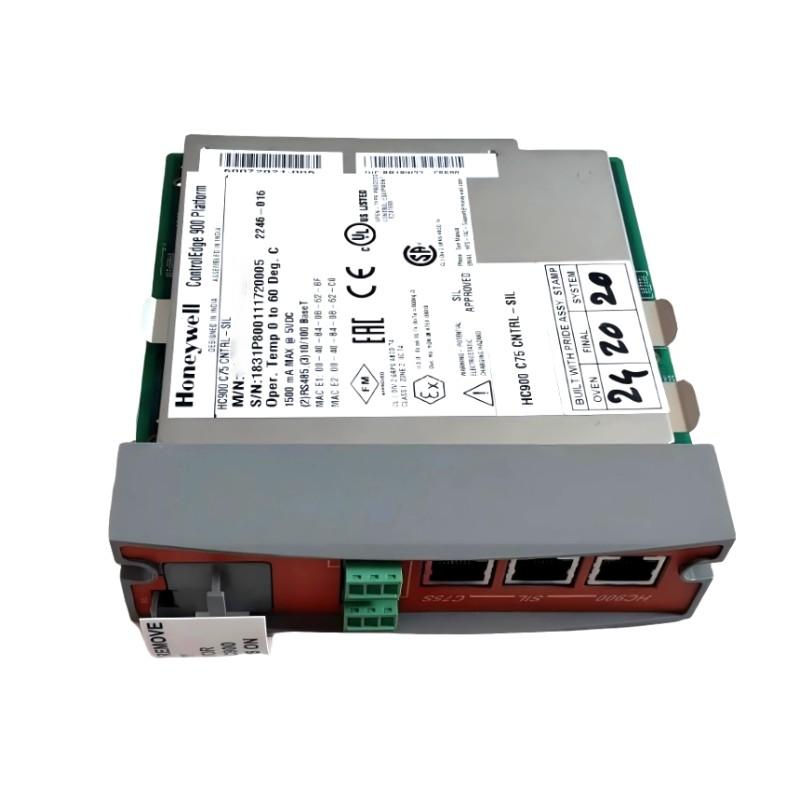

The Honeywell 900S75-0460-00 HC900 I/O Scanner Module is a key communication interface component used in the Honeywell ControlEdge HC900 Distributed Control System (DCS).
It functions as a high-speed I/O scanning and communication module, responsible for managing data exchange between the controller CPU and distributed I/O modules. By continuously scanning field inputs and outputs, it ensures real-time process control, deterministic communication, and system synchronization.
This module is widely used in large-scale industrial automation systems requiring fast and reliable I/O data acquisition across multiple racks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900S75-0460-00 |
| Product Type | HC900 I/O Scanner Module |
| System Platform | Honeywell ControlEdge HC900 |
| Function | I/O scanning and system communication |
| Communication Ports | 2 ports (supports dual I/O rack scanning) |
| Supported Architecture | Distributed I/O system |
| Data Exchange Type | Real-time cyclic I/O scanning |
| Compatibility | HC900 CPU and I/O modules |
| Scan Performance | Deterministic high-speed scanning (system dependent cycle time) |
| Communication Protocol | HC900 internal system bus |
| Redundancy Support | Supports redundant system configuration (architecture dependent) |
| Mounting Type | HC900 controller rack installation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 137 × 38.1 mm |
| Weight | 0.4 kg |
Function and Working Principle
The 900S75-0460-00 operates as a central I/O communication manager within HC900 systems.
Working principle:
- I/O Scanning Process
Continuously scans connected input/output modules across the system. - Data Acquisition
Collects real-time field signal data from distributed I/O racks. - Data Transmission to CPU
Transfers processed I/O data to the HC900 controller for logic execution. - Output Refresh Control
Updates output modules based on control logic results. - Multi-Rack Communication
Supports scanning of multiple I/O racks via dual communication ports. - Deterministic Timing Control
Ensures synchronized and predictable scanning cycles for industrial processes.
Role in System Architecture
The 900S75-0460-00 scanner acts as the communication backbone between the controller and distributed I/O subsystems.
It is responsible for:
- Managing real-time I/O data exchange
- Synchronizing multiple I/O racks in the system
- Ensuring deterministic control response
- Reducing communication latency between field devices and CPU
- Supporting scalable distributed control system expansion
In system architecture, it functions as the data acquisition and synchronization layer of the HC900 automation platform.
Industrial Applications
The Honeywell 900S75-0460-00 is widely used in:
- Oil and gas production systems
- Petrochemical and refinery plants
- Power generation and turbine control systems
- Water and wastewater treatment facilities
- Chemical processing industries
- Large-scale manufacturing automation systems
- Process control and monitoring systems
- Infrastructure and utility automation
It is particularly suitable for high-density distributed I/O systems requiring fast and reliable scanning performance.
Installation & Integration
Proper installation ensures system stability and communication reliability.
- Installed directly in HC900 controller rack
- Connected to multiple I/O racks via system architecture
- Must follow HC900 configuration and addressing rules
- Requires proper grounding and EMI shielding
- Communication ports must be correctly mapped
- System commissioning required via HC900 engineering software
- Supports integration into redundant system architectures
Compatible Components
The 900S75-0460-00 typically works with:
- Honeywell HC900 CPU modules (C50 / C70 / C75 series)
- HC900 I/O racks (900R series)
- Digital input/output modules
- Analog input/output modules
- Relay output modules
- Power supply modules (900P series)
- Remote Terminal Panels (RTP series: 900RTA / 900RTR)
- SCADA and HMI systems
Together, these components form a complete distributed control and data acquisition system.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900S75-0360-00 | I/O Scanner | Single-port version | Small systems |
| 900S75-0460-00 | I/O Scanner | Dual-port scanning | Standard HC900 systems |
| 900C70-0460 | CPU + Scanner combo | Integrated control | Compact architectures |
| 900C75S-0560 | Advanced controller | High-performance system | Large-scale plants |
| HC900 Communication Modules | Platform | Flexible architecture | Custom systems |
Advantages
- High-speed real-time I/O scanning capability
- Supports multi-rack distributed architecture
- Improves system responsiveness and stability
- Reduces communication latency in control loops
- Enables scalable HC900 system expansion
- Reliable industrial-grade performance
- Strong compatibility with HC900 ecosystem
- Suitable for continuous 24/7 operation
FAQs
Q1: What is the main function of the 900S75-0460-00 module?
It scans and manages I/O data communication between controller and I/O racks.
Q2: How many ports does it support?
It supports 2 communication ports for multi-rack scanning.
Q3: Is it a CPU module?
No, it is an I/O scanner communication module.
Q4: What systems is it used in?
Honeywell ControlEdge HC900 distributed control systems.
Q5: Why is it important?
It ensures real-time data exchange and system synchronization.
Conclusion
The Honeywell 900S75-0460-00 HC900 I/O Scanner Module is a critical communication component in distributed control systems. It enables high-speed, deterministic scanning of I/O modules across multiple racks, ensuring reliable data acquisition and system synchronization in industrial automation environments.
