Product Overview

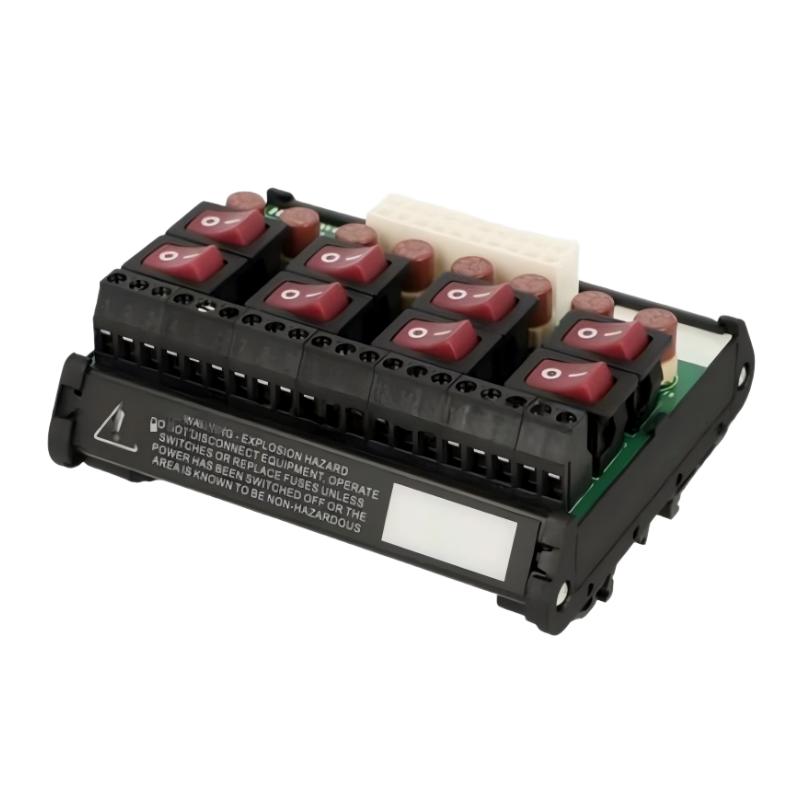

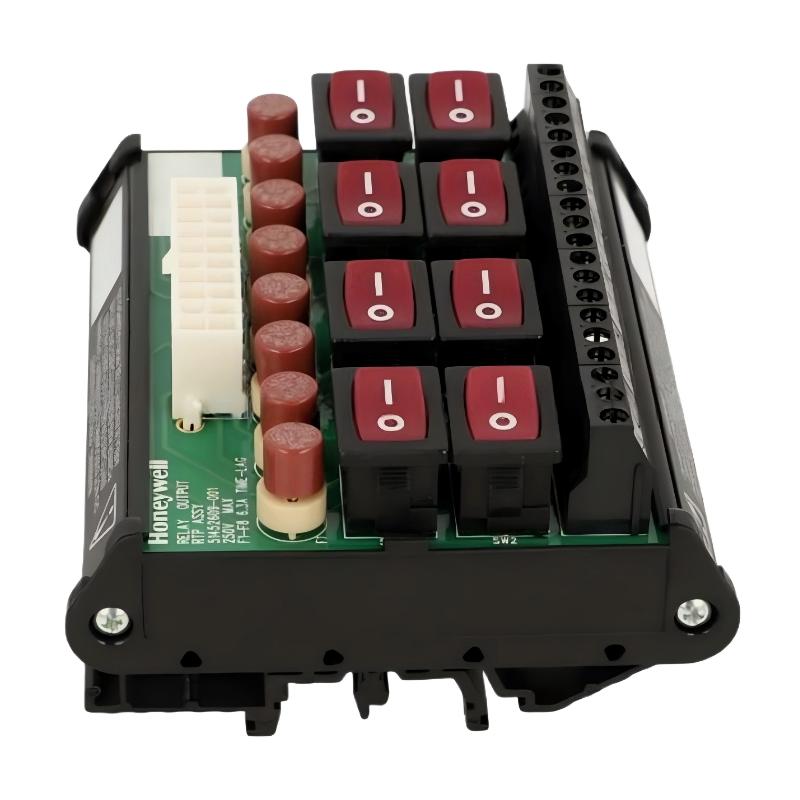

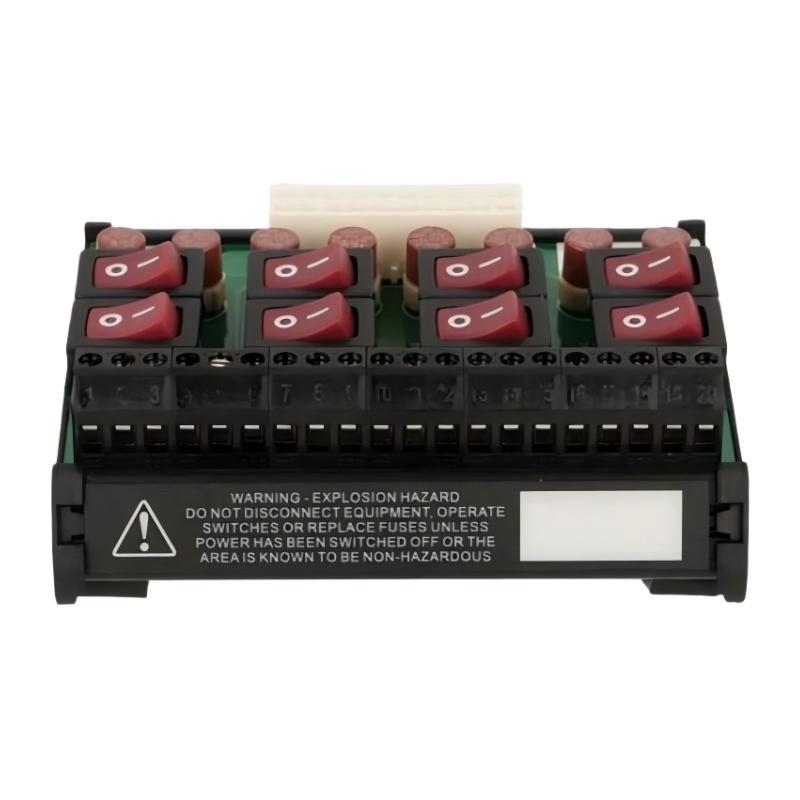

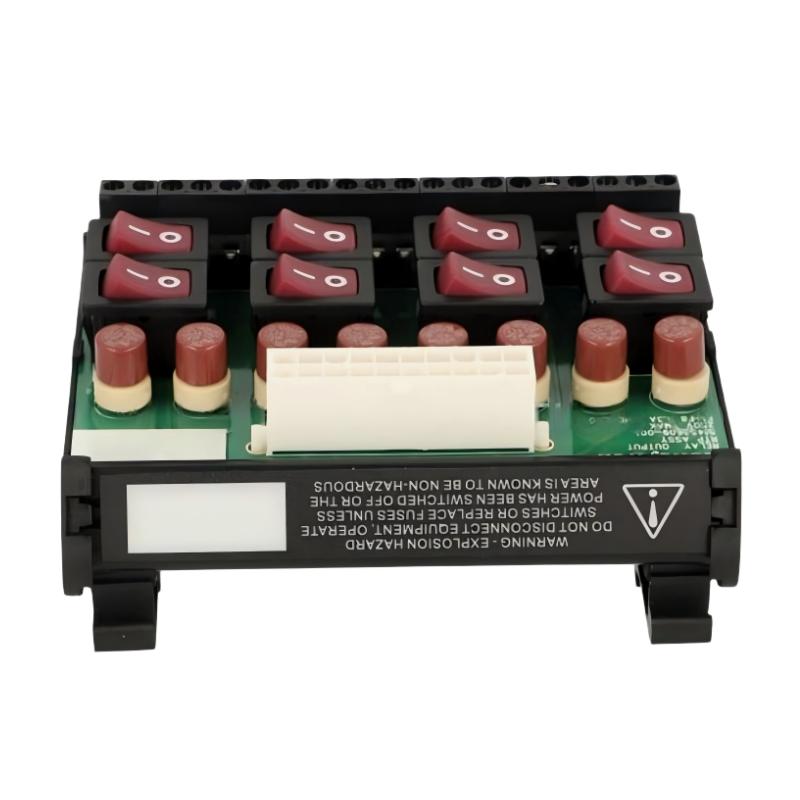

The Honeywell 900RTR-H001 HC900 Relay Output RTP Module is a Remote Terminal Panel (RTP) interface module designed for the Honeywell ControlEdge HC900 Distributed Control System (DCS).
It is used as an intermediate interface between HC900 relay output modules and field wiring terminals, providing safe, organized, and maintenance-friendly relay signal distribution. The module improves wiring reliability by integrating individual channel fusing, load disconnect switches, and structured terminal layouts.
This makes it especially suitable for industrial automation systems requiring high-density relay switching with strong maintainability and protection features.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900RTR-H001 |
| Product Type | Relay Output RTP Module |
| System Platform | Honeywell ControlEdge HC900 |
| Function | Relay output signal termination & field interface |
| Supported Signals | Digital relay output (dry contact switching) |
| Number of Channels | Typically 8–16 channels (system dependent) |
| Contact Type | Form A / Form C relay support (system dependent) |
| Voltage Rating | Up to 250 VAC / DC switching capability |
| Current Rating | Typically up to 6.3A fused per channel (design dependent) |
| Channel Protection | Individual fuse per relay channel |
| Maintenance Feature | Load disconnect switch per channel |
| Isolation | Channel-to-channel and field isolation (system dependent) |
| Wiring Interface | Terminal block (RTP interface to field wiring) |
| System Connection | HC900 I/O relay output module interface cable |
| Mounting Type | DIN rail / cabinet-mounted interface assembly |
| Dimensions | 89 × 133 × 52 mm |
| Weight | 0.227 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Function and Working Principle
The 900RTR-H001 operates as a relay signal termination and protection interface layer within HC900 systems.
Working principle:
- Relay Signal Reception
Receives switching outputs from HC900 relay output modules. - Field Terminal Distribution
Routes relay signals to external field devices (valves, motors, alarms, etc.). - Per-Channel Protection
Each relay channel includes an individual fuse to protect against overload or short circuits. - Load Disconnect Function
Built-in switches allow safe isolation of field loads during maintenance. - Signal Isolation
Ensures electrical separation between control system and field devices. - System Integration
Connects to HC900 controller via dedicated system wiring harness.
Role in System Architecture
The 900RTR-H001 module acts as a field-level relay interface layer in HC900 automation systems.
It is responsible for:
- Simplifying relay output wiring in industrial control systems
- Providing safe switching interface to field equipment
- Enhancing maintenance efficiency through load isolation
- Protecting control systems via fused outputs
- Organizing high-density relay signal distribution
In system architecture, it functions as the electrical interface between HC900 logic outputs and real-world actuators or switching devices.
Industrial Applications
The Honeywell 900RTR-H001 is widely used in:
- Oil and gas automation systems
- Petrochemical and refinery plants
- Power generation and distribution systems
- Water and wastewater treatment plants
- HVAC and building automation systems
- Industrial machinery control systems
- Safety and alarm control systems
- Process control relay switching applications
It is especially suitable for applications requiring multiple relay outputs with high reliability and protection.
Installation & Integration
Proper installation ensures safe and reliable operation.
- Installed inside industrial control cabinets
- Mounted on DIN rail or panel structure
- Connected to HC900 relay output modules via system cable
- Field wiring connected through terminal block interface
- Requires proper grounding and shielding
- Each channel must respect fuse rating limits
- Load disconnect switches should be used during maintenance
- Installation must follow HC900 system wiring standards
Compatible Components
The 900RTR-H001 typically works with:
- Honeywell HC900 relay output modules
- HC900 CPU modules (C50 / C70 / C75 series)
- Digital and analog I/O modules (system dependent integration)
- Field devices (valves, contactors, alarms, motors)
- Power supply modules (900P series)
- RTP system cables (900RTC series)
- SCADA and HMI systems
- Industrial control cabinet systems
Together, these components form a complete relay-based field switching subsystem.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900RTR-L001 | Low-voltage RTP | Simplified relay interface | Compact systems |
| 900RTR-H001 | Standard relay RTP | Fused multi-channel design | General industrial use |
| 900RTS-0001 | Digital I/O RTP | Mixed signal interface | General automation |
| Direct Relay Output Module | Alternative | No RTP required | Compact installations |
| External Relay Terminal Blocks | Alternative | Basic wiring solution | Low-cost systems |
Advantages
- Provides safe relay output field interface
- Individual fuse protection per channel
- Load disconnect switches for maintenance safety
- Reduces wiring complexity in control cabinets
- Improves system maintainability and organization
- High compatibility with HC900 relay modules
- Industrial-grade reliability and durability
- Suitable for high-density relay switching systems
FAQs
Q1: What is the main function of the 900RTR-H001 module?
It provides a protected interface for HC900 relay output signals to field devices.
Q2: How many channels does it support?
Typically supports multiple relay channels (system dependent, often 8–16).
Q3: Does it include protection features?
Yes, it includes per-channel fuses and load disconnect switches.
Q4: What devices can it control?
Valves, motors, alarms, contactors, and other relay-controlled equipment.
Q5: Where is it used?
Industrial automation systems such as oil & gas, power plants, and chemical facilities.
Conclusion
The Honeywell 900RTR-H001 Relay Output RTP Module is a critical field interface component in HC900 systems, designed to improve relay output wiring safety, organization, and maintainability. Its fused channel protection, load disconnect capability, and structured terminal design make it essential for reliable industrial control and automation applications.
