Product Overview

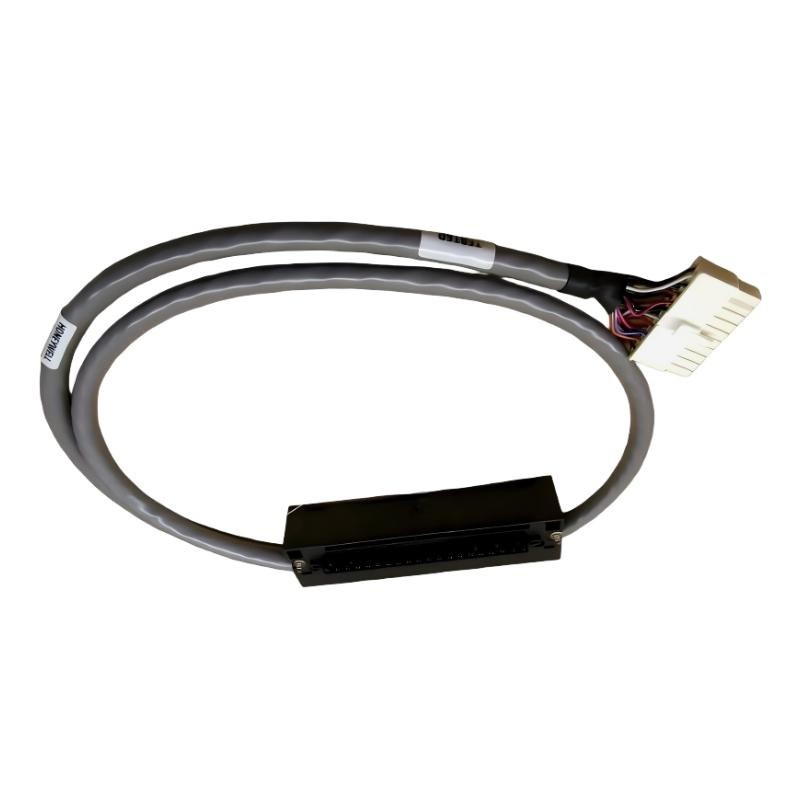

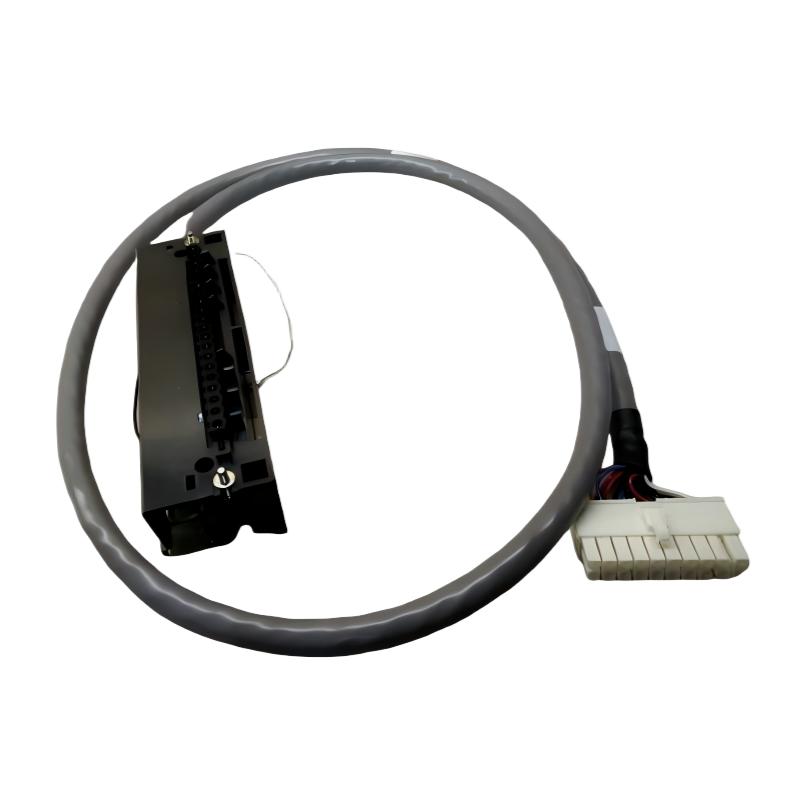

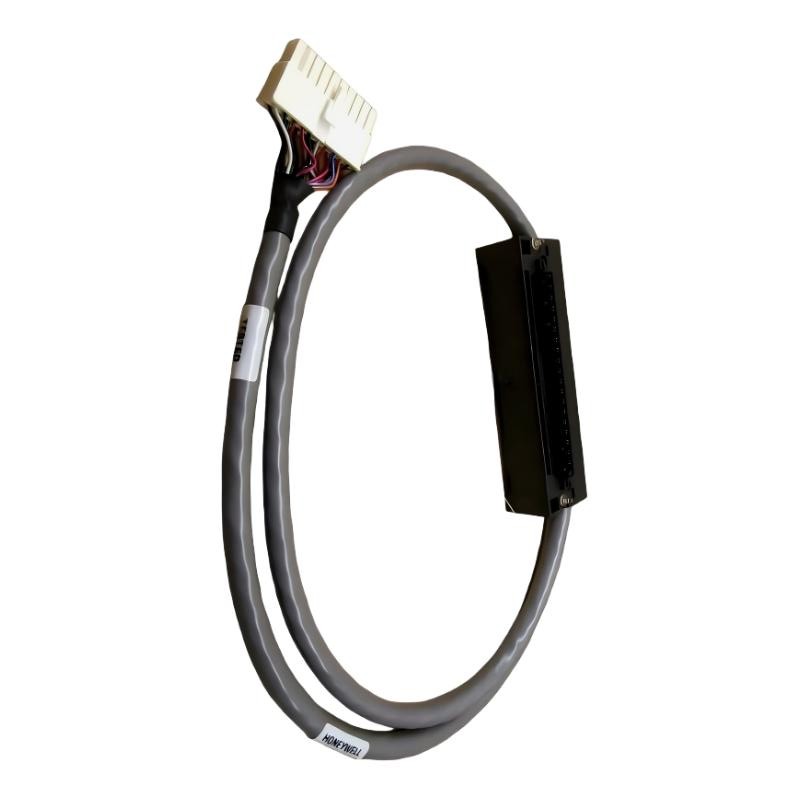

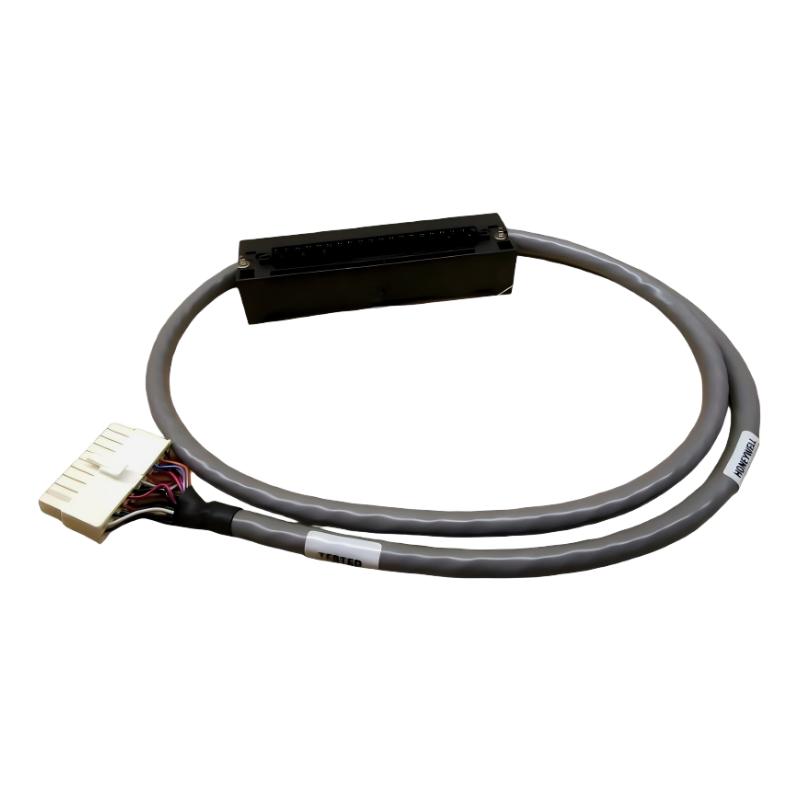

The Honeywell 900RTC-L010 HC900 Remote Terminal Cable is a factory-terminated interconnection cable designed for HC900 Distributed Control System (DCS) architectures.
It is used to connect Remote Terminal Panels (RTPs) with HC900 I/O racks, enabling reliable transmission of analog and digital signals as well as system communication and field power distribution (depending on configuration).
This 1-meter version is specifically designed for compact control cabinet layouts, where the RTP panel is installed in close proximity to the I/O rack, minimizing cable routing space while maintaining signal integrity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900RTC-L010 |
| Product Type | Remote Terminal System Cable |
| System Platform | Honeywell ControlEdge HC900 |
| Cable Length | 1 meter (3.28 ft) |
| Cable Type | Pre-assembled HC900 RTP interconnect cable |
| Function | Connects RTP panels to HC900 I/O racks |
| Signal Coverage | Analog / Digital I/O + system communication |
| Shielding | Industrial EMI-shielded design |
| Connector Type | Factory-terminated HC900 system connectors |
| Installation | Plug-and-play (no field termination required) |
| Cable Routing | Internal cabinet wiring only |
| Compatibility | HC900 RTP modules and I/O racks |
| Weight | 3 kg (shipping weight) |
| Operating Environment | Industrial control cabinet environments |
| Temperature Range | Industrial-grade (-40°C to 80°C system dependent) |
Function and Working Principle
The 900RTC-L010 cable functions as a short-distance high-reliability interconnect interface within HC900 systems.
Working principle:
- Signal Transmission
Transfers analog and digital signals between RTP and I/O rack modules. - System Communication Link
Maintains data integrity between field termination and controller-side processing. - Shielded Noise Protection
Multi-layer shielding reduces electromagnetic interference (EMI) in dense control cabinets. - Pre-Terminated Connection System
Eliminates manual wiring errors and reduces installation time. - Compact Layout Optimization
Designed for short-distance cabinet configurations to reduce cable slack and clutter. - Stable Electrical Integrity
Ensures consistent signal quality across HC900 system architecture.
Role in System Architecture
The 900RTC-L010 cable acts as a short-range field interconnection layer in HC900 distributed control systems.
It is responsible for:
- Linking RTP field termination panels to I/O racks
- Reducing manual wiring complexity in compact systems
- Ensuring stable signal transmission in short-distance layouts
- Supporting modular cabinet design in industrial automation
- Improving installation efficiency and maintenance clarity
In system architecture, it serves as the physical communication bridge between field wiring interface modules and control system I/O processing units.
Industrial Applications
The Honeywell 900RTC-L010 is widely used in:
- Oil and gas automation systems
- Petrochemical processing plants
- Power generation control cabinets
- Water and wastewater treatment systems
- Industrial machinery automation
- Compact distributed control systems
- Chemical processing facilities
- Factory automation control panels
It is especially suitable for tight-space cabinet installations requiring short cable runs and high signal reliability.
Installation & Integration
Proper installation ensures signal stability and system performance.
- Installed inside industrial control cabinets only
- Connects HC900 RTP panels to I/O racks
- Must follow HC900 wiring layout design rules
- Cable routing should avoid high-power interference sources
- Shield grounding must be properly implemented
- Fully insert and lock connectors on both ends
- Designed for short-distance cabinet integration (1 m)
- No field termination required (factory pre-assembled cable)
Compatible Components
The 900RTC-L010 typically works with:
- Honeywell HC900 I/O racks (900R series)
- Remote Terminal Panels (900RTA / 900RTR / 900RTS)
- HC900 analog input/output modules
- Digital I/O modules
- Relay output modules
- Power supply modules (900P series)
- HC900 CPU modules (C50 / C70 / C75 series)
- Industrial control cabinet systems
Together, these components form a modular and scalable HC900 field wiring architecture.
Recommended Alternative Models
| Model | Length | Type | Application |
|---|---|---|---|
| 900RTC-H010 | 1 m | High-voltage cable | Noise-heavy environments |
| 900RTC-H025 | 2.5 m | High-voltage cable | Medium cabinet spacing |
| 900RTC-H050 | 5 m | High-voltage cable | Larger layouts |
| 900RTC-L010 | 1 m | Low/standard version | Compact cabinets |
| Custom HC900 Cables | Variable | System-specific | Large-scale projects |
Advantages
- Ideal for compact control cabinet installations
- Factory-terminated for error-free connection
- Reduces installation time significantly
- High EMI resistance for industrial environments
- Stable signal transmission over short distances
- Simplifies system wiring architecture
- Compatible with full HC900 RTP ecosystem
- Improves maintenance efficiency and system organization
FAQs
Q1: What is the main function of the 900RTC-L010 cable?
It connects HC900 RTP panels to I/O racks for signal transmission.
Q2: What is its length?
It is a 1-meter cable designed for short-distance cabinet use.
Q3: Does it require field wiring?
No, it is factory pre-terminated.
Q4: Where is it used?
Inside industrial control cabinets in HC900 systems.
Q5: Why choose the 1m version?
It is ideal for compact layouts with minimal distance between modules.
Conclusion
The Honeywell 900RTC-L010 Remote Terminal Cable is a key interconnect component in HC900 distributed control systems. Its compact 1-meter design, factory-terminated connectors, and EMI-shielded construction make it ideal for high-reliability short-distance cabinet installations, ensuring stable and efficient industrial signal transmission.
