Product Overview

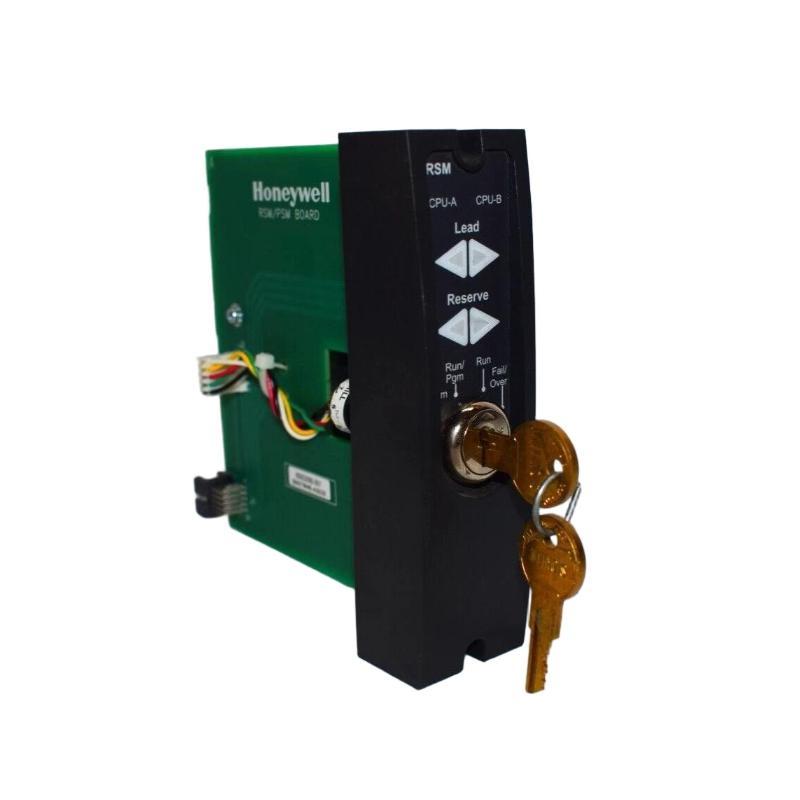

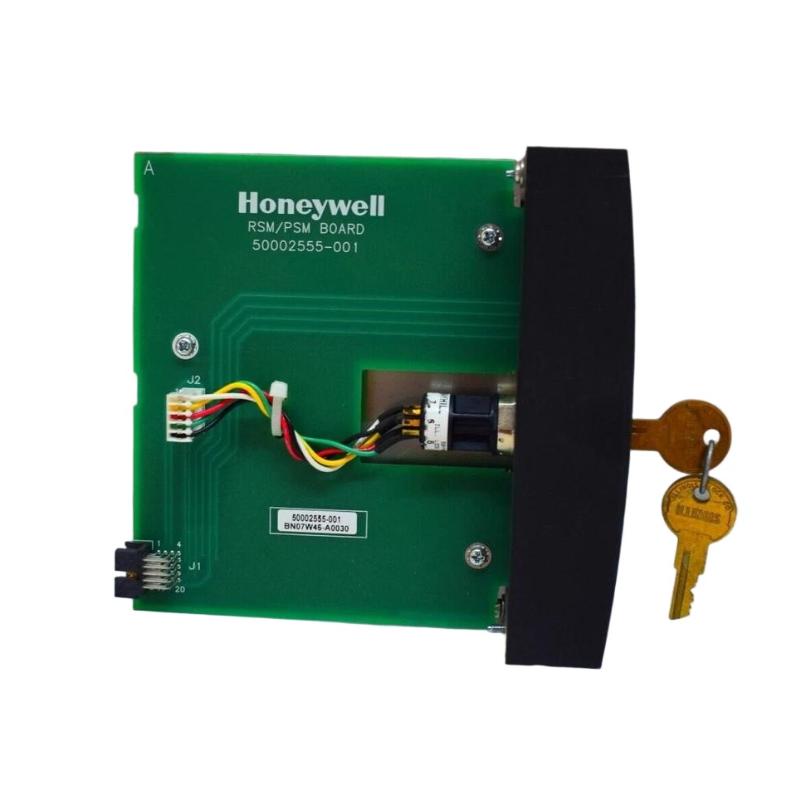

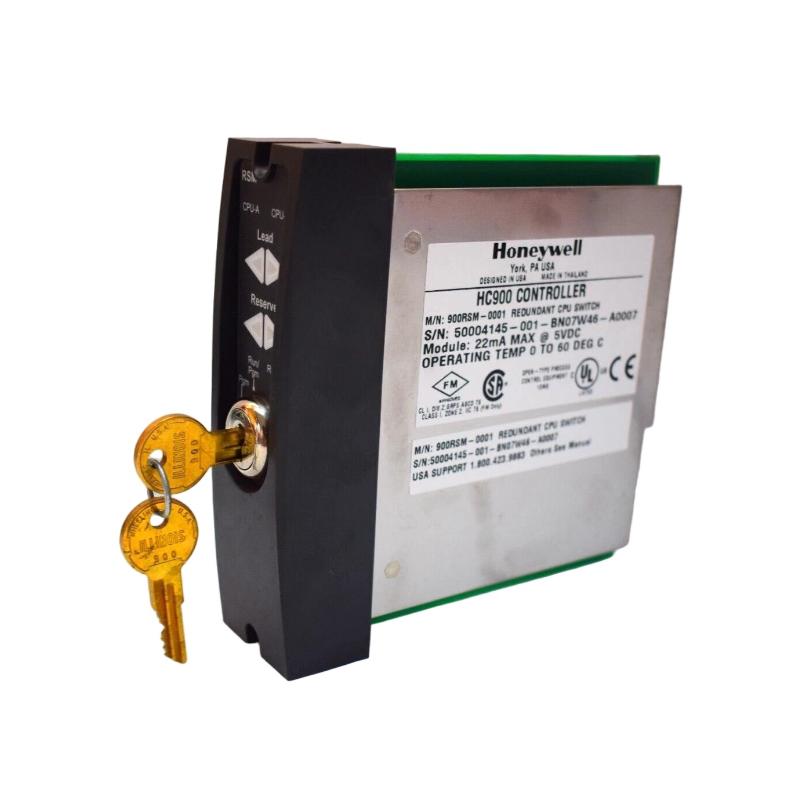

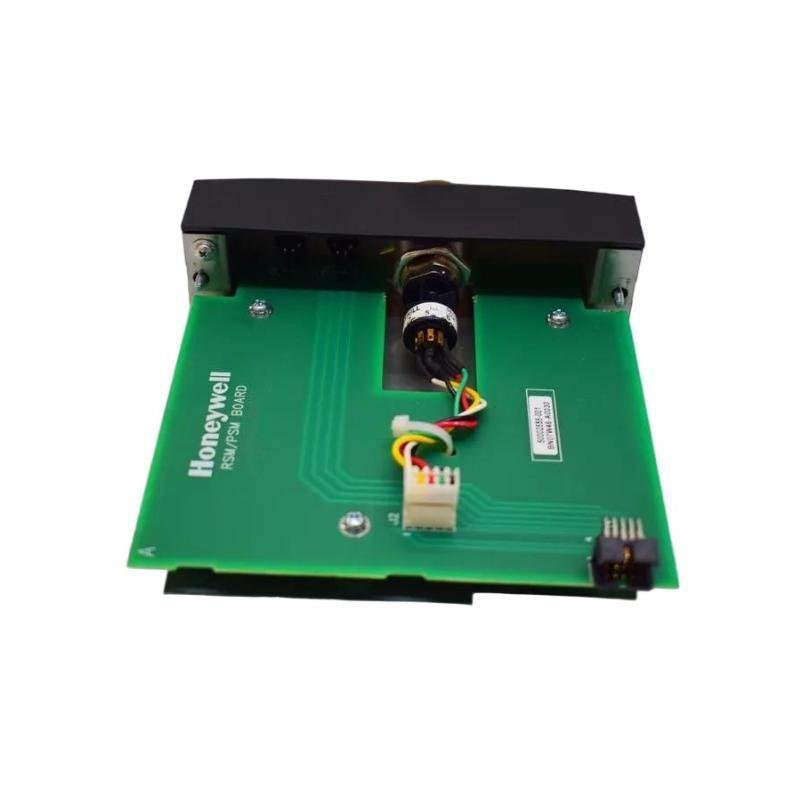

The Honeywell 900RSM-0001 HC900 Redundant CPU Switching Module (RSM) is an industrial system coordination module used in the ControlEdge HC900 redundant controller architecture.
It is designed to manage and coordinate automatic switching between primary and backup CPUs, ensuring uninterrupted operation in mission-critical automation systems. The module is a key component in high-availability HC900 redundant control configurations, where continuous process operation is required even during hardware failure or maintenance events.
It is installed in the controller rack between redundant CPUs, acting as the decision and switching interface.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900RSM-0001 |
| Product Type | Redundant CPU Switching Module (RSM) |
| System Series | ControlEdge HC900 |
| Function | CPU redundancy coordination and switching |
| Supported CPUs | Dual HC900 redundant controller CPUs |
| Switching Mode | Automatic + manual override |
| Synchronization | CPU state synchronization support |
| Status Indication | LED indicators for active/standby status |
| Key Switch | Mode selection and manual control (system dependent) |
| Power Load | Low-power backplane module (5V logic supply) |
| Installation Type | Rack-mounted module |
| Operating Environment | Industrial automation systems |
| Operating Temperature | Industrial standard range (typical -20°C to +60°C) |
| Dimensions | 56 × 107 × 91 mm |
| Weight | 0.52 kg |
Function and Working Principle
The 900RSM-0001 functions as the control and arbitration layer between two redundant HC900 CPUs.
It is responsible for:
- Coordinating primary and standby CPU roles
- Managing automatic failover during CPU fault conditions
- Maintaining synchronization status between redundant controllers
- Providing manual switching capability for maintenance or testing
- Indicating system status through LED diagnostics
- Ensuring safe and controlled transition between CPUs
When the active CPU fails or is taken offline, the module triggers a seamless switch to the standby CPU to maintain continuous process operation.
System Role in Architecture
The Honeywell 900RSM-0001 plays a critical redundancy management role in HC900 systems.
It is typically used for:
- Redundant controller CPU pairs
- High-availability process control systems
- Critical industrial automation applications
- Systems requiring zero or minimal downtime
- Large-scale distributed control architectures
It acts as the central switching and coordination mechanism for redundant CPUs.
Industrial Applications
- Oil and gas production systems
- Petrochemical and refinery control systems
- Power generation plants
- Water and wastewater treatment facilities
- Chemical process industries
- Continuous manufacturing systems
- Safety-critical industrial automation systems
Installation & Integration
Proper installation ensures reliable redundancy operation:
- Installed directly in HC900 redundant controller rack
- Positioned between dual CPU modules
- Connected via system backplane
- Requires correct redundancy configuration in system software
- Used in combination with redundant power supplies and I/O networks
- Commissioned using Honeywell HC900 engineering tools
Compatible Components
- Honeywell HC900 CPU modules (C70 / C75 redundant systems)
- HC900 I/O modules and racks
- Redundant power supply modules (e.g., 900P series)
- I/O scanning modules
- Communication interface modules
- HC900 system backplane architecture
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| 900RSM-0100 | Alternative revision | Updated redundancy switching module |
| 900C75R CPU systems | Integrated redundancy CPUs | Higher-level redundancy architecture |
| DCS redundant controllers | Modern systems | Integrated failover platforms |
| PLC redundancy modules | Generic alternative | Multi-vendor automation systems |
| Virtualized redundancy systems | Software-based control | Advanced modern architectures |
Key Advantages
- Ensures seamless CPU failover in redundant systems
- Increases system availability and reliability
- Supports manual and automatic switching modes
- Provides clear system status indication
- Designed for mission-critical industrial environments
- Works with full HC900 redundancy architecture
- Minimizes downtime in process operations
FAQs
Q1: What is the main function of this module?
It manages switching between redundant HC900 CPUs.
Q2: Does it perform control logic?
No, it only manages CPU redundancy and switching.
Q3: What happens if a CPU fails?
It automatically switches control to the standby CPU.
Q4: Where is it used?
In HC900 redundant controller rack systems.
Q5: Why is it important?
It ensures continuous operation in critical industrial systems.
Conclusion
The Honeywell 900RSM-0001 Redundant CPU Switching Module is a vital component in HC900 high-availability systems. It ensures uninterrupted industrial control by managing seamless failover between redundant CPUs, making it essential for mission-critical process automation environments.
