Product Overview

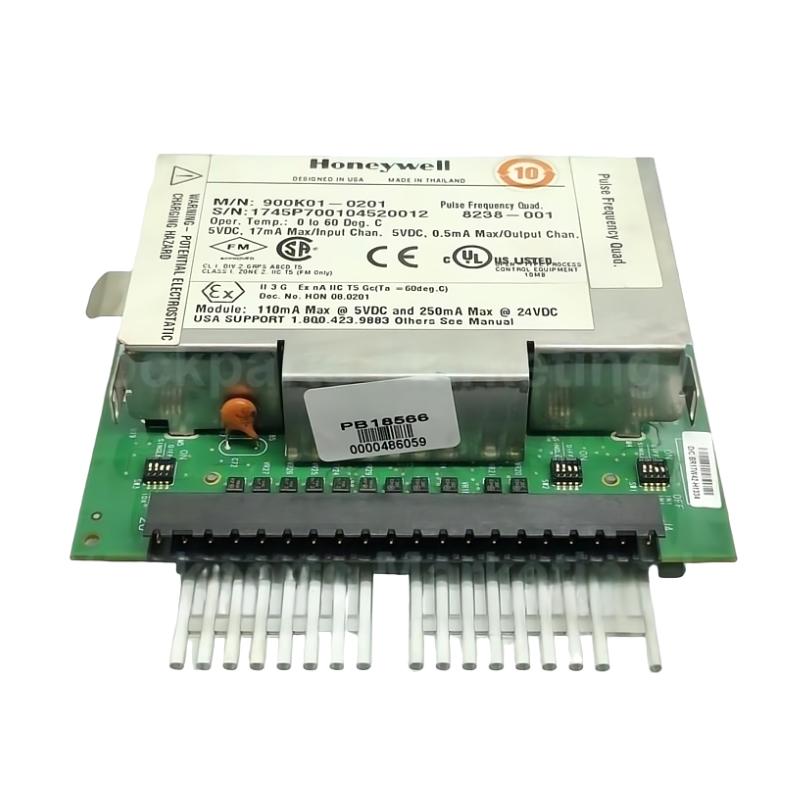

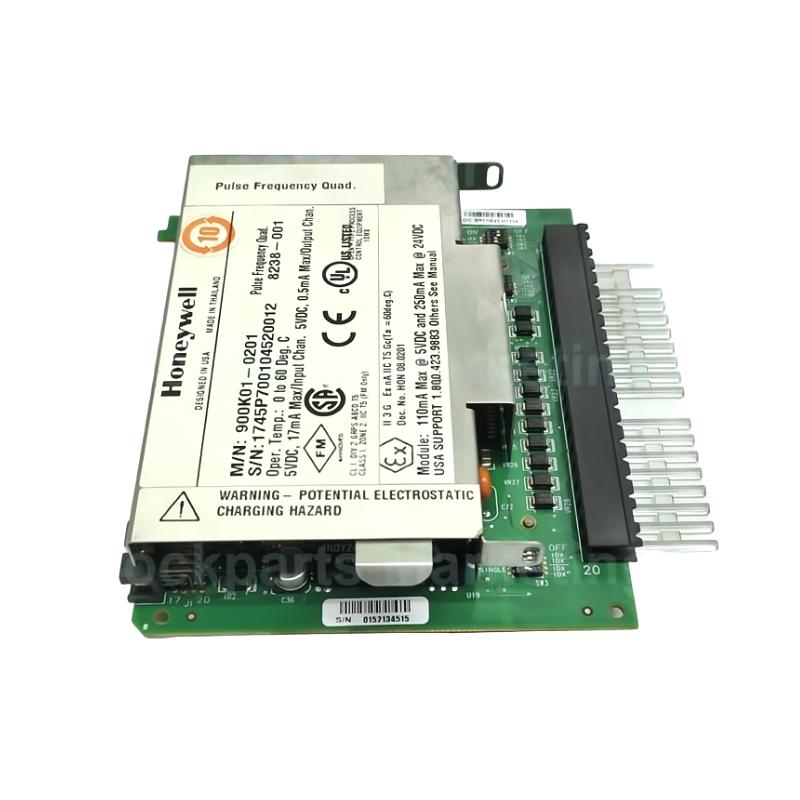

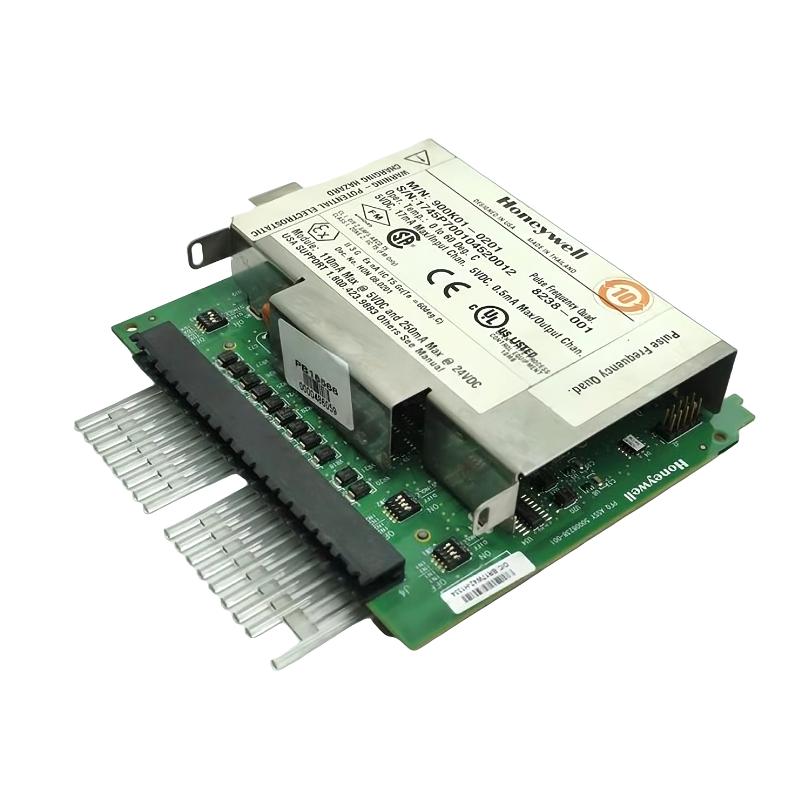

The Honeywell 900K01-0201 HC900 4-Channel Pulse/Frequency/Quadrature Module is a high-speed industrial input/output module designed for the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It provides flexible signal processing capability for pulse input, frequency measurement, quadrature encoder feedback, and pulse output functions. Each channel can be independently configured, making it suitable for applications involving flow metering, speed measurement, position tracking, and motion control systems.
This module is widely used in industrial automation environments where high-speed signal acquisition and accurate counting performance are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900K01-0201 |
| Product Type | Pulse / Frequency / Quadrature Module |
| Control System | Honeywell ControlEdge HC900 |
| Number of Channels | 4 channels |
| Channel Functions | Pulse input, frequency input, quadrature input, pulse output |
| Input Voltage Range | 0 – 24 VDC |
| ON Voltage Level | ≥ 3.0 VDC |
| OFF Voltage Level | ≤ 1.0 VDC |
| Input Impedance | ~25 kΩ |
| Frequency Range | 10 Hz to 100 kHz |
| Pulse Input Max Frequency | Up to 10 kHz |
| Quadrature Input Type | A/B phase + index (channels 1–2 support quadrature) |
| Counter Resolution | 32-bit high-speed counter |
| Pulse Output Type | Open collector (5–24 VDC) |
| Output Current | Up to 30 mA per channel |
| Minimum Pulse Width | ~2.5 – 3 µs (depending on mode) |
| Duty Cycle | 50% (pulse output mode) |
| Isolation | Channel-to-channel and logic isolation |
| Diagnostics | Green (scan), Amber (forced), Red (fault) LED indicators |
| Backplane Power | 5 V DC via HC900 rack |
| Power Consumption | ~110 mA @ 5 V DC (typical) |
| Dimensions | 137 × 35.6 × 137.16 mm |
| Weight | 0.36 kg |
| Mounting Type | HC900 rack-mounted module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Function and Working Principle
The 900K01-0201 module operates as a high-speed signal acquisition and generation interface within HC900 control systems.
Working principle:
- Signal Acquisition
Receives pulse or frequency signals from field devices such as flow meters, encoders, or tachometers. - High-Speed Counting
Uses internal hardware counters to accurately capture fast pulse trains without relying on PLC scan cycles. - Signal Processing Modes
Supports multiple operating modes:- Pulse counting
- Frequency measurement
- Quadrature decoding (position and direction)
- Pulse output generation
- Quadrature Decoding
Processes A/B phase signals to determine speed and direction of rotation. - Data Transfer to Controller
Sends processed values to the HC900 CPU via system backplane. - Output Functionality
Can generate controlled pulse trains for external devices when configured as output.
Role in System Architecture
The 900K01-0201 module acts as a specialized high-speed signal interface layer in HC900 systems.
It is responsible for:
- Capturing high-frequency industrial signals
- Providing accurate flow and speed measurement data
- Supporting encoder-based position tracking
- Offloading high-speed counting from the main CPU
- Enabling motion-related control functions in DCS environments
In system architecture, it functions as the bridge between fast physical signals and deterministic control logic execution.
Industrial Applications
The Honeywell 900K01-0201 is widely used in:
- Flow measurement and totalization systems
- Rotational speed monitoring (tachometers)
- Rotary encoder position feedback systems
- Conveyor belt speed tracking
- Pump and turbine monitoring systems
- Packaging and bottling automation lines
- Chemical dosing and batching systems
- Industrial motion and process control systems
It is especially suitable for high-speed counting applications where standard digital inputs are not sufficient.
Installation & Integration
Proper installation ensures signal accuracy and system stability.
- Installed in Honeywell HC900 I/O rack chassis
- Connected via system backplane to CPU module
- Shielded cable recommended for encoder and pulse signals
- Quadrature signals must use correct channel pairing (CH1–CH2)
- Differential wiring may be required for noise immunity
- Proper grounding is critical for high-frequency stability
- Configuration performed using HC900 engineering tools
Compatible Components
The 900K01-0201 module typically works with:
- Honeywell HC900 CPU modules (C50 / C70 / C75 series)
- Flow meters with pulse output
- Rotary and linear encoders
- Tachometer sensors
- Proximity switches
- SCADA systems
- Industrial HMIs
- Motion control and monitoring systems
Together, these components form a high-speed data acquisition subsystem within a distributed control architecture.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900K01-0200 | Pulse Module | Basic pulse input | Standard counting |
| 900K01-0101 | Frequency module | Lower channel variant | Simple monitoring |
| 900G32-0102 | Digital input module | Standard DI signals | Discrete control |
| High-speed counter modules | Platform | Dedicated HSC solution | Advanced motion control |
| Encoder interface modules | Alternative | Motion-specific design | Robotics & positioning |
Advantages
- Supports pulse, frequency, quadrature, and output functions
- High-speed 32-bit counter architecture
- Accurate encoder position and direction detection
- Flexible multi-mode channel configuration
- Strong industrial noise immunity design
- Integrated diagnostics with LED indicators
- Eliminates need for external high-speed counter modules in many cases
- Suitable for precision measurement applications
FAQs
Q1: What is the main function of the 900K01-0201 module?
It measures and processes high-speed pulse, frequency, and encoder signals.
Q2: Can it read quadrature encoders?
Yes, channels 1 and 2 support quadrature A/B + index input.
Q3: What is the maximum frequency it can handle?
Up to 100 kHz depending on operating mode.
Q4: Can it output pulses as well?
Yes, it supports configurable pulse output mode.
Q5: What industries use this module?
It is widely used in flow measurement, motion control, packaging, and process automation.
Conclusion
The Honeywell 900K01-0201 HC900 Pulse/Frequency/Quadrature Module is a versatile high-speed signal processing component designed for advanced industrial automation systems. Its ability to handle multiple signal types makes it essential for applications involving accurate measurement, motion tracking, and high-frequency data acquisition.
With strong performance, flexible configuration, and robust industrial design, it is a key module in modern distributed control systems requiring precision and reliability.
