Product Overview

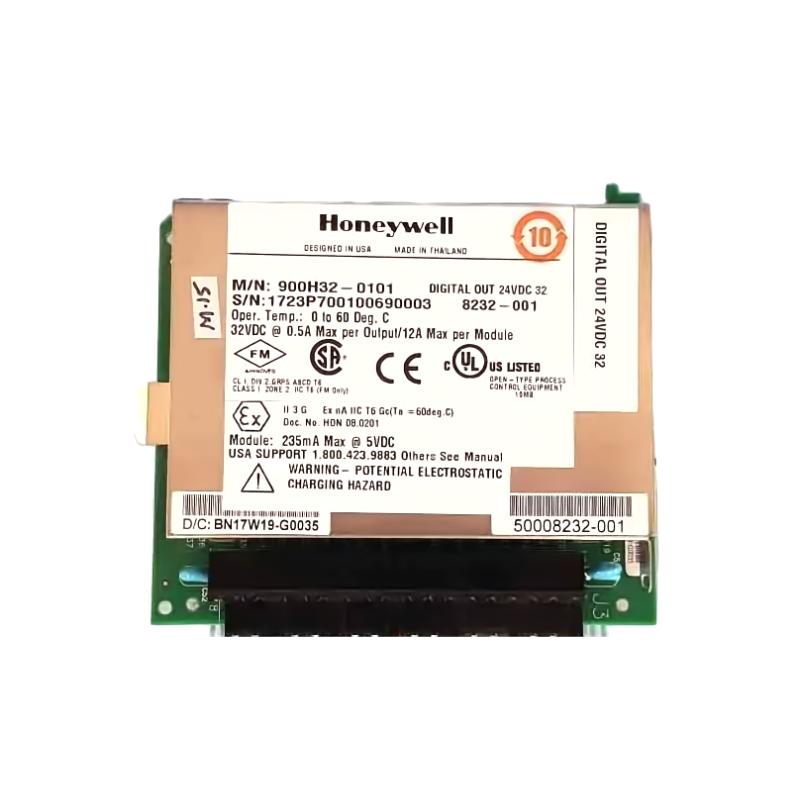

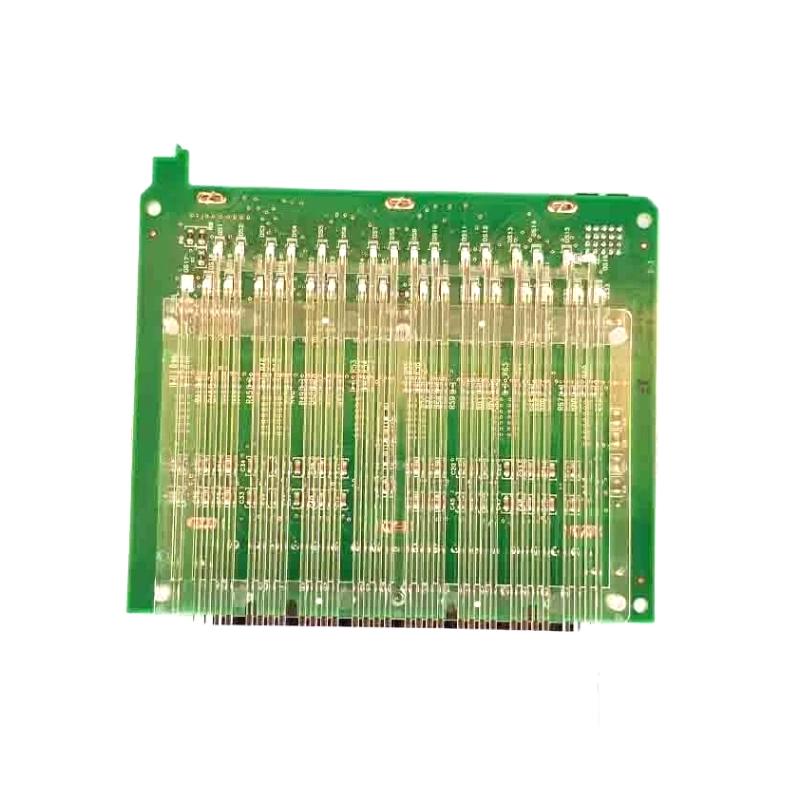

The Honeywell 900H32-0101 Digital Output Module is an industrial 32-channel 24 VDC digital output module used in the ControlEdge HC900 automation system.
It is designed to convert controller commands into on/off electrical signals for driving field devices such as relays, solenoids, indicators, and actuators. It is commonly applied in process control, manufacturing automation, and power systems where reliable discrete output control is required.
The module belongs to the HC900 Series I/O family and is optimized for high-density output applications with electrical isolation and fast switching performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900H32-0101 |
| Product Type | Digital Output Module |
| System Series | ControlEdge HC900 |
| Output Type | 24 VDC sourcing digital output |
| Output Channels | 32 channels |
| Channel Grouping | 2 groups of 16 channels |
| Output Current | Up to ~0.5 A per channel (typical industrial rating) |
| Total Module Load | Group-limited / module-limited (system dependent) |
| Isolation | Galvanic isolation by channel group |
| Switching Type | Solid-state electronic switching |
| Response Time | Fast ON/OFF switching (millisecond range) |
| Control Interface | Backplane communication with HC900 controller |
| Power Supply | 24 VDC system supply |
| Installation Type | Rack-mounted I/O module |
| Operating Environment | Industrial automation systems |
| Dimensions | 137 × 35.6 × 137.16 mm |
| Weight | 0.18 kg |
Function and Working Principle
The 900H32-0101 module functions as a digital signal execution interface between the HC900 controller and field devices.
It is responsible for:
- Receiving output commands from the HC900 CPU
- Converting logic signals into 24 VDC switching outputs
- Driving external industrial devices (relays, lamps, actuators)
- Providing electrical isolation between controller and field wiring
- Ensuring stable and reliable ON/OFF control in real time
Each channel corresponds to a dedicated discrete output point in the control system.
System Role in Architecture
The Honeywell 900H32-0101 plays a field-level execution role in industrial automation systems.
It is typically used for:
- Relay and solenoid control
- Alarm and indicator output systems
- Machine interlocking logic execution
- Motor start/stop control circuits
- Sequence control in process automation
It does not perform logic processing but executes commands from the central controller.
Industrial Applications
- Oil and gas production facilities
- Petrochemical and refining plants
- Power generation systems
- Chemical processing industries
- Water and wastewater treatment systems
- Industrial manufacturing automation
- HVAC and utility control systems
Installation & Integration
Proper installation ensures safe and stable operation:
- Installed in Honeywell HC900 control racks
- Connected via system backplane interface
- Requires regulated 24 VDC power supply
- Mounted inside industrial control cabinets
- Wired to field devices via terminal connections
- Commissioned using HC900 engineering tools
Compatible Components
- Honeywell HC900 CPU modules (C50, C70, C75 series)
- Digital input modules (DI counterparts)
- Analog I/O modules
- Field relays, solenoids, and actuators
- Industrial power supply modules
- Rack and backplane systems
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| 900H32-0102 | Updated revision | Same output function |
| 900H01-0202 | Relay output module | Isolated switching alternative |
| PLC digital output modules | Generic replacement | Modern control systems |
| Remote I/O DO modules | Distributed architecture | Network-based systems |
| Safety-rated DO modules | High-integrity systems | Critical applications |
Key Advantages
- High-density 32-channel output capability
- Fast and reliable ON/OFF switching
- Strong electrical isolation design
- Compact rack-mounted structure
- Compatible with HC900 architecture
- Suitable for continuous industrial operation
- Stable performance in harsh environments
FAQs
Q1: What is the main function of this module?
It provides digital ON/OFF outputs to control field devices.
Q2: Does it control devices directly?
It outputs signals; actual devices are driven via relays or actuators.
Q3: What systems use it?
Honeywell ControlEdge HC900 automation systems.
Q4: Is it analog or digital?
It is a digital output module.
Q5: Why is it important?
It enables physical control of industrial equipment from the control system.
Conclusion
The Honeywell 900H32-0101 Digital Output Module is a key execution component in HC900 automation systems, providing reliable, high-density digital switching for industrial control applications. It ensures stable and precise control of field devices across demanding process environments.
