Product Overview

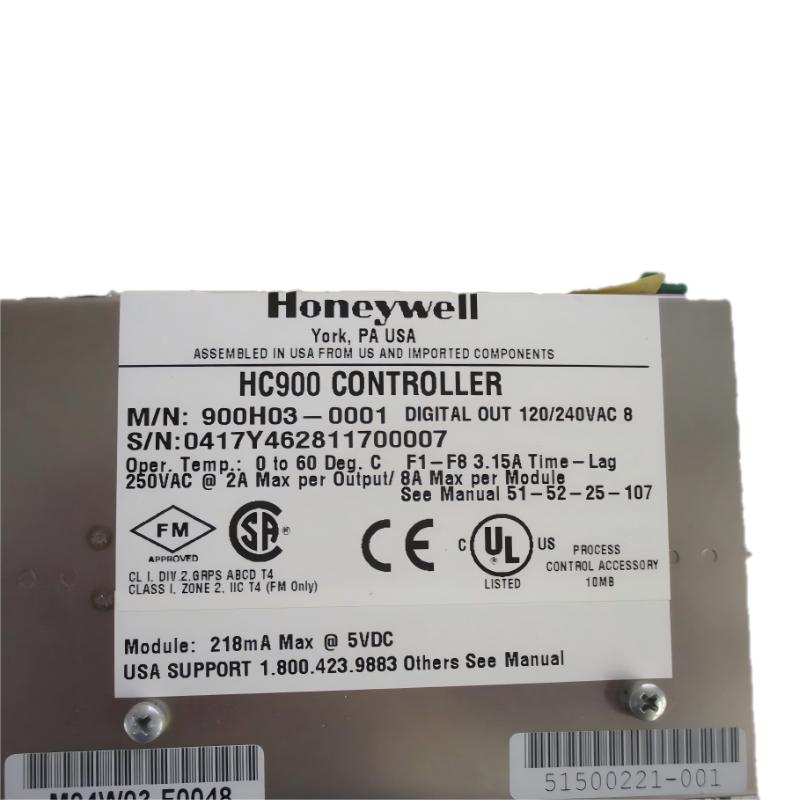

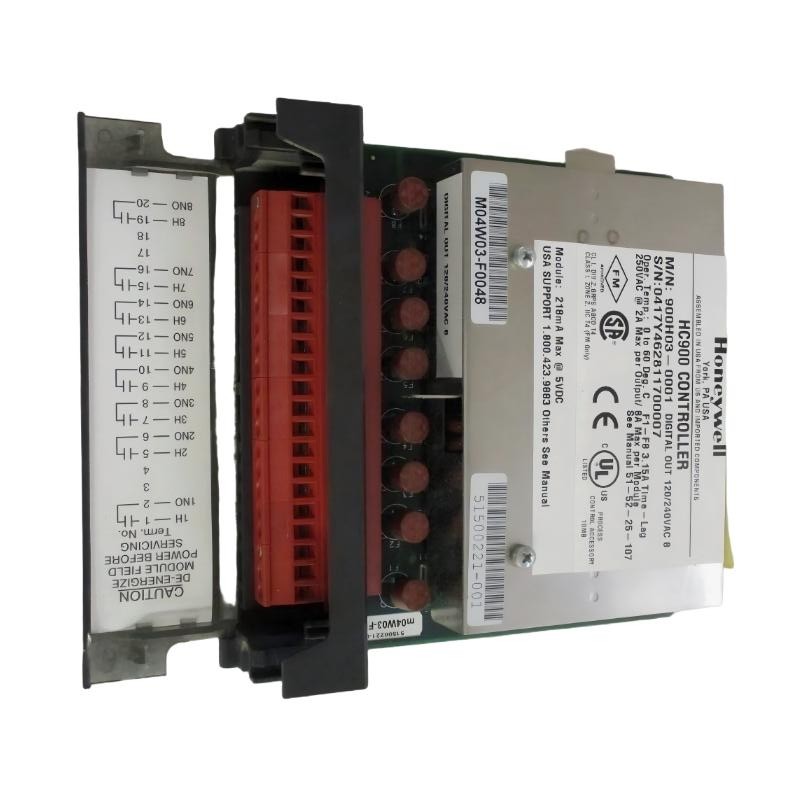

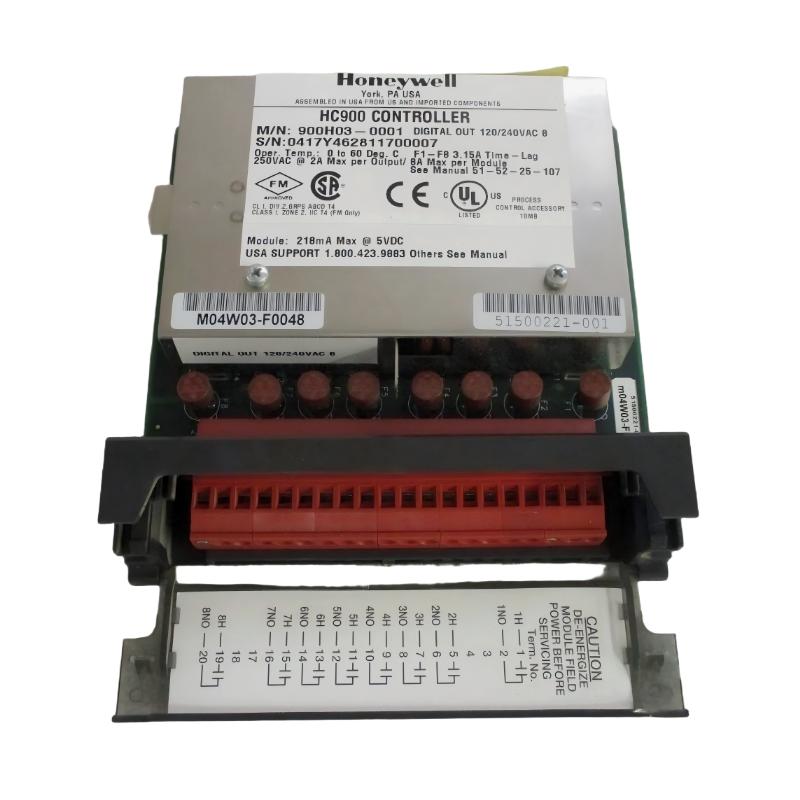

The Honeywell 900H03-001 HC900 Digital Output Module is an industrial-grade 8-channel AC/DC digital output module used in the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It is designed to provide reliable electrical switching control for external field devices, such as solenoids, motor starters, alarms, relays, and industrial actuators. The module executes control commands received from the HC900 CPU and converts them into high-power switching outputs suitable for industrial automation environments.
Based on HC900 system architecture, this module is typically used where medium-to-high load switching with strong electrical isolation and diagnostics is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900H03-001 |
| Product Type | Digital Output Module (AC/DC Industrial Type) |
| Control System | Honeywell ControlEdge HC900 |
| Output Channels | 8 channels |
| Output Type | AC/DC switching output (solid-state triac-based) |
| Rated Voltage | 85–240 VAC (industrial load switching) |
| Load Current | Up to 2 A per channel (resistive load) |
| Maximum Module Load | Up to 8 A total |
| Switching Type | Zero-cross triac switching |
| Isolation | Channel-to-channel and logic isolation |
| Protection | MOV surge protection + fuse protection per channel |
| Inrush Current | Up to 15 A (short duration) |
| Response Time | ≤ 3 ms + half AC cycle |
| Leakage Current | ≤ 4 mA @ 240 VAC |
| Status Indicators | LED per channel + module status LED |
| Diagnostics | Overload, short-circuit, and forced output detection |
| Backplane Power | 5 V DC via HC900 rack |
| Power Consumption | ~220 mA @ 5 V DC |
| Communication | HC900 system backplane |
| Dimensions | 125 × 105 × 40 mm |
| Weight | 0.5 kg |
| Mounting Type | HC900 rack-mounted module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Function and Working Principle
The 900H03-001 module operates as a high-reliability output switching interface between HC900 control logic and field devices.
Working principle:
- Control Command Reception
Receives ON/OFF commands from the HC900 CPU via system backplane. - Signal Processing
Converts logic-level signals into AC/DC switching control signals. - Triac Switching Operation
Uses zero-cross solid-state switching to reduce electrical stress and noise. - Load Driving
Controls external devices such as motors, valves, alarms, and relays. - Protection Mechanisms
Built-in MOV and fuse protection ensure safe operation under surge or fault conditions. - System Diagnostics
Continuously monitors channel status, faults, and forced output conditions.
Role in System Architecture
The 900H03-001 module serves as the final execution layer in HC900 automation output systems.
It is responsible for:
- Converting digital control logic into high-voltage switching actions
- Driving industrial AC/DC loads safely and reliably
- Providing electrical isolation between control and field circuits
- Supporting distributed I/O output expansion
- Ensuring stable execution of automation commands
Within industrial automation systems, it functions as the physical interface between controller logic and real-world electrical equipment.
Industrial Applications
The Honeywell 900H03-001 is widely used in:
- Oil and gas production facilities
- Petrochemical processing plants
- Power generation control systems
- Water and wastewater treatment plants
- Industrial manufacturing automation lines
- HVAC and building automation systems
- Motor control and pump systems
- Alarm and safety signaling systems
It is designed for continuous industrial operation requiring reliable high-voltage switching performance.
Installation & Integration
Proper installation ensures safety and switching reliability.
- Installed in Honeywell HC900 I/O rack chassis
- Connected via system backplane to CPU module
- External AC/DC loads wired to output terminals
- Proper load sizing must be observed per channel
- Inductive loads require external snubber circuits for protection
- Ensure correct grounding and EMI shielding
- Replacement must be performed with system power isolated
Compatible Components
The 900H03-001 module typically works with:
- Honeywell HC900 CPU modules (C50 / C70 / C75 series)
- Digital input modules (DI modules)
- Analog I/O modules
- Relay interposing contactors
- Solenoids and industrial actuators
- Motor starters and contactors
- Alarm and signaling systems
- SCADA and HMI systems
Together, these components form a complete distributed industrial control output system.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900H01-0202 | Relay Output Module | Electromechanical relay switching | Heavy-duty loads |
| 900H02-0200 | Digital Output Module | Fast solid-state DC output | High-speed control |
| 900H03-0001 | Output Module Variant | Alternative revision | System replacement |
| HC900 Output Series | Platform | Modular expansion system | Large-scale automation |
| External Industrial Relays | Alternative | High-current switching | Retrofit applications |
Advantages
- High-voltage AC/DC output switching capability
- Zero-cross triac technology reduces electrical stress
- Strong isolation between logic and field circuits
- Built-in surge and overload protection
- Fast response time for real-time control systems
- Clear LED-based diagnostics per channel
- Reliable performance in harsh industrial environments
- Easy integration into HC900 architecture
FAQs
Q1: What is the main function of the 900H03-001 module?
It provides AC/DC digital output switching for industrial control devices.
Q2: How many channels does it have?
It has 8 output channels.
Q3: What type of loads can it control?
It can control motors, solenoids, relays, alarms, and industrial actuators.
Q4: Is it isolated?
Yes, it provides channel and system-level electrical isolation.
Q5: What makes it different from DC output modules?
It supports AC high-voltage switching using triac-based technology.
Conclusion
The Honeywell 900H03-001 HC900 Digital Output Module is a robust industrial switching solution designed for high-voltage AC/DC load control. Its triac-based design, strong protection features, and reliable isolation make it ideal for demanding industrial automation environments.
It plays a critical role in executing control commands safely and efficiently across HC900 distributed control systems.
