Product Overview

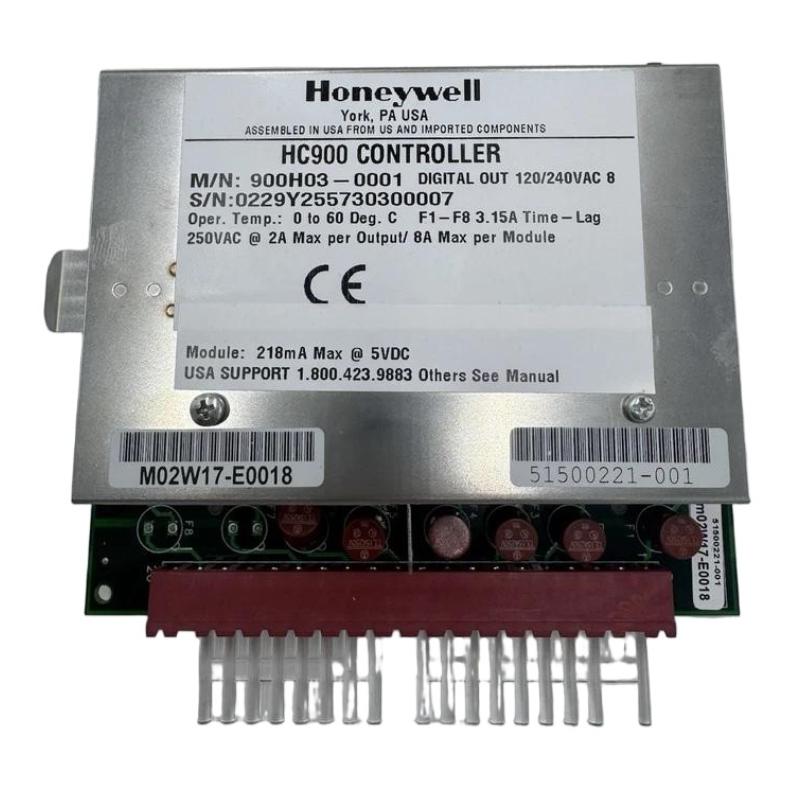

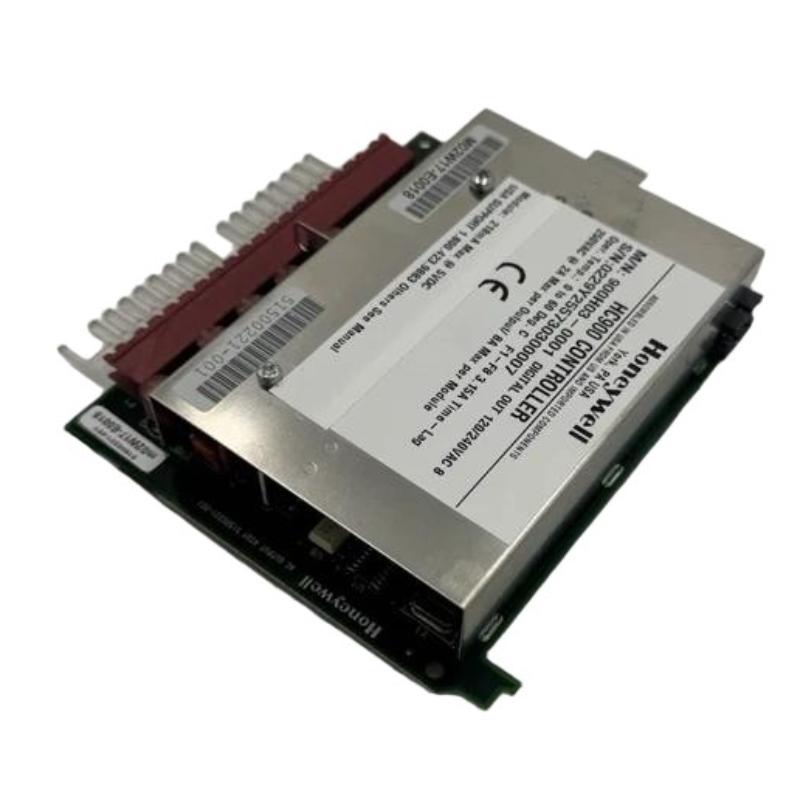

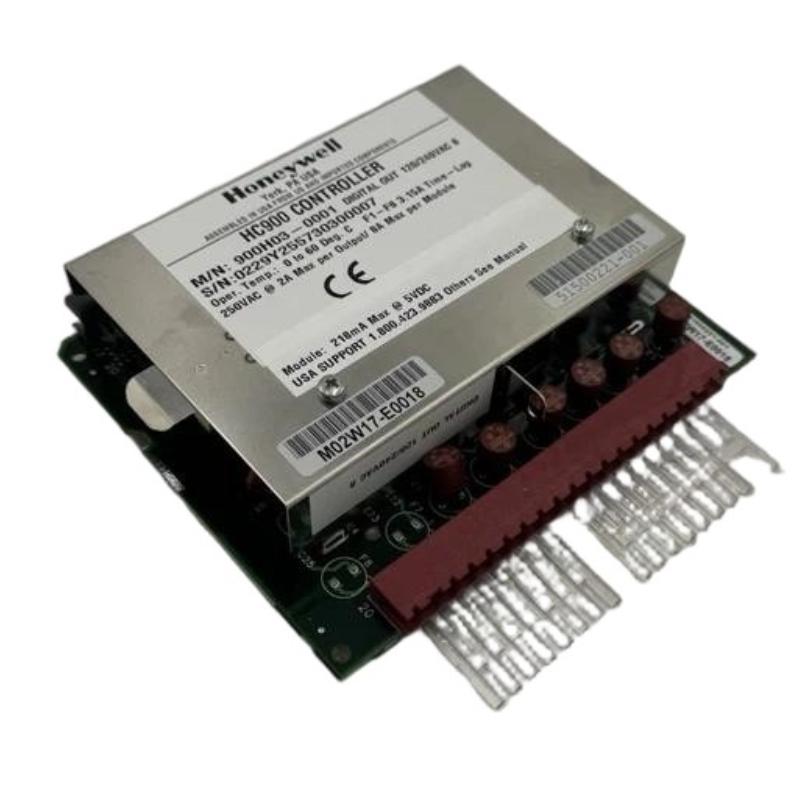

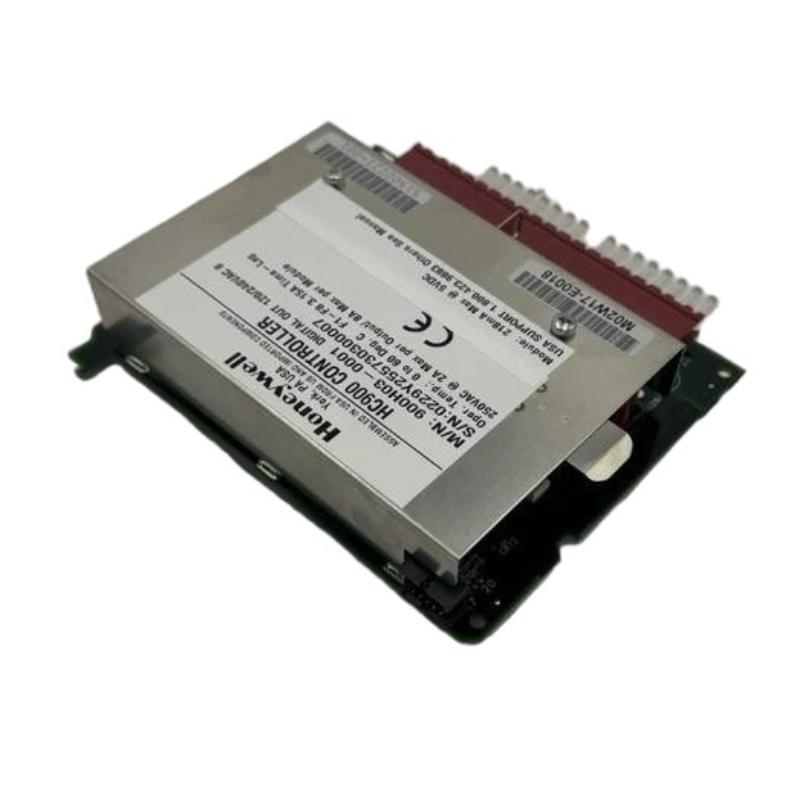

The Honeywell 900H03-0001 HC900 Output Module is a compact industrial digital output module used in the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It is designed to provide reliable discrete ON/OFF control signals for external field devices such as solenoids, relays, alarms, motor starters, indicator lamps, and other industrial actuators.
The module translates control commands from the HC900 CPU into physical electrical switching actions, making it a key component in process automation and industrial control execution layers.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900H03-0001 |
| Product Type | Digital Output Module |
| Control System | Honeywell ControlEdge HC900 |
| Output Channels | 8 channels (typical configuration) |
| Output Type | Digital switching output |
| Output Voltage | 24 VDC control logic / external load dependent |
| Load Type | Relay/solid-state driven field devices |
| Output Current | Up to ~0.5 A per channel (system dependent) |
| Isolation | Channel-to-system galvanic isolation |
| Switching Type | Sinking/sourcing configuration (system dependent) |
| Response Time | Fast industrial-grade switching (<10 ms typical) |
| Status Indicators | LED per channel + module status LED |
| Fault Detection | Channel diagnostics and forced output indication |
| Communication | HC900 system backplane |
| Power Supply | 5 V DC backplane power |
| Power Consumption | Low-power embedded module design |
| Dimensions | 133 × 125 × 40 mm |
| Weight | 0.15 kg |
| Mounting Type | HC900 rack-mounted I/O module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Function and Working Principle
The 900H03-0001 module operates as the final execution layer of digital control signals within HC900 systems.
Working principle:
- Control Signal Reception
Receives ON/OFF commands from the HC900 CPU via system backplane. - Output Signal Processing
Converts logic-level commands into electrical switching outputs. - Field Device Activation
Drives external devices such as relays, alarms, and solenoids. - Electrical Isolation
Separates control logic circuits from field power circuits for safety. - Status Feedback Monitoring
LED indicators show real-time channel and module status. - Fault Handling
Detects abnormal load conditions, forced states, and channel failures.
Role in System Architecture
The 900H03-0001 module serves as the output execution interface layer in HC900 automation systems.
It is responsible for:
- Converting control logic into physical switching actions
- Driving industrial actuators and signaling devices
- Providing isolated output control for field equipment
- Supporting distributed control system output expansion
- Ensuring reliable execution of automation commands
Within industrial automation architecture, it functions as the bridge between digital control logic and physical industrial actions.
Industrial Applications
The Honeywell 900H03-0001 is widely used in:
- Oil and gas processing systems
- Petrochemical and refinery plants
- Power generation control systems
- Water and wastewater treatment facilities
- Industrial manufacturing automation lines
- HVAC and building automation systems
- Alarm and safety systems
- Conveyor and material handling systems
It is designed for continuous industrial operation requiring reliable discrete output switching.
Installation & Integration
Proper installation ensures safe and stable switching performance.
- Installed in Honeywell HC900 I/O rack chassis
- Connected via system backplane to controller CPU
- External loads wired through output terminals
- Requires correct load sizing per channel
- Inductive loads require external suppression (diodes/snubber circuits)
- Proper grounding required for EMI protection
- Module replacement must be done with system power isolated
Compatible Components
The 900H03-0001 module typically works with:
- Honeywell HC900 CPU modules (C50 / C70 / C75 series)
- Digital input modules (DI modules)
- Analog I/O modules
- Relay interposing contactors
- Solenoids and industrial actuators
- Alarm and signaling devices
- Motor starters and control relays
- SCADA and HMI systems
Together, these components form a complete distributed process control output system.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900H01-0202 | Relay Output Module | Electromechanical relay output | Heavy load switching |
| 900H02-0200 | Digital Output Module | High-speed solid-state output | Fast switching systems |
| 900H03-0002 | Output Module Variant | Updated revision version | System replacement |
| HC900 Output Series | Platform | Modular expansion system | Large automation setups |
| External Industrial Relays | Alternative | High-current switching | Retrofit solutions |
Advantages
- Compact 8-channel output design
- Reliable industrial-grade switching performance
- Strong electrical isolation for safety
- Easy integration into HC900 architecture
- Clear LED diagnostics per channel
- Suitable for continuous 24/7 operation
- Flexible application across multiple industries
- Long lifecycle industrial reliability
FAQs
Q1: What is the main function of the 900H03-0001 module?
It provides digital output switching signals to control industrial devices.
Q2: How many channels does it have?
It typically supports 8 digital output channels.
Q3: What devices can it control?
Relays, solenoids, alarms, motor starters, and indicator lights.
Q4: Is it electrically isolated?
Yes, it provides galvanic isolation for safety and stability.
Q5: What industries use this module?
Oil & gas, petrochemical, power generation, manufacturing, and automation industries.
Conclusion
The Honeywell 900H03-0001 HC900 Output Module is a reliable industrial switching component designed for executing control commands in distributed automation systems. It ensures safe and efficient operation of external devices through electrically isolated digital outputs.
Its robustness, simplicity, and seamless integration into HC900 systems make it a critical component for industrial process control environments requiring stable and continuous operation.
