Product Overview

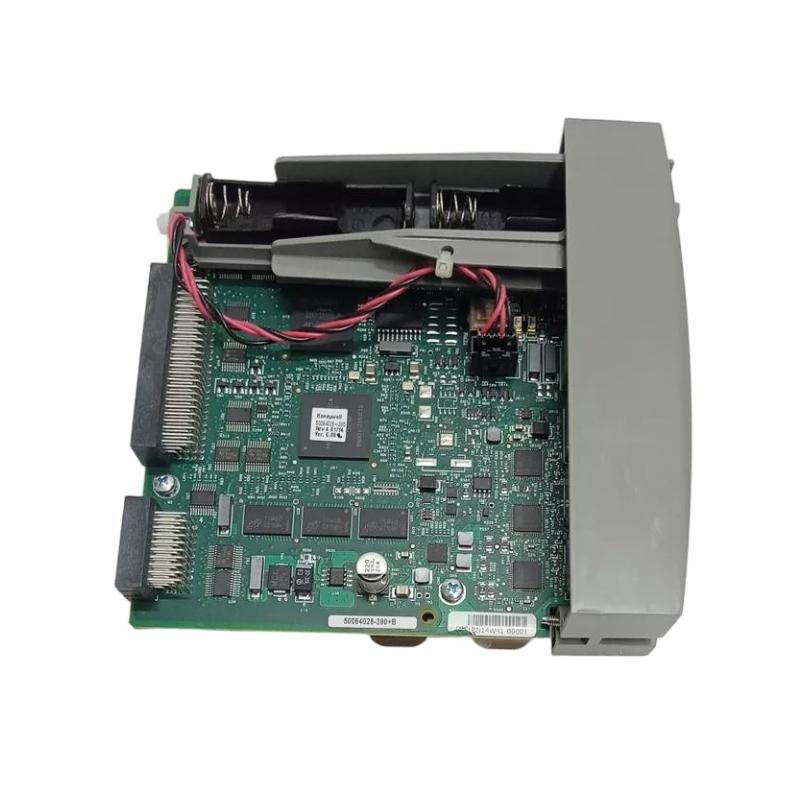

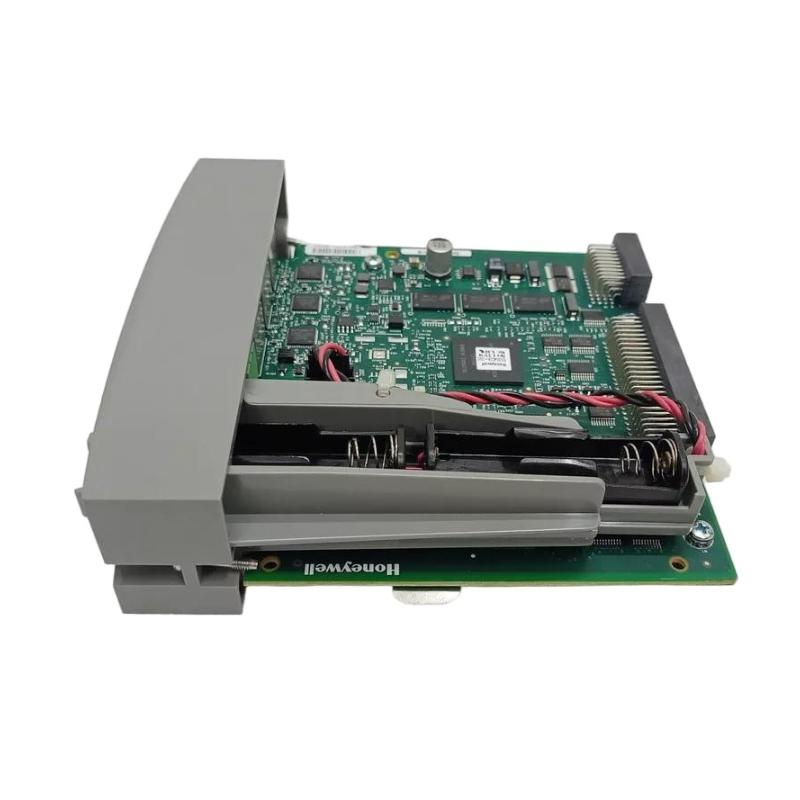

The Honeywell 900C75-0360-00 HC900 C75 Redundant Controller CPU Module is a high-performance central processing unit within the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It belongs to the C75 redundant controller family, which is designed specifically for high-availability industrial automation systems requiring dual-CPU redundancy, failover protection, and continuous process control.
This module provides deterministic real-time control, high-speed communication, and system-level redundancy coordination, making it suitable for mission-critical process industries where downtime is not acceptable.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900C75-0360-00 |
| Product Type | HC900 C75 Redundant Controller CPU Module |
| Control System | Honeywell ControlEdge HC900 |
| Architecture | Redundant dual-CPU distributed control system |
| CPU Type | Industrial PowerPC-based 32-bit controller architecture |
| Memory | 128 MB DDR2 RAM (ECC protected) |
| Function Blocks Capacity | Up to 15000 (C70/C75 platform capability) |
| I/O Capacity | Up to 4600+ I/O points (system dependent) |
| Communication Protocols | Modbus TCP/IP, Modbus RTU, Ethernet |

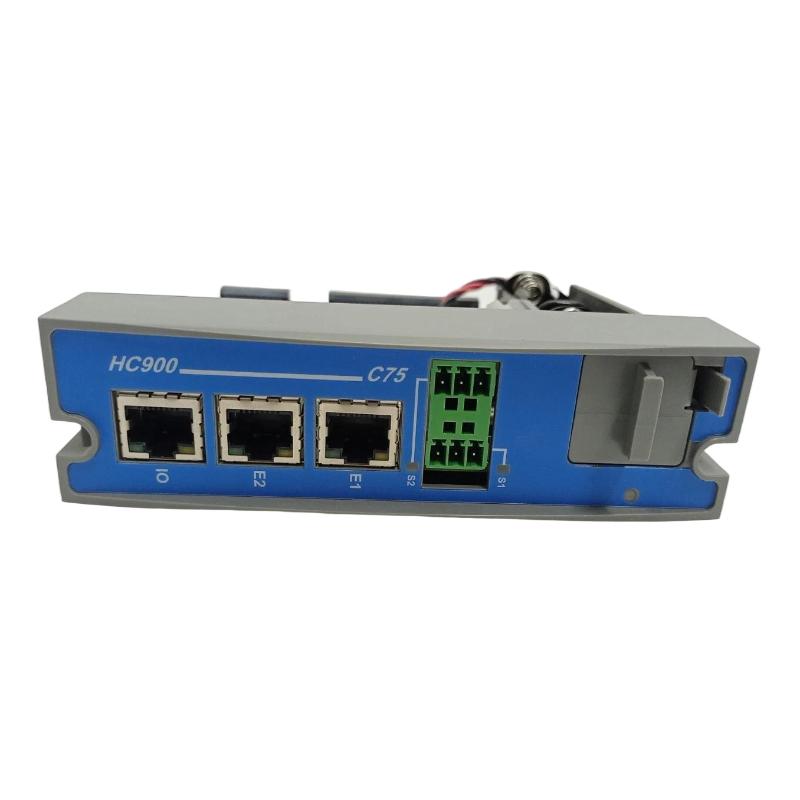

| Network Interface | Dual Ethernet ports (redundant communication support) |
| Redundancy Type | Hot standby dual-controller architecture |
| Synchronization | Scan-cycle real-time CPU synchronization |
| Power Supply | 24 V DC system power (dual supply architecture supported) |

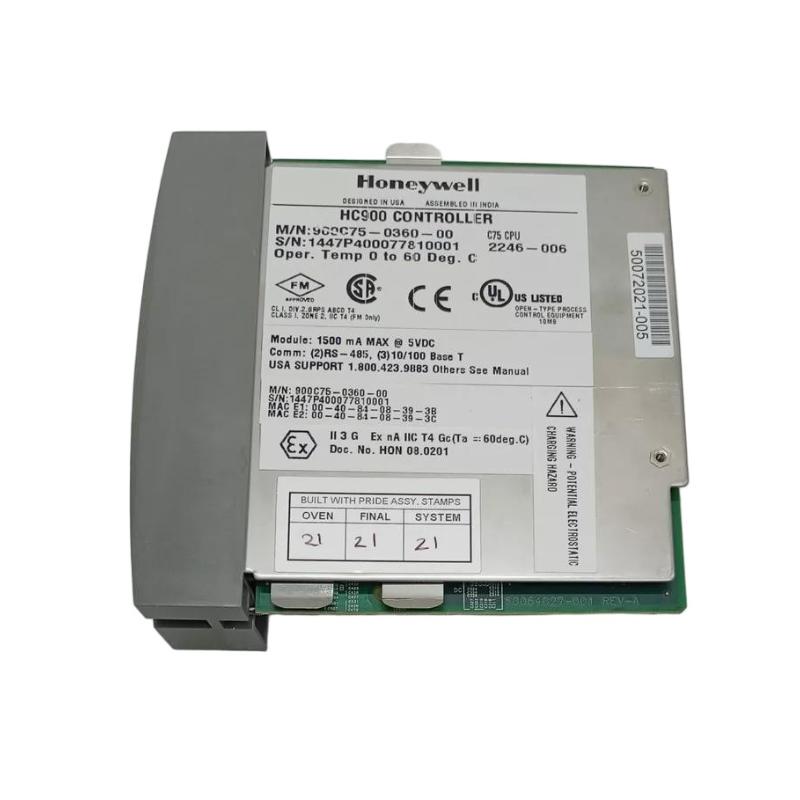

| Power Consumption | ~1.5 A @ 5 V DC (system dependent) |
| Dimensions | 137 × 40 × 128 mm |
| Weight | 0.25 kg |
| Mounting Type | Rack-mounted HC900 C75 redundant controller chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 10% to 90% non-condensing |
| Diagnostics | System health monitoring, redundancy status indication |
| Safety Certification | SIL2-capable system architecture (system dependent) |
Function and Working Principle
The 900C75-0360-00 module operates as part of a dual-redundant CPU system, where two controllers work in parallel to ensure continuous operation.
Working principle:
- Dual-CPU Parallel Operation
Two identical CPUs operate simultaneously in Lead/Reserve mode. - Real-Time Data Synchronization
The Reserve CPU is continuously updated every scan cycle. - Control Logic Execution
The Lead CPU executes all control logic, including PID loops and sequencing. - Failover Mechanism
If the Lead CPU fails, the Reserve CPU takes over instantly without process interruption. - I/O Communication Management
Each CPU communicates with distributed I/O racks via dedicated Ethernet links. - System Diagnostics & Health Monitoring
Redundancy status, CPU health, and communication integrity are continuously monitored.
Role in System Architecture
The 900C75-0360-00 module is the core redundancy control layer in HC900 C75 systems.
It is responsible for:
- Ensuring uninterrupted industrial process control
- Managing dual-controller synchronization
- Coordinating distributed I/O communication networks
- Supporting high-availability automation systems
- Enabling fail-safe operation in mission-critical environments
In industrial automation architecture, it functions as the highest reliability control core, designed for zero-downtime process execution.
Industrial Applications
The Honeywell 900C75-0360-00 is widely used in:
- Oil and gas production and refining facilities
- Petrochemical processing plants
- Power generation and turbine control systems
- Nuclear and thermal power auxiliary systems
- Large-scale chemical manufacturing plants
- Water treatment and desalination systems
- Mining and metallurgical processing industries
- Critical infrastructure automation systems
It is designed for continuous 24/7 operation in high-risk and high-availability environments.
Installation & Integration
Proper installation is critical for redundancy performance.
- Installed in dedicated Honeywell HC900 C75 redundant controller rack
- Requires two independent CPU modules (Lead + Reserve)
- Each CPU has dedicated power supply input
- Connected to I/O racks via Ethernet-based system architecture
- Requires Redundant Switch Module (RSM) for failover control
- Must be installed in EMI-protected industrial cabinets
- System configuration must be performed using Honeywell engineering tools
- Supports hot standby switching under fault conditions
Compatible Components
The 900C75-0360-00 CPU module typically works with:
- Honeywell HC900 C75 redundant CPU pair systems
- Redundant Switch Module (RSM)
- HC900 I/O scanner modules
- Remote I/O racks (Ethernet-connected)
- Analog and digital I/O modules
- Communication interface modules
- HMI operator stations (900CR series)
- Industrial SCADA systems
- Redundant power supply modules
Together, these components form a high-availability distributed control system architecture.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900C75S-0360-00 | C75S CPU Module | Safety-enhanced redundant CPU | Safety-critical systems |
| 900C72R-0100-44 | C70R CPU Module | High-performance redundancy CPU | Large systems |
| 900C72R-0000-42 | C70R CPU Module | Standard redundant controller | General industrial use |
| HC900 C70 Series CPUs | Platform | High-performance DCS | Large-scale automation |
| HC900 C50 Series CPUs | Non-redundant CPU | Cost-effective solution | Medium systems |
Advantages
- True dual-redundant CPU architecture
- Seamless failover without process interruption
- High reliability for continuous operation
- Deterministic real-time control execution
- Strong scalability for distributed systems
- Industrial-grade rugged design
- Advanced system diagnostics and monitoring
- Suitable for mission-critical automation environments
FAQs
Q1: What is the main function of the 900C75-0360-00 module?
It provides redundant CPU control for HC900 systems to ensure uninterrupted operation.
Q2: What makes C75 different from C70?
C75 supports full redundancy with dual CPUs and failover capability.
Q3: Is it suitable for critical systems?
Yes, it is designed specifically for high-availability and mission-critical applications.
Q4: How does redundancy work?
Two CPUs run in parallel; the Reserve CPU takes over instantly if the Lead CPU fails.
Q5: What industries use this module?
Oil & gas, petrochemical, power generation, mining, and critical infrastructure systems.
Conclusion
The Honeywell 900C75-0360-00 HC900 C75 Redundant Controller CPU Module is a high-availability industrial control unit designed for mission-critical automation systems. Its dual-CPU redundancy architecture ensures continuous operation, fault tolerance, and real-time deterministic control.
With strong scalability, robust industrial design, and advanced failover capabilities, it is a key component in large-scale process industries where system uptime and reliability are essential.
