Product Overview

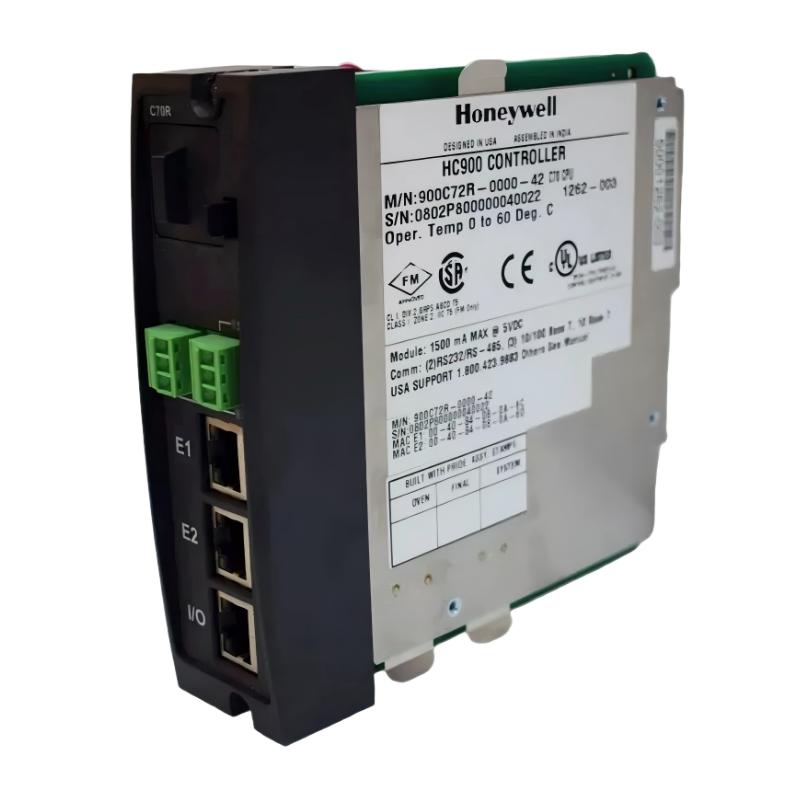

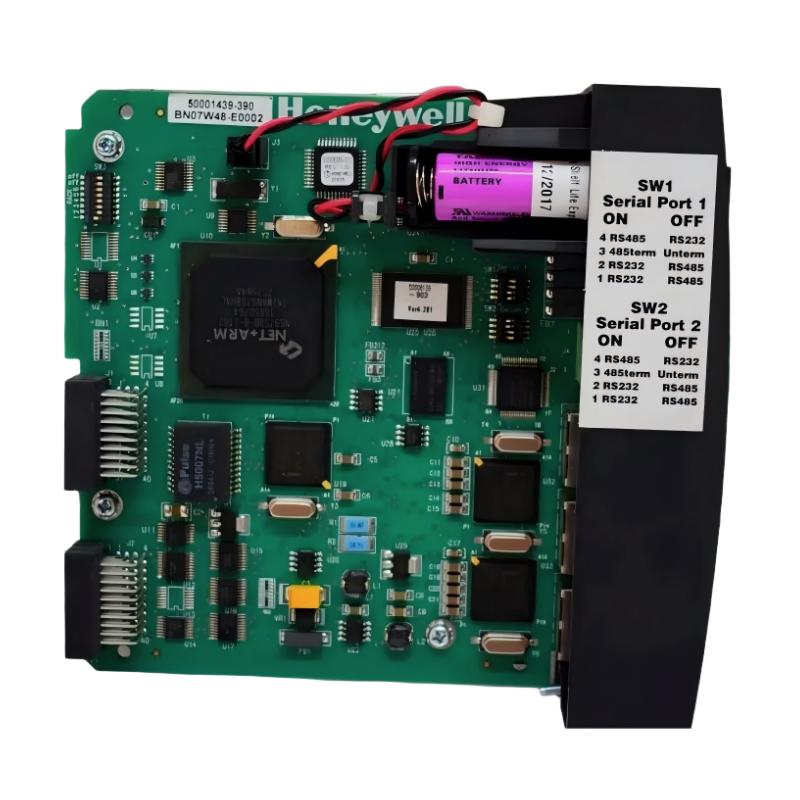

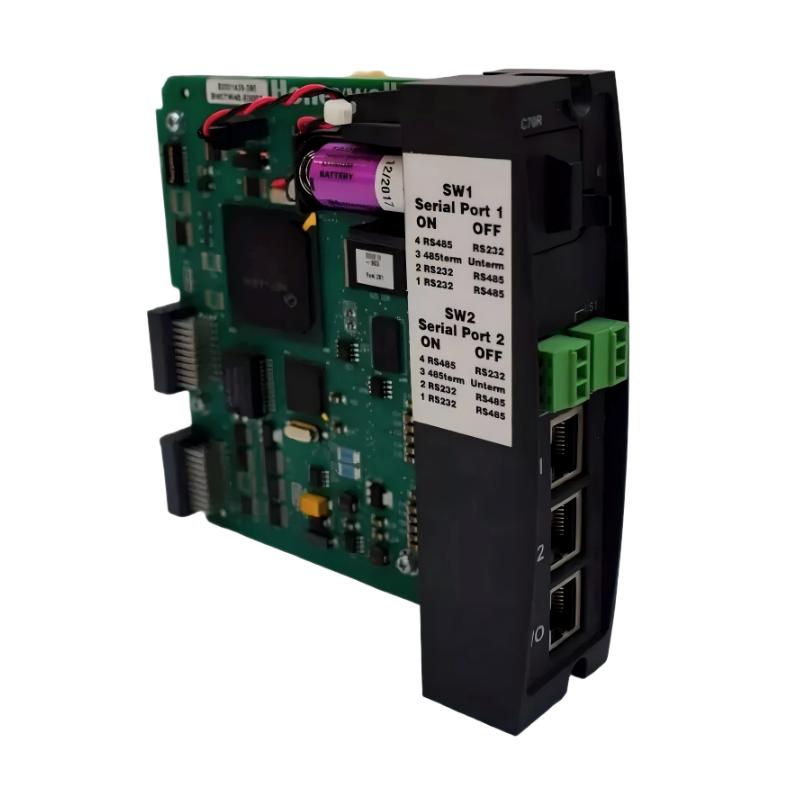

The Honeywell 900C72R-0000-42 HC900 Controller CPU Module is a high-performance controller unit within the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It belongs to the C70-class controller family, designed for complex and large-scale industrial automation systems requiring high processing capacity, redundancy support, and advanced communication capability.
The module is responsible for executing real-time control logic, coordinating distributed I/O systems, and managing high-speed communication across industrial networks. It is widely used in mission-critical process industries where system uptime, stability, and scalability are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900C72R-0000-42 |
| Product Type | HC900 C70 Controller CPU Module |
| Control System | Honeywell ControlEdge HC900 |
| Function | Central processing unit for industrial process control |
| Architecture | Advanced modular distributed control system (DCS) |
| Processor Type | Industrial embedded high-performance CPU (C70 platform) |
| Control Capacity | Up to 15000 function blocks (system dependent) |
| I/O Capacity | Up to 4600+ I/O points (system dependent) |
| Communication Protocols | Modbus TCP/IP, Modbus RTU, Ethernet |
| Network Interface | Dual Ethernet ports (system redundancy capable) |
| Memory System | High-capacity industrial control memory (volatile + non-volatile) |
| Power Supply | 5 V DC system backplane power |
| Current Consumption | ~1.5 A (system dependent) |
| Dimensions | 137 × 38.1 × 151.7 mm |
| Weight | 0.4 kg |
| Mounting Type | Rack-mounted HC900 C70 controller chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 10% to 90% non-condensing |
| Diagnostic Features | Advanced system diagnostics, LED indicators, fault monitoring |
| Redundancy Support | Supported (system architecture dependent) |
Function and Working Principle
The 900C72R-0000-42 module operates as the central processing engine of the HC900 C70 system, designed for high-capacity industrial automation control.
Working principle:
- Real-Time Data Acquisition
Collects large-scale process data from distributed I/O subsystems. - Advanced Control Logic Execution
Executes complex function blocks, multi-loop PID control, and sequencing logic. - System Coordination & Synchronization
Synchronizes multiple I/O racks and distributed controller nodes. - High-Speed Communication Processing
Manages redundant Ethernet communication and industrial protocols. - Output Control Distribution
Sends coordinated control signals to field devices via I/O architecture. - System Health Monitoring
Continuously monitors CPU status, redundancy state, and system faults.
Role in System Architecture
The 900C72R-0000-42 module acts as the core intelligence layer in HC900 C70-level systems.
It is responsible for:
- Coordinating large-scale distributed control systems
- Managing high-density I/O architectures
- Executing advanced process automation logic
- Supporting system-level redundancy configurations
- Enabling scalable industrial automation expansion
In industrial architecture, it functions as the high-capacity deterministic controller, designed for complex and high-load process environments.
Industrial Applications
The Honeywell 900C72R-0000-42 is widely used in:
- Large oil and gas processing facilities
- Petrochemical and refinery complexes
- Power generation and turbine control systems
- Industrial furnace and combustion systems
- Mining and metallurgical plants
- Cement and heavy manufacturing industries
- Water treatment and desalination systems
- Large-scale infrastructure automation systems
It is designed for continuous, mission-critical industrial operation with high reliability requirements.
Installation & Integration
Proper installation is essential for stable system operation.
- Installed in Honeywell HC900 C70 controller chassis
- Mounted in industrial rack-based control cabinets
- Connected to I/O and communication modules via system backplane
- Requires correct slot configuration and system addressing
- Must be installed in grounded, EMI-protected enclosures
- System firmware and hardware compatibility must be verified
- Configuration performed using Honeywell engineering software tools
Compatible Components
The 900C72R-0000-42 CPU module typically works with:
- Honeywell HC900 C70 I/O modules
- High-density analog and digital I/O systems
- Remote expansion racks
- Communication interface modules
- HMI operator stations
- Redundant power supply systems
- Industrial field instrumentation networks
- SCADA supervisory control systems
Together, these components form a large-scale distributed control system architecture.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900C72R-0000-41 | C70 CPU Module | Standard revision | General replacement |
| 900C72R-0000-43 | C70 CPU Module | Updated compatibility version | System upgrade |
| HC900 C70 Series CPUs | Platform | High-capacity DCS system | Large industrial plants |
| HC900 C75 CPU Module | Advanced CPU | Higher scalability | Ultra-large systems |
| HC900 C50 Series CPUs | Mid-range controller | Cost-effective solution | Medium systems |
Advantages
- Extremely high processing capacity for complex automation systems
- Supports large-scale distributed I/O architectures
- Deterministic real-time control performance
- Advanced redundancy-ready system design
- Strong scalability for industrial expansion
- Robust industrial-grade environmental resistance
- Supports complex multi-loop control strategies
- High reliability for continuous operation
FAQs
Q1: What is the main function of the 900C72R-0000-42 module?
It executes advanced control logic and manages large-scale industrial automation systems.
Q2: Is it part of a PLC or DCS system?
It belongs to the Honeywell HC900 Distributed Control System (DCS).
Q3: What makes the C70 different from C50?
C70 provides higher processing capacity, larger I/O scalability, and redundancy capability.
Q4: What industries use this module?
Oil & gas, petrochemical, power generation, mining, and heavy industrial automation.
Q5: Does it support redundancy?
Yes, redundancy is supported depending on system configuration.
Conclusion
The Honeywell 900C72R-0000-42 HC900 Controller CPU Module is a high-end processing unit within the HC900 C70 automation platform. It is designed for large-scale industrial systems requiring high computational power, deterministic control, and robust system reliability.
Its scalability, redundancy capability, and industrial-grade stability make it a critical component in mission-critical process automation environments where continuous operation and system integrity are essential.
