- Honeywell
- 900C52-0142-00
- HC900 C50 Controller CPU
- USA
- 104 x 136 x 34 mm
- 0.245 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

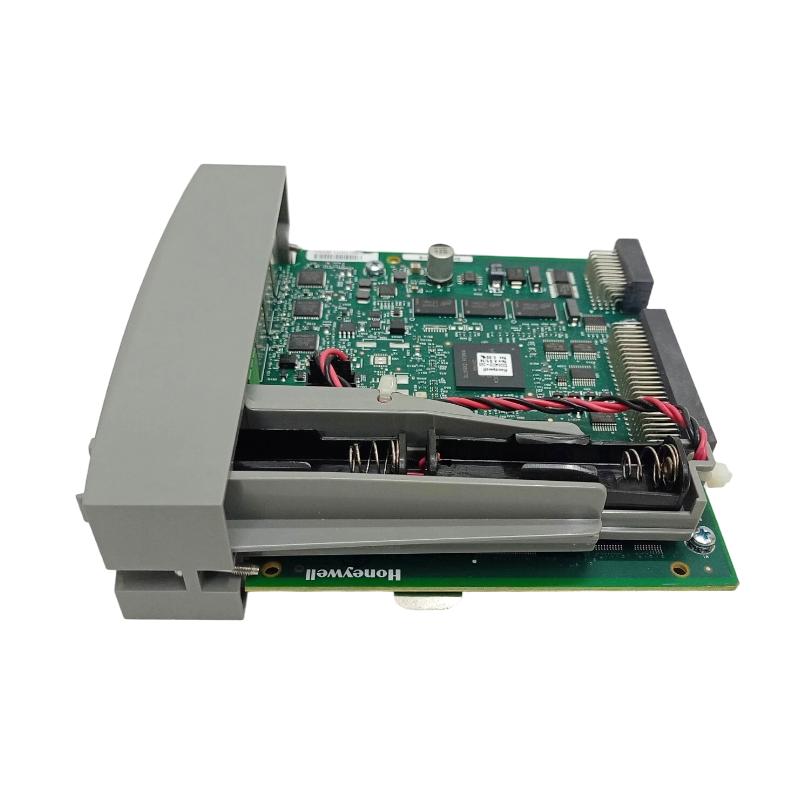

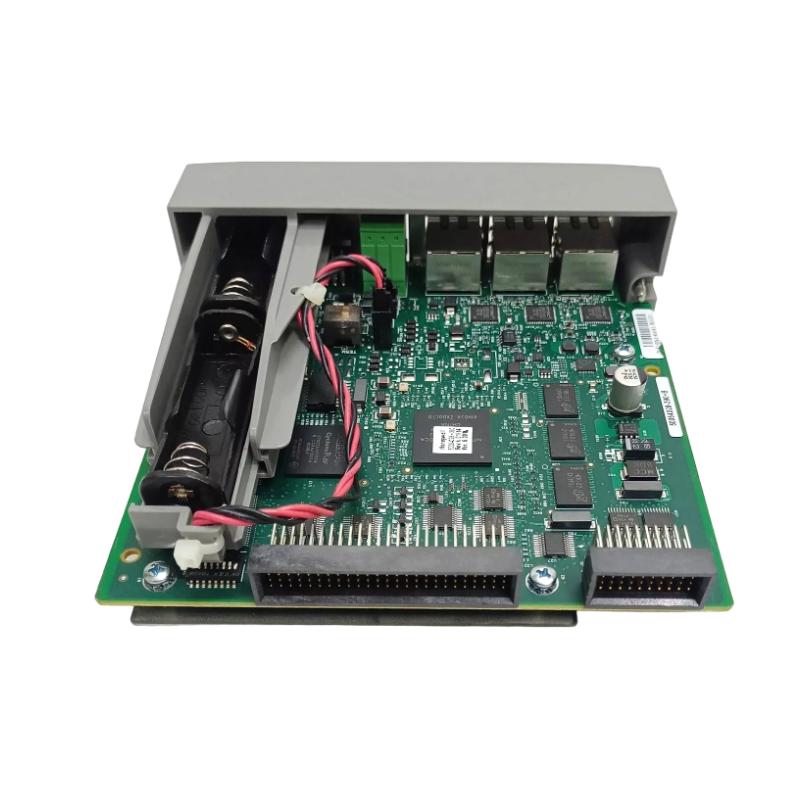

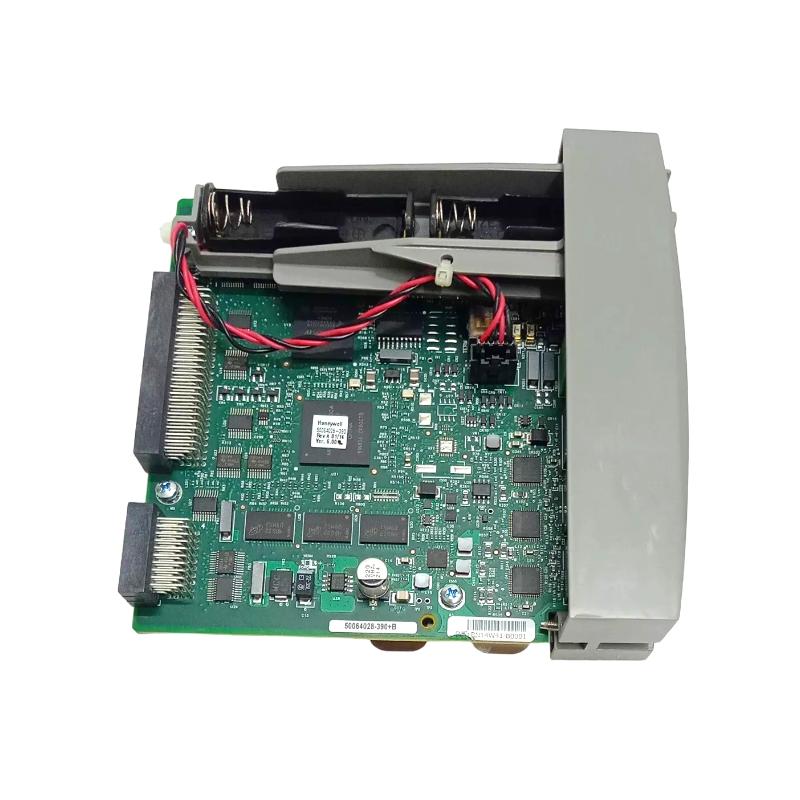

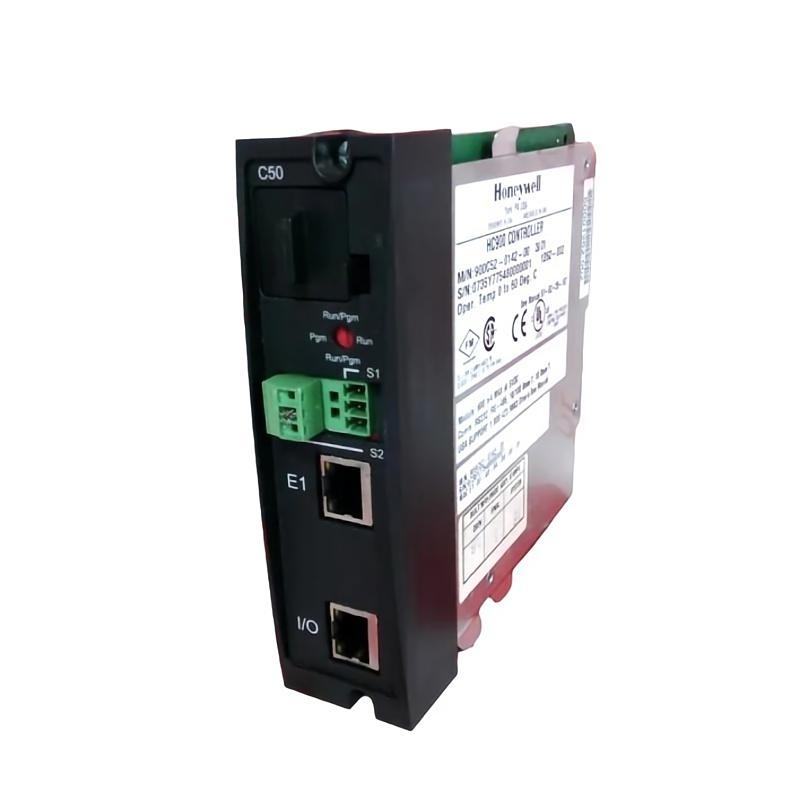

The Honeywell 900C52-0142-00 HC900 C50 Controller CPU Module is a central processing unit used in the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It is responsible for executing real-time control logic, coordinating distributed I/O modules, and managing communication between field-level devices and supervisory systems. As part of the C50 controller family, this module delivers deterministic control performance for industrial automation applications requiring high reliability and continuous operation.
This CPU module is widely used in process industries such as oil & gas, petrochemical, power generation, and water treatment, where stable and fault-tolerant control execution is critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900C52-0142-00 |
| Product Type | HC900 C50 Controller CPU Module |
| Control System | Honeywell ControlEdge HC900 |
| Function | Central processing unit for process control |
| Architecture | Modular distributed control system (DCS) |
| Processor Type | Industrial embedded control CPU |
| Control Capacity | Up to 2000 function blocks |
| I/O Capacity | Up to 1920–2304 I/O points (system dependent) |
| Communication Protocols | Modbus TCP/IP, Modbus RTU, Ethernet |
| Backplane Communication | HC900 system bus |
| Memory Type | Non-volatile + runtime control memory |
| Power Supply | 24 V DC system power |
| Power Consumption | ~10–100 W (system dependent) |
| Dimensions | 104 × 136 × 34 mm |
| Weight | 0.245 kg |
| Mounting Type | Rack-mounted HC900 chassis module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Diagnostic Features | LED status indicators, system fault monitoring |
Function and Working Principle
The Honeywell 900C52-0142-00 CPU module acts as the core execution engine of the HC900 automation system.
Working principle:
- Data Acquisition
Collects real-time process data from distributed I/O modules. - Control Logic Processing
Executes function blocks, PID loops, sequencing, and automation logic. - System Coordination
Synchronizes multiple I/O racks and control subsystems. - Communication Handling
Exchanges process data using industrial communication protocols. - Output Command Execution
Sends control signals back to field devices via I/O modules. - System Diagnostics
Continuously monitors CPU health, system faults, and runtime status.
Role in System Architecture
The 900C52-0142-00 module serves as the central intelligence layer in HC900 distributed control systems.
It coordinates:
- Distributed I/O modules
- Remote expansion racks
- Communication interface modules
- Operator interface systems (HMI)
- Process control execution layers
In industrial automation architecture, it functions as the deterministic control core, ensuring synchronized and stable operation across all connected subsystems.
Industrial Applications
The Honeywell 900C52-0142-00 is widely applied in:
- Oil and gas production and refining systems
- Petrochemical processing plants
- Power generation and turbine control systems
- Water and wastewater treatment facilities
- Industrial boiler and furnace control systems
- Chemical batch processing systems
- Manufacturing automation lines
- HVAC and energy management systems
It is designed for continuous-duty industrial environments requiring high system availability and reliability.
Installation & Integration
Proper installation is required to ensure stable system performance.
- Installed in Honeywell HC900 modular controller chassis
- Mounted in industrial control cabinet rack systems
- Connected via backplane to I/O and communication modules
- Requires correct slot configuration and addressing
- Must be installed in grounded, EMI-protected enclosures
- System firmware compatibility must be verified
- Configuration performed via Honeywell engineering software tools
Compatible Components
The 900C52-0142-00 CPU module typically works with:
- Honeywell HC900 analog I/O modules
- Honeywell HC900 digital I/O modules
- Remote I/O expansion racks
- Communication interface modules
- HMI operator stations
- Power supply modules (24 V DC systems)
- Field instrumentation devices
- Industrial network gateways
Together, these components form a scalable distributed control system architecture.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900C52-0001 | C50 CPU Module | Standard HC900 controller CPU | General replacement |
| 900C52-0020 | HC900 Controller Module | Enhanced I/O coordination | Larger systems |
| 900C52-0124-00 | C50 CPU Module | Alternative revision CPU | Compatible replacement |
| HC900 C50 Series CPUs | Platform | Modular DCS architecture | Full system deployment |
| HC900 C70 CPU Modules | High-performance CPU | Higher scalability | Complex industrial systems |
Advantages
- High reliability for continuous industrial operation
- Deterministic real-time control performance
- Strong compatibility within HC900 architecture
- Supports complex automation logic execution
- Stable long-term lifecycle for industrial systems
- Robust performance in harsh environments
- Modular system expansion capability
- Simplified maintenance and replacement process
FAQs
Q1: What is the main function of the 900C52-0142-00 module?
It executes control logic and manages real-time automation in HC900 systems.
Q2: Is it part of a PLC or DCS system?
It belongs to the Honeywell HC900 Distributed Control System (DCS).
Q3: What industries use this CPU module?
Oil & gas, petrochemical, power generation, and industrial automation industries.
Q4: How many control loops can it handle?
It supports up to approximately 2000 function blocks depending on system configuration.
Q5: Is it compatible with other HC900 modules?
Yes, it is fully compatible within the HC900 modular architecture.
Conclusion
The Honeywell 900C52-0142-00 HC900 C50 Controller CPU Module is a critical processing unit in Honeywell’s HC900 distributed control system. It provides stable execution of industrial automation logic, real-time coordination of distributed I/O systems, and reliable communication across control architectures.
Its robustness, modular compatibility, and long operational lifecycle make it an essential component in mission-critical industrial process environments requiring continuous, safe, and deterministic control performance.
