Product Overview

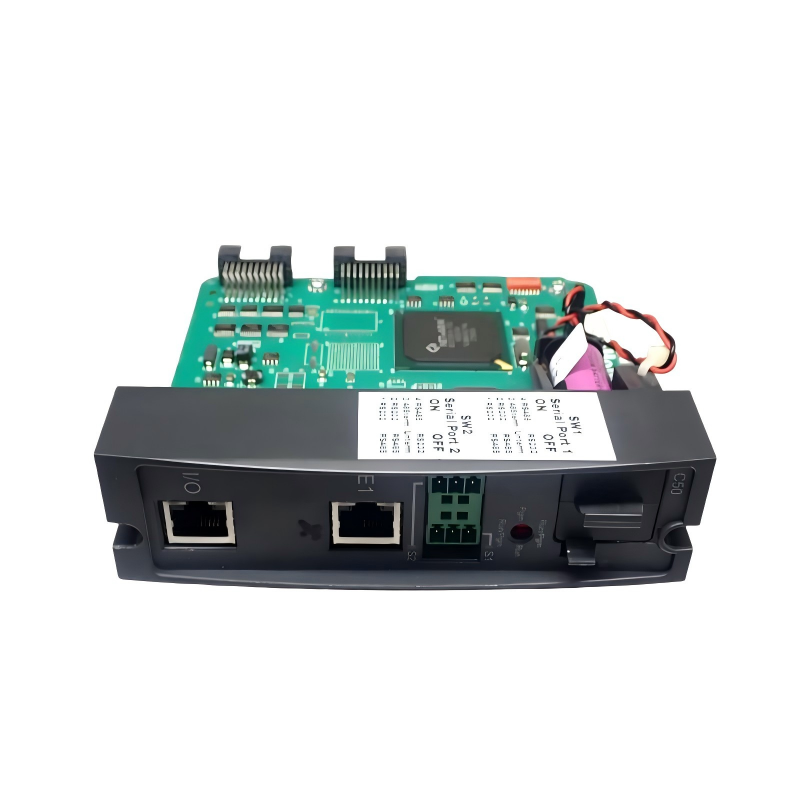

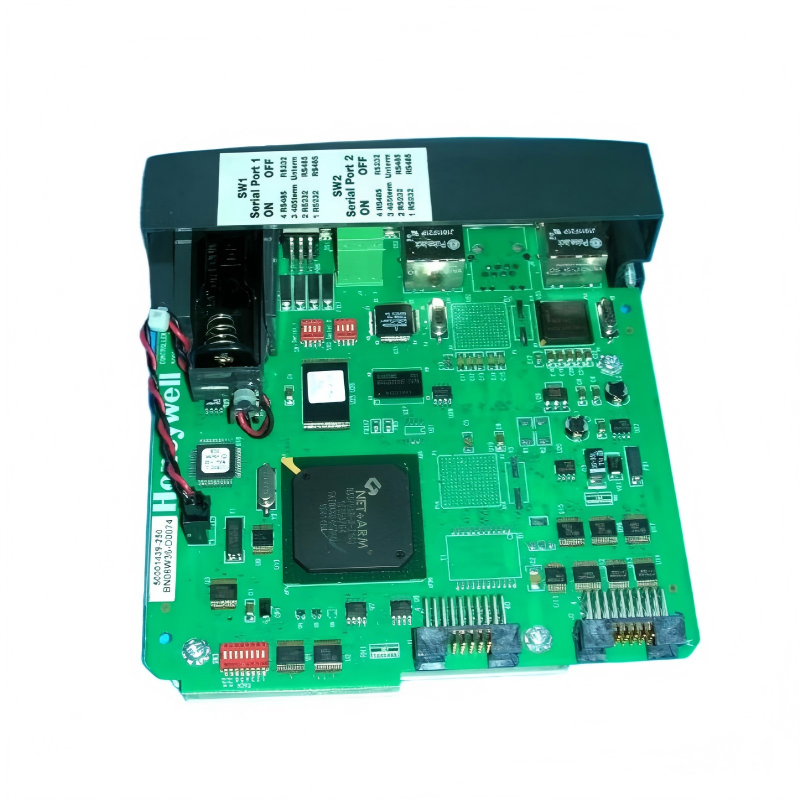

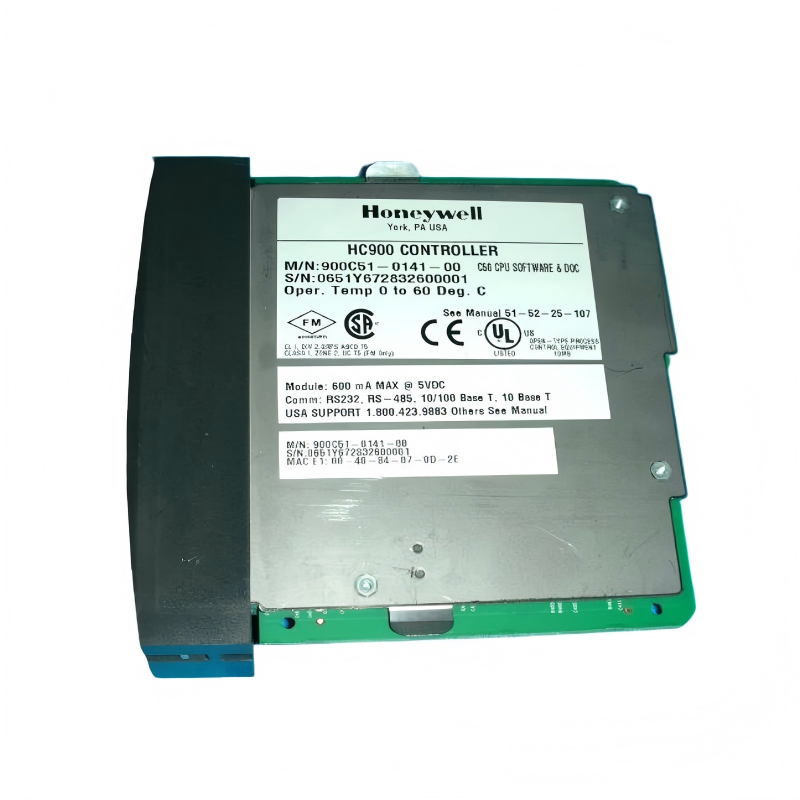

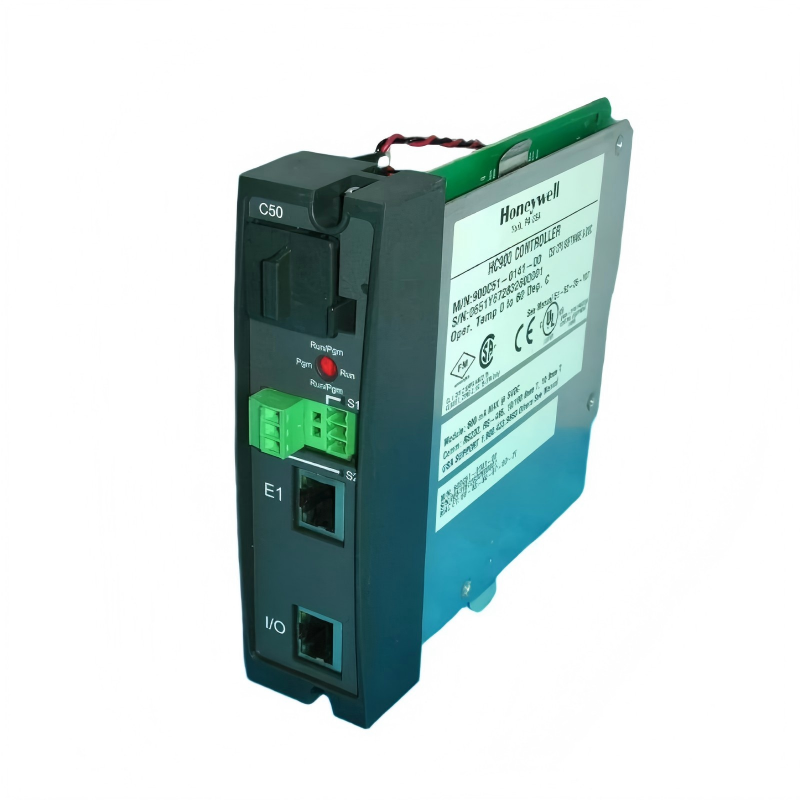

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU is a highly efficient and reliable processing unit designed for use in the Honeywell HC900 Process Control System. With its 137 × 38.1 × 137.16 mm size and 0.36 kg weight, this compact and robust controller is built for managing complex industrial processes. It enables seamless integration with other HC900 modules to provide a scalable and efficient solution for real-time data processing, control, and monitoring across various industrial applications.

Technical Specifications

Function and Working Principle

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU plays a pivotal role in managing and controlling industrial processes by executing real-time data processing and control logic:

1. Real-Time Data Processing: The 900C51-0141-00 processes data from field devices, sensors, and other modules to monitor and control parameters such as temperature, pressure, and flow.
2. Control Logic Execution: This CPU executes control algorithms that dynamically adjust output devices like motors, valves, and pumps based on real-time input data, ensuring optimal performance of the industrial process.
3. Seamless Communication: With support for RS-485 and Ethernet communication protocols, the 900C51-0141-00 integrates with other Honeywell HC900 modules and external devices, ensuring smooth communication across the system.
4. Signal Conversion: The module enables analog-to-digital and digital-to-analog signal conversions, ensuring compatibility with a wide range of industrial equipment and field devices.

Role in Industrial Systems

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU serves as the heart of the HC900 control system, ensuring the smooth operation and optimization of industrial processes:

• Core Control Unit: The 900C51-0141-00 acts as the central processing unit that collects and processes real-time data from field devices, executing control actions based on preset parameters.
• Real-Time Adjustments: It adjusts outputs based on real-time data, maintaining control over key process variables such as temperature, pressure, and flow to keep processes stable and efficient.
• System Integration: The 900C51-0141-00 integrates smoothly with other Honeywell HC900 components, creating a unified control system that can easily be expanded as system needs grow.

Industrial Applications

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU is designed to be versatile and can be used in a wide range of industries and applications, including:

• Process Control: Used extensively in chemical, pharmaceutical, and food & beverage industries to monitor and control critical process parameters like temperature, pressure, and flow.
• Energy Management: In HVAC systems, manufacturing plants, and industrial plants, the 900C51-0141-00 optimizes energy usage by controlling various equipment and processes.
• Water Treatment: This controller module is used in water treatment plants for controlling chemical dosing, filtration systems, and pumping operations, ensuring safe and reliable water processing.
• Manufacturing Automation: The 900C51-0141-00 can be used to manage production lines, robotic arms, conveyor systems, and other automation systems in manufacturing environments.
• HVAC Systems: The module controls heating, ventilation, and air conditioning systems, ensuring the efficient regulation of air quality and temperature.

Installation and System Integration

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU is designed for straightforward installation and integration into industrial systems:

1. DIN Rail Mounting: The module is designed for easy mounting on a DIN rail, making it simple to install in control panels or industrial equipment enclosures.
2. Communication Flexibility: The 900C51-0141-00 supports RS-485 and Ethernet communication protocols, making it highly adaptable and suitable for a variety of systems and applications.
3. Compact Design: With its 137 × 38.1 × 137.16 mm size and 0.36 kg weight, the 900C51-0141-00 is ideal for installations with limited space while still delivering powerful processing capabilities.
4. Scalability: As part of the HC900 system, the 900C51-0141-00 can be integrated into small or large systems and expanded as required by adding additional modules or components.

Compatible System Components

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU integrates seamlessly with a variety of Honeywell HC900 modules and components, including:

• I/O Modules: The 900C51-0141-00 works with both digital and analog I/O modules to receive data from field devices and send control signals to outputs.
• Communication Modules: The module enables efficient communication between HC900 system components, providing real-time data exchange over RS-485 and Ethernet.
• Field Devices: The 900C51-0141-00 can control a range of industrial field devices such as motors, pumps, valves, and more, based on input data received from I/O modules.

Recommended Alternative Models

Key Advantages

• Compact Size: The 900C51-0141-00 is highly compact at 137 × 38.1 × 137.16 mm and weighs only 0.36 kg, making it ideal for space-limited installations.
• Real-Time Control: The module offers robust real-time data processing capabilities, ensuring timely adjustments to system parameters and efficient operation.
• Flexible Communication: With support for RS-485 and Ethernet communication protocols, the 900C51-0141-00 integrates seamlessly with other system components, offering flexible and reliable connectivity.
• Scalability: The module is part of the HC900 system, which is highly scalable, allowing for easy expansion by adding more modules or components as the system’s needs grow.
• Reliable Performance: Designed for industrial applications, the 900C51-0141-00 operates reliably in harsh environments, with an operating temperature range of -20°C to +60°C.

Technical FAQs

What communication interfaces does the 900C51-0141-00 support?
The 900C51-0141-00 supports RS-485 and Ethernet communication protocols, providing flexible connectivity options for integration with other devices and systems.

Can the 900C51-0141-00 be used in large systems?
Yes, the 900C51-0141-00 is designed to be used in both small and large systems, offering scalability as the system grows and new requirements arise.

What devices can be controlled by the 900C51-0141-00 module?
The module can control a wide range of industrial devices, including motors, valves, pumps, and other field devices, depending on system requirements.

Conclusion

The Honeywell 900C51-0141-00 HC900 C50 Controller CPU is a compact, high-performance processing unit designed for reliable control and data processing in industrial automation systems. With its real-time control capabilities, flexible communication options, and easy integration with other Honeywell HC900 components, it is an ideal solution for industries such as process control, energy management, water treatment, and manufacturing automation. Its small form factor and scalable design make it perfect for applications of all sizes, delivering powerful control and monitoring in a wide range of industrial environments.
