Product Overview

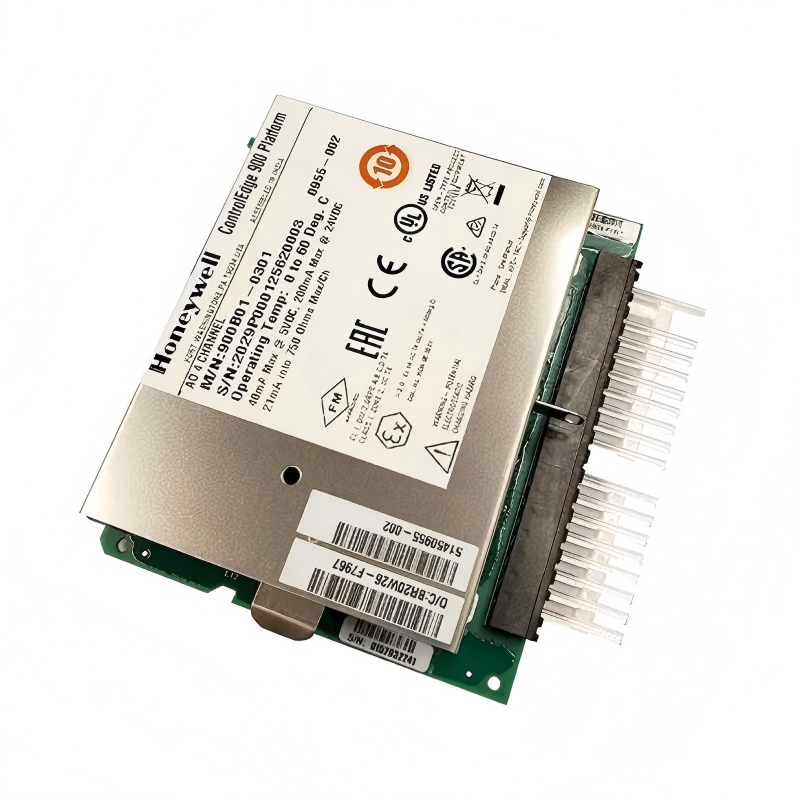

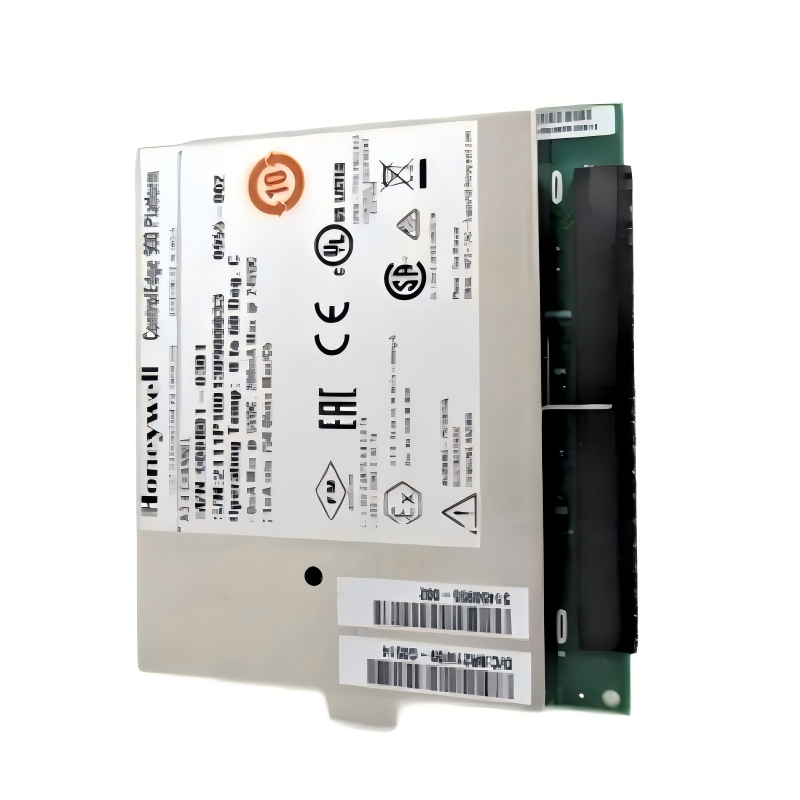

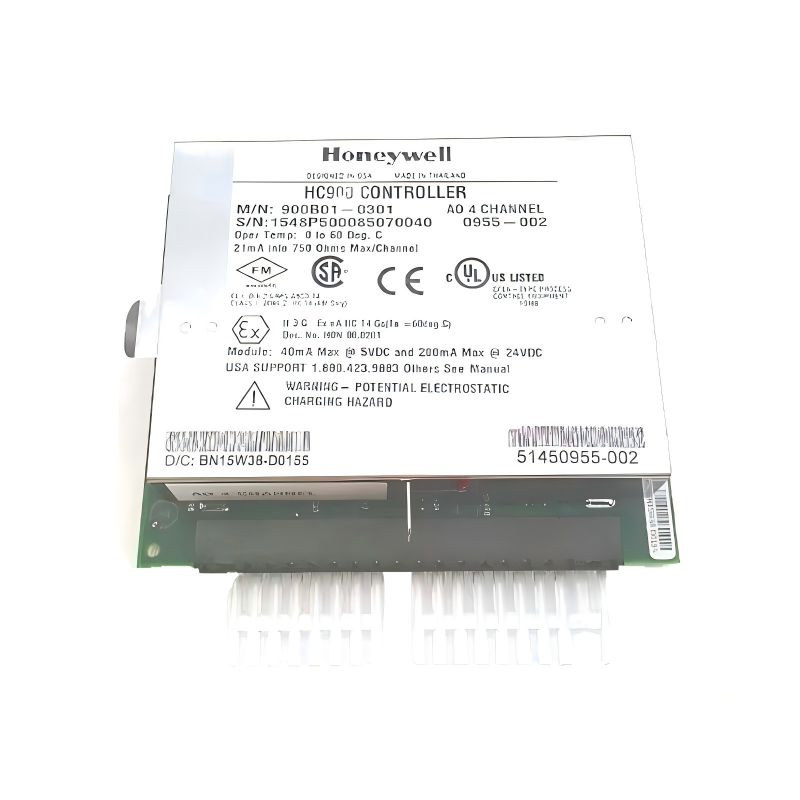

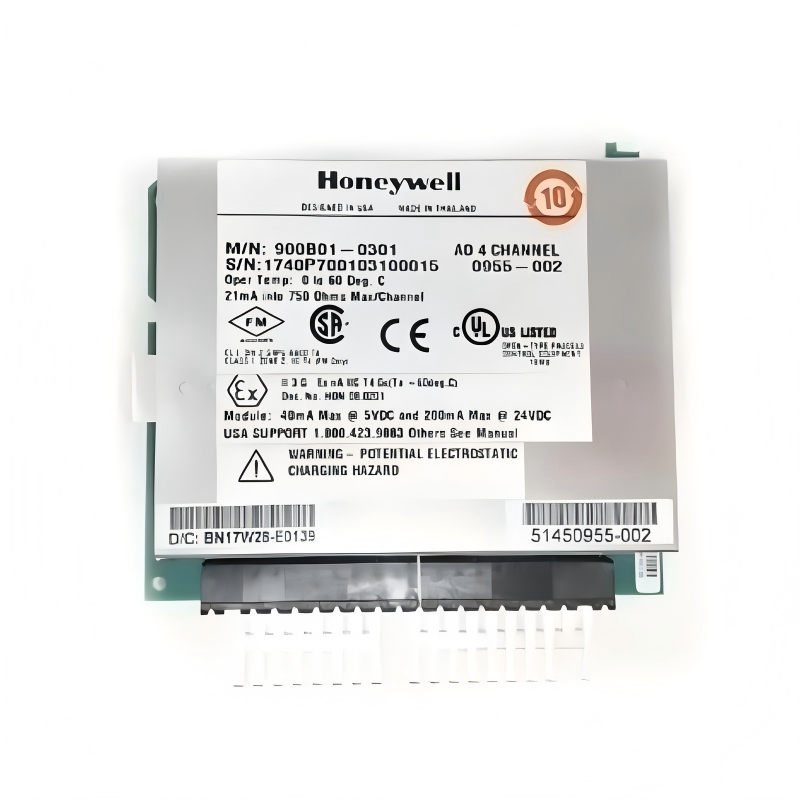

The Honeywell 900B01-0301 HC900 Analog Output Module is a critical component of the Honeywell HC900 Process Control System, designed to provide high-precision analog output for controlling industrial processes. With a compact size of 137 x 35.6 mm and a weight of just 0.408 kg, it is suitable for applications requiring precise and reliable analog signal output in space-constrained environments.

This module outputs analog signals such as 0-10 V and 4-20 mA to control field devices and actuators, making it ideal for use in various industries, including chemical, pharmaceutical, energy, and manufacturing.

Technical Specifications

Function and Working Principle

The Honeywell 900B01-0301 HC900 Analog Output Module performs the following functions:

1. Signal Conversion: This module converts digital data from the HC900 controller into analog signals that can be used to control field devices and actuators.
2. Analog Output: It outputs signals such as 0-10 V or 4-20 mA, which are standard for controlling industrial equipment like valves, motors, and pumps.
3. Precise Control: By providing accurate analog signals, the module enables precise control over processes such as flow rate, pressure, temperature, and other critical parameters.
4. Multiple Output Channels: The module supports multiple output channels, allowing it to manage several actuators simultaneously, which is especially useful in complex systems requiring multiple control points.

Role in Industrial Systems

The Honeywell 900B01-0301 HC900 Analog Output Module plays a vital role in controlling industrial systems by providing analog signals that regulate field devices:

• Field Device Control: The module controls devices like valves, pumps, and motors by sending analog signals that adjust their operation, ensuring precise and continuous process control.
• Signal Accuracy: It delivers high-quality, accurate analog output, ensuring that the industrial system operates within required parameters, maintaining process stability and efficiency.
• Real-Time Adjustment: With real-time analog output, the module adjusts device performance dynamically based on the controller’s calculations and feedback, ensuring optimal operation.
• Integration with HC900 System: The module is designed to seamlessly integrate with other components of the Honeywell HC900 system, enabling efficient process control and monitoring.

Industrial Applications

The Honeywell 900B01-0301 HC900 Analog Output Module is used in various industrial applications, including:

• Process Control: It is widely used in chemical, petrochemical, and pharmaceutical industries, where controlling the operation of pumps, valves, and other devices is crucial for maintaining process efficiency and safety.
• Energy Management: In energy management systems, the module is used to control the operation of energy-related devices like motors and pumps, helping to optimize energy consumption and improve operational performance.
• Water and Wastewater Treatment: In water treatment plants, the module is used to control pumps, valves, and chemical dosing systems, ensuring that water quality is maintained within specified limits.
• Manufacturing Automation: It is ideal for manufacturing applications where precise control of machinery, assembly lines, and other devices is required to ensure product quality and process efficiency.
• HVAC Systems: The module is also used in HVAC systems to control environmental parameters like temperature and humidity, helping to optimize heating and cooling systems in buildings and industrial environments.

Installation and System Integration

The Honeywell 900B01-0301 HC900 Analog Output Module is designed for easy installation and integration:

1. DIN Rail Mounting: The module is DIN rail mountable, ensuring quick and simple installation in industrial control panels or racks.
2. Multiple Output Channels: The module can handle multiple output channels, making it suitable for systems with several control points.
3. Compact Design: With a compact size of 137 x 35.6 mm and a weight of 0.408 kg, it is ideal for installations with limited space.
4. Seamless Integration: It integrates seamlessly with the Honeywell HC900 system, allowing for efficient monitoring and control across the entire industrial process.

Compatible System Components

The Honeywell 900B01-0301 HC900 Analog Output Module is compatible with a range of Honeywell HC900 system components:

• HC900 Controllers: The module integrates directly with Honeywell HC900 controllers, enabling accurate signal conversion and efficient control of field devices.
• I/O Modules: The module can be combined with other Honeywell I/O modules to create a scalable and flexible control system.
• Field Devices: It supports various field devices, such as valves, motors, and pumps, making it versatile for different industrial applications.

Recommended Alternative Models

Key Advantages

• Compact Design: The 137 x 35.6 mm size and 0.408 kg weight make it suitable for installations in space-constrained environments.
• Versatile Output Range: It provides 0-10 V and 4-20 mA analog output, making it compatible with a wide range of industrial devices.
• Signal Accuracy: The module provides accurate analog output for precise control of field devices, ensuring system efficiency and reliability.
• Easy Installation: With DIN rail mounting compatibility, the module is quick and easy to install in control panels.
• Seamless Integration: It integrates seamlessly with the Honeywell HC900 system, enabling flexible and efficient control of industrial processes.

Technical FAQs

What output signal types does the 900B01-0301 module support?
The module supports 0-10 V and 4-20 mA analog output signals, which are commonly used in industrial automation.

How many output channels does the module support?
The module supports multiple output channels, making it suitable for systems with several field devices that require control.

Is this module suitable for high-precision control applications?
Yes, the 900B01-0301 module provides accurate and reliable analog output, making it ideal for precise industrial control.

Conclusion

The Honeywell 900B01-0301 HC900 Analog Output Module is a versatile and reliable component for the Honeywell HC900 Process Control System. With its compact design, accurate analog output, and easy installation, it is ideal for applications in process control, energy management, water treatment, and manufacturing automation. Its ability to handle multiple output channels and seamlessly integrate with other system components makes it an excellent choice for modern industrial systems that require precise control of field devices.
