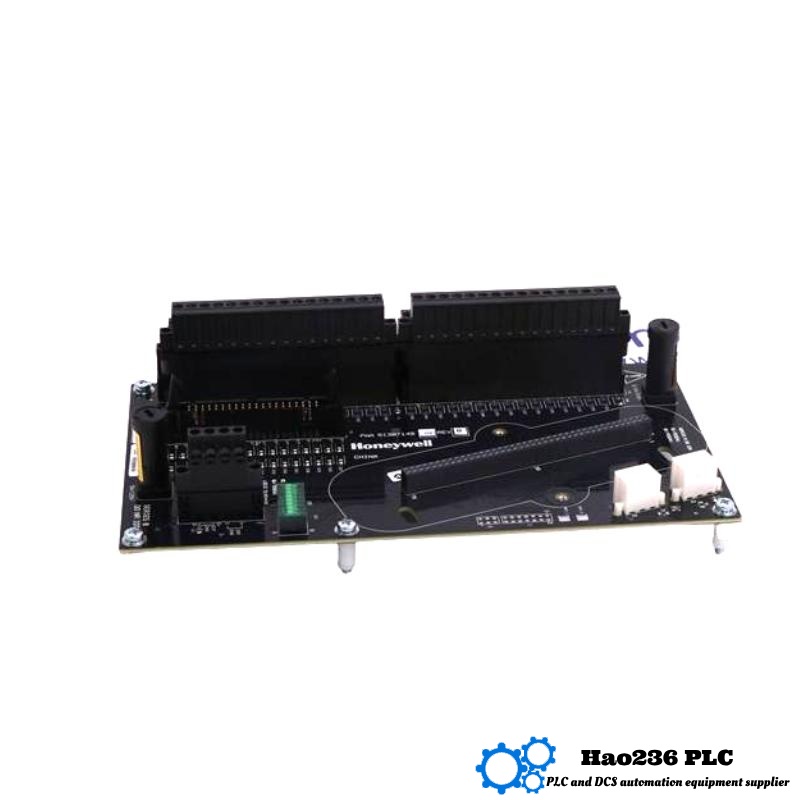

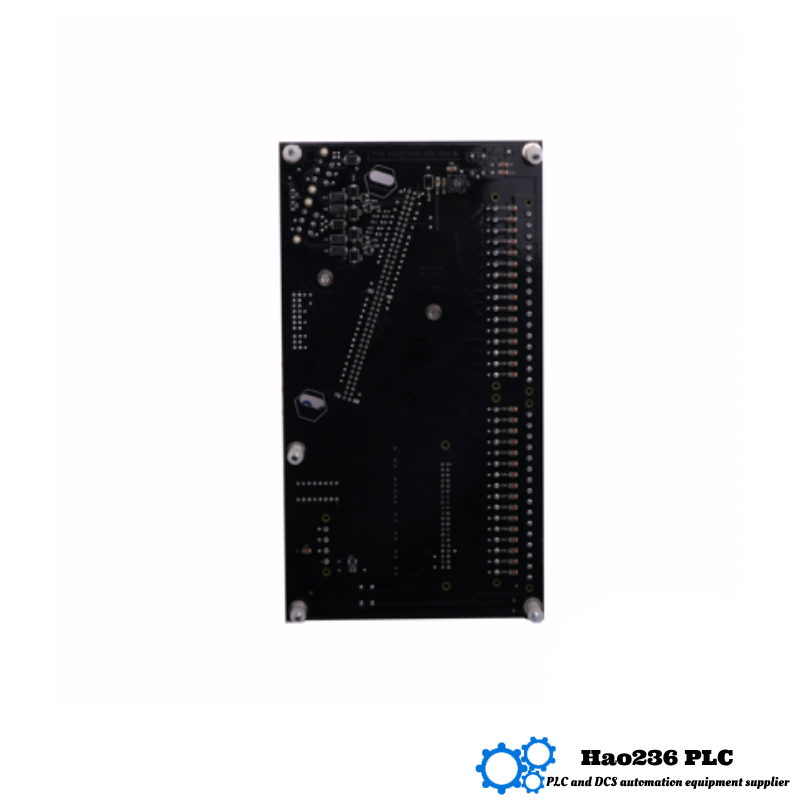

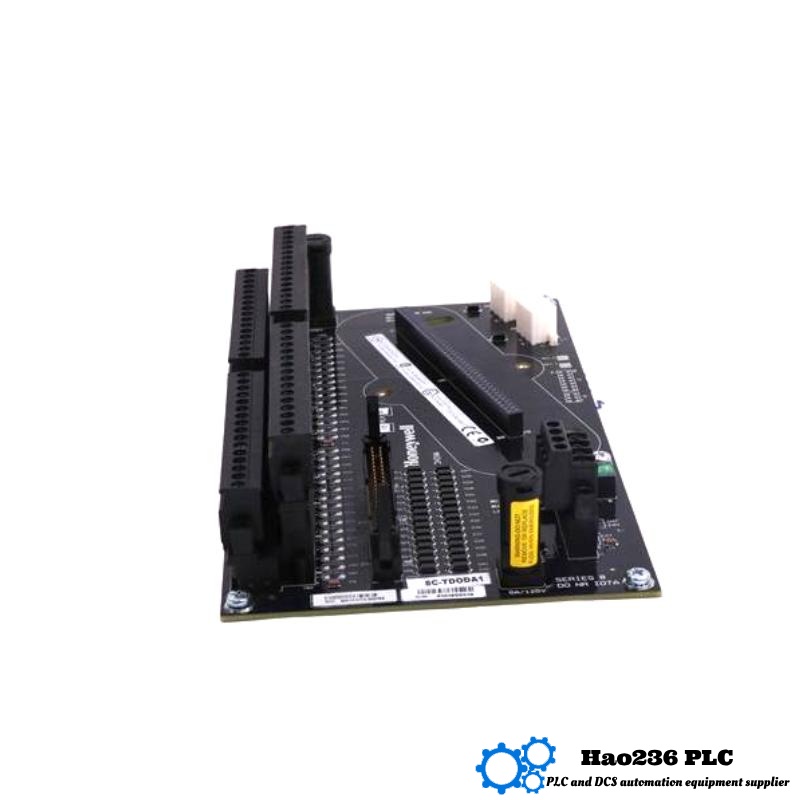

Honeywell 8C-TDODA1 51307149-175 Digital Output Module
Product Introduction
The Honeywell 8C-TDODA1 (part number 51307149-175) is a high-performance digital output module designed for industrial automation and process control applications. It provides reliable digital signal outputs that interface with a variety of control systems and field devices. This module is engineered for robust performance under harsh industrial environments and is well-suited for use in distributed control systems (DCS) and programmable logic controllers (PLC).
The module features advanced diagnostics, electrical isolation, and rapid switching capabilities, ensuring precise and safe operation of actuators, relays, and other output devices. Its compact design and straightforward installation make it a preferred choice for system integrators and process engineers who require dependable digital output solutions.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 152 × 50 × 118 mm |
| Weight | 0.35 kg |
| Output Type | Digital Transistor Output |
| Number of Channels | 8 |
| Rated Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Isolation | Optical isolation per channel |
| Response Time | ≤ 1 ms |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN Rail |
Product Applications
The Honeywell 8C-TDODA1 module is widely used in:
-
Industrial process automation systems, controlling actuators, solenoids, and alarms
-
Distributed control systems (DCS) in chemical, petrochemical, and power plants
-
Factory automation for controlling conveyor systems, robotic arms, and motor starters
-
Building management systems requiring precise and reliable output signals
-
Oil and gas facilities for monitoring and controlling valve positions and safety interlocks
Product Advantages
-
High Reliability: Designed with robust components for long-term durability in industrial environments
-
Optical Isolation: Each output channel is optically isolated, preventing interference and ensuring signal integrity
-
Fast Response Time: Sub-millisecond response ensures timely and accurate control operations
-
Compact Size: Small footprint facilitates easy installation even in space-constrained control cabinets
-
Diagnostic Features: Built-in diagnostics allow for early fault detection, reducing downtime
-
Standardized Mounting: Compatible with DIN rail systems, simplifying integration with existing setups
-
Low Power Consumption: Efficient design reduces overall system power usage
Brand Information
Honeywell is a globally recognized leader in automation and control technologies. With decades of expertise in industrial solutions, Honeywell provides innovative and reliable products designed to enhance operational efficiency, safety, and performance. Their digital output modules are known for durability, precision, and integration ease across multiple industries worldwide.
Related and Recommended Models
| Model | Channels | Output Type | Rated Voltage | Dimensions (mm) | Weight | Key Feature |
|---|---|---|---|---|---|---|
| 8C-TDODA2 | 16 | Digital Transistor | 24 V DC | 152 × 50 × 118 | 0.37 kg | Higher channel count for expanded control |
| 8C-TDODA3 | 8 | Relay Output | 24 V DC | 160 × 50 × 120 | 0.40 kg | Relay output for higher load switching |
| 8C-TDODA4 | 4 | Digital Transistor | 24 V DC | 140 × 45 × 110 | 0.30 kg | Compact design for smaller installations |
| 8C-TDODB1 | 8 | Digital Input | 24 V DC | 150 × 50 × 115 | 0.33 kg | Complementary digital input module |
| 8C-TDODB2 | 16 | Digital Input | 24 V DC | 152 × 55 × 120 | 0.38 kg | Larger input capacity |
Popular Honeywell Models
| Model | Channels | Output Type | Rated Voltage | Dimensions (mm) | Weight | Key Feature |
|---|---|---|---|---|---|---|
| 8C-TDODA1 | 8 | Digital Transistor | 24 V DC | 152 × 50 × 118 | 0.35 kg | Reliable 8-channel output |
| 8C-TDODA5 | 16 | Digital Transistor | 24 V DC | 155 × 50 × 120 | 0.39 kg | Advanced diagnostics |
| 8C-TDODC1 | 4 | Analog Output | 4-20 mA | 140 × 50 × 115 | 0.32 kg | Precise analog control |
| 8C-TDODB1 | 8 | Digital Input | 24 V DC | 150 × 50 × 115 | 0.33 kg | Reliable input signal processing |
| 8C-TDODC3 | 16 | Analog Output | 0-10 V | 160 × 55 × 120 | 0.40 kg | Multi-channel analog output |
FAQ (Q&A)
Q1: What is the maximum output current per channel on the 8C-TDODA1?
A1: Each channel supports a maximum output current of 0.5 A.
Q2: What type of output does the 8C-TDODA1 module provide?
A2: It provides digital transistor outputs with optical isolation.
Q3: What are the physical dimensions of this module?
A3: The module measures 152 mm in length, 50 mm in width, and 118 mm in height.
Q4: Is the 8C-TDODA1 suitable for DIN rail mounting?
A4: Yes, it is designed for standard DIN rail mounting for easy installation.
Q5: What is the typical response time of the outputs?
A5: The response time is less than or equal to 1 millisecond.
Q6: What environmental conditions can the module operate in?
A6: It operates within a temperature range from -20°C to +60°C.
Q7: Does the module support diagnostic features?
A7: Yes, it includes built-in diagnostics for fault detection.
Q8: Can this module control high power devices?
A8: It supports 0.5 A per channel; for higher power applications, relay output modules are recommended.
Q9: What is the weight of the module?
A9: The module weighs approximately 0.35 kilograms.
Q10: Is this module compatible with Honeywell’s distributed control systems?
A10: Yes, it is fully compatible with Honeywell’s DCS platforms.
