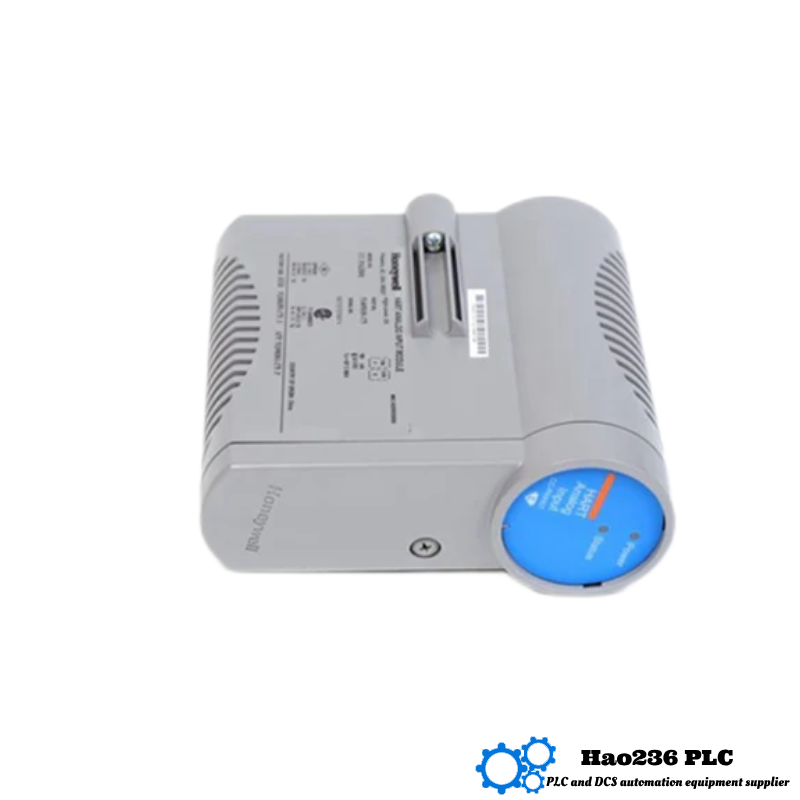

Honeywell 8C-TAIXB1 51307129-175 Analog Input Module
Product Overview:
The Honeywell 8C-TAIXB1 51307129-175 is a high-performance analog input module designed to provide precise data acquisition from a variety of analog sensors in industrial applications. It is part of the 8C series and offers excellent integration capabilities with Honeywell’s Experion® Process Knowledge System (PKS) and other automation systems. This module supports a wide range of input signals, including voltage and current signals, making it highly versatile for use in process control, energy management, and other industrial environments where accurate data acquisition is crucial.
With 16 input channels, the Honeywell 8C-TAIXB1 51307129-175 module allows for efficient monitoring and control of multiple variables simultaneously. Its high-resolution, fast sampling rate, and robust diagnostic capabilities make it an ideal choice for applications that demand reliability and high accuracy.
Product Parameters:
| Parameter |
Specification |
| Model |
8C-TAIXB1 51307129-175 |
| Type |
Analog Input Module |
| Dimensions |
220 x 120 x 152.4 mm |
| Weight |
0.3 kg |
| Input Channels |
16 |
| Input Type |
Single-ended / Differential |
| Input Voltage |
0 to 10 V, ±10 V, 4 to 20 mA |
| Resolution |
16-bit |
| Sampling Rate |
1 kHz (typical) |
| Power Consumption |
3 W (max) |
| Operating Temperature |
–20°C to +60°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Mounting Type |
DIN Rail |
| Communication Protocol |
Honeywell proprietary communication bus |
Product Applications:
The Honeywell 8C-TAIXB1 51307129-175 is ideal for a variety of applications requiring high-precision analog signal input. Common applications include:
-
Process Automation: It is used to monitor critical process parameters, such as temperature, pressure, and flow rates, in industries such as chemicals, petrochemicals, and pharmaceuticals.
-
Energy Management: It plays a key role in energy monitoring systems, enabling accurate measurement of parameters such as voltage and current in energy grids and power plants.
-
Manufacturing Systems: The module enables precise control of manufacturing processes by integrating with sensors that monitor variables such as speed, force, and position.
-
Building Automation: It is widely used in HVAC systems and building management systems to monitor environmental parameters like temperature and humidity.
-
Environmental Monitoring: The module is essential for monitoring air and water quality parameters in environmental control systems.
Advantages of the Product:
-
High Channel Density: With 16 input channels, the module is efficient for applications that require monitoring multiple variables simultaneously.
-
Flexible Input Types: It supports both voltage (0-10 V, ±10 V) and current (4-20 mA) inputs, ensuring compatibility with a wide range of analog sensors.
-
High-Resolution Data Acquisition: The 16-bit resolution ensures that even small variations in the input signal are accurately captured.
-
Fast Sampling Rate: The module’s 1 kHz sampling rate enables the accurate capture of high-speed signals for real-time control.
-
Energy-Efficient: With a maximum power consumption of only 3 W, the module helps reduce overall energy usage in industrial systems.
-
Easy Installation: The module is designed for DIN rail mounting, simplifying installation and integration into existing control panels.
-
Wide Operating Temperature: It can operate in extreme temperatures ranging from –20°C to +60°C, making it suitable for a variety of industrial environments.
-
Built-in Diagnostics: The module offers comprehensive diagnostic features to help identify faults, ensuring system reliability and minimal downtime.
Brand: Honeywell
Honeywell is a globally recognized leader in the field of industrial automation and control. Known for its innovative products, Honeywell delivers high-quality solutions for a variety of industries, including process control, manufacturing, energy, and environmental monitoring. The 8C-TAIXB1 51307129-175 analog input module is just one of many products from Honeywell that exemplifies the company’s commitment to providing reliable, high-performance solutions to meet the demands of modern industrial applications.
Recommended Related Models from the Same Series:
| Model |
Dimensions |
Weight |
Input Channels |
Key Features |
| 8C-TAIXB1 51307129-175 |
220 x 120 x 152.4 mm |
0.3 kg |
16 channels |
Versatile analog input module with flexible input types |
| 8C-TAIXB2 51307129-176 |
220 x 120 x 152.4 mm |
0.3 kg |
8 channels |
Compact model with fewer input channels for small systems |
| 8C-TAIXB3 51307129-177 |
220 x 120 x 152.4 mm |
0.3 kg |
32 channels |
High-density model for large-scale installations |
| 8C-TAIXB4 51307129-178 |
220 x 120 x 152.4 mm |
0.3 kg |
24 channels |
Mid-range model, ideal for medium-sized systems |
| 8C-TAIXB5 51307129-179 |
220 x 120 x 152.4 mm |
0.3 kg |
16 channels |
Advanced version with enhanced diagnostics and performance |
Recommended Popular Honeywell Models:
| Model |
Dimensions |
Weight |
Input Channels |
Key Features |
| 8C-TDIO1 51307129-180 |
220 x 120 x 152.4 mm |
0.3 kg |
8 channels |
Multi-functional module with both analog and digital I/O capabilities |
| 8C-TAIXD1 51307129-181 |
220 x 120 x 152.4 mm |
0.3 kg |
16 channels |
Supports high-resolution, high-speed input for demanding applications |
| 8C-TAIXP1 51307129-182 |
220 x 120 x 152.4 mm |
0.3 kg |
16 channels |
Optimized for precision measurements in industrial control systems |
| 8C-TAIXL1 51307129-183 |
220 x 120 x 152.4 mm |
0.3 kg |
32 channels |
High-channel count for large-scale industrial data acquisition systems |
| 8C-TAIXM1 51307129-184 |
220 x 120 x 152.4 mm |
0.3 kg |
24 channels |
Ideal for environments that require flexibility in input signal types |
