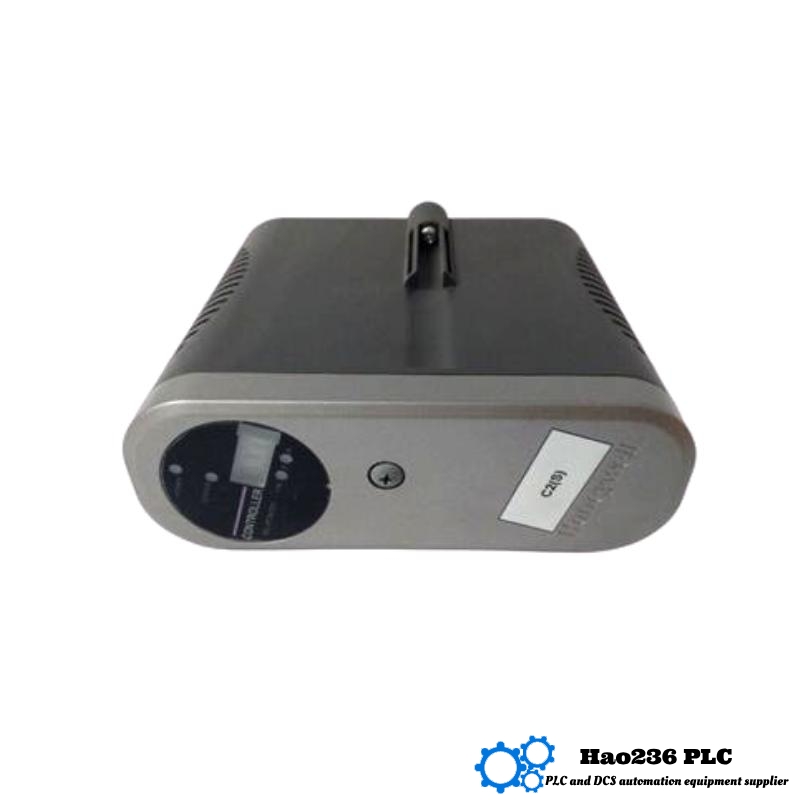

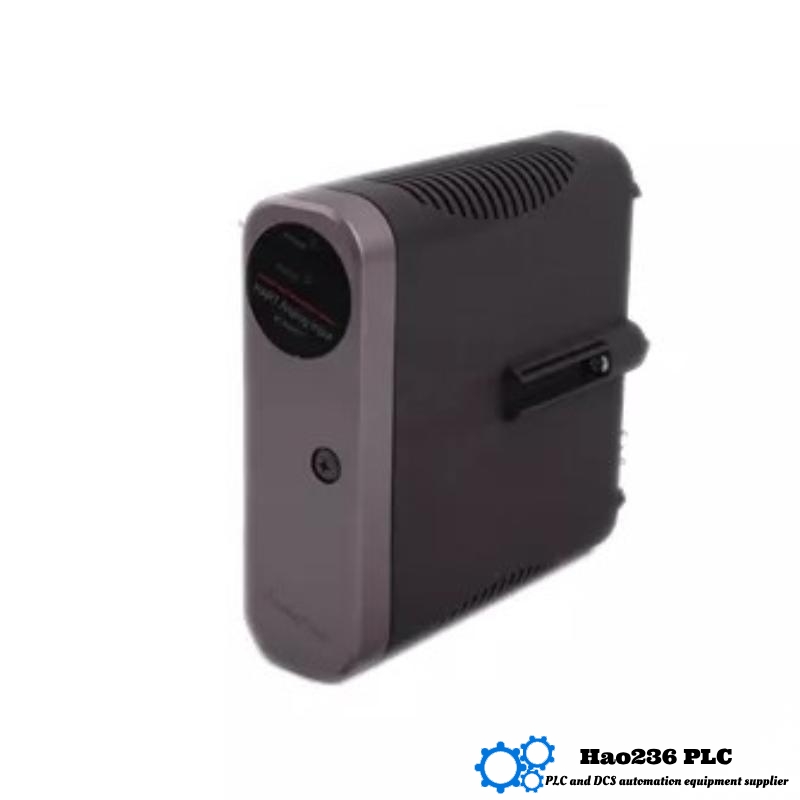

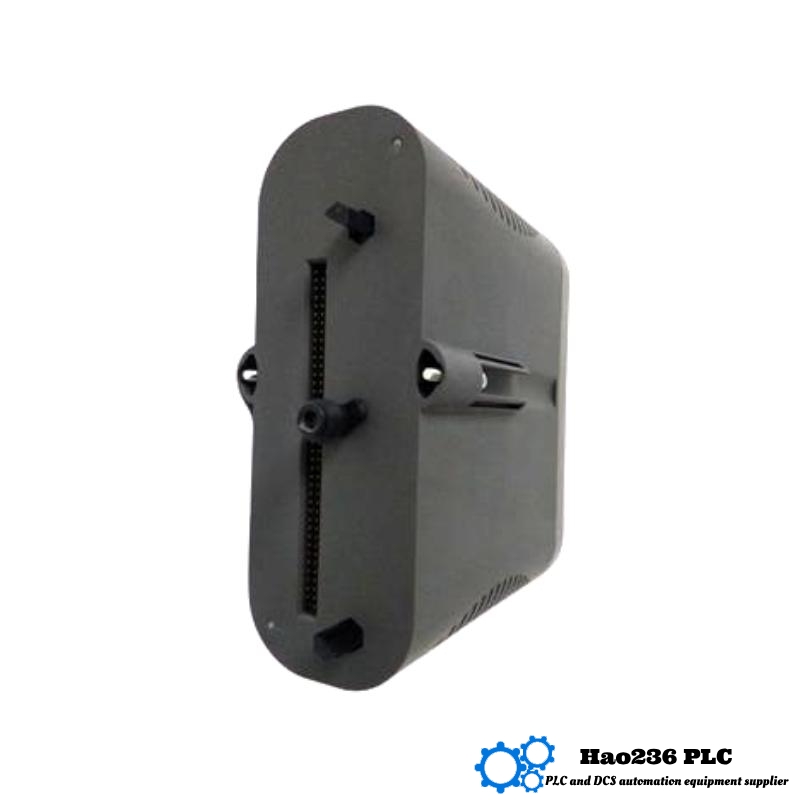

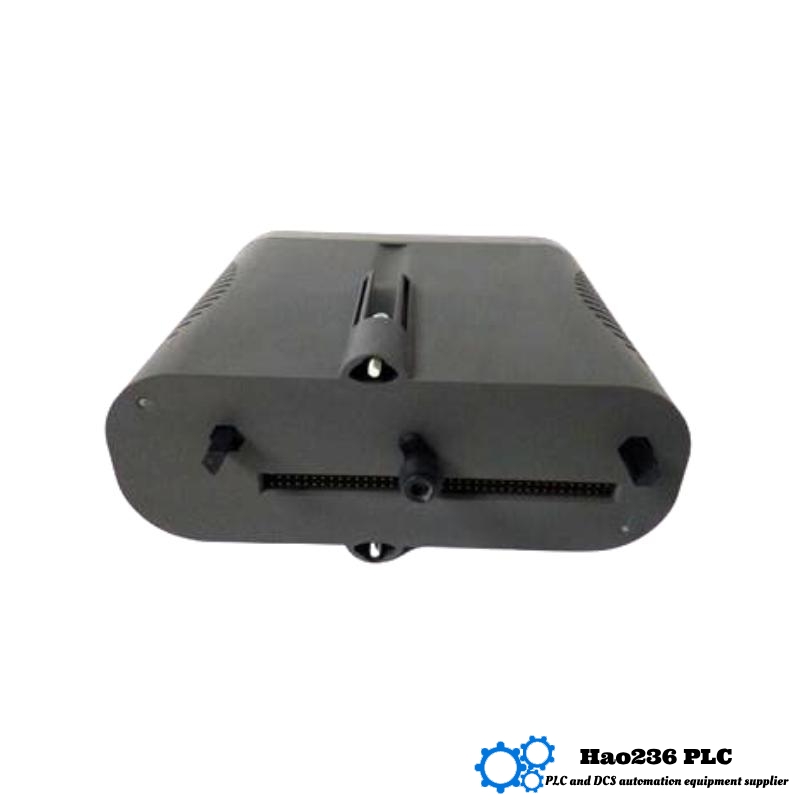

Honeywell 8C-PCNT03 51454238-175 Controller Module

Product Overview

The Honeywell 8C-PCNT03 51454238-175 is an advanced controller module designed for industrial automation, primarily used for digital pulse counting and control operations. With increased channels and enhanced capabilities compared to its predecessors, this module plays a vital role in high-speed pulse management systems, ensuring smooth and accurate data handling for complex industrial applications. The module provides precise counting and control in dynamic environments where quick responses and reliable measurements are essential.

This module supports 2 input channels and 2 output channels, providing flexibility and increased capacity for higher throughput and faster decision-making in automated processes. Its robustness, reliability, and ease of integration with existing systems make it a go-to solution for industries such as manufacturing, oil & gas, and process automation.

Product Features and Advantages

• Dual-Channel Operation: The 8C-PCNT03 provides two independent input and output channels, allowing for simultaneous handling of multiple pulse inputs and outputs, ideal for high-throughput systems.

• High-Speed Pulse Counting: Capable of managing high-frequency pulses up to 50 kHz, ensuring fast data processing and control in real-time.

• Integration Flexibility: The module supports common industrial communication protocols, such as Modbus RTU and RS-485, making it highly compatible with a wide range of control systems and devices.

• Compact Design: Despite its powerful capabilities, the module has a compact form factor (51 x 267 x 178 mm) that saves space in control panels, helping to streamline system design.

• Built-in Diagnostics: With robust diagnostic capabilities, the 8C-PCNT03 can detect faults in the system, including input/output errors, enhancing system reliability and reducing downtime.

• Durability in Harsh Environments: Designed for demanding industrial environments, it operates reliably across a wide temperature range and is built to withstand high vibrations and electrical noise.

Applications

The Honeywell 8C-PCNT03 is suited for a wide range of applications where high-speed pulse counting and output management are required:

• Manufacturing Automation: Ideal for use in automated assembly lines, conveyors, and sorting systems where pulse counting is necessary for tracking parts, measuring output, or managing flow.

• Oil & Gas: Used in flow monitoring systems where accurate pulse counting from flow meters and sensors is needed for fluid measurement and process control.

• Process Automation: Perfect for applications in batch processes, including chemical manufacturing, pharmaceuticals, and food processing, where precise control of inputs and outputs is required.

• Energy Production: Applied in power generation and utilities for monitoring equipment and managing operational processes, ensuring accurate tracking of energy production data.

• Packaging Industry: Efficient in managing systems that track material flow and packaging operations, requiring continuous pulse counting and output control.

Technical Specifications

Product Benefits

1. Dual-Channel Operation: With two input and two output channels, the module is perfect for handling more complex systems that require multiple signals simultaneously.

2. Precise Pulse Counting: High-speed pulse counting ensures that operations are controlled with exceptional accuracy, making it perfect for fast-paced manufacturing or process environments.

3. Broad Compatibility: Thanks to its support for Modbus RTU and RS-485 protocols, this module integrates effortlessly with a variety of systems, minimizing setup time and cost.

4. Durability: Built to withstand industrial conditions, including extreme temperatures and electrical disturbances, ensuring long-term reliability.

5. Space-Efficient Design: Its compact size makes the module easy to install in tight spaces without sacrificing performance, providing flexibility in system design.
