Product Overview

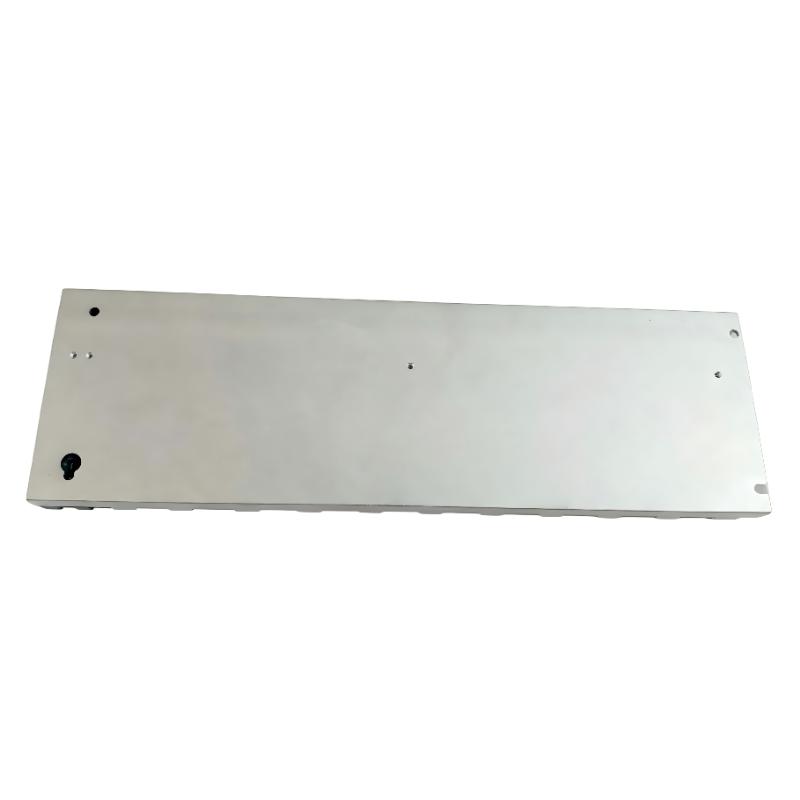

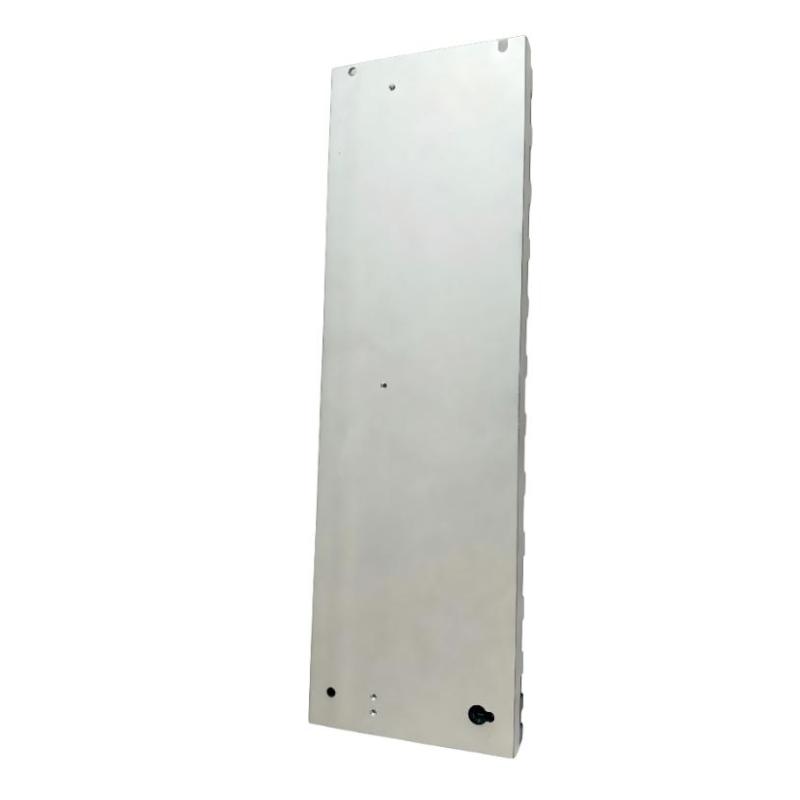

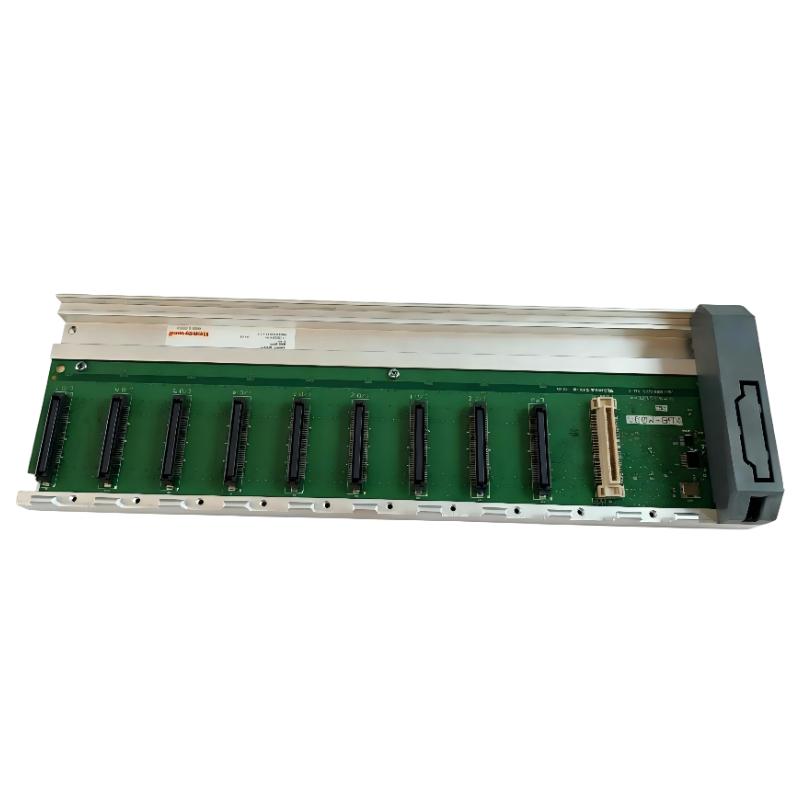

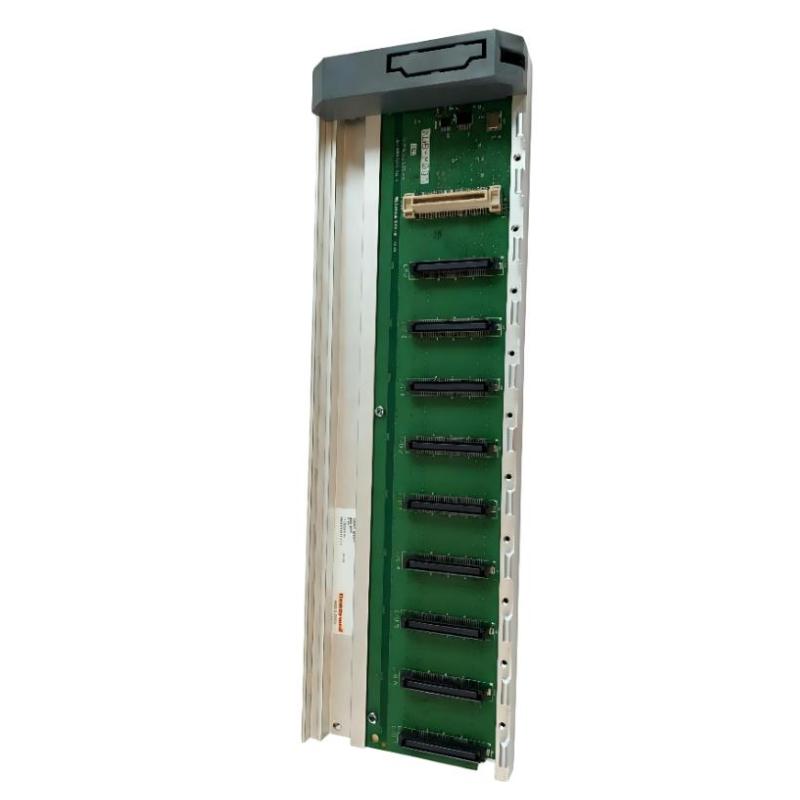

The Honeywell 2MLR-E08P Expansion Base is an industrial-grade 8-slot I/O expansion rack used in the MasterLogic 200 PLC system.
It is designed to expand PLC system capacity by providing a modular mounting and backplane platform for digital, analog, and communication modules. This allows industrial automation systems to scale efficiently while maintaining stable high-speed internal communication between modules.
The expansion base is a key structural component in distributed PLC architectures where additional I/O capacity is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 2MLR-E08P |
| Product Type | Expansion Base (I/O Rack) |
| System Series | MasterLogic 200 PLC |
| Slot Capacity | 8 module slots |
| Supported Modules | Digital I/O, Analog I/O, Communication modules |
| Backplane Communication | High-speed PLC internal bus |
| Installation Type | DIN rail / cabinet mounted rack system |
| Power Supply | Supplied via system power architecture |
| Operating Environment | Industrial automation systems |
| Dimensions | 210 × 102 × 35 mm |
| Weight | 0.3 kg |
Function and Working Principle
The 2MLR-E08P operates as a modular expansion platform within the PLC system architecture.
It is responsible for:
- Providing physical slot space for I/O and communication modules
- Enabling high-speed communication between modules via backplane bus
- Expanding system capacity beyond the main PLC base unit
- Supporting distributed control architecture in industrial automation
- Ensuring stable signal exchange between CPU and expansion modules
The base itself does not process signals but acts as a structural and communication backbone for installed modules.
System Role in Architecture
The Honeywell 2MLR-E08P plays a scaling and infrastructure role in PLC systems.
It is typically used for:
- Expanding PLC I/O capacity in control cabinets
- Supporting modular system design in industrial automation
- Hosting multiple types of input/output modules
- Enabling system upgrades without full controller replacement
- Building large distributed control systems
It is essential in systems where process complexity requires additional I/O points.
Industrial Applications
- Manufacturing automation systems
- Oil and gas processing facilities
- Petrochemical plants
- Power generation systems
- Water treatment plants
- Packaging and assembly lines
- Industrial machinery control systems
Installation & Integration
Proper installation ensures system stability:
- Mounted inside PLC control cabinets
- Installed as part of MasterLogic 200 rack architecture
- Connected via system backplane communication structure
- Requires proper grounding and cabinet wiring
- Used in fixed industrial automation environments
- Expansion bases can be combined in multi-rack configurations
Compatible Components
- Honeywell MasterLogic 200 PLC CPU modules
- Digital input/output modules
- Analog I/O modules
- Communication interface modules
- System power supply modules
- PLC backplane interconnection cables
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| 2MLR-M08A | Main base (8 slots) | Primary rack unit |
| 2MLR-E12P | 12-slot expansion base | Higher capacity expansion |
| 2MLB-E08A | Alternative 8-slot base | ML200 platform variant |
| Modular PLC rack systems | Generic alternative | Non-Honeywell systems |
| Remote I/O systems | Distributed alternative | Network-based architecture |
Key Advantages
- Expands PLC system capacity efficiently
- Supports multiple module types
- Stable high-speed backplane communication
- Modular and scalable architecture
- Compact industrial design
- Compatible with MasterLogic 200 systems
- Simplifies system upgrades and expansion
FAQs
Q1: What is the main function of this expansion base?
It provides slot capacity for PLC I/O and communication modules.
Q2: Does it process signals directly?
No, it only supports installed modules.
Q3: Where is it used?
Inside industrial PLC control cabinets.
Q4: Can it work alone without a CPU?
No, it must be used with a PLC CPU system.
Q5: Why is it important?
It allows system expansion without redesigning the entire PLC system.
Conclusion
The Honeywell 2MLR-E08P Expansion Base is a core structural component in MasterLogic 200 PLC systems. It enables scalable system design by providing reliable module expansion capacity and stable high-speed communication between industrial control modules.
