Product Overview

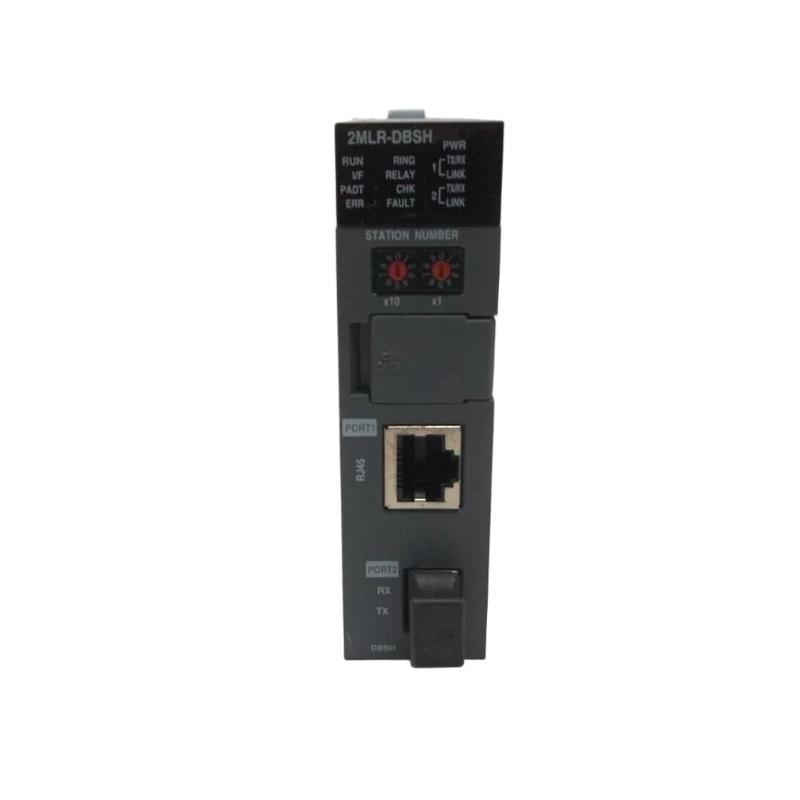

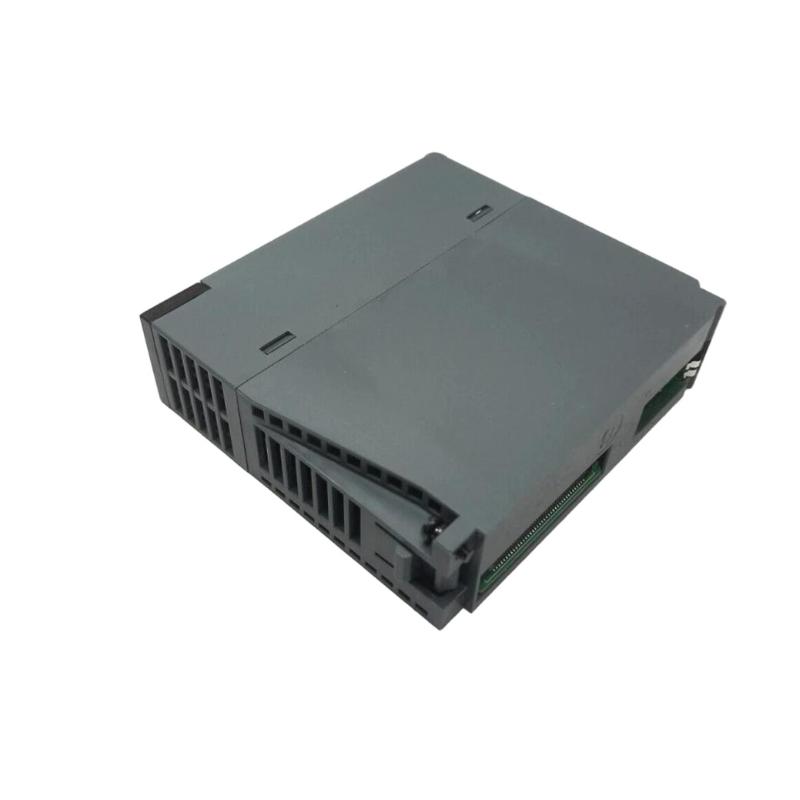

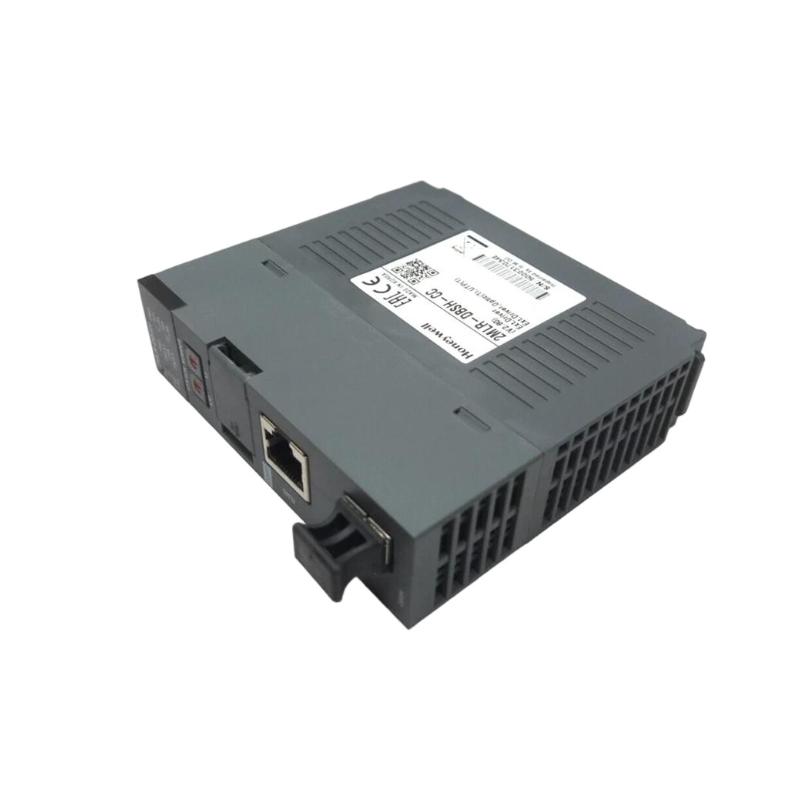

The Honeywell 2MLR-DBSH-CC Extended Driver Module is an advanced, reliable, and compact device designed for controlling a wide range of industrial systems. With dimensions of 175 × 115 × 35 mm and weighing only 0.102 kg, this module offers an efficient solution for extending the control capabilities of industrial automation systems. It is engineered to ensure seamless communication and precise control of devices like actuators, sensors, and motors, making it an ideal choice for various industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 2MLR-DBSH-CC |
| Product Type | Extended Driver Module |
| Dimensions | 175 × 115 × 35 mm |
| Weight | 0.102 kg |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature Range | -20°C to +60°C |
| Power Supply | 24 V DC (Nominal) |
| Input/Output Ports | Multiple I/O ports for device control |
| Communication Protocols | Modbus, Ethernet/IP, Profibus |
| Certification | CE, UL |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
Function and Working Principle
The Honeywell 2MLR-DBSH-CC Extended Driver Module is engineered to handle the control and integration of various industrial devices:
- Device Control: It controls devices such as motors, actuators, and valves, providing precise and reliable operation in industrial environments.
- Extended Connectivity: This module extends the system’s capabilities by providing additional ports for connecting more devices, increasing the overall flexibility of the system.
- Communication Protocol Support: It integrates with industrial communication protocols such as Modbus, Ethernet/IP, and Profibus, allowing smooth communication with other parts of the system.
- Signal Conversion: The module ensures compatibility between different devices by converting signals from the central control system to appropriate formats for field devices.
Role in Industrial Systems
The Honeywell 2MLR-DBSH-CC module is vital for expanding and optimizing control systems in various industrial environments:
- Control: It provides essential control signals to a variety of devices, ensuring that operations run smoothly and efficiently.
- System Expansion: It allows for easy scaling of the system by enabling the addition of more devices without the need for major infrastructure changes.
- Communication: The module facilitates communication between different parts of the system, ensuring data is shared accurately and quickly between devices and the central control system.
- Flexibility: It provides flexibility in system design by allowing for integration with multiple types of devices and communication protocols.
Industrial Applications
The Honeywell 2MLR-DBSH-CC Extended Driver Module is versatile and suitable for many industrial sectors:
- Manufacturing: Controls and manages actuators, motors, and sensors, ensuring smooth operation on production lines.
- Energy Management: Ideal for controlling devices used in energy production, distribution, and monitoring systems.
- Oil & Gas: Manages equipment such as pumps, valves, and sensors to maintain safe and efficient operations in critical environments.
- Water Treatment: Used to control devices in water filtration, chemical dosing, and other water treatment processes.
- Industrial Automation: Perfect for controlling various systems in industries like pharmaceuticals, chemicals, and food processing.
Installation and System Integration
The Honeywell 2MLR-DBSH-CC module is designed for easy installation and system integration:
- DIN Rail Mountable: The module is designed to be mounted on DIN rails, making it easy to install in industrial control panels and enclosures.
- Multiple I/O Ports: It provides various I/O ports for connecting sensors, actuators, and other devices, allowing for flexible system integration.
- Compact and Lightweight: With its 175 × 115 × 35 mm size and 0.102 kg weight, the module is compact enough for use in tight spaces without compromising on performance.
- Wide Protocol Support: The 2MLR-DBSH-CC supports multiple communication protocols, including Modbus, Ethernet/IP, and Profibus, ensuring compatibility with a wide range of industrial devices.
Compatible System Components
The Honeywell 2MLR-DBSH-CC can be integrated with a variety of system components to enhance control capabilities:
- Honeywell PLCs: The module works seamlessly with Honeywell PLCs, providing enhanced control and communication capabilities for automation systems.
- I/O Modules: Compatible with both digital and analog I/O modules, it offers flexibility in system configuration.
- Communication Modules: The 2MLR-DBSH-CC interfaces with various communication modules to enable remote monitoring and control.
- Sensors and Actuators: It integrates with a variety of sensors, actuators, and other field devices for precise system control.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Honeywell 2MLR-DBSH-10 | Extended Driver Module | Compact size with lower I/O capacity | Best for smaller automation setups |
| Honeywell 2MLR-DBSH-20 | Extended Driver Module | Higher I/O capacity for large systems | Ideal for larger industrial automation |
Key Advantages
- Compact and Lightweight: The 2MLR-DBSH-CC module offers high functionality in a small package, measuring 175 × 115 × 35 mm and weighing only 0.102 kg.
- Flexible Integration: It supports multiple communication protocols and offers I/O ports for connecting various devices, providing easy integration with existing systems.
- Reliable Operation: Designed for harsh industrial environments, it ensures reliable and consistent operation even in challenging conditions.
- Scalable Solution: The module can easily be integrated into expanding systems, allowing for the addition of more devices and ensuring scalability as system requirements grow.
- Wide Range of Applications: Suitable for a variety of industries, including manufacturing, oil & gas, energy, and water treatment.
Technical FAQs
How many devices can the 2MLR-DBSH-CC control?
The 2MLR-DBSH-CC can control numerous devices, depending on system configuration and the type of devices used (e.g., motors, sensors, actuators).
What communication protocols are supported by the module?
The 2MLR-DBSH-CC supports Modbus, Ethernet/IP, and Profibus, making it compatible with a wide variety of industrial systems.
Is the module easy to install in a control panel?
Yes, the 2MLR-DBSH-CC is designed to be mounted on DIN rails, which makes it easy to install and position in control panels and other industrial enclosures.
Conclusion
The Honeywell 2MLR-DBSH-CC Extended Driver Module provides an excellent solution for enhancing industrial automation systems. Its compact design, reliable performance, and flexible integration options make it suitable for a variety of industrial applications, from manufacturing to energy management. By supporting multiple communication protocols and offering scalable control, the 2MLR-DBSH-CC ensures efficient system operation, enabling industries to maintain high levels of productivity and operational reliability.
