Product Overview

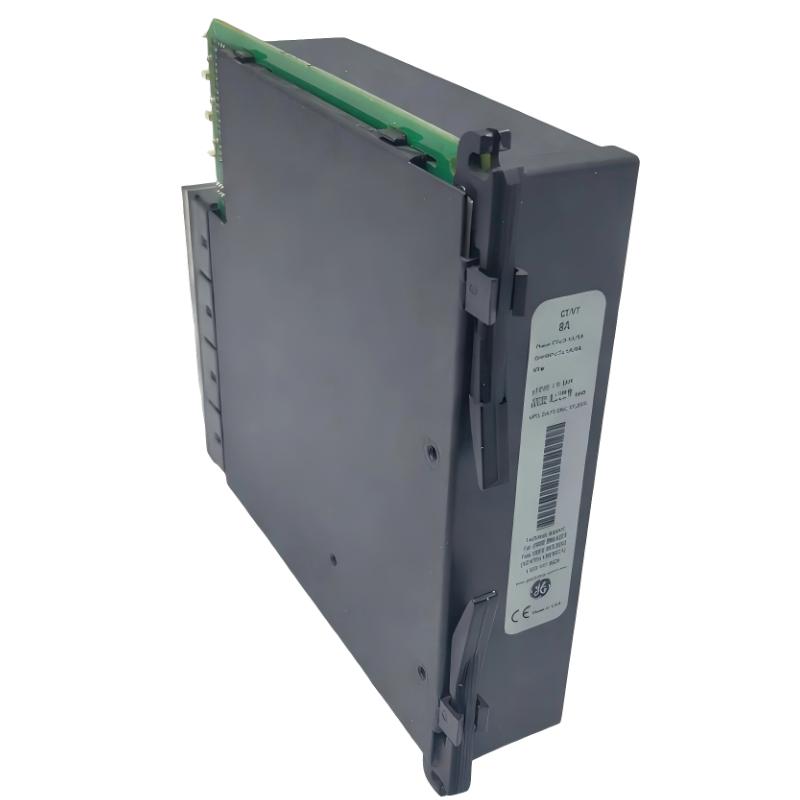

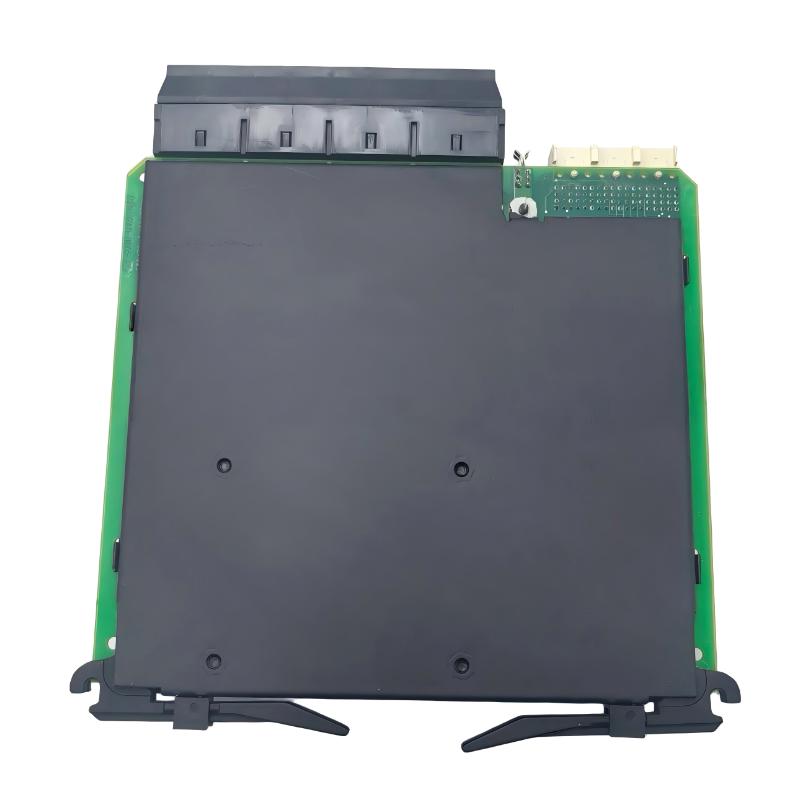

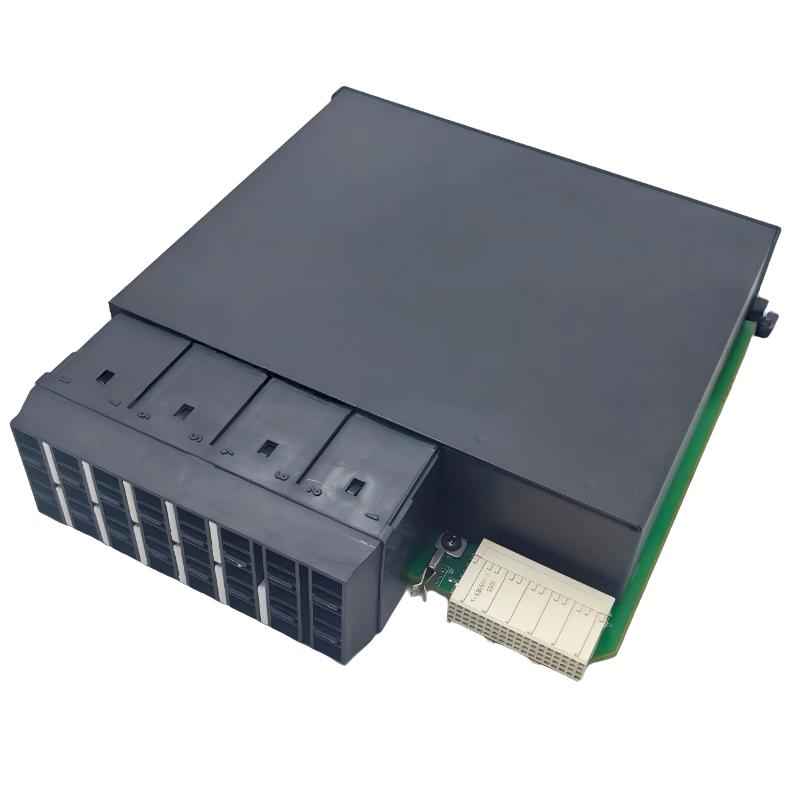

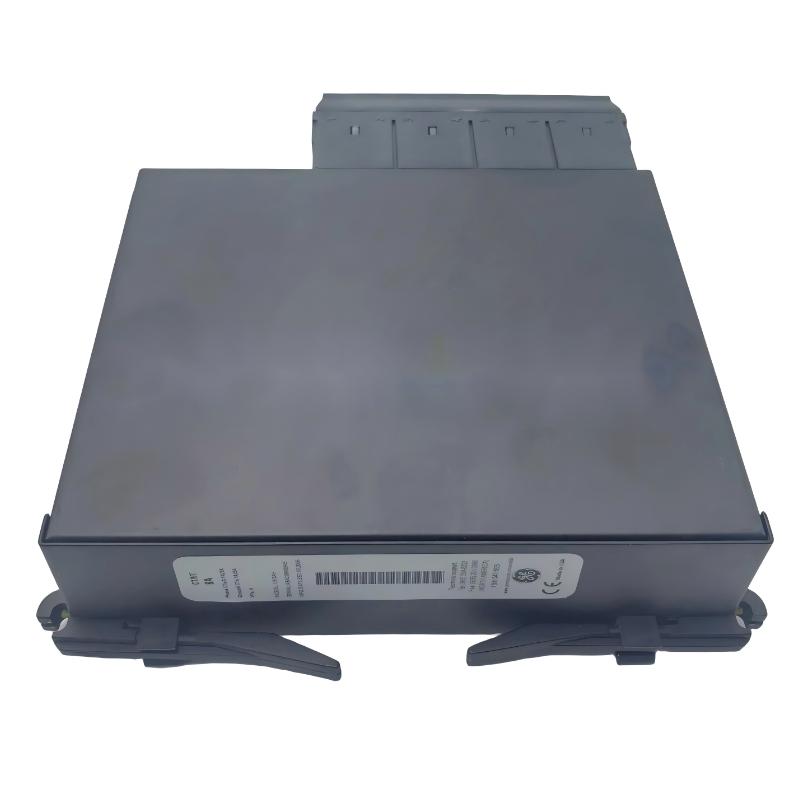

The GE UR 8AH is a Multilin UR Series CT/VT Module used to interface current transformer and voltage transformer signals with a GE Multilin Universal Relay system. It forms part of the relay’s measurement input path, allowing electrical quantities from the protected circuit to be brought into the relay for protection, metering, monitoring, and control functions.

In a typical substation, switchgear, generator, motor, or feeder application, CT and VT signals are routed from the power system through the appropriate instrument-transformer circuits and into the relay. The UR 8AH provides the corresponding module-level interface within the UR platform.

Because CT/VT inputs are fundamental to many protection functions, correct wiring, phase identification, configuration, and signal verification are particularly important when installing or replacing this module.

Technical Specifications

Product Features

• CT/VT signal interface — Connects current and voltage transformer circuits with the Multilin UR relay platform.
• Electrical measurement input — Provides the measurement path required by relay protection and metering functions.
• Multilin UR integration — Forms part of the modular input architecture used by Universal Relay systems.
• Protection-function support — Supplies electrical measurement information used by configured relay functions.
• Phase measurement integration — Supports the relay’s use of current and voltage information for system monitoring and protection logic.
• Modular relay architecture — Fits applications where the UR relay configuration is built around application-specific I/O modules.

Working Principle

The UR 8AH receives measurement signals originating from external current transformers and voltage transformers. These signals enter the CT/VT interface and are passed into the Multilin UR relay’s internal measurement and processing architecture.

The relay uses the acquired electrical quantities according to its configured protection and monitoring functions. Depending on the application, the measured information can contribute to functions such as overcurrent protection, voltage supervision, power measurement, fault analysis, and control logic.

The module is therefore part of a complete measurement chain rather than an independent protection device. During commissioning, technicians should verify the instrument-transformer circuits, polarity and phase relationships, module connections, and relay configuration together. An incorrect CT or VT connection can produce abnormal measurements even when the relay and module are functioning normally.

Role in a GE Multilin UR Protection and Measurement Architecture

The UR 8AH sits at the measurement-input layer of the architecture. Its correct operation depends on the external CT/VT circuits and the configuration of the host Multilin UR relay.

Industrial Applications

Installation and Maintenance

1. Verify the relay configuration — Confirm that the UR 8AH is the required CT/VT module for the specific Multilin UR application.
2. Review the protection drawings — Identify each CT, VT, phase connection, neutral connection, and corresponding relay input.
3. Apply electrical safety procedures — Follow site requirements for isolating and securing instrument-transformer circuits before maintenance.
4. Confirm module identification — Check the module marking against the equipment documentation before installation.
5. Inspect CT/VT wiring — Look for loose terminals, damaged conductors, incorrect phase connections, or signs of overheating.
6. Check connector condition — Inspect the module interface for contamination, mechanical damage, or poor seating.
7. Verify phase relationships — Confirm that the current and voltage channels correspond to the intended phases.
8. Check polarity and circuit continuity — Verify the measurement circuits against the approved protection drawings and commissioning procedure.
9. Compare relay measurements — Check displayed current and voltage values against expected system measurements.
10. Investigate abnormal readings systematically — Trace the measurement path from the CT/VT through field wiring and the module before replacing hardware.
11. Perform protection testing — Confirm that the relay receives the expected measurement signals during commissioning or scheduled testing.
12. Document changes — Record module replacement, wiring modifications, configuration changes, and test results for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a dedicated CT/VT measurement interface for Multilin UR systems.
• Connects instrument-transformer signals with relay protection and metering functions.
• Supports current and voltage measurement within a modular relay architecture.
• Provides a defined measurement path for troubleshooting CT/VT signal problems.
• Fits substation, feeder, generator, motor, and industrial power applications.
• Integrates naturally with the broader GE Multilin UR protection platform.

Technical FAQs

What is the purpose of the GE UR 8AH?

The UR 8AH is a Multilin UR Series CT/VT Module that provides the interface between external current and voltage transformer circuits and the host UR relay.

Why are CT and VT connections important when installing the UR 8AH?

CT and VT connections determine the current and voltage information received by the relay. Incorrect phase assignment, polarity, or wiring can produce incorrect measurements and may affect protection functions even when the module itself is operating normally.

What symptoms can indicate a CT/VT input problem?

Possible symptoms include missing measurements, incorrect phase values, unexpected current or voltage readings, or inconsistencies between relay measurements and the electrical system. The CT/VT circuits, wiring, module connections, and relay configuration should be checked as a complete signal path.

Does the UR 8AH perform protection logic itself?

The UR 8AH serves as the CT/VT interface. The host Multilin UR relay processes the received electrical measurements and applies the configured protection, metering, monitoring, and control functions.
