Product Overview

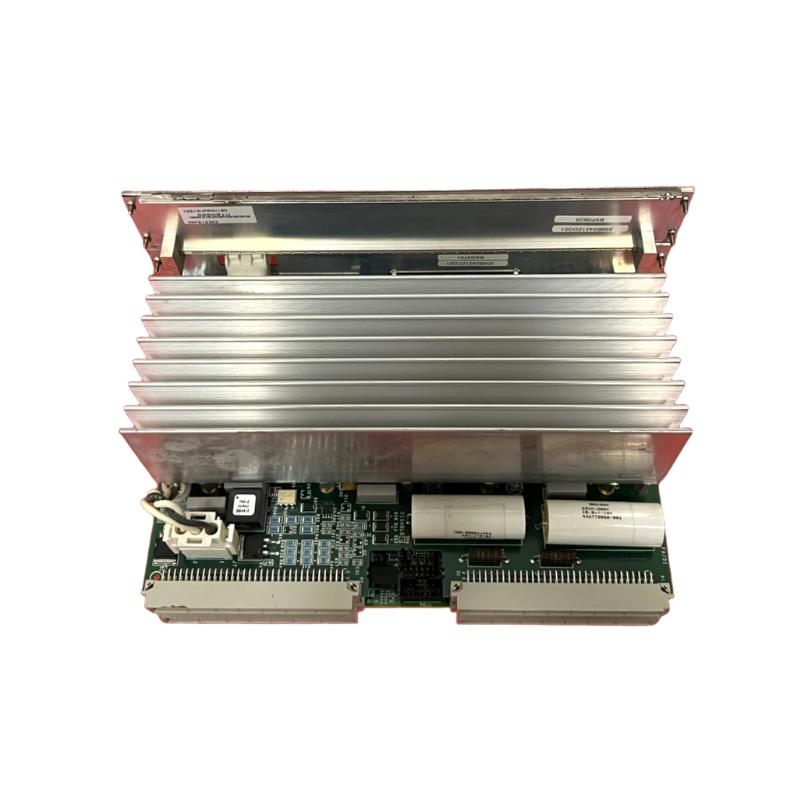

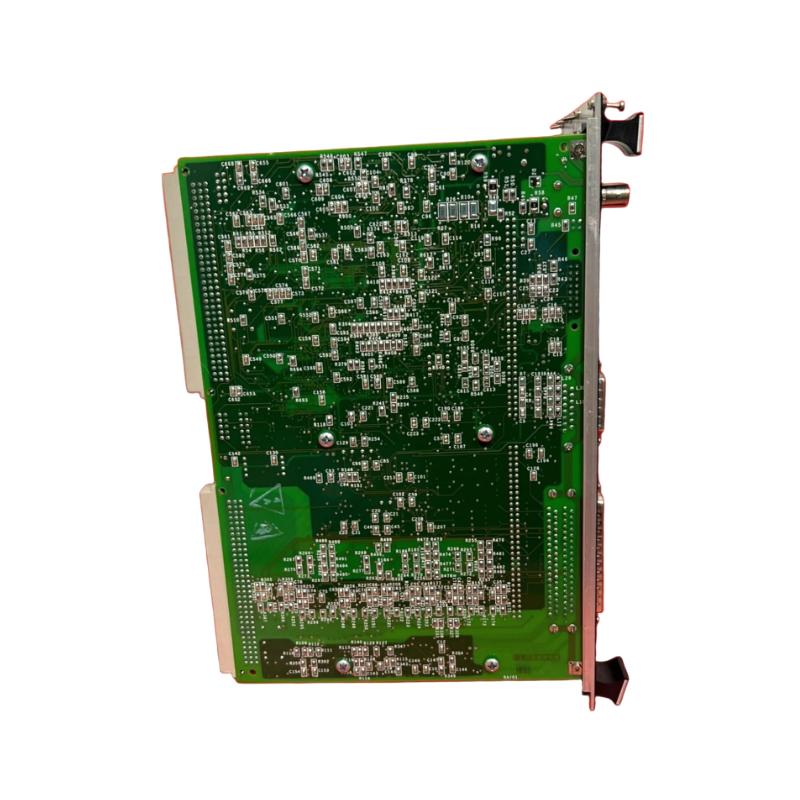

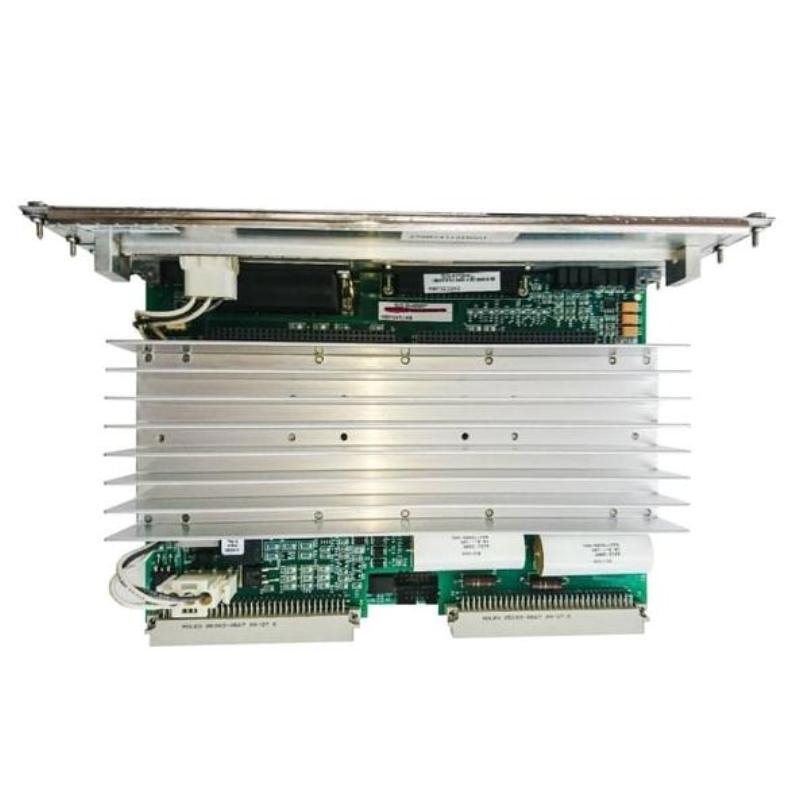

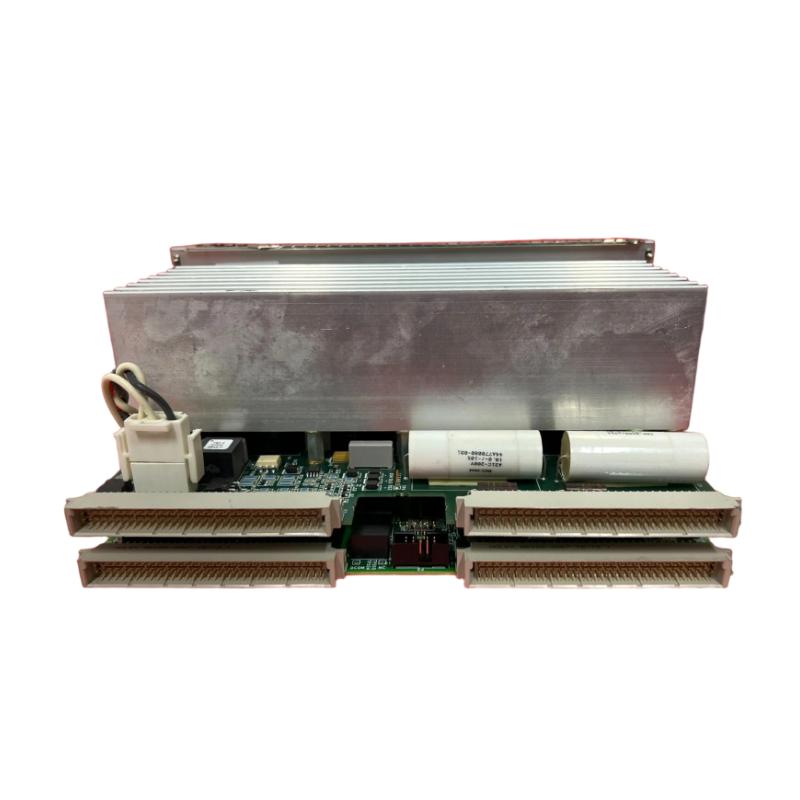

The GE IS215VPROH1B is a Mark VI VME turbine protection assembly, commonly identified as the VPRO board. Despite the “Protective Bushing” wording sometimes associated with this part number in product listings, the IS215VPROH1B is an electronic protection assembly, not a mechanical bushing. Its primary purpose is to provide independent emergency turbine protection, including emergency overspeed protection and emergency shutdown functions.
In a gas turbine installation, the VPRO assembly monitors dedicated protection signals and operates the trip relay path when a configured protection condition is met. It works with associated terminal boards, particularly TPRO and TREG, and forms part of the protection arrangement that is separate from the turbine’s normal control functions. This separation is important: normal control regulates operation, while the protection system must be able to initiate a trip when a dangerous condition is detected.
The IS215VPROH1B is used in GE Speedtronic Mark VI turbine control installations. The assembly contains stacked circuit boards and connects to the VME-based protection hardware. Its functions include emergency overspeed protection, emergency-stop functions, backup synchronization checking, and acquisition of selected speed, thermocouple, and analog signals, depending on the installed configuration.
For maintenance and replacement work, the full part number must be matched against the existing protection assembly. The IS215VPROH1B and the IS200SPROH1ACC belong to different protection hardware arrangements and should not be treated as interchangeable simply because both are associated with turbine protection. The existing rack, terminal boards, wiring, and protection configuration determine the correct replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS215VPROH1B |
| Product Family | Mark VI / Speedtronic |
| Product Type | VME Turbine Protection Assembly (VPRO) |
| Hardware Architecture | VME-based protection system |
| Primary Function | Emergency turbine protection and trip control |
| Protection Functions | Emergency overspeed protection, emergency stop, backup synchronization checking |
| Associated Terminal Boards | TPRO and TREG |
| Communication | Ethernet / IONet, according to the installed configuration |
| Circuit Board Construction | Stacked circuit-board assembly |
| Dimensions | 330 × 100 × 40 mm |
| Weight | 1.2 kg |
Product Features
- Independent emergency protection: Performs dedicated turbine protection functions separately from normal turbine control logic.
- Emergency overspeed protection: Uses configured speed inputs to detect an overspeed condition and initiate the protection response.
- Trip relay control: Operates the protection relay path through the associated TREG terminal board.
- Redundant protection architecture: Can be used in a Mark VI protection arrangement with multiple VPRO channels operating as separate protection elements.
- Additional protection inputs: Supports selected thermocouple and analog inputs, as well as backup synchronization-check functions, according to system configuration.
- VME-based installation: Connects into the designated Mark VI protection hardware arrangement.
- System communication: Uses the configured IONet connection for communication with relevant control-system components.
- Revision-sensitive replacement: Requires exact part-number and hardware-configuration checks before substitution.
Working Principle
The IS215VPROH1B receives protection-related signals from the turbine’s configured sensors and associated terminal interfaces. Speed signals are used for overspeed protection, while selected thermocouple and analog inputs can serve additional protection or monitoring functions. The board processes these inputs according to the protection configuration and determines whether a trip condition has been reached.
When a protection trip is required, the VPRO assembly operates the configured relay outputs through the TREG terminal board. The associated trip circuit then acts on the turbine’s trip solenoids. In the documented Mark VI arrangement, TREG provides the positive side of the 125 V DC solenoid circuit, while the associated TRPG board provides the negative side. The exact wiring and relay arrangement depend on the installed protection design.
A typical protection path can be represented as:
Speed Sensors / Protection Inputs → IS215VPROH1B VPRO → TREG Trip Relays → Turbine Trip Solenoids → Emergency Trip Action
This path is separate from routine control commands. If the turbine reaches a configured emergency overspeed threshold, the protection system can initiate a trip without relying solely on the normal speed-control function. Other configured protection functions may use their own input conditions and logic.
The VPRO assembly also participates in system diagnostics. A board fault, invalid input, communication problem, or abnormal relay condition can produce protection-system alarms. During troubleshooting, engineers need to distinguish an actual turbine trip demand from a board diagnostic alarm or an external wiring fault, using the protection system’s status information and the site’s approved diagnostic procedure.
Role in a GE Mark VI Turbine Protection Architecture
The IS215VPROH1B occupies the dedicated protection layer of a Mark VI turbine control system. The normal control system regulates turbine operation, processes routine measurements, and coordinates operating commands. The VPRO protection arrangement monitors its assigned protection signals and operates the trip circuit when a configured emergency condition requires shutdown.
| System Component | Function |
|---|---|
| IS215VPROH1B VPRO Assembly | Processes assigned protection inputs and initiates emergency protection actions. |
| TPRO Terminal Board | Provides the relevant interface for configured protection inputs, including speed-signal connections. |
| TREG Terminal Board | Provides trip relay interfaces used to control the turbine trip circuit. |
| TRPG Terminal Board | Provides the corresponding negative side of the trip-solenoid circuit in the documented arrangement. |
| Magnetic Speed Pickups | Supply turbine speed signals for overspeed detection. |
| Thermocouple Inputs | Supply temperature measurements used by configured protection or monitoring functions. |
| Trip Solenoids | Actuate the turbine trip mechanism when the trip circuit operates. |
| Mark VI Control System | Handles normal turbine control and exchanges relevant status information with the protection arrangement. |
In a triple-redundant protection arrangement, three VPRO boards operate as separate protection channels. The architecture is intended to maintain protection availability if one channel develops a fault. The actual voting and trip-circuit behavior depend on the configured hardware and protection design; the presence of multiple boards should not be taken as permission to remove or isolate one without an approved maintenance procedure.
The H1B variant is particularly relevant where a second TREG board is connected through the VPRO assembly’s J4 interface. Replacement selection must therefore account for the existing terminal-board arrangement, not just the main board reference. A different VPRO variant may have different support for additional terminal-board connections.
Industrial Applications
| Application | Protection Role |
|---|---|
| Gas Turbine Power Generation | Monitors configured protection inputs and initiates an emergency trip when required. |
| Steam Turbine Installations | Forms part of a compatible Mark VI turbine protection arrangement. |
| Combined-Cycle Power Plants | Supports turbine protection within the plant’s turbine control and shutdown infrastructure. |
| Turbine Overspeed Protection | Processes speed-related protection signals and initiates the trip response at the configured threshold. |
| Turbine Emergency Shutdown | Operates the trip relay path associated with the turbine’s emergency shutdown mechanism. |
| Backup Synchronization Checking | Supports the configured backup synchronization-check protection function. |
| Turbine Exhaust Temperature Protection | Uses configured thermocouple inputs for relevant temperature protection functions. |
| Turbine Control System Refurbishment | Serves as a replacement assembly when the existing Mark VI protection hardware requires service. |
Installation and Maintenance
- Verify the complete part number. Confirm that the installed assembly is IS215VPROH1B and record the available hardware revision markings before ordering or installing a replacement.
- Confirm the protection architecture. Identify the existing VPRO arrangement, the number of protection channels, the rack position, and the associated TPRO, TREG, and TRPG terminal boards.
- Review the terminal-board configuration. Determine whether a second TREG board is connected through the J4 interface. This detail is important when selecting the correct VPRO variant.
- Follow the approved maintenance procedure. Use the plant’s turbine protection isolation, shutdown, or approved channel-maintenance procedure. Do not assume that removal is safe merely because the protection system has redundant channels.
- Inspect the VME rack and connectors. Check the board guides, edge connectors, front-panel connectors, and retaining hardware for contamination, damage, or poor engagement.
- Label external connections before removal. Record the positions of the cables connected through the relevant front-panel interfaces so that speed, thermocouple, and trip-related connections can be restored correctly.
- Install and secure the assembly. Seat the board using the specified insertion procedure and secure the front panel before restoring power to the relevant rack.
- Check power and diagnostics. After restoration, examine the board’s diagnostic indicators and the system status for faults, communication alarms, or unexpected trip indications.
- Verify the protection inputs. Use the approved test method to confirm that the expected speed and other configured protection signals are present and interpreted correctly.
- Test the trip path under an approved procedure. Where required, verify the relevant relay and trip-solenoid circuit using the site’s authorized protection test procedure. Avoid unplanned trip commands or tests that could affect operating equipment.
- Confirm channel and system status. Before returning the protection channel to service, confirm that diagnostics are clear and that the intended protection configuration has been restored.
- Document the work. Record the replacement part number, revision, terminal-board configuration, test results, and any protection alarms observed during commissioning.
Because the IS215VPROH1B participates in emergency turbine protection, maintenance must preserve the required protection coverage throughout the work. Channel isolation, testing, and restoration should be controlled by the site’s turbine protection procedures.
Related Components
| Component | Function |
|---|---|
| TPRO Terminal Board | Interfaces with configured protection inputs, including turbine speed signals. |
| TREG Terminal Board | Provides the relay interface used to control the turbine trip circuit. |
| TRPG Terminal Board | Provides the corresponding negative-side connection for the trip-solenoid circuit in the documented arrangement. |
| Magnetic Speed Pickups | Supply turbine speed measurements for overspeed protection. |
| Thermocouples | Supply temperature signals for configured protection and monitoring functions. |
| Turbine Trip Solenoids | Actuate the turbine trip mechanism when the protection circuit operates. |
| Mark VI VME Protection Rack | Provides the mounting and electrical interconnection structure for the protection assembly. |
Recommended Related Models
| Model / Component | Product Type | Selection Consideration |
|---|---|---|
| GE IS215VPROH1A | VPRO Turbine Protection Assembly | Confirm revision compatibility and the required support for the installed TREG arrangement. |
| GE IS215VPROH2B | VPRO Turbine Protection Assembly | Verify compatibility carefully; this variant does not provide the same support for a second TREG board as the H1A/H1B arrangement. |
| GE IS200SPROH1ACC | Protection Processor Board | A different protection architecture that uses associated I/O hardware; not a direct substitute for the VPRO assembly. |
| GE TREG | Trip Relay Terminal Board | Relevant when checking the relay outputs and trip-solenoid interface. |
| GE TPRO | Protection Input Terminal Board | Relevant when checking speed and other protection input connections. |
| GE TRPG | Trip Relay Power Terminal Board | Relevant to the trip-solenoid circuit and its power connections. |
Key Advantages
- Provides dedicated emergency turbine protection functions within the Mark VI platform.
- Supports overspeed detection and emergency trip control.
- Operates with the associated TREG trip relay interface.
- Accommodates selected additional protection inputs and backup synchronization checking.
- Fits a defined VME protection architecture with identifiable terminal-board dependencies.
- Supports channel-level diagnostics and structured protection-system maintenance.
Technical FAQs
1. What protection functions does the IS215VPROH1B perform?
The VPRO assembly provides emergency overspeed protection and emergency-stop functions. It also supports backup synchronization checking, speed-difference detection, and selected thermocouple and analog input functions according to the installed configuration.
2. What is the purpose of the TREG terminal board?
TREG provides the trip-relay interface controlled by the VPRO assembly. Its relays form part of the circuit that operates the turbine trip solenoids. Correct TREG identification and wiring are therefore important when replacing or troubleshooting the VPRO hardware.
3. Can the IS215VPROH1B be replaced with an IS215VPROH2B?
Do not assume the two variants are interchangeable. The H1B variant supports a second TREG board through the J4 interface, while the H2B variant has different support for that arrangement. Check the installed terminal-board configuration and the exact hardware requirements before selecting a replacement.
4. What should be checked if a VPRO channel reports a fault or fails a protection test?
Check the board diagnostics, rack seating, power status, configured speed and other protection inputs, associated TPRO/TREG/TRPG connections, and relevant communication status. If the fault involves a trip output, verify the relay and solenoid circuit using the approved test procedure. Do not bypass a protection function or return the channel to service until the required checks are complete.
