Product Overview

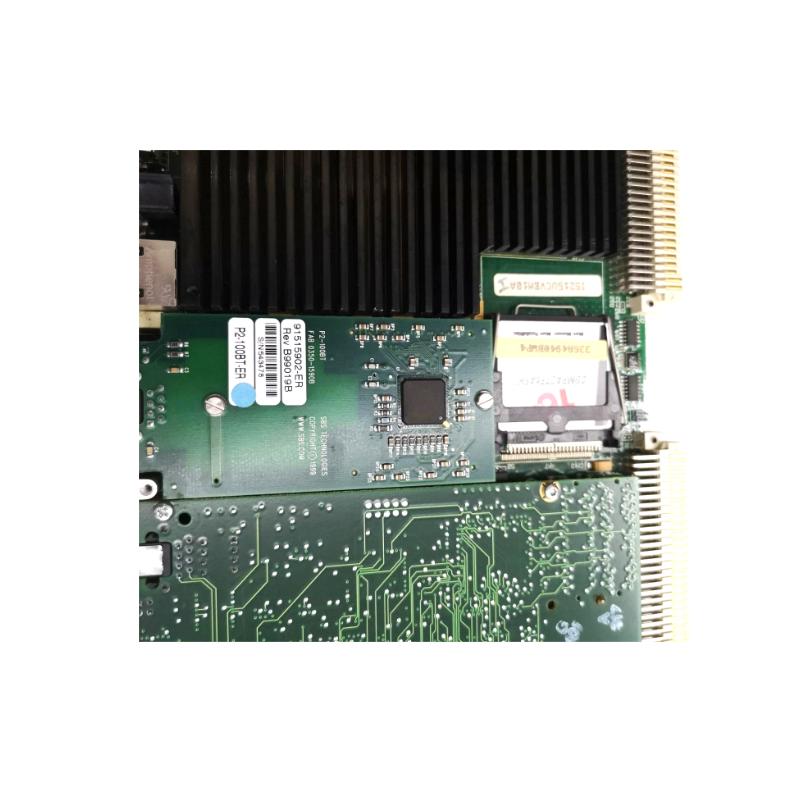

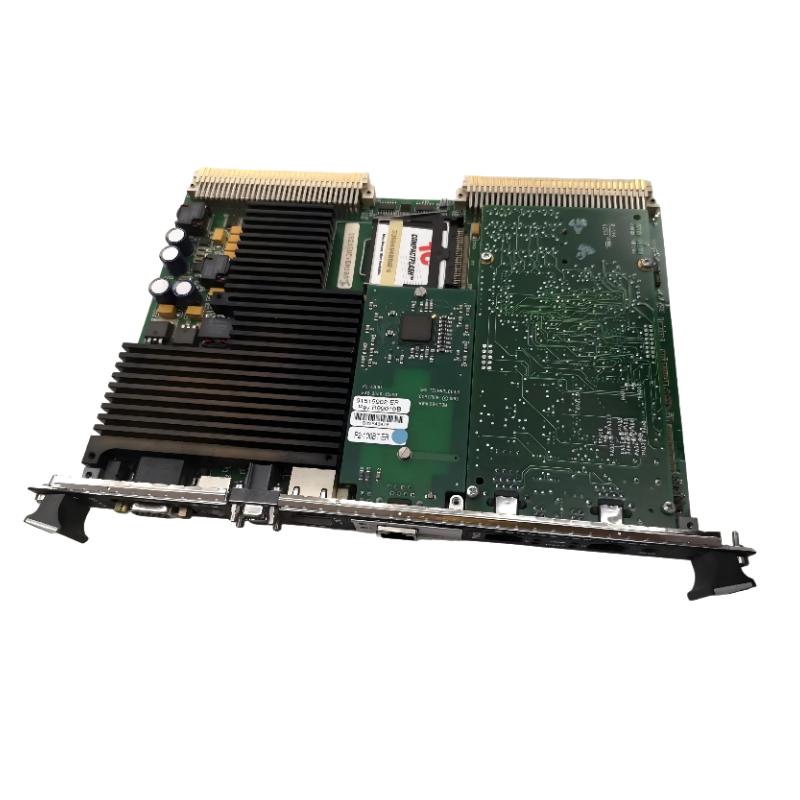

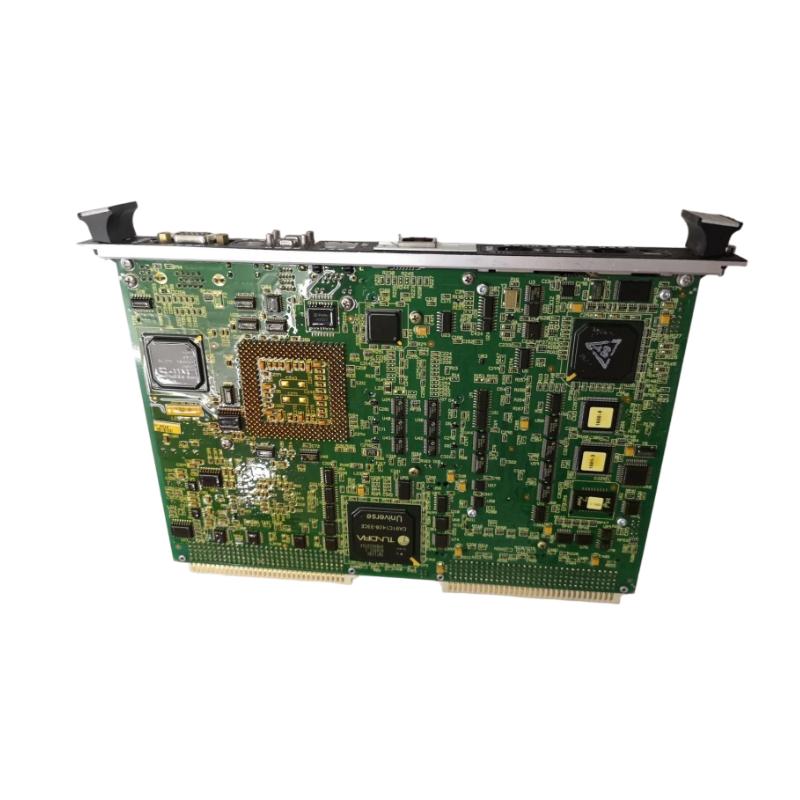

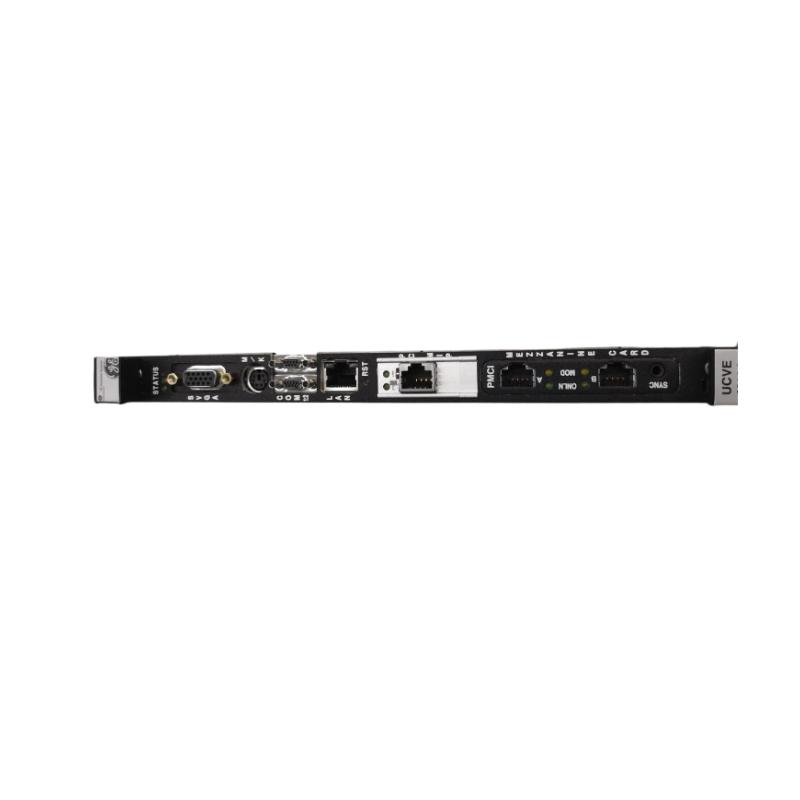

The GE IS215UCVEM10A UCVE Controller Module is a specialized industrial control module designed for use within GE control system architectures. As part of the GE IS215 series of control hardware, the IS215UCVEM10A provides controller-level processing and system coordination functions in industrial automation environments where reliable control, monitoring, and communication are required.
Controller modules are an important part of distributed industrial control architectures. They coordinate information received from I/O modules, interface boards, communication assemblies, and other system components, allowing control logic and application functions to operate as an integrated system.
The GE IS215UCVEM10A is identified as a UCVE Controller Module and has listed physical dimensions of 178 × 20 × 159 mm with a weight of approximately 0.907 kg. Its narrow board format allows it to be installed within compatible control-system hardware while maintaining a compact footprint.
The module is intended to work as part of a larger GE industrial control platform rather than as a standalone PLC. Its actual functions, interfaces, firmware requirements, and system compatibility depend on the host equipment and overall control-system configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS215UCVEM10A |
| Product Type | UCVE Controller Module |
| Product Family | GE IS215 Series |
| Module Function | Industrial control and processing |
| Controller Type | UCVE Controller |
| Application | Industrial Automation and Control |
| Dimensions | 178 × 20 × 159 mm |
| Weight | 0.907 kg |
| Installation | Compatible GE control-system equipment |
| System Role | Controller / Processing Module |
| Typical Environment | Industrial Control Systems |
Exact processor specifications, communication interfaces, memory configuration, firmware requirements, and electrical characteristics should be verified against the specific system configuration and module documentation before installation.
What Is the GE IS215UCVEM10A?
The GE IS215UCVEM10A is a UCVE controller module used within compatible GE industrial control architectures.
A controller module typically operates at a higher level than individual signal-conditioning or terminal components. It can coordinate information between different sections of an automation system and provide the processing environment required for control applications.
A simplified industrial control architecture can be represented as:
Field Devices → I/O Modules → Control System → IS215UCVEM10A Controller → Control Outputs / Operator Interface
The actual architecture varies according to the GE platform and application.
The IS215UCVEM10A should therefore be considered a system-level control component. Its correct operation depends on communication with the surrounding hardware, proper configuration, compatible firmware, and an appropriate system backplane or interface.
UCVE Controller Architecture
Industrial control systems often divide control functions among multiple hardware layers.
A typical architecture may contain:
- Field Devices
Sensors, transmitters, switches, actuators, motors, valves, and other process equipment generate or receive field signals. - I/O Interface Modules
Input and output modules collect process information and provide controlled signals to field equipment. - Communication and Interface Hardware
Interface boards and communication modules transfer information between different control-system sections. - Controller Module
The controller processes system information and executes the applicable control logic. - Operator and Supervisory Systems
HMIs, engineering workstations, and supervisory systems provide monitoring, configuration, diagnostics, and operator interaction.
The GE IS215UCVEM10A belongs to the controller layer of this architecture.
Function and Working Principle
Control Processing
The primary role of a controller module is to process information received from the industrial control system and execute the configured control functions.
The IS215UCVEM10A can therefore form part of the processing path between field information and control actions.
Data Coordination
Industrial automation systems generate information from many different sources. A controller coordinates this information so that the control application can respond according to its programmed configuration.
This can include information associated with:
- Process measurements
- Equipment status
- Control commands
- System alarms
- Inter-module communication
- Diagnostic information
- Operator commands
The exact data-handling functions depend on the host control architecture.
Control Logic Execution
A controller provides the processing environment required for executing configured control functions.
Depending on the application, control logic may be used for:
- Equipment sequencing
- Interlocking
- Process regulation
- Equipment monitoring
- Alarm handling
- System coordination
- Start/stop logic
- Protection-related control functions
The specific control functions should always be verified against the installed system configuration.
Communication With Other Modules
The controller operates as part of a larger hardware architecture. It may exchange information with I/O modules, interface boards, communication devices, and supervisory equipment through the interfaces provided by the host system.
Reliable communication is essential for maintaining consistent control-system operation.
Role in Industrial Control Systems
The IS215UCVEM10A UCVE Controller Module can serve as an important processing component within a GE industrial automation system.
Its system-level role can be represented as:
Measurement → Input Processing → Controller Logic → Output Processing → Industrial Equipment
The controller may receive process information, execute programmed functions, and coordinate control outputs.
This architecture allows industrial systems to continuously monitor equipment while simultaneously executing automated control functions.
For example, an industrial process may provide measurement data through I/O hardware. The controller processes the information according to the configured control strategy and then communicates the required response to the relevant output or interface modules.
Industrial Applications
The IS215UCVEM10A can be used in industrial control environments where compatible GE controller hardware is required.
Potential application areas include:
Power Generation
Industrial power-generation systems require reliable control hardware for monitoring equipment, processing measurements, and coordinating operating sequences.
Controller modules can form part of turbine, generator, auxiliary-system, and balance-of-plant control architectures.
Industrial Process Automation
Process industries rely on distributed control hardware to monitor process variables and coordinate equipment.
A controller can serve as the processing center for information received from field instrumentation and I/O systems.
Turbine Control
GE control platforms are widely associated with turbine and generator control applications. Controller-level hardware can coordinate information from sensors, protection devices, and interface modules.
Manufacturing Automation
Industrial manufacturing equipment requires coordinated control of motors, drives, valves, sensors, and production machinery.
A controller module can provide the processing layer required for these functions when installed in a compatible architecture.
Utility Systems
Water treatment, pumping, compressed-air systems, and other utility installations can use industrial controllers to coordinate equipment operation and process monitoring.
Distributed Control Systems
Controller modules are particularly important in systems where control responsibilities are distributed among multiple hardware modules.
System Integration
Correct integration of the GE IS215UCVEM10A requires more than simply installing the physical module.
The complete system should be considered.
Controller Hardware
The controller must be installed in a compatible GE control-system environment. The mounting arrangement, backplane, connectors, and associated hardware should correspond to the intended system.
I/O Modules
The controller may interact with digital and analog I/O modules responsible for collecting field information and controlling equipment.
Communication Hardware
Communication interfaces provide data exchange between the controller and other parts of the automation system.
Engineering Software
The controller’s configuration and application environment depend on the specific GE control platform. Firmware and software compatibility should therefore be confirmed before commissioning.
Operator Interface
HMI or supervisory equipment may be used to monitor controller status, process variables, alarms, and system diagnostics.
Installation Guidelines
Before installing an IS215UCVEM10A, technicians should verify the complete model designation and compare the replacement with the existing module.
1. Verify the Model
Confirm:
- IS215UCVEM10A part number
- Board identification
- Revision information
- Connector arrangement
- Host-system compatibility
- Existing module position
Do not rely solely on physical appearance when identifying a replacement controller.
2. Inspect the Module
Before installation, inspect the controller for:
- Physical damage
- Bent connectors
- Cracked components
- Contamination
- Corrosion
- Loose hardware
- Signs of overheating
Any visible abnormality should be investigated before the module is installed.
3. Check the Control Cabinet
The cabinet should be clean and suitable for electronic control equipment.
Excessive dust, moisture, vibration, or heat can negatively affect controller reliability.
4. Follow ESD Procedures
Electronic controller boards can be sensitive to electrostatic discharge.
Use appropriate ESD handling procedures when removing the existing module or installing the replacement.
5. Verify Connections
All applicable connectors should be correctly seated before energizing the system.
Loose or incorrectly positioned connections can cause communication failures, diagnostic alarms, or controller startup problems.
Commissioning Procedure
After installation, commissioning should be performed systematically.
Step 1: Visual Inspection
Check the module and surrounding equipment for physical abnormalities.
Step 2: Verify Power
Confirm that the control-system power supply is operating within the requirements of the host system.
Step 3: Check Module Recognition
Verify whether the control system correctly recognizes the installed controller.
Step 4: Check Communication
Confirm communication between the controller and associated I/O or interface modules.
Step 5: Verify Configuration
Check that the installed controller is configured correctly for the application.
Step 6: Review Diagnostics
Examine available controller and system diagnostics for active faults or configuration warnings.
Step 7: Perform Functional Testing
Test the relevant control functions under controlled conditions before returning the system to normal operation.
Troubleshooting the GE IS215UCVEM10A
Controller problems should be investigated as system-level faults rather than assuming that the controller board itself is defective.
Controller Does Not Start
Possible causes include:
- Incorrect installation
- Power-supply problems
- Connector problems
- Host-system faults
- Configuration problems
- Controller hardware failure
Check the system power and installation before replacing the module.
Communication Failure
If the controller cannot communicate with associated hardware, inspect:
- Communication connections
- Interface modules
- Backplane connections
- Configuration
- Controller status
- System diagnostics
A communication fault does not necessarily indicate a failed controller.
Controller Fault or Diagnostic Alarm
A controller alarm may result from configuration, firmware, communication, power, or hardware conditions.
The system diagnostic information should be reviewed before removing the module.
Intermittent Operation
Intermittent controller behavior may be associated with:
- Loose connections
- Vibration
- Thermal conditions
- Power instability
- Communication problems
- Aging electronic components
Monitoring the system during operation can help identify the source of an intermittent fault.
Preventive Maintenance
Although controller modules are generally designed for continuous industrial service, preventive maintenance can improve system reliability.
Inspect Connectors
Periodically inspect connectors for contamination, oxidation, looseness, or mechanical damage.
Maintain Cabinet Conditions
Keep the control cabinet free from excessive dust and moisture.
Check Cooling
Ensure that ventilation paths and cooling equipment are not obstructed.
Monitor Diagnostics
Controller and system diagnostic information can provide early indications of developing problems.
Maintain Spare Modules
For critical automation systems, maintaining a properly identified spare controller can reduce downtime when an unexpected hardware failure occurs.
Replacement Considerations
When replacing a GE IS215UCVEM10A UCVE Controller Module, exact identification is essential.
The following information should be checked:
- Complete model number
- Revision designation
- Board markings
- Connector configuration
- Host control platform
- Associated I/O modules
- Firmware requirements
- Existing configuration
- Physical installation position
The replacement module should be verified for compatibility before being installed.
The physical dimensions of the IS215UCVEM10A are:
178 × 20 × 159 mm
The listed weight is:
0.907 kg
These values can also be useful for inventory management, cabinet planning, transportation, and replacement logistics.
Physical Dimensions and Handling
The compact 178 × 20 × 159 mm form factor allows the IS215UCVEM10A to be incorporated into industrial control equipment where board space is limited.
Its listed weight of 0.907 kg should be considered when handling, packaging, transporting, or replacing the module.
During handling, technicians should avoid applying excessive force to connectors or exposed electronic components.
The module should be stored in a suitable dry environment and protected against electrostatic discharge when not installed.
Compatible System Components
The IS215UCVEM10A may form part of a larger control architecture containing several hardware layers.
| System Component | Typical Function |
|---|---|
| GE IS215UCVEM10A | UCVE controller and processing |
| I/O Modules | Process signal acquisition and output control |
| Interface Boards | Signal and system interfacing |
| Communication Modules | Data exchange between control-system components |
| Terminal Boards | Field wiring and signal termination |
| Power Supply Modules | Provide system operating power |
| HMI / Operator Station | Process monitoring and operator control |
| Engineering Workstation | Configuration and maintenance |
| Industrial Network | System-level communication |
The exact compatible components depend on the host GE control platform and system configuration.
Engineering Best Practices
Several practices can help improve reliability when working with the IS215UCVEM10A.
Verify Part Numbers Carefully
GE IS-series hardware can contain visually similar boards with different functions. Always verify the complete part number.
Record Existing Configuration
Before replacing a controller, document the existing hardware arrangement and relevant configuration information.
Avoid Unnecessary Hardware Replacement
If a system reports a controller-related fault, investigate power, communication, configuration, and associated hardware before replacing the controller.
Use Proper ESD Protection
Electronic control boards should be handled using appropriate anti-static procedures.
Keep Spare Hardware Properly Identified
Spare modules should be clearly labeled and stored in suitable environmental conditions.
Test Before Returning to Service
After replacement, verify controller recognition, communication, diagnostics, and application functionality before placing the equipment back into normal operation.
Recommended Related GE Models
| GE Model | Product Type | General Role |
|---|---|---|
| IS215UCCAM03 | Compact PCI Processor Board | Controller and processing |
| IS215UCVDH7A | Dual-Slot Controller Board | Industrial control processing |
| IS215UCVEH2AF | VME Control Card | Control-system processing |
| IS215UCVEM01A | UCVE Controller Module | Controller and system processing |
| IS215REBFH1B | I/O Expansion Board | I/O expansion and interfacing |
| IS215PMVPH1A | I/O Module | Industrial signal interface |
| IS210BPPBH2B | Processor Board | Control processing |
These models represent related GE industrial control hardware. They should not be treated as direct replacements for the IS215UCVEM10A without confirming system compatibility, revision, configuration, and application requirements.
Key Advantages
Compact Controller Format
The 178 × 20 × 159 mm physical format provides a compact solution for compatible GE control-system installations.
Controller-Level Processing
The module provides controller functionality within the appropriate GE automation architecture.
Industrial Automation Integration
The IS215UCVEM10A can operate as part of a larger control system containing I/O, communication, interface, and supervisory components.
Suitable for Distributed Architectures
Controller hardware can coordinate information from multiple system components, supporting distributed industrial control strategies.
Maintainable Modular Design
The modular construction of industrial control systems allows individual hardware assemblies to be inspected, serviced, and replaced when required.
Technical FAQs
What is the GE IS215UCVEM10A?
The GE IS215UCVEM10A is a UCVE Controller Module designed for integration into compatible GE industrial control systems.
What is the function of the IS215UCVEM10A?
Its primary role is controller-level processing and system coordination within the associated industrial control architecture.
What are the dimensions of the IS215UCVEM10A?
The listed dimensions are 178 × 20 × 159 mm.
How much does the IS215UCVEM10A weigh?
The listed weight is approximately 0.907 kg.
Is the IS215UCVEM10A a PLC?
It is better described as a GE UCVE Controller Module rather than a conventional standalone PLC. Its operation depends on the specific GE control architecture in which it is installed.
Can the IS215UCVEM10A be used as a standalone controller?
The module should be treated as a component of a compatible GE control system. The required supporting hardware, configuration, and software depend on the host platform.
What can cause an IS215UCVEM10A controller fault?
Possible causes include power problems, communication faults, configuration errors, connector issues, environmental conditions, associated hardware faults, or controller hardware failure.
How should the IS215UCVEM10A be replaced?
First verify the complete part number, revision, host-system compatibility, connectors, and configuration. Follow appropriate ESD precautions and the applicable system maintenance procedure during replacement.
What should be checked after installing a replacement?
The technician should verify power, controller recognition, communication, configuration, diagnostics, and the relevant application functions before returning the system to normal operation.
Conclusion
The GE IS215UCVEM10A UCVE Controller Module is a compact industrial control component designed to provide controller-level processing and coordination within compatible GE automation architectures. Its role can include coordinating information between I/O hardware, interface assemblies, communication components, and higher-level supervisory systems.
With listed dimensions of 178 × 20 × 159 mm and a weight of 0.907 kg, the IS215UCVEM10A provides a compact hardware format suitable for integration into industrial control equipment.
Reliable operation depends on correct system configuration, proper installation, appropriate environmental conditions, stable power and communication, and compatibility with the surrounding GE control hardware. When replacing an existing module, technicians should verify the complete IS215UCVEM10A identification and associated system requirements rather than relying only on physical appearance.
For industrial maintenance, spare-parts management, and control-system modernization, accurate identification and careful commissioning of the GE IS215UCVEM10A UCVE Controller Module are important steps toward maintaining stable and dependable automation-system operation.
