Product Overview

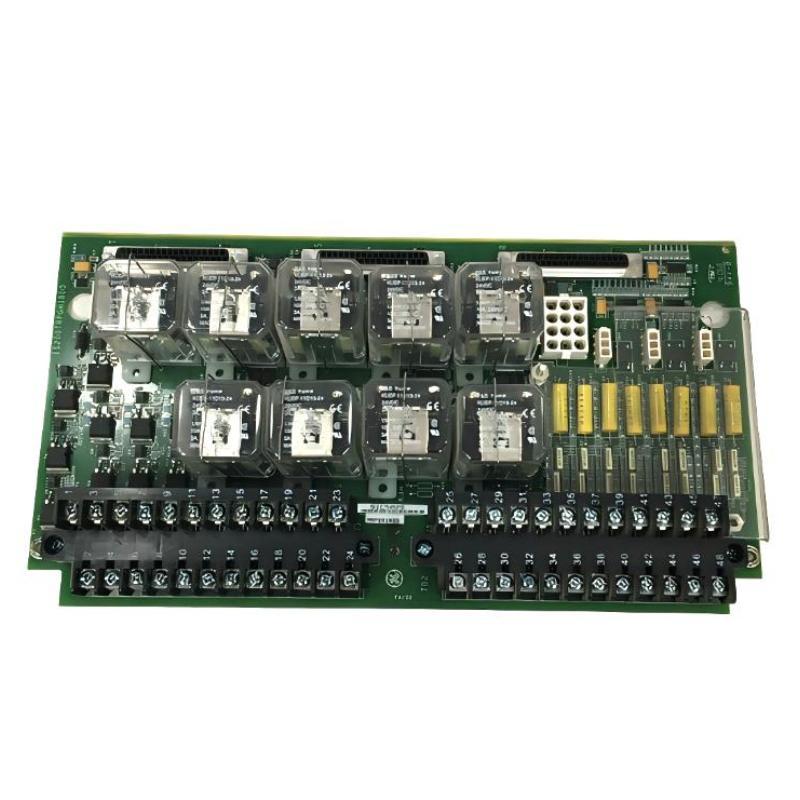

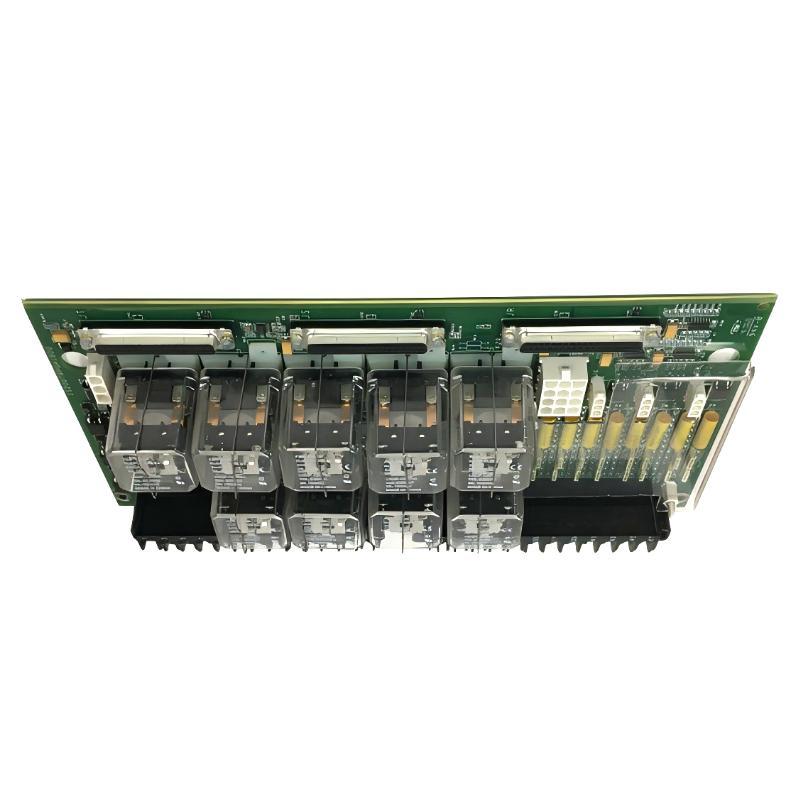

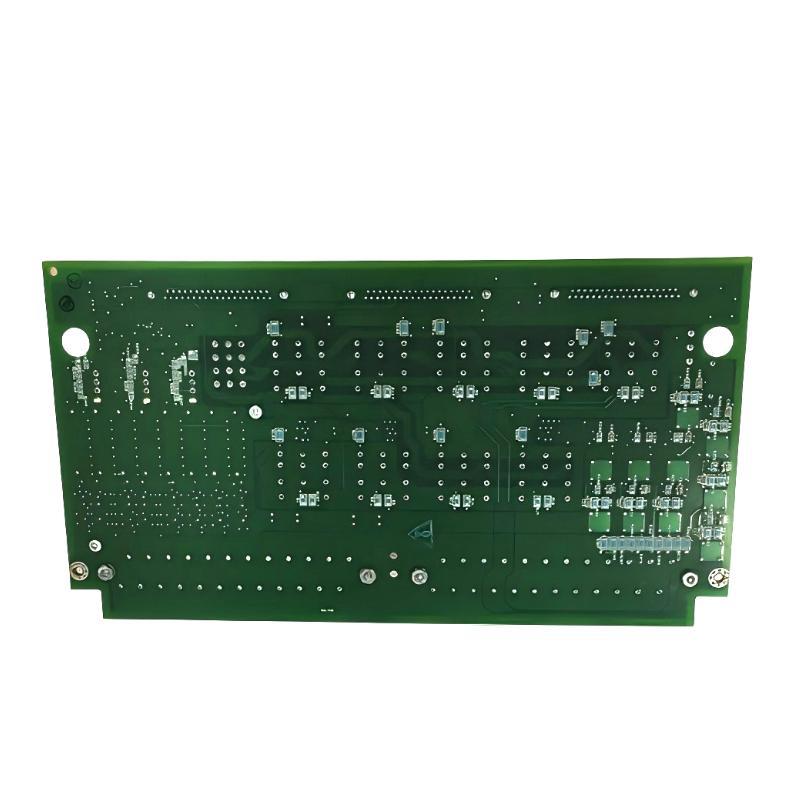

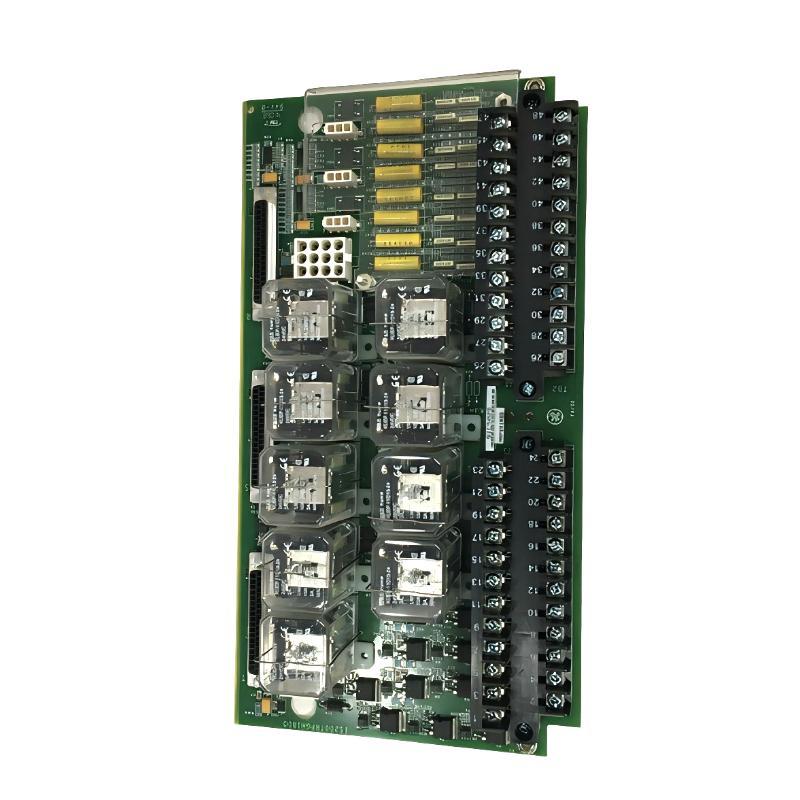

The GE IS210TRPGH1B Trip DIN Rail Module is a specialized industrial control component designed for use within compatible GE automation, monitoring, and protection architectures. As part of the GE IS210 family, the module is intended for DIN rail installation and provides an organized interface for trip-related control functions.
In industrial control systems, trip functions are used to initiate a defined protective response when an abnormal operating condition is detected. Depending on the system architecture, trip signals may be associated with equipment protection, shutdown sequences, interlocking, alarm conditions, or other predefined control actions.
The GE IS210TRPGH1B has listed dimensions of 220 × 110 × 40 mm and a weight of approximately 0.42 kg. Its compact DIN rail format allows it to be integrated into industrial electrical cabinets while maintaining an organized arrangement of control and protection components.
The module should be regarded as part of a larger control architecture rather than as an independent controller. Its actual function, signal path, and electrical characteristics depend on the host equipment and system configuration in which it is installed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS210TRPGH1B |
| Product Type | Trip DIN Rail Module |
| Product Family | GE IS210 Series |
| Primary Function | Trip-related control and interface function |
| Mounting Type | DIN Rail |
| Application | Industrial Control and Protection |
| Installation | Industrial Electrical / Control Cabinet |
| Dimensions | 220 × 110 × 40 mm |
| Weight | 0.42 kg |
| Typical Use | Trip circuits, protective control, shutdown interfaces |
| System Role | Industrial control and protection interface |
Exact electrical ratings, terminal assignments, signal characteristics, and system-specific functions should be confirmed against the applicable hardware configuration before installation.
What Is the GE IS210TRPGH1B?
The GE IS210TRPGH1B is a Trip DIN Rail Module intended to provide a dedicated interface within compatible GE industrial control systems.
A trip function generally represents a deliberate control action designed to place equipment or a process into a defined state when a specified condition occurs. For example, a control system may initiate a trip when an abnormal process value, equipment protection condition, or interlock state is detected.
The trip module forms part of the hardware interface used to transfer or manage this type of control signal.
A simplified industrial control path can be represented as:
Process Equipment → Sensors / Protection Devices → Control Logic → IS210TRPGH1B → Trip or Shutdown Action
The actual architecture can differ considerably between applications, so the module’s exact connections should always be checked against the system documentation.
Function and Working Principle
Trip Signal Management
The primary purpose of a trip interface is to participate in the transfer of a control signal associated with a protective or shutdown action.
When the associated control system identifies a configured trip condition, the corresponding control signal can pass through the appropriate interface circuitry and reach the equipment responsible for carrying out the protective action.
Protective Control
Industrial machines and process systems often contain multiple layers of protection.
These may include:
- Equipment monitoring
- Process alarms
- Interlocks
- Protection devices
- Controller logic
- Trip circuits
- Shutdown mechanisms
The IS210TRPGH1B can form part of this broader protection architecture by providing a dedicated physical interface for trip-related control functions.
Signal Interface
Industrial automation systems frequently require signals to move between field instrumentation, control processors, interface modules, and final control equipment.
A trip DIN rail module can help organize this signal path within the electrical cabinet.
This can improve cabinet wiring organization and make inspection and maintenance easier.
Protective Response
When the configured conditions for a trip are satisfied, the associated control system can initiate the appropriate response.
Depending on the equipment, the final action may involve:
- Stopping a machine
- Disabling an operating sequence
- Opening a switching device
- Removing a control command
- Initiating a shutdown
- Activating another protective function
The exact response is determined by the system design rather than by the module’s physical form alone.
Role in Industrial Control Systems
The GE IS210TRPGH1B can serve as a hardware interface between control logic and equipment protection functions.
Modern industrial control systems often divide responsibilities among several layers. Sensors collect process information, protection devices evaluate operating conditions, controllers execute logic, interface modules transfer signals, and final control devices perform the required action.
A simplified architecture is:
Field Measurement → Protection / Monitoring → Controller → Trip Interface → Final Protective Action
Within this structure, the IS210TRPGH1B can contribute to:
- Trip signal handling
- Shutdown control
- Equipment protection
- Interlock implementation
- Control-system integration
- Cabinet-level signal organization
- Maintenance and troubleshooting
The exact role depends on the host GE control system and the engineering configuration.
Industrial Applications
Power Generation
Power-generation installations use multiple control and protection functions to maintain reliable operation of generating equipment.
Trip interfaces can form part of the control architecture responsible for transferring protective commands when abnormal conditions occur.
Turbine Control Systems
Turbine systems commonly require coordinated monitoring, control, and protection functions.
A trip-related module may be incorporated into the associated control cabinet to support the transfer of shutdown or protective signals.
Generator Protection
Generator systems can use protection logic to identify abnormal operating conditions and initiate defined control actions.
The IS210TRPGH1B can be part of the interface architecture connecting the control system with the corresponding trip circuit.
Industrial Process Plants
Process plants use trip and interlock systems to protect pumps, compressors, motors, valves, drives, and other equipment.
A dedicated DIN rail interface can provide a structured connection point for relevant control circuits.
Rotating Machinery
Rotating equipment often depends on monitoring and protection systems that respond to abnormal operating conditions.
Trip signals can be generated when configured protection limits or interlocks are activated.
System Integration
The IS210TRPGH1B should be integrated as part of a complete control and protection system.
A representative architecture may include:
| System Component | Typical Function |
|---|---|
| Field Sensor | Measures process or equipment condition |
| Protection Device | Detects abnormal operating conditions |
| Control Processor | Executes programmed control logic |
| IS210TRPGH1B | Provides trip-related interface functionality |
| Switching Equipment | Performs the required protective action |
| HMI | Displays system status and alarms |
| SCADA / Monitoring System | Provides supervisory monitoring |
The exact components used with the module depend on the host equipment and system design.
Before installation, engineers should verify where the IS210TRPGH1B belongs within the signal path and confirm the required electrical interfaces.
Installation Guidelines
Verify Model Identification
Before installing or replacing the module, confirm:
- Manufacturer
- Full model number
- IS210TRPGH1B identification
- Revision designation
- Existing cabinet location
- Connector arrangement
- Associated wiring
- Host control equipment
The complete model designation should be used when selecting replacement hardware.
DIN Rail Installation
The module is intended for DIN rail installation within an industrial control cabinet.
The DIN rail should be securely mounted, mechanically stable, and suitable for the installed equipment. The module should be positioned so that its terminals and associated wiring remain accessible.
Cabinet Layout
The listed dimensions of the IS210TRPGH1B are:
220 × 110 × 40 mm
Cabinet planning should allow additional space for:
- Terminal access
- Cable routing
- Connector clearance
- Maintenance access
- Ventilation
- Adjacent components
The physical module dimensions alone should not be considered the total installation envelope.
Wiring Arrangement
All wiring should follow the applicable control-system documentation.
Before energizing the system, inspect:
- Terminal identification
- Wire routing
- Connector seating
- Cable condition
- Grounding
- Interlock connections
- Trip circuit connections
Incorrect wiring can result in unintended trip operation or failure of the intended protective response.
Commissioning Procedure
After installation, the module and associated control circuit should be checked systematically.
1. Visual Inspection
Inspect the module for:
- Physical damage
- Loose mounting
- Damaged connectors
- Contamination
- Wiring problems
2. Verify Connections
Compare the installed wiring with the approved electrical drawings and system documentation.
3. Check Control Configuration
Verify that the associated control logic and protection configuration correspond to the intended application.
4. Check the Signal Path
Confirm that relevant trip signals can travel through the expected control path.
5. Test the Trip Function
Where permitted by the site’s commissioning procedure, perform an appropriate controlled functional test.
6. Confirm Normal Operation
After testing, verify that the system has returned to the intended operating state and that no unexpected trip or alarm condition remains active.
Troubleshooting the GE IS210TRPGH1B
No Trip Signal
If the expected trip signal is not present, inspect the complete signal chain.
Potential areas include:
- Field protection device
- Control logic
- Module connections
- Terminal wiring
- Associated interface hardware
- Control power
- Connectors
- Final control equipment
A missing trip signal does not automatically indicate a defective module.
Unexpected Trip
An unexpected trip should be investigated before replacing the IS210TRPGH1B.
Possible causes include:
- Incorrect control logic
- Active interlock
- Faulty sensor
- Protection-device activation
- Wiring error
- Loose connection
- External equipment fault
- Configuration problem
The original trip condition should be identified whenever possible before resetting the system.
Intermittent Trip Signal
Intermittent operation can be caused by:
- Loose terminals
- Cable damage
- Connector problems
- Vibration
- Electrical interference
- Unstable external signals
- Temperature-related issues
- Problems elsewhere in the control system
A physical inspection combined with system diagnostics can help isolate the cause.
Module Does Not Appear to Operate
When the module appears inactive, check the entire system before replacing it.
Recommended checks include:
- Module installation
- DIN rail mounting
- Wiring
- Control circuit
- Associated protection equipment
- Controller status
- Connectors
- Diagnostic information
Replacing a module without checking the external signal path can result in unnecessary maintenance work.
Preventive Maintenance
Regular maintenance can help improve the reliability of trip-related control circuits.
Inspect the Module
Check the module periodically for:
- Physical damage
- Contamination
- Loose mounting
- Connector problems
- Signs of overheating
Inspect Wiring
Check connected cables and terminals for:
- Loose connections
- Mechanical damage
- Insulation deterioration
- Excessive bending
- Signs of overheating
Maintain Cabinet Conditions
The control cabinet should be kept clean and protected from excessive:
- Dust
- Moisture
- Heat
- Vibration
- Electrical interference
Review Trip Events
Where system diagnostics or event history are available, recurring trip events should be reviewed to identify patterns.
Repeated trips may indicate a process, equipment, sensor, wiring, or configuration problem rather than a failed interface module.
Replacement Considerations
When replacing the GE IS210TRPGH1B Trip DIN Rail Module, the exact model identification should be verified before removing or installing hardware.
Important replacement checks include:
- Full model number
- Revision
- Module markings
- Connector arrangement
- Wiring configuration
- Cabinet location
- Associated control equipment
- System configuration
The listed physical characteristics are:
- Dimensions: 220 × 110 × 40 mm
- Weight: 0.42 kg
- Mounting: DIN Rail
- Product Type: Trip DIN Rail Module
A module from the same product family should not automatically be treated as interchangeable. Electrical interfaces and system functions must be confirmed before replacement.
After installation, the applicable trip and interlock functions should be verified using the approved maintenance and commissioning procedure.
Physical Dimensions and Mechanical Planning
The GE IS210TRPGH1B has listed dimensions of 220 × 110 × 40 mm and a listed weight of 0.42 kg.
These dimensions are important when preparing a control cabinet layout or planning a replacement.
For practical installation, engineers should also consider:
- DIN rail position
- Adjacent modules
- Cable bending radius
- Connector accessibility
- Terminal access
- Maintenance clearance
- Cabinet ventilation
Providing sufficient working space around the module can simplify future inspection and replacement.
Compatible System Components
Depending on the specific GE control architecture, the IS210TRPGH1B may be installed alongside different types of industrial control equipment.
Potential system layers include:
- GE control processors
- Protection modules
- Interface boards
- Terminal boards
- Signal-conditioning equipment
- DIN rail components
- Relay and switching equipment
- Field sensors
- HMI systems
- Supervisory monitoring equipment
The exact compatible hardware should be confirmed from the system configuration rather than assumed from the IS210 product family designation.
Engineering Best Practices
Verify the Complete Signal Chain
When diagnosing a trip problem, examine the complete path from the field condition to the final protective action.
Maintain Clear Wiring Labels
Clearly labeled wiring can significantly reduce troubleshooting time, particularly in cabinets containing multiple protection and interlock circuits.
Keep Documentation Updated
Electrical drawings, terminal schedules, and control-system documentation should reflect the installed configuration.
Do Not Unnecessarily Bypass Protection
Trip and interlock functions should not be bypassed simply to restore equipment operation. Any approved bypass should follow the site’s engineering and maintenance procedures.
Maintain Correct Spare-Part Identification
The complete IS210TRPGH1B model number should be recorded in maintenance and spare-parts systems to reduce the risk of selecting an incorrect replacement.
Key Advantages
DIN Rail Installation
The IS210TRPGH1B uses a DIN rail-oriented design that supports organized installation in industrial control cabinets.
Compact Construction
With listed dimensions of 220 × 110 × 40 mm, the module can be incorporated into control panels where cabinet space is an important consideration.
Dedicated Trip Function
The module is designed around trip-related industrial control and interface requirements.
Industrial Protection Integration
It can form part of a larger control architecture connecting monitoring, protection logic, and equipment shutdown functions.
Maintainable Cabinet Design
DIN rail installation can simplify cabinet organization, inspection, and physical replacement.
Technical FAQs
What is the GE IS210TRPGH1B?
The GE IS210TRPGH1B is a Trip DIN Rail Module designed for integration into compatible GE industrial control and protection systems.
What is the main function of the IS210TRPGH1B?
The module provides trip-related interface functionality within a larger control and protection architecture. Its exact signal role depends on the host system configuration.
What are the dimensions of the GE IS210TRPGH1B?
The listed dimensions are 220 × 110 × 40 mm.
What is the weight of the IS210TRPGH1B?
The listed weight is approximately 0.42 kg.
How is the IS210TRPGH1B mounted?
The module is designed for DIN rail mounting in an appropriate industrial control cabinet.
Is the IS210TRPGH1B a PLC?
No. It is a specialized trip DIN rail module, not a general-purpose PLC CPU.
What can cause a trip signal problem?
Possible causes include wiring faults, active interlocks, protection-device operation, controller configuration problems, loose connections, damaged cables, or faults elsewhere in the signal chain.
Can another GE IS210 module replace the IS210TRPGH1B?
Not automatically. The complete model number, revision, electrical interface, connector arrangement, and host-system requirements should be verified before selecting a replacement.
What should be checked before installing a replacement?
The technician should verify the model number, revision, wiring, connectors, cabinet location, associated control equipment, and system configuration before installation.
Why is correct wiring important for a trip module?
Trip circuits can be associated with protective shutdown functions. Incorrect wiring can therefore result in an unintended trip or prevent the intended protective action from occurring.
Conclusion
The GE IS210TRPGH1B Trip DIN Rail Module is a specialized industrial control component designed to support trip-related interface functions within compatible GE automation and protection systems. It provides a structured connection point within control architectures where protective signals, shutdown sequences, and interlocking functions need to be integrated into the overall system.
With listed dimensions of 220 × 110 × 40 mm and a weight of 0.42 kg, the module offers a compact DIN rail-oriented form factor for industrial control cabinets.
Reliable application of the IS210TRPGH1B depends on correct system integration, proper wiring, secure DIN rail installation, appropriate cabinet conditions, and verification of the complete trip signal path. For maintenance and replacement work, the full GE IS210TRPGH1B model designation should be confirmed before installation, and all relevant trip and interlock functions should be checked according to the applicable system procedures.
