Product Overview

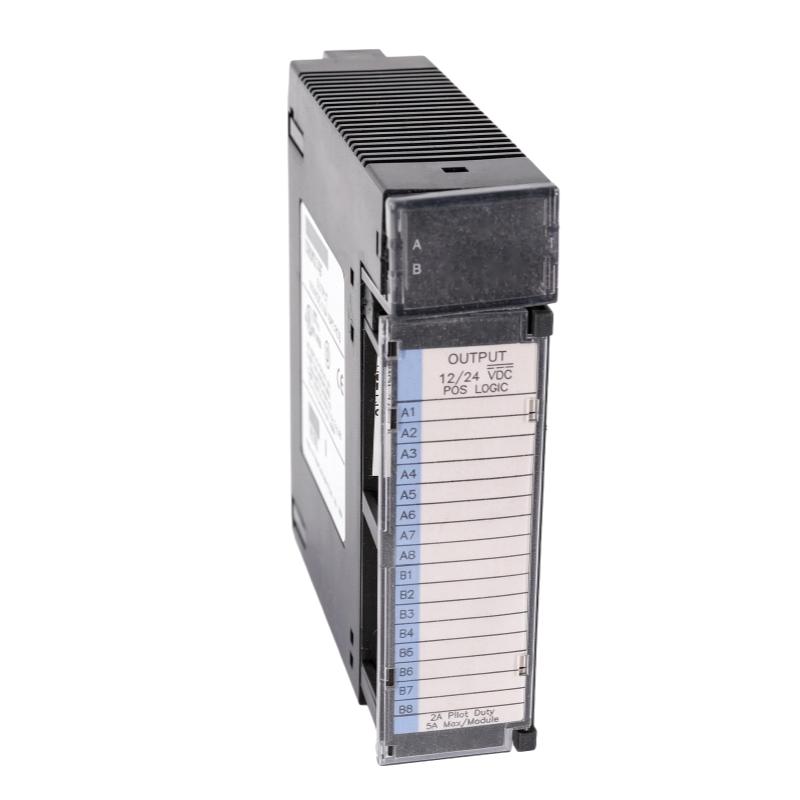

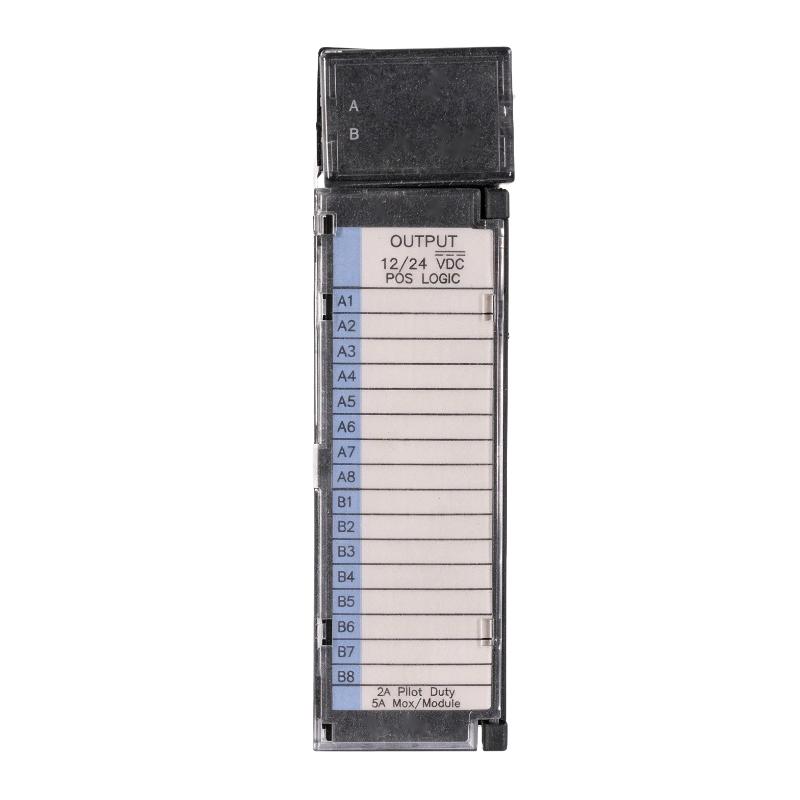

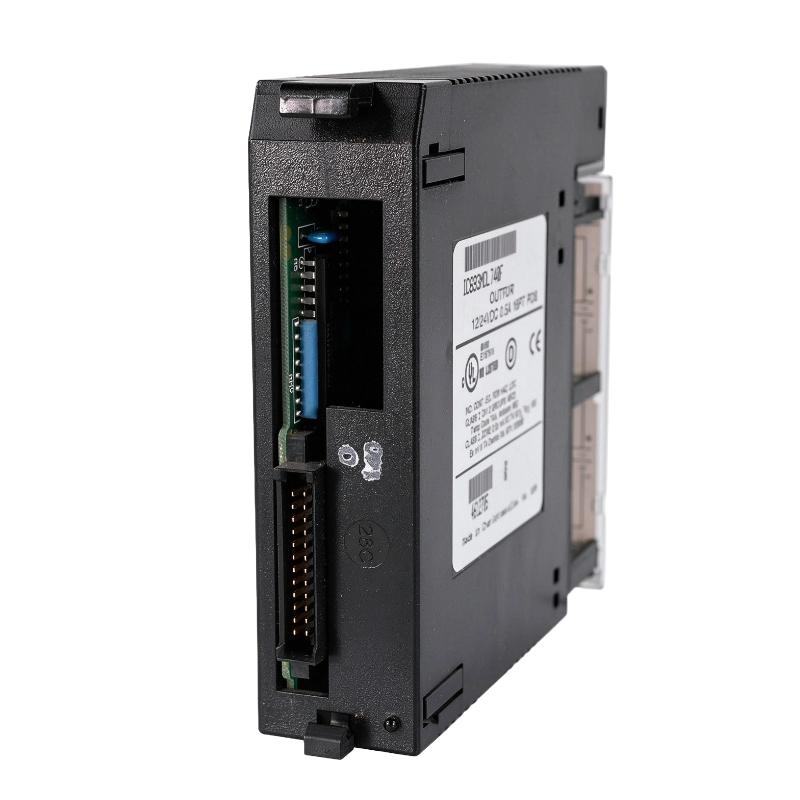

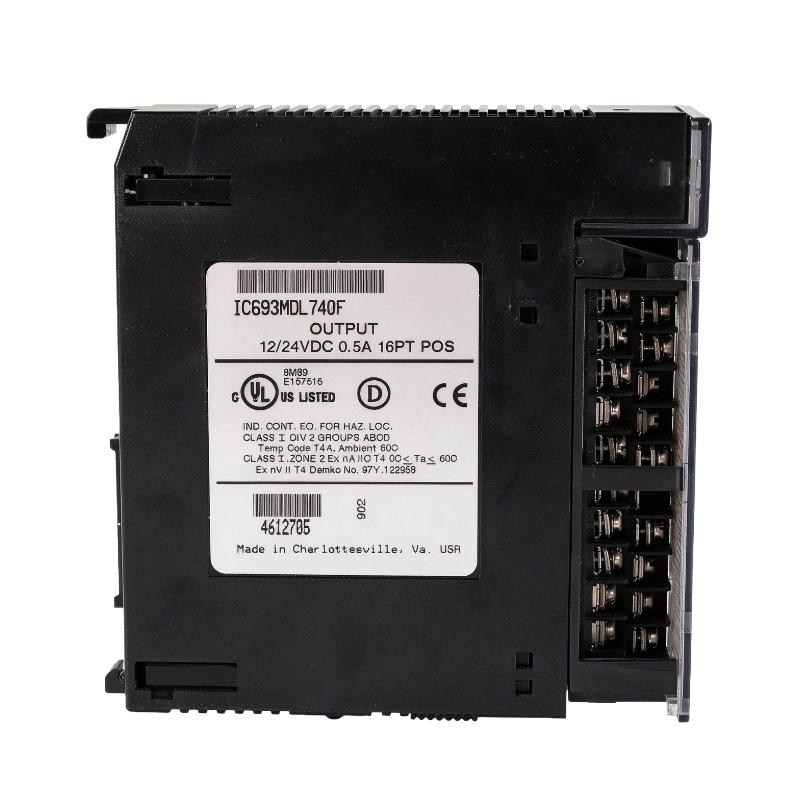

The GE IC693MDL740F is a discrete output module in the Series 90-30 PLC family. It provides an interface between the PLC control program and external devices that require discrete switching commands. In a machine control cabinet, the CPU processes input conditions and executes programmed logic, while the output module applies the resulting commands to the connected field circuits.
This type of module is used in automated equipment where control actions depend on defined operating states. Examples include switching control relays, activating machine indicators, coordinating production sequences, and issuing commands to compatible field devices. Within an established Series 90-30 installation, the IC693MDL740F can be part of the output system responsible for translating controller decisions into practical machine actions.
During operation, the module receives output data through the PLC backplane and updates its output points according to the control program. Its application must match the electrical requirements of the connected loads, including the supply arrangement, current demand, and switching characteristics. When servicing an existing system, engineers should verify the complete model number, revision, wiring configuration, and module specifications before replacing or reconnecting the hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IC693MDL740F |
| Product Series | Series 90-30 |
| Product Type | Discrete Output Module |
| Module Category | PLC Digital Output |
| Automation Platform | GE Series 90-30 PLC |
| I/O Function | Discrete signal output |
| Signal Type | Digital ON/OFF control |
| Control Direction | PLC to field devices |
| System Interface | Series 90-30 PLC backplane |
| Control Method | Program-controlled output switching |
| Typical Load Types | Compatible discrete field circuits |
| Installation Location | PLC control rack |
| Dimensions | 150 × 55 × 100 mm |
| Weight | 0.322 kg |
Product Features
- Discrete output switching: Changes the states of assigned output points in response to commands from the PLC control program.
- Series 90-30 integration: Operates within the Series 90-30 PLC architecture, where the CPU, I/O modules, and field circuits work together to execute automation tasks.
- Field-device interfacing: Connects PLC logic with compatible external circuits used for machine control, status indication, and auxiliary switching.
- Sequence-control support: Allows output states to follow programmed steps, timers, interlocks, and operating conditions.
- Modular I/O arrangement: Keeps discrete output functions organized within the PLC rack and separate from the controller’s processing functions.
- Established-system maintenance: Can be evaluated for servicing existing Series 90-30 installations after confirming electrical and hardware compatibility.
- Program-driven operation: Output commands can respond to sensor feedback, operator inputs, internal logic, and other conditions processed by the controller.
- Industrial switching applications: Supports control tasks based on defined ON/OFF states rather than continuously variable analog signals.
Working Principle
The IC693MDL740F operates as the discrete output stage of a Series 90-30 PLC system. Its function is to apply the output states determined by the controller to the appropriate field circuits.
- Control logic execution: The PLC CPU processes input information, internal status data, timers, and programmed conditions to determine the required output states.
- Output data transfer: The controller updates its output data, which is communicated to the module through the PLC backplane.
- Output point activation: The module responds to the received commands and changes the corresponding output states within its specified electrical operating limits.
- Field circuit response: Connected equipment responds to the output signal. Depending on the application, this may involve energizing a compatible relay, activating an indicator, or initiating an equipment sequence.
- Continuous program updates: As operating conditions change, the PLC executes subsequent program scans and updates the output commands accordingly.
- System fault diagnosis: If an output does not produce the expected result, technicians should check the program logic, module status, field wiring, supply conditions, protective devices, and connected load.
The output state reported or commanded by the PLC does not necessarily confirm that the external device has operated mechanically. Where feedback is required, the application should use appropriate input signals or other monitoring arrangements to verify the actual field condition.
Role in a Series 90-30 PLC Control Architecture
The IC693MDL740F occupies the output-control layer of a Series 90-30 automation system. It receives commands from the controller and applies them to compatible field circuits, while the other system components handle processing, input acquisition, power distribution, and communication.
| System Component | Function | Relationship to IC693MDL740F |
|---|---|---|
| Series 90-30 PLC CPU | Executes application logic and manages control decisions | Generates the output commands processed by the module |
| Discrete Input Module | Collects ON/OFF signals from field devices | Supplies status information used by the control program |
| IC693MDL740F Discrete Output Module | Switches assigned discrete output points | Applies controller commands to compatible output circuits |
| PLC Power Supply | Supports the electrical requirements of the PLC hardware | Provides power according to the system configuration |
| I/O Baseplate | Provides module mounting and backplane connections | Establishes the module’s physical and electrical connection |
| Field Wiring and Terminals | Connects output points to external circuits | Carries the output signals to the relevant devices |
| Interposing Relay | Provides an intermediate switching interface when required | Can connect the output system to loads that need an external interface |
| Field Actuator | Performs a physical action in the machine or process | Responds to the output circuit when the electrical requirements are met |
Industrial Applications
| Application | Example of Use | Control Purpose |
|---|---|---|
| Machine Automation | Switching discrete machine-control circuits | Coordinates machine operating steps and interlocks |
| Material Handling | Issuing commands to compatible conveyor control circuits | Supports transfer, stopping, and sequencing operations |
| Packaging Machinery | Activating discrete devices during a packaging cycle | Coordinates individual stages of the production process |
| Assembly Equipment | Switching control relays and auxiliary devices | Synchronizes machine stations and work sequences |
| Pumping Systems | Issuing commands through suitable interface circuits | Supports programmed start, stop, and standby sequences |
| Process Control Panels | Operating status indicators and auxiliary switching circuits | Communicates controller decisions to external equipment |
| Industrial Retrofits | Maintaining output functions in existing Series 90-30 systems | Supports repair and restoration of established control installations |
| Inspection and Test Equipment | Switching equipment states during programmed test steps | Coordinates test sequences and control interlocks |
Application suitability depends on the module’s verified output specifications, the connected load requirements, the wiring arrangement, and the protective measures used in the overall control system.
Installation and Maintenance
- Verify the module identification: Confirm the complete IC693MDL740F model number and hardware revision before installation or replacement.
- Check electrical specifications: Verify the documented output type, rated voltage, current limits, and switching characteristics before connecting field loads.
- Isolate system power: Follow the site’s lockout and isolation procedures before removing the module or working on associated field wiring.
- Inspect the rack position: Confirm that the intended Series 90-30 rack location and hardware configuration are suitable for the module.
- Check terminal assignments: Use the correct wiring documentation to identify output points and their corresponding field connections.
- Inspect field wiring: Look for loose terminals, damaged insulation, corrosion, incorrect conductor placement, and signs of overheating.
- Verify load compatibility: Ensure that connected devices meet the module’s electrical limits, including any applicable inrush-current and switching requirements.
- Review circuit protection: Confirm that protective devices and any required interposing relays are appropriate for the connected circuits.
- Inspect module seating: Check that the module is correctly installed and secured in accordance with the applicable Series 90-30 hardware instructions.
- Test output operation: After restoring power under an approved procedure, verify commanded output states and confirm the response of connected field devices.
- Troubleshoot systematically: Compare the PLC program state with module indications, field voltage, wiring continuity, and the condition of the external load.
- Document maintenance work: Record the model and revision, rack position, wiring changes, test results, and replacement details for future maintenance.
Related Components
| Component | Function | Relationship to IC693MDL740F |
|---|---|---|
| GE Series 90-30 PLC CPU | Executes application logic and manages I/O updates | Supplies the output commands processed by the module |
| GE Series 90-30 Discrete Input Module | Reads discrete field conditions | Provides input information for output decisions |
| GE Series 90-30 Power Supply | Supports the PLC rack’s electrical requirements | Powers compatible system hardware according to the configured arrangement |
| GE Series 90-30 I/O Baseplate | Provides module mounting and backplane connections | Establishes the module’s physical and electrical connection to the PLC system |
| Interposing Relay | Switches a compatible external circuit | Provides an intermediate interface when required by the load |
| Field Terminal Block | Organizes field wiring connections | Connects the output points to the relevant external circuits |
| Circuit Protection Device | Protects suitable field circuits against specified electrical faults | Supports the protection strategy for connected loads |
| Discrete Field Actuator | Performs a commanded mechanical or electrical action | Responds to the output circuit when correctly connected |
Recommended Related Models
| Model | Product Name | Relationship |
|---|---|---|
| GE IC693MDL730 | Series 90-30 Discrete Output Module | Related output model for comparing electrical specifications and application requirements |
| GE IC693MDL730E | Series 90-30 Discrete Output Module | Related model for checking hardware revision and output configuration differences |
| GE IC693MDL740 | Series 90-30 Discrete Output Module | Base model reference for reviewing differences associated with the IC693MDL740F revision |
| GE IC693MDL753 | Series 90-30 Discrete Output Module | Related output module for application and electrical specification comparisons |
| GE IC693CPU331 | Series 90-30 PLC CPU | Controller component used in compatible Series 90-30 configurations |
| GE IC693PWR330 | Series 90-30 Power Supply Module | Related power component for compatible Series 90-30 rack arrangements |
Key Advantages
- Series 90-30 integration: Fits within the GE Series 90-30 PLC architecture.
- Direct output control: Applies program-driven switching commands to compatible field circuits.
- Modular control design: Keeps discrete output functions separate from CPU processing and input acquisition.
- Maintenance-oriented selection: Provides a specific model reference for troubleshooting and replacement planning.
- Flexible application use: Supports discrete control tasks in machinery, production equipment, and industrial control panels.
- Clear fault-isolation path: Output problems can be investigated through PLC logic, module status, wiring, supply conditions, and load response.
Technical FAQs
1. What is the GE IC693MDL740F used for?
The IC693MDL740F is a discrete output module in the GE Series 90-30 PLC family. It receives output commands from the controller and switches compatible external circuits according to the application logic.
2. Can the IC693MDL740F replace the IC693MDL740?
The model numbers are related, but replacement suitability should not be assumed from the shared base number alone. Verify the hardware revision, electrical specifications, output configuration, wiring, and compatibility with the installed PLC system before making a substitution.
3. What should be checked if an output point does not operate correctly?
Check the control program’s intended output state, module status, field supply, terminal assignments, wiring continuity, circuit protection, and connected load. If the PLC command is correct but the field device does not respond, determine whether the fault is in the module, wiring, interface circuit, or external equipment.
4. What should be verified before connecting field devices to the IC693MDL740F?
Confirm the module’s documented output type, permitted voltage and current, load characteristics, switching limits, terminal configuration, and circuit protection requirements. The selected load must be compatible with the actual module specifications and system wiring arrangement.
