Product Overview

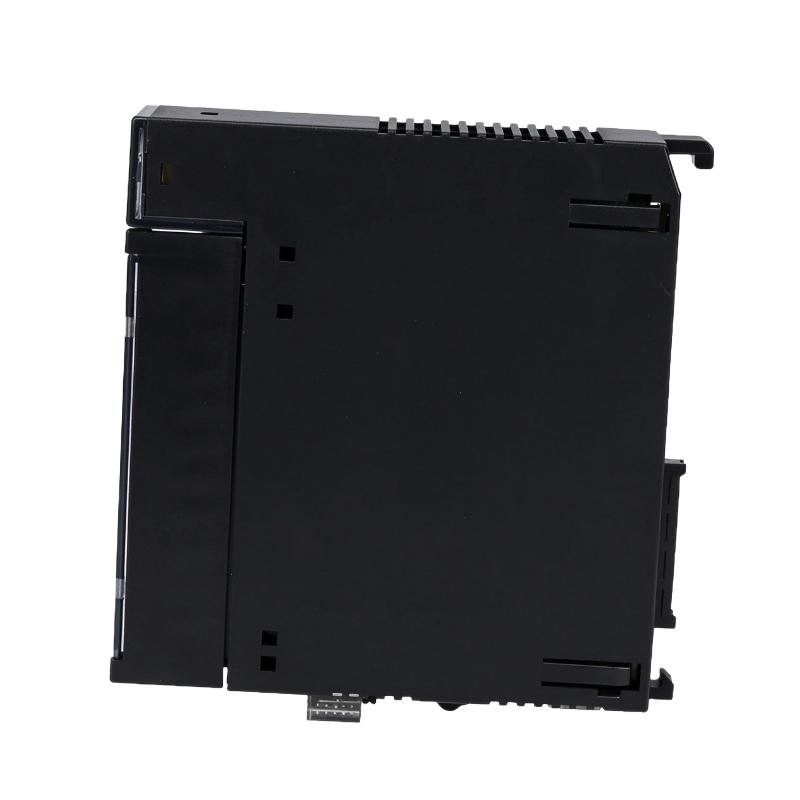

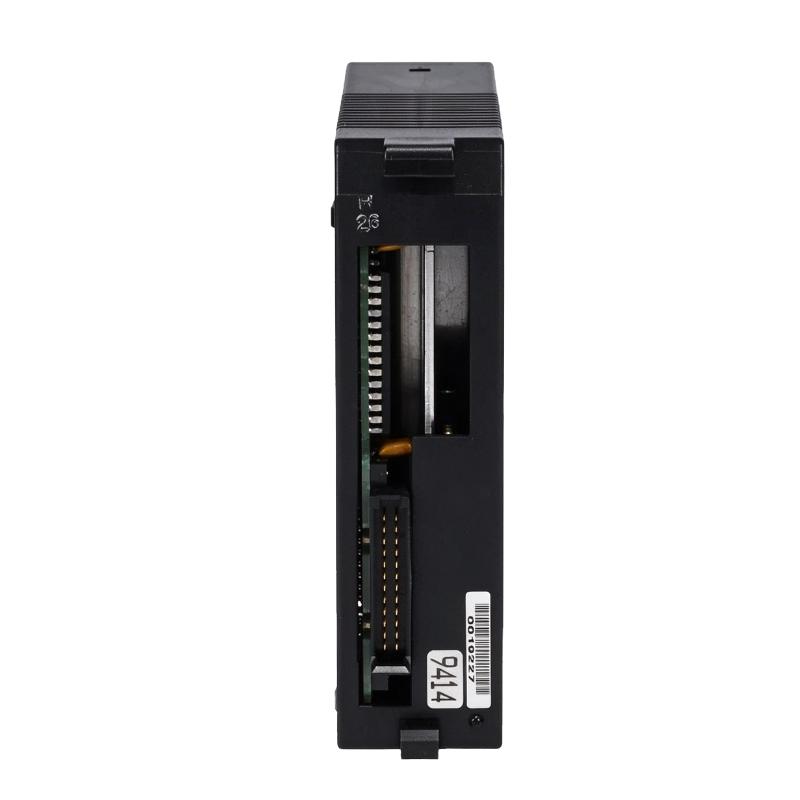

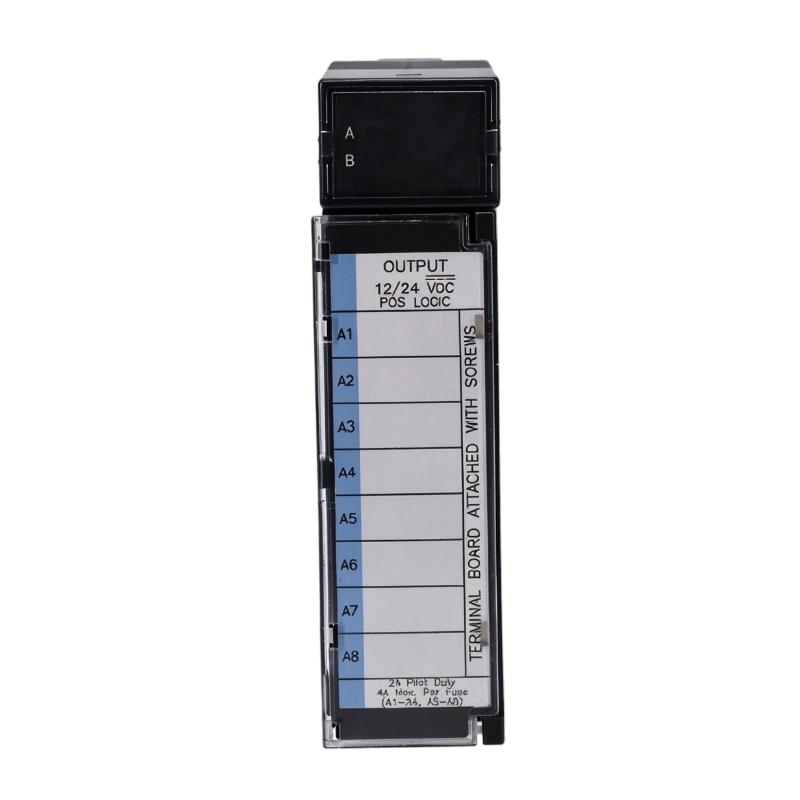

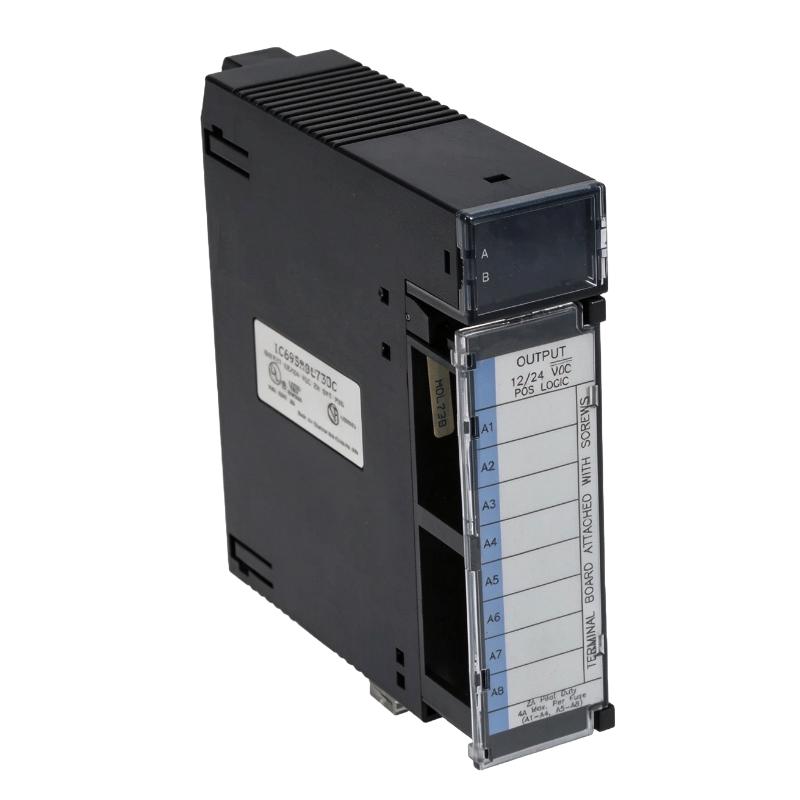

The GE IC693MDL730E is a discrete output module used in the Series 90-30 PLC platform to connect program-controlled logic with field devices. In a typical control cabinet, the CPU processes input signals and executes the control program, while the output module converts the resulting logic states into discrete control signals for external equipment.
This module is suited to automation tasks in which a PLC must switch devices according to machine status, operator commands, or process conditions. Typical examples include operating control relays, coordinating machine sequences, switching indicator circuits, and controlling discrete actuators. Its role is particularly relevant in established Series 90-30 installations where the existing I/O configuration and application logic need to be maintained.
During normal operation, the module receives output commands through the PLC backplane and updates its output channels according to the controller’s program. Correct application depends on matching the field circuit requirements with the module’s electrical ratings and output characteristics. When replacing an existing unit, engineers should also verify the exact hardware revision and system configuration rather than relying on the model number alone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IC693MDL730E |
| Product Series | Series 90-30 |
| Product Type | Discrete Output Module |
| Module Category | PLC Digital Output |
| Automation Platform | GE Series 90-30 PLC |
| I/O Function | Discrete signal output |
| Signal Type | Digital ON/OFF control |
| Control Direction | PLC to field devices |
| System Interface | Series 90-30 PLC backplane |
| Control Method | Program-controlled output switching |
| Typical Load Types | Compatible discrete field circuits |
| Installation Location | PLC control rack |
| Dimensions | 150 × 55 × 100 mm |
| Weight | 0.45 kg |
Product Features
- Discrete output control: Executes the PLC program’s output commands by changing the states of the assigned output points.
- Series 90-30 integration: Works within the GE Series 90-30 PLC architecture, where the controller, I/O modules, and field wiring operate as part of one control system.
- Field-device interface: Connects the logic layer of a control application with compatible external circuits, allowing PLC decisions to operate equipment in the field.
- Sequence-control support: Supports applications in which output states must change in a defined order, such as machine start sequences, material handling, and interlocked operating steps.
- Centralized I/O organization: Keeps discrete output functions within the PLC rack, simplifying the organization of controller hardware and associated field circuits.
- Maintenance-oriented replacement: Can be evaluated for use in existing Series 90-30 systems when servicing an installed control panel, subject to verification of electrical specifications and hardware compatibility.
- Program-based operation: Output behavior follows the controller’s logic and operating conditions, allowing field equipment to respond to automatic sequences and operator commands.
- Industrial control applications: Fits discrete automation tasks that rely on defined switching states rather than continuously variable output signals.
Working Principle
The IC693MDL730E operates as the output stage between the Series 90-30 PLC and the field circuits controlled by the application.
- Program execution: The PLC CPU reads the available input and internal status information, then executes the application logic to determine which outputs should be active.
- Output command transfer: The controller transfers the output image to the I/O system through the PLC backplane. The module receives the commands associated with its configured output points.
- Output-state switching: The module changes the corresponding output states in accordance with the commands it receives and its electrical operating characteristics.
- Field-device response: Compatible external circuits respond to the resulting output signals. Depending on the application, these circuits may operate relays, signal lamps, solenoid-operated devices, or other discrete loads.
- Sequence continuation: The controller continues scanning the program and updates output commands as input conditions, timers, interlocks, and internal logic change.
- Fault investigation: If a commanded device does not respond as expected, troubleshooting should distinguish between a PLC logic issue, a module or rack issue, a field wiring fault, and a problem in the external load circuit.
The module’s actual electrical behavior, load capacity, and switching limitations must be established from the applicable hardware documentation before connecting field equipment. The controller’s logic state alone does not confirm that an external device has physically operated.
Role in a Series 90-30 PLC Control Architecture
The IC693MDL730E occupies the discrete output layer of a Series 90-30 control system. The CPU determines the required operating state, the I/O module applies the output command, and the connected field circuit carries out the corresponding action.
| System Component | Function | Relationship to IC693MDL730E |
|---|---|---|
| Series 90-30 PLC CPU | Executes control logic and updates I/O data | Generates the output commands processed by the module |
| Discrete Input Module | Collects ON/OFF field signals | Supplies status information used by the control program |
| IC693MDL730E Discrete Output Module | Switches assigned discrete output points | Converts controller commands into output states |
| PLC Power Supply | Supplies operating power to the PLC system | Supports the rack and controller according to the system configuration |
| Terminal and Field Wiring | Connects output points to external circuits | Carries signals between the module and compatible field devices |
| Interposing Relay | Provides an interface between a PLC output and a load when required | May be used when the load or circuit requirements call for an intermediate switching device |
| Field Actuator | Performs a physical action in the machine or process | Responds to the output circuit when its electrical requirements are met |
| Operator Interface | Displays status and accepts operator commands | May influence output behavior through PLC application logic |
Industrial Applications
| Application | Example of Use | Control Purpose |
|---|---|---|
| Machine Automation | Switching machine enable circuits and discrete control devices | Coordinates operating steps within an automated machine |
| Material Handling | Controlling compatible conveyor-related switching circuits | Supports start, stop, and transfer sequences |
| Packaging Equipment | Activating discrete devices during a packaging cycle | Synchronizes individual operations in the production sequence |
| Assembly Lines | Switching control relays and machine-status indicators | Coordinates stations and discrete process actions |
| Pumping Systems | Issuing discrete commands through suitable interface circuits | Supports programmed operating and standby sequences |
| Process Control Panels | Switching alarms, indicators, and auxiliary control circuits | Communicates control decisions to external equipment |
| Industrial Equipment Retrofits | Maintaining output functions in an existing Series 90-30 installation | Supports repair and restoration of established automation systems |
| Test and Inspection Equipment | Controlling discrete operating states and auxiliary devices | Coordinates test steps and equipment interlocks |
Application suitability depends on the module’s verified electrical ratings, field-load requirements, wiring arrangement, and the safety provisions of the overall control system.
Installation and Maintenance
- Verify the module identification: Confirm the complete IC693MDL730E model number and hardware revision before installing or replacing the unit.
- Check electrical specifications: Verify the output type, rated voltage, current limits, and load compatibility against the applicable module documentation.
- Isolate system power: Follow the site’s lockout and isolation procedures before removing the module or working on associated field wiring.
- Inspect the rack position: Confirm that the intended Series 90-30 rack location supports the module and matches the approved system configuration.
- Check terminal assignments: Use the correct wiring diagram to identify output points and their corresponding field connections.
- Inspect field wiring: Look for loose terminals, damaged insulation, corrosion, incorrect conductor placement, and signs of overheating.
- Verify load compatibility: Ensure that each connected device falls within the module’s permitted electrical limits, including any applicable inrush or switching requirements.
- Review protective devices: Confirm that external circuit protection and any required interface relays are suitable for the connected loads and installation design.
- Inspect module seating: Ensure the module is correctly installed and secured according to the Series 90-30 hardware instructions.
- Test output operation: After restoring power under an approved procedure, verify commanded output states and check that the corresponding field devices respond correctly.
- Troubleshoot systematically: Compare the PLC program’s intended output state with the module indication, field voltage, wiring condition, and actual load response.
- Document maintenance work: Record the module identification, rack location, wiring changes, test results, and any replacement details for future maintenance.
Related Components
| Component | Function | Relationship to IC693MDL730E |
|---|---|---|
| GE Series 90-30 PLC CPU | Executes application logic and manages I/O updates | Supplies the control commands used by the output module |
| GE Series 90-30 Discrete Input Module | Reads discrete field conditions | Provides input information for output decisions |
| GE Series 90-30 Power Supply | Powers the PLC rack and associated modules | Supports operation of the control system |
| GE Series 90-30 I/O Baseplate | Provides module mounting and backplane connections | Establishes the module’s physical and electrical connection to the PLC system |
| Interposing Relay | Switches a compatible external circuit | Can isolate or interface the PLC output with a field load when required |
| Field Terminal Block | Organizes field wiring connections | Connects the output channels to the relevant external circuits |
| Circuit Protection Device | Protects suitable field circuits against specified electrical faults | Supports the protection strategy for connected loads |
| Discrete Field Actuator | Performs a commanded mechanical or electrical action | Responds to the output circuit when correctly connected |
Recommended Related Models
| Model | Product Name | Relationship |
|---|---|---|
| GE IC693MDL730 | Series 90-30 Discrete Output Module | Related model for checking the base model and hardware revision differences |
| GE IC693MDL740 | Series 90-30 Discrete Output Module | Related discrete output model for comparison of output configurations |
| GE IC693MDL753 | Series 90-30 Discrete Output Module | Related output module for reviewing application and electrical requirements |
| GE IC693MDL940 | Series 90-30 Discrete Output Module | Another discrete output model within the same PLC platform |
| GE IC693CPU331 | Series 90-30 PLC CPU | Controller component used in compatible Series 90-30 system configurations |
| GE IC693PWR330 | Series 90-30 Power Supply Module | Related power component for Series 90-30 rack configurations |
Key Advantages
- Established PLC platform: Fits within the GE Series 90-30 automation ecosystem.
- Direct discrete control: Supports program-driven switching of compatible field circuits.
- Organized I/O architecture: Separates controller logic from field-device wiring and output functions.
- Maintenance flexibility: Can be assessed as a replacement option in existing installations after confirming revision and system compatibility.
- Broad control use cases: Applicable to machine sequencing, auxiliary switching, indication, and other discrete automation tasks.
- Straightforward troubleshooting path: Output behavior can be investigated through the PLC logic, module status, wiring, and connected load.
Technical FAQs
1. What is the GE IC693MDL730E used for?
The IC693MDL730E is a discrete output module for the GE Series 90-30 PLC platform. It receives output commands from the controller and switches compatible external circuits according to the control program.
2. Can the IC693MDL730E replace another Series 90-30 output module?
Not automatically. Replacement suitability depends on the exact model, output type, electrical ratings, channel configuration, wiring, and hardware revision. These details should be checked before installing a substitute module.
3. What should be checked if a field device does not respond to an output command?
First, confirm that the PLC logic is issuing the expected command. Then check the module’s status, field supply, terminal assignments, wiring continuity, protective devices, and load condition. The investigation should also determine whether the load requires an interposing relay or another interface component.
4. What information is needed before connecting a load to the IC693MDL730E?
Confirm the module’s documented output characteristics, permitted voltage and current, load type, switching requirements, terminal configuration, and circuit protection. Do not select a field device based only on the fact that it uses a discrete ON/OFF control signal.
