Product Overview

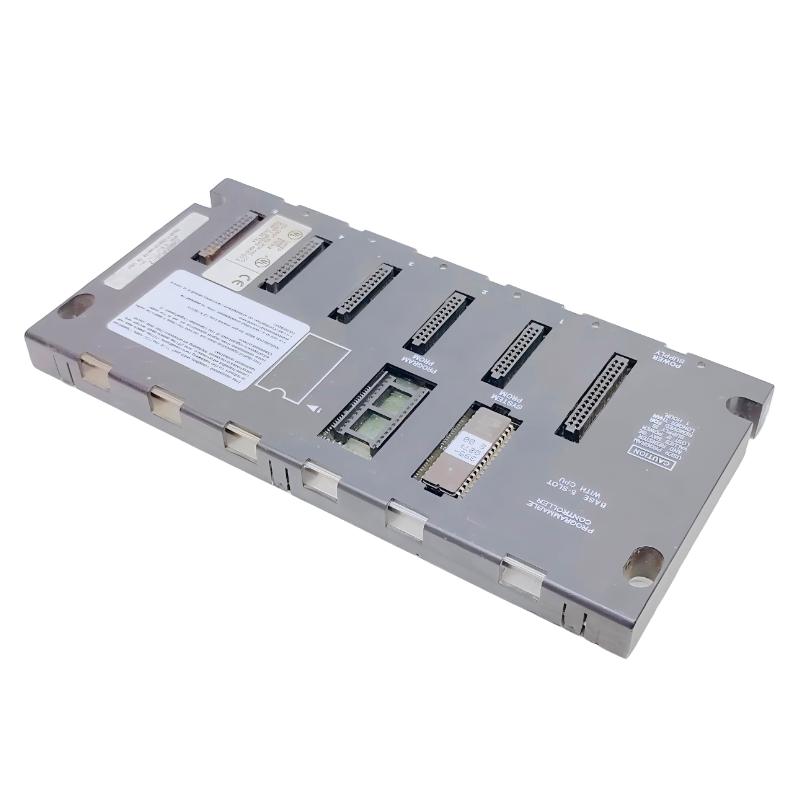

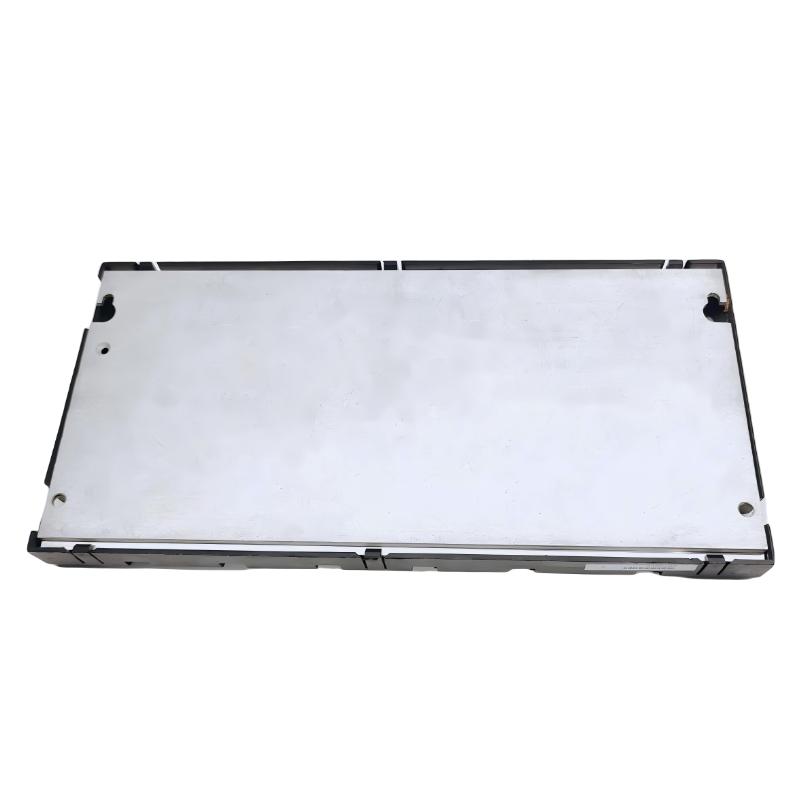

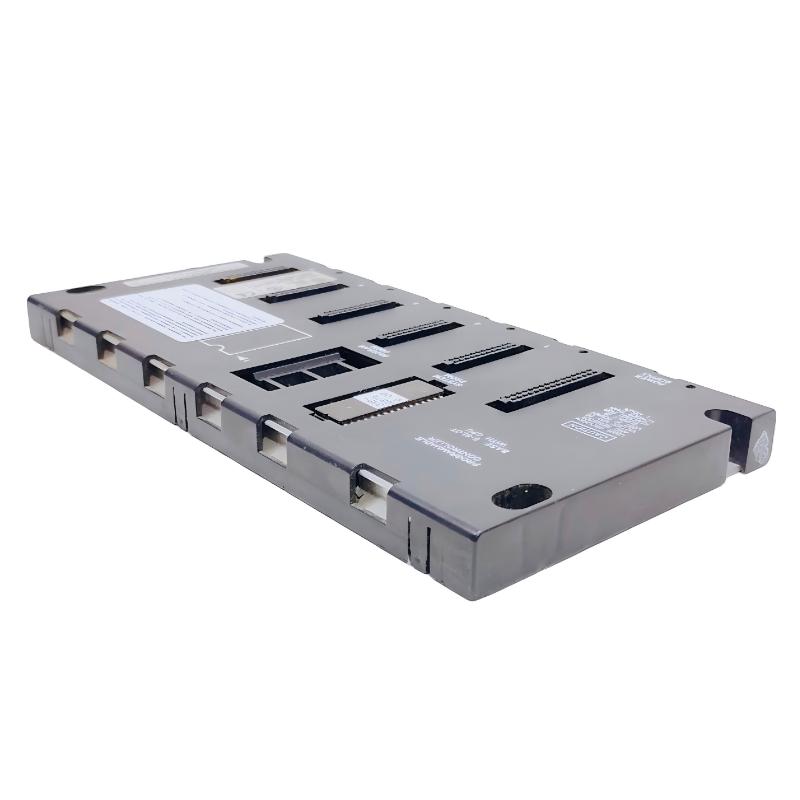

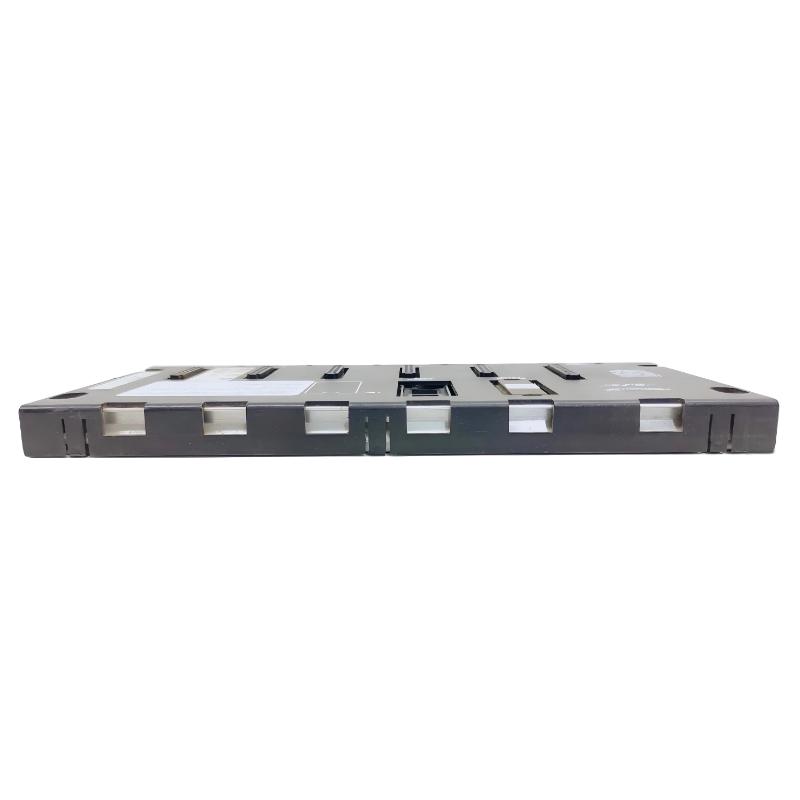

The GE IC693CPU311Z Series 90-30 5-Slot Baseplate with Embedded CPU combines the rack/backplane structure and PLC processing function in a compact Series 90-30 control configuration. Instead of requiring a separate CPU module to occupy one of the rack positions, the CPU is integrated into the baseplate assembly.
This arrangement is useful where a small PLC system needs local processing with a limited number of installed modules. The baseplate provides the physical mounting and electrical interconnection for compatible Series 90-30 modules, while the embedded CPU executes the application program and manages the control system.
A typical installation can use the available module positions for I/O or other system components while retaining the CPU function within the baseplate. This makes the IC693CPU311Z particularly suitable for compact machine-control panels and legacy Series 90-30 installations with relatively small I/O requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | GE IC693CPU311Z |
| Product Family | Series 90-30 |
| Product Type | 5-Slot Baseplate with Embedded CPU |
| CPU Configuration | Embedded CPU |
| Rack Capacity | 5 slots |
| Primary Function | PLC processing and module interconnection |
| System Role | Central processing and baseplate |
| Application | Compact PLC control systems |
| Physical Dimensions | 156 × 102 × 30 mm |
| Weight | 0.75 kg |
Product Features
- Combines CPU functionality with the Series 90-30 baseplate.
- Provides five module positions for a compact PLC configuration.
- Reduces the need for a separate CPU module in the rack.
- Provides the electrical and mechanical foundation for compatible Series 90-30 modules.
- Suitable for small machine-control and automation systems.
- Supports modular expansion through compatible Series 90-30 I/O and system components.
- Provides a compact architecture for applications with limited I/O requirements.
- Useful for maintaining or replacing existing Series 90-30 installations based on an embedded-CPU configuration.
Working Principle
The IC693CPU311Z combines two functions that are normally considered separately in a modular PLC: the baseplate provides module interconnection, while the embedded CPU performs program execution and control processing.
Input information from connected Series 90-30 input modules is transferred through the baseplate to the embedded CPU. The CPU executes the user application and determines the required output states. Output modules then transfer those commands to the connected field equipment.
A simplified signal and control path is:
Field Devices → Series 90-30 Input Modules → IC693CPU311Z Embedded CPU → PLC Logic → Output Modules → Field Equipment
Because the CPU is integrated into the baseplate, troubleshooting should consider both the processing function and the rack connection. If multiple modules exhibit communication or recognition problems, the baseplate and system power path should be checked rather than assuming that an individual I/O module is defective.
Role in a Series 90-30 Control Architecture
| System Element | Function |
|---|---|
| Field Sensors | Provide machine and process input conditions |
| Series 90-30 Input Modules | Acquire discrete or analog field information |
| IC693CPU311Z | Provides embedded CPU processing and module interconnection |
| PLC Application Program | Executes sequencing, interlocks, and control logic |
| Series 90-30 Output Modules | Convert CPU commands into field-side output actions |
| Field Actuators | Perform the commanded machine or process functions |
| Power Supply | Provides the required electrical power for the PLC system |
The IC693CPU311Z serves as the central processing element in the compact rack:
Field Inputs → Input Modules → IC693CPU311Z → Control Logic → Output Modules → Actuators
The five-slot baseplate determines the available physical module positions, so the overall system should be planned around the required I/O and other compatible modules.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Compact PLC control for individual machines |
| Packaging Machinery | Executing machine sequences and monitoring discrete equipment states |
| Material Handling | Controlling conveyors and handling equipment |
| Pump Systems | Managing pump sequences, permissives, and status signals |
| Process Equipment | Local control of compact process machinery |
| OEM Control Panels | Building small Series 90-30-based control cabinets |
| Legacy Automation | Maintaining existing Series 90-30 systems with embedded CPU architecture |
| Standalone Machine Control | Providing local PLC processing where extensive rack capacity is not required |
Installation and Maintenance
- Verify System Architecture
Confirm that the application is intended for a Series 90-30 baseplate with an embedded CPU before installation. - Check Module Capacity
Plan the five available module positions according to the required I/O and system components. - Inspect the Baseplate
Check the housing, mounting points, connectors, and backplane area for physical damage before installation. - Verify Power Connections
Confirm that the associated PLC power arrangement is correctly installed before energizing the system. - Check Module Seating
Make sure installed I/O and other modules are properly seated and mechanically secured. - Inspect Backplane Connections
If multiple modules fail to operate or are not recognized, inspect the common backplane connection before replacing individual modules. - Review CPU Status
Check the embedded CPU operating status and diagnostic information when the PLC does not execute the expected application. - Verify Program Configuration
Confirm that the application program and hardware configuration correspond to the installed system. - Inspect Field Wiring
When individual I/O functions fail, check field wiring and connected devices before assuming a CPU or baseplate fault. - Maintain Rack Documentation
Record the module occupying each available position to simplify future maintenance and replacement. - Follow Safe Maintenance Procedures
De-energize and isolate the appropriate equipment according to site procedures before working on the PLC hardware. - Perform Functional Testing
After replacement or maintenance, verify CPU operation, module recognition, I/O response, and the complete machine-control sequence.
Related Components
| Component | Function |
|---|---|
| GE Series 90-30 Input Modules | Acquire field signals for the embedded CPU |
| GE Series 90-30 Output Modules | Control external field equipment |
| Series 90-30 Power Supply | Provides PLC system power |
| Series 90-30 Analog I/O Modules | Interface continuously varying process signals |
| Series 90-30 Discrete I/O Modules | Interface on/off field devices |
| IC693CPU311Z | Provides embedded CPU processing and five-slot baseplate functions |
| Field Sensors | Supply machine and process information |
| Field Actuators | Execute PLC output commands |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE Series 90-30 | PLC Platform | Modular machine and process control |
| GE Series 90-30 Embedded CPU Baseplates | CPU / Baseplate | Compact PLC configurations |
| GE Series 90-30 CPU Modules | Central Processing Unit | PLC processing in modular racks |
| GE Series 90-30 Discrete Input Modules | Digital Input | On/off field signal acquisition |
| GE Series 90-30 Discrete Output Modules | Digital Output | Discrete equipment control |
| GE Series 90-30 Analog Input Modules | Analog Input | Process-variable acquisition |
| GE Series 90-30 Analog Output Modules | Analog Output | Analog control signals |
| GE Series 90-30 Power Supplies | Power Supply | PLC system power |
Key Advantages
- Combines CPU processing and baseplate functions.
- Provides a compact five-slot Series 90-30 architecture.
- Leaves rack positions available for compatible I/O modules.
- Suitable for small and localized automation systems.
- Simplifies the architecture of compact PLC control panels.
- Useful for maintaining existing embedded-CPU Series 90-30 systems.
Technical FAQs
What is the main difference between the IC693CPU311Z and a standard Series 90-30 CPU module?
The IC693CPU311Z combines the CPU function with the baseplate rather than using a separate CPU module. This creates a compact control architecture in which the processing function is integrated into the rack assembly.
How should the five available slots be planned?
The available positions should be allocated according to the required input, output, and other compatible Series 90-30 modules. Because the CPU is integrated into the baseplate, the application should be planned around the remaining available module capacity rather than reserving a separate slot for a conventional CPU module.
What should be checked if several I/O modules stop communicating with the CPU?
Check the common system elements first, including power, module seating, baseplate/backplane connections, and CPU operating status. If several modules are affected simultaneously, a common rack or system-level issue is more relevant to investigate than immediately replacing individual I/O modules.
Can the IC693CPU311Z be used for applications requiring a large amount of I/O?
The baseplate provides five module positions, so the available local capacity is inherently limited compared with larger Series 90-30 configurations. Applications should therefore be evaluated based on the required I/O count, communication requirements, expansion architecture, and available rack capacity.
