Product Overview

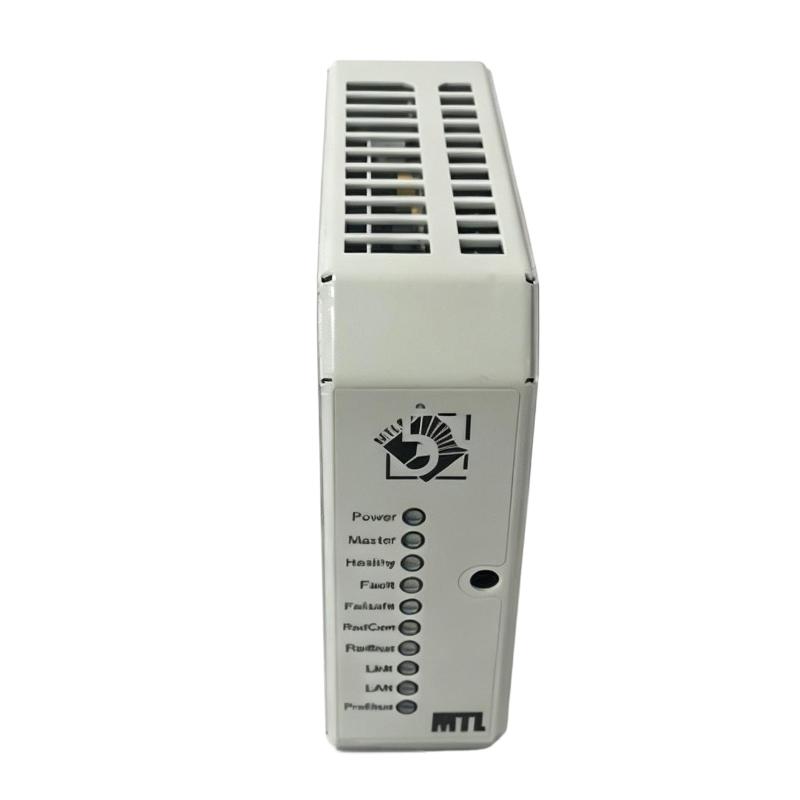

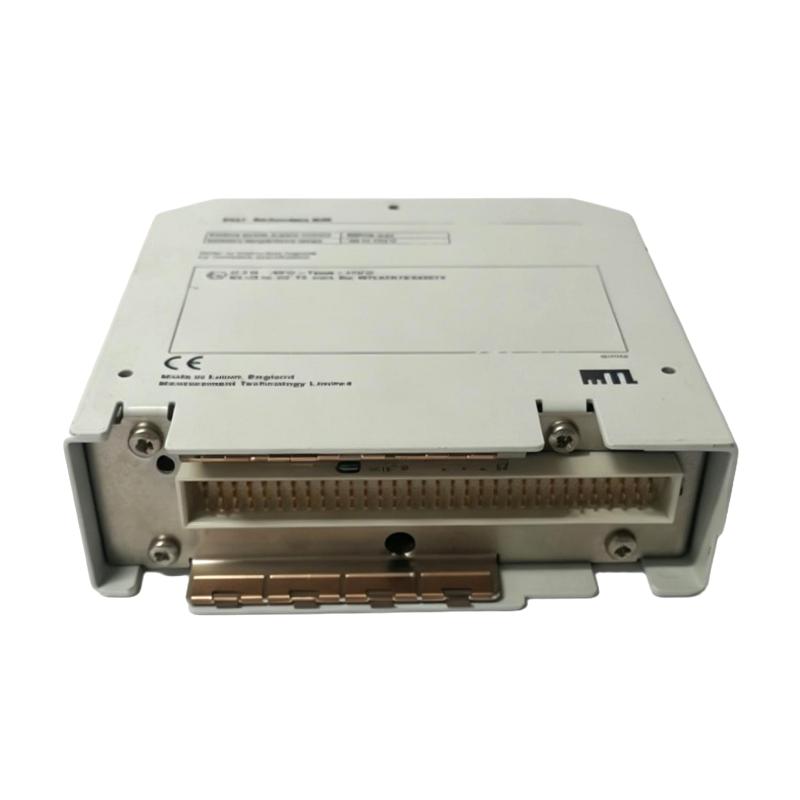

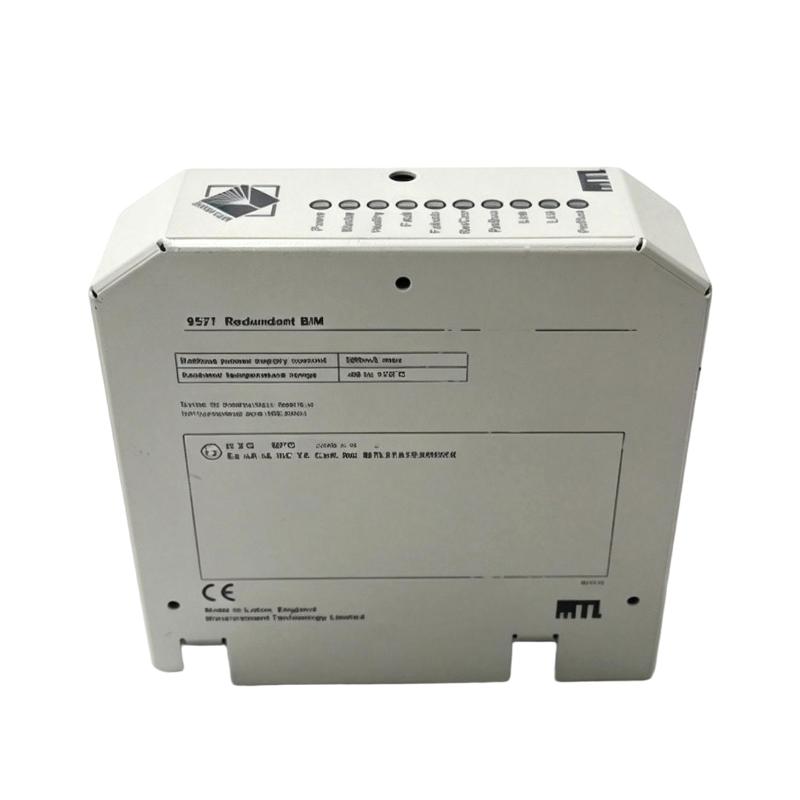

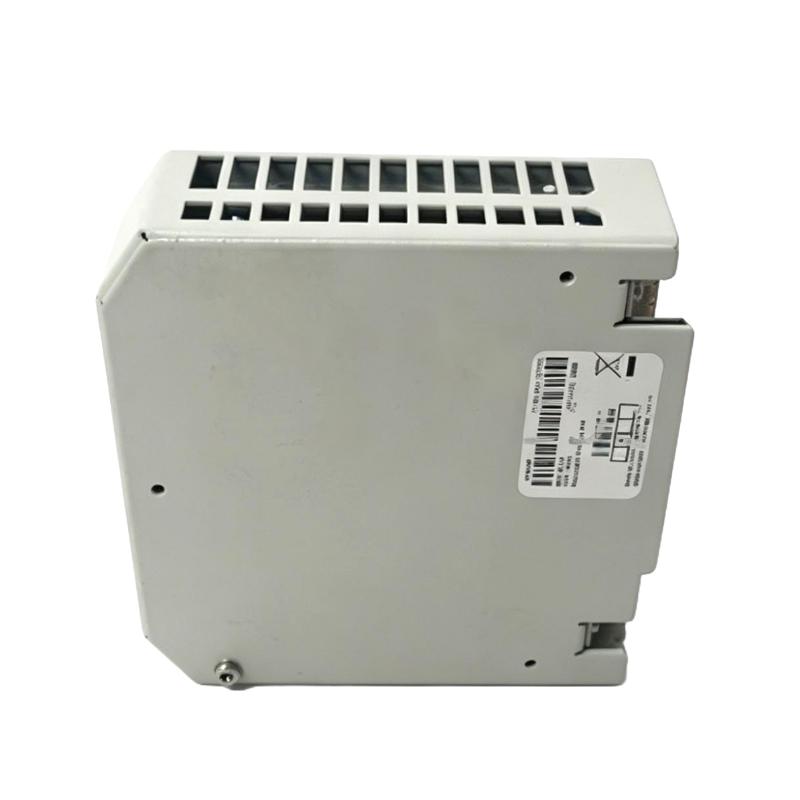

The GE 8507-BI-DP PAC8000 PROFIBUS DP Bus Interface Module is a communication interface used to connect a PAC8000 control architecture with PROFIBUS DP field devices and distributed I/O equipment. It serves as the interface between the control system and a PROFIBUS DP network, allowing process signals and device data to move between the controller and field-level equipment.
In a typical PAC8000 installation, the module is used where PROFIBUS DP devices need to be integrated into the wider automation system. These devices may include remote I/O stations, motor-related equipment, instrumentation interfaces, and other PROFIBUS-compatible components. The bus interface keeps the field network separate from the controller’s higher-level processing while maintaining the required data exchange.
The module is particularly useful in distributed architectures where several field devices share a PROFIBUS DP network rather than being individually wired back to the main controller. This approach can simplify field connectivity and make the I/O architecture easier to expand or maintain.
For maintenance engineers, the 8507-BI-DP also provides a defined point for checking PROFIBUS-related communication problems. Network configuration, node addressing, cabling, termination, and device status can be investigated around the bus interface when diagnosing communication faults.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model / Part Number | 8507-BI-DP |
| Product Type | PAC8000 PROFIBUS DP Bus Interface Module |
| Series | PAC8000 |
| Communication Protocol | PROFIBUS DP |
| Application | PROFIBUS DP network interface for PAC8000 control systems |
| Dimensions | 160 × 30 × 100 mm |
| Weight | 0.5 kg |
Product Features
- Provides PROFIBUS DP connectivity within a PAC8000 control architecture.
- Interfaces the control system with PROFIBUS DP field devices and distributed equipment.
- Supports distributed field communication over a dedicated industrial bus.
- Helps reduce the need for individual point-to-point field connections.
- Provides a defined communication interface for PROFIBUS network troubleshooting.
- Suitable for control systems integrating PROFIBUS-based field equipment.
- Can be incorporated into distributed automation architectures where field devices are located away from the main controller.
Working Principle
The 8507-BI-DP operates as the communication interface between the PAC8000 control environment and the PROFIBUS DP network. Data generated by field devices is transferred through the PROFIBUS network to the bus interface, where it becomes available to the PAC8000 control system. Output and control information follows the reverse path toward the appropriate field devices.
A simplified communication path is:
PAC8000 Controller → 8507-BI-DP → PROFIBUS DP Network → Remote I/O / Field Devices
During normal operation, the interface participates in cyclic data exchange with configured PROFIBUS DP devices. The controller can use received device and process information as part of its control logic, while output information can be transmitted toward remote field equipment.
When communication problems occur, the troubleshooting process normally starts with the physical PROFIBUS connection and network configuration before moving toward controller-side configuration. Incorrect addressing, termination problems, damaged cabling, or configuration mismatches can all prevent expected data exchange.
Role in a PAC8000 PROFIBUS DP Control Architecture
The 8507-BI-DP occupies the network interface position between the PAC8000 control layer and PROFIBUS DP field network:
PAC8000 Control System → 8507-BI-DP → PROFIBUS DP Bus → PROFIBUS Devices / Remote I/O
| System Element | Function |
|---|---|
| PAC8000 Controller | Executes application logic and manages the control strategy |
| 8507-BI-DP | Provides the interface between PAC8000 and PROFIBUS DP |
| PROFIBUS DP Network | Transfers process and device data between the interface and field equipment |
| Remote I/O | Collects field inputs and distributes control outputs |
| PROFIBUS Field Devices | Provides instrumentation, device status, and other process data |
| Engineering / Supervisory System | Supports configuration, diagnostics, and operator-level monitoring |
This architecture allows field equipment to remain distributed while maintaining a structured communication path back to the PAC8000 control system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Connects PROFIBUS DP field devices to PAC8000-based control systems |
| Distributed I/O | Links remote I/O equipment to the central control architecture |
| Motor and Equipment Control | Integrates PROFIBUS-compatible equipment into the automation network |
| Plant Instrumentation | Transfers process and diagnostic information from networked field devices |
| Manufacturing Systems | Supports distributed machine and process equipment communication |
| Existing PAC8000 Installations | Provides PROFIBUS DP connectivity for established control architectures |
Installation and Maintenance
- Verify the PAC8000 configuration
Confirm that the 8507-BI-DP matches the intended PAC8000 system architecture before installation. - Check PROFIBUS network planning
Review the network topology, connected nodes, addressing, and approved configuration before commissioning. - Inspect the communication cable
Check PROFIBUS cabling for damage, poor termination, or loose connections. - Verify node addressing
Make sure each PROFIBUS DP device has the correct address and that no duplicate address exists on the network. - Check bus termination
Inspect termination at the appropriate points in the PROFIBUS segment. Incorrect termination can cause intermittent or complete communication failures. - Keep the module correctly installed
Ensure that the module is properly seated and that its electrical connections are secure. - Separate communication faults from field faults
If several devices disappear from the network at the same time, investigate the bus interface and network before replacing individual field devices. - Review configuration data
Compare the installed PROFIBUS device configuration with the active PAC8000 engineering configuration. - Check for intermittent communication
Monitor recurring communication losses that may indicate cable problems, connector issues, grounding problems, or network configuration errors. - Inspect connected field equipment
If only one PROFIBUS device is affected, check that device and its local connection before assuming the bus interface has failed. - Document configuration changes
Record address, topology, and device configuration changes so that future maintenance can reproduce the working network setup. - Perform a communication test after service
After installation or replacement, verify that configured PROFIBUS devices exchange data correctly with the PAC8000 control system.
Compatible System Components
| Component | Role in the System |
|---|---|
| GE PAC8000 Controllers | Provides the main control processing environment |
| PAC8000 I/O Components | Handles field signal acquisition and control outputs |
| PROFIBUS DP Remote I/O | Provides distributed field-level I/O over PROFIBUS |
| PROFIBUS DP Field Devices | Supplies process data and receives control information |
| PROFIBUS Network Components | Provides the physical communication infrastructure |
| Engineering Configuration Tools | Used to configure and diagnose the control and communication architecture |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| GE 8507-BI-DP | PAC8000 PROFIBUS DP Bus Interface Module | Direct communication interface for PROFIBUS DP integration |
| GE PAC8000 Controller Modules | PAC8000 Controller Hardware | Provides the control platform associated with the communication interface |
| GE PAC8000 I/O Modules | PAC8000 I/O Hardware | Provides field signal interfaces within the PAC8000 architecture |
| PROFIBUS DP Remote I/O Modules | Distributed I/O | Connects remote field signals through the PROFIBUS network |
| PROFIBUS DP Field Devices | Networked Field Equipment | Provides instrumentation and equipment-level data |
Key Advantages
- Directly supports PROFIBUS DP integration within a PAC8000 architecture.
- Enables distributed field equipment to communicate with the control system.
- Helps organize field communication around a dedicated industrial network.
- Simplifies integration of PROFIBUS-compatible remote I/O and devices.
- Provides a clear communication point for network diagnostics and maintenance.
- Suitable for established PAC8000 installations requiring PROFIBUS connectivity.
Technical FAQs
What is the function of the GE 8507-BI-DP?
The 8507-BI-DP serves as a PROFIBUS DP bus interface for the PAC8000 control environment. It provides the communication path between the PAC8000 system and connected PROFIBUS DP field equipment.
What should be checked if multiple PROFIBUS devices stop communicating?
Start with the common network elements rather than replacing individual devices. Check the 8507-BI-DP connection, PROFIBUS cable, connectors, termination, network configuration, and node addressing. A fault affecting multiple devices can indicate a problem on the shared communication path.
Can the 8507-BI-DP be used with remote PROFIBUS I/O?
Yes. Its role is to provide the PAC8000-side interface to the PROFIBUS DP network, allowing compatible remote I/O and other PROFIBUS DP devices to exchange data with the control system.
What is important when replacing an 8507-BI-DP?
The replacement should be checked against the existing PAC8000 architecture and PROFIBUS configuration. Network addressing, connected devices, wiring, termination, and controller-side configuration should all be verified before returning the system to normal operation.
