Product Overview

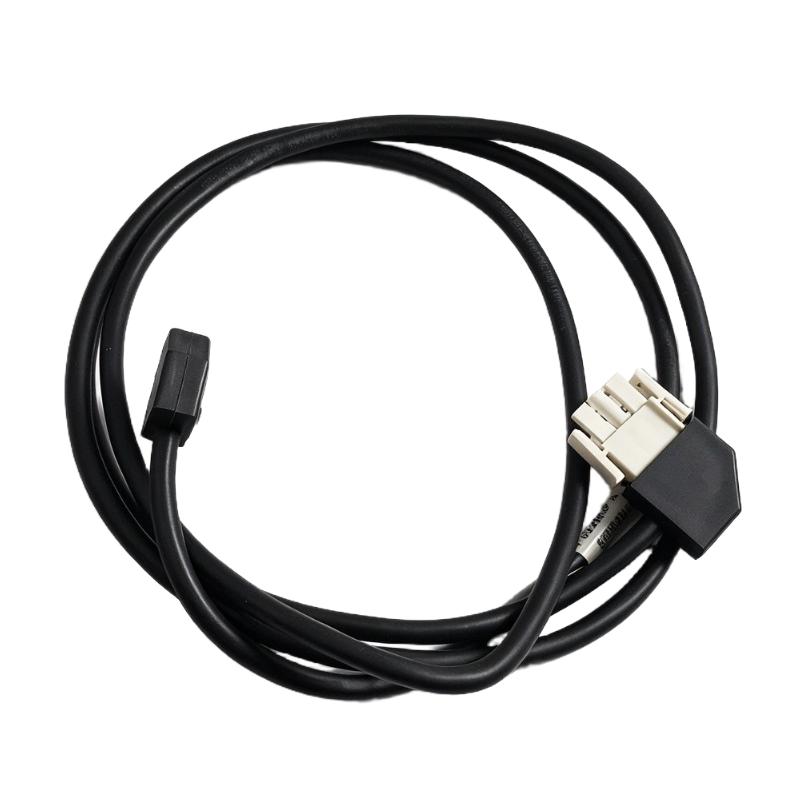

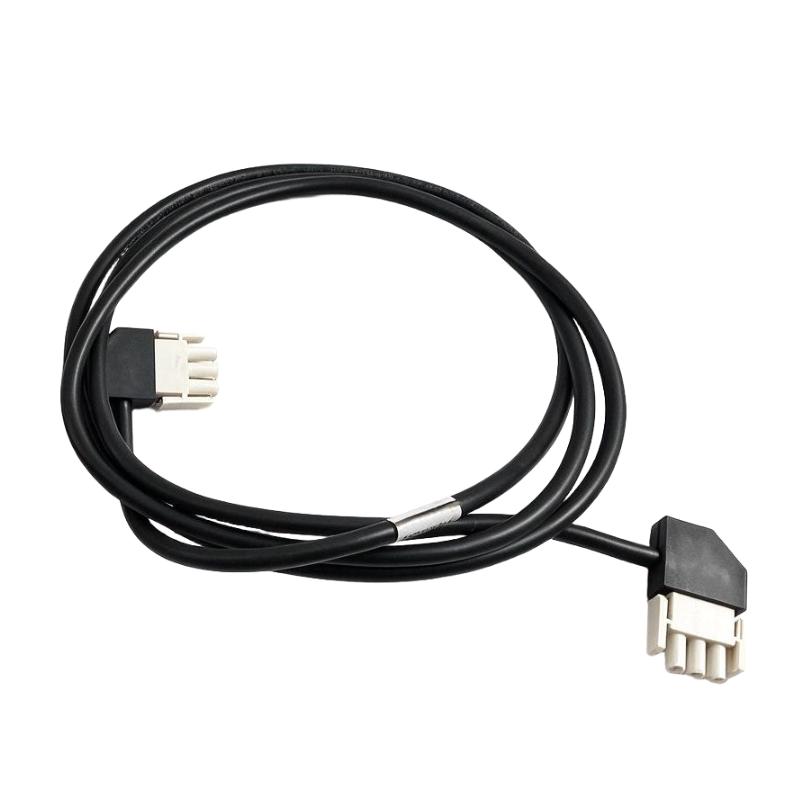

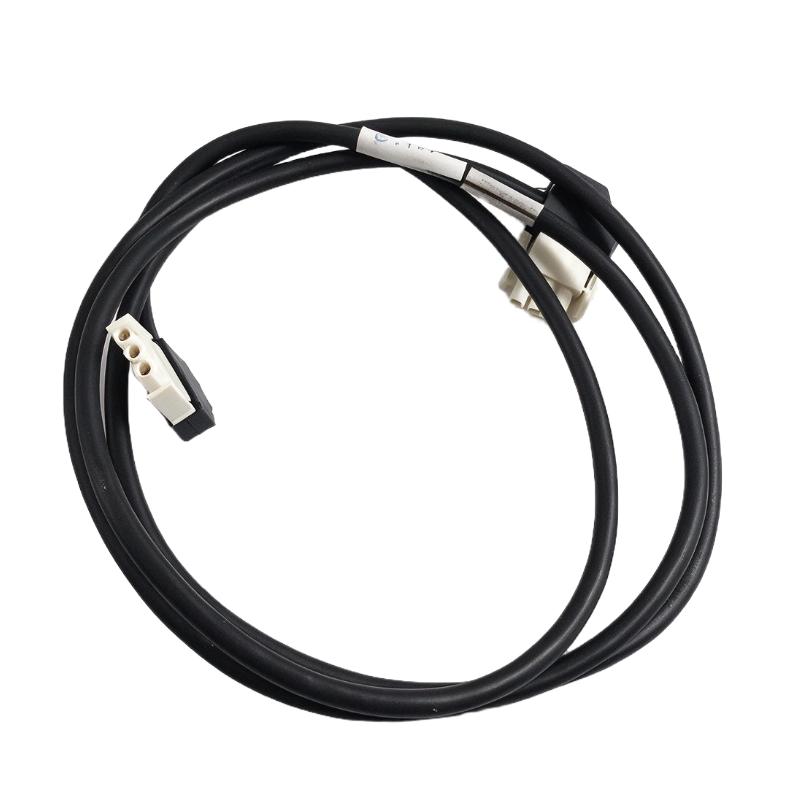

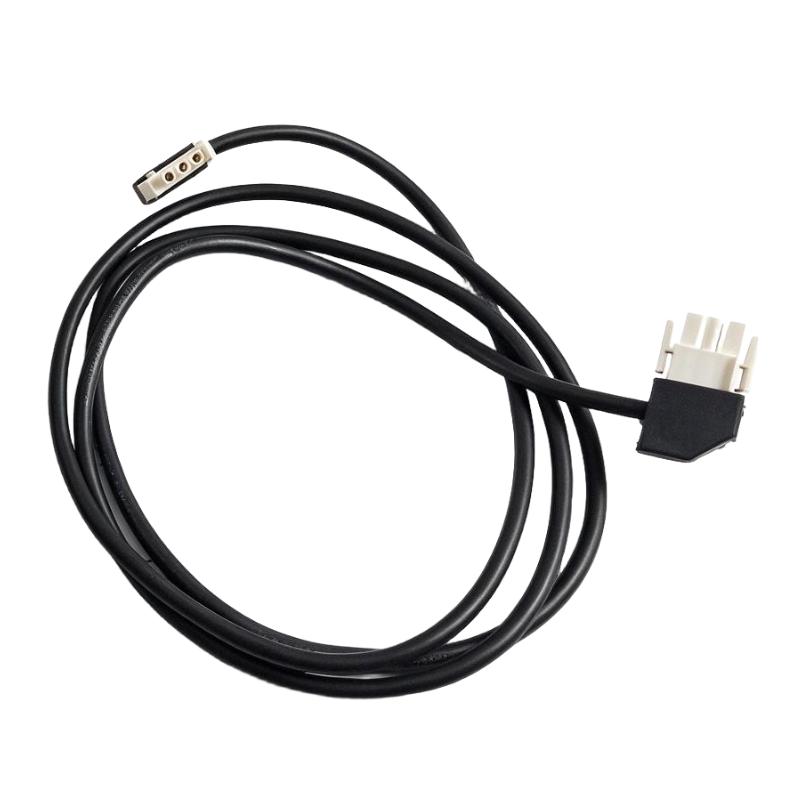

The Foxboro RH926KP I/A Series 200 Power Supply Output Cable connects a compatible power supply to a baseplate in an industrial control system. It is part of the power distribution arrangement used with Foxboro I/A Series 200 equipment, where the power supply must deliver electrical power to the installed control hardware through a suitable cable connection.
The RH926KP has a cable length of 1.8 meters and is used with compatible modular baseplates in the Standard 200 Series subsystem. It is associated with the FPS400-24 power supply arrangement and belongs to the RH926K family of baseplate power cables. The cable provides a dedicated connection between the supply output and the baseplate, rather than serving as a field signal cable for process inputs or outputs.
In a control cabinet, the cable helps establish the power connection between separately mounted equipment. Its length is relevant when planning the position of the power supply and baseplate, particularly where several baseplates are installed within the same cabinet. The selected cable must match the power supply connector and the intended baseplate configuration.
For maintenance and replacement work, the RH926KP should be distinguished from the similarly numbered RH926KM and RH926KN cables, which have different lengths. The older RH926CE cable is associated with legacy P0914XA/XB baseplates and has the same nominal cable length, but the correct choice still depends on the installed equipment and connector arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model / Part Number | RH926KP |
| Product Family | I/A Series 200 |
| Product Type | Power Supply Output Cable |
| Cable Function | Power supply-to-baseplate connection |
| Compatible System | Standard 200 Series subsystem |
| Associated Power Supply | FPS400-24 |
| Compatible Baseplate Type | Applicable modular baseplates |
| Cable Length | 1.8 meters |
| Cable Construction | Shielded cable, 16 AWG |
| Connection Type | Power supply output to baseplate |
| Shipping Weight | 3 kg |
Product Features
- Power supply interconnection: Connects a compatible power supply output to the intended baseplate.
- 1.8-meter cable length: Supports cabinet layouts where the power supply and baseplate are mounted apart.
- Standard 200 Series application: Suits compatible Foxboro I/A Series 200 power distribution arrangements.
- Shielded cable construction: Uses the specified shielded cable arrangement for the power connection.
- Dedicated power connection: Serves the power distribution path rather than process signal transmission.
- System expansion support: Can be used in installations with multiple compatible baseplates, subject to the power supply’s connection capacity and system requirements.
- Replacement identification: The RH926KP part number distinguishes this cable from other lengths in the same cable family.
Working Principle
The RH926KP establishes an electrical connection between the output of a compatible power supply and a baseplate. Once installed correctly, it carries power from the supply to the baseplate, allowing the associated control hardware to receive power through the system’s intended distribution arrangement.
In a process control cabinet, a power supply may be positioned near the cabinet’s power entry or on a separate section of the DIN rail, while the baseplates holding control modules are mounted elsewhere. The 1.8-meter cable allows these components to be interconnected without requiring them to be installed immediately next to each other.
The cable is part of the power distribution path, not the control logic itself. It does not process signals, execute controller instructions or provide a communication link between control modules. Those functions belong to the relevant automation hardware and communication connections.
During installation, the cable must be connected to the appropriate supply output and compatible baseplate interface. Incorrect connections, damaged connectors or unsuitable cable selection can interrupt the power path and affect the operation of the equipment supplied by that baseplate.
Role in a Foxboro I/A Series 200 Control System
The RH926KP forms part of the electrical power distribution arrangement for compatible Standard 200 Series equipment. Its role is to connect the power supply to a baseplate that houses the applicable control hardware.
Power Supply → RH926KP Output Cable → Baseplate → Installed Control Hardware
| System Component | Function | Relationship to the RH926KP |
|---|---|---|
| FPS400-24 Power Supply | Supplies electrical power to the control system | Provides the output connected through the cable |
| RH926KP Power Supply Output Cable | Transfers power from the supply to the baseplate | Establishes the electrical connection |
| Modular Baseplate | Houses compatible control hardware and provides its mounting and connection arrangement | Receives power through the cable |
| Control Modules | Perform configured control or I/O functions | Depend on the applicable baseplate and power arrangement |
| Cabinet DIN Rail | Supports compatible mounted equipment | Provides the mounting structure for the installed components |
| Cabinet Wiring | Connects power and other system circuits | Must be arranged to maintain clear separation and correct routing |
| Additional Baseplates, Where Required | Extend the installed hardware arrangement | May require additional approved power connections within the supply’s limits |
Industrial Applications
| Application | Typical Equipment | Role of the Cable |
|---|---|---|
| Process Automation | Foxboro I/A Series 200 control cabinets | Connects the power supply to a compatible baseplate |
| Distributed Control Systems | Modular control hardware installations | Supports the electrical power distribution arrangement |
| Chemical Processing | Process monitoring and control cabinets | Provides the required power connection for compatible installed equipment |
| Oil and Gas Facilities | Industrial process control systems | Supports power distribution to applicable baseplates |
| Power Generation | Plant control and monitoring equipment | Connects the supply output to the relevant control hardware baseplate |
| Manufacturing Plants | Centralized process control cabinets | Supports organized interconnection of power supplies and baseplates |
| System Expansion | Additional compatible modular baseplates | Provides a suitable connection where the supply and installation requirements permit |
| Maintenance and Replacement | Existing I/A Series 200 installations | Replaces a matching cable when its condition or connection integrity requires attention |
Installation and Maintenance
- Verify the cable part number: Confirm that RH926KP is the required cable for the installed power supply and baseplate arrangement.
- Check equipment compatibility: Verify the power supply model and baseplate type before connecting the cable.
- Isolate the power supply: Follow the equipment’s shutdown and electrical isolation procedures before installation or removal.
- Inspect the connectors: Check the cable ends for damaged contacts, deformation, contamination or other signs of wear.
- Plan the cable route: Arrange the cable between the supply and baseplate without unnecessary tension, sharp bends or interference with adjacent equipment.
- Check the cable condition: Inspect the insulation and accessible cable sections for cuts, crushing or other physical damage.
- Connect the power supply end: Fit the connector to the designated output interface according to the equipment’s connection requirements.
- Connect the baseplate end: Secure the opposite connector to the compatible baseplate power input.
- Secure the cable routing: Keep the cable properly supported and away from moving parts, sharp cabinet edges and unsuitable heat sources.
- Check the power distribution arrangement: Confirm that the number of connected baseplates and the overall load remain within the applicable power supply limits.
- Restore power and verify operation: After completing the required checks, restore power according to the system procedure and confirm that the connected equipment receives power normally.
- Record the maintenance: Document the cable part number, replacement date, connection points and any damage or installation issues observed.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Foxboro FPS400-24 Power Supply | Supplies power to compatible control equipment | Verify the output connector and power distribution requirements |
| Standard 200 Series Modular Baseplate | Houses compatible control hardware | Confirm that the baseplate belongs to the supported configuration |
| RH926KK Power Supply Cable | Connects a compatible supply to a baseplate using a shorter cable | Cable length is 0.4 meters; verify the required routing distance |
| RH926KL Power Supply Cable | Provides a baseplate power connection | Cable length is 0.9 meters |
| RH926KM Power Supply Cable | Provides a baseplate power connection | Cable length is 1.2 meters |
| RH926KN Power Supply Cable | Provides a baseplate power connection | Cable length is 1.5 meters |
| RH926KQ Power Supply Cable | Provides a baseplate power connection | Cable length is 2.1 meters |
| RH926CE Legacy Power Supply Cable | Connects compatible older baseplate arrangements | Associated with legacy P0914XA/XB baseplates; verify the installed configuration |
| Cabinet DIN Rail | Supports mounted power supplies and baseplates | Confirm mounting and spacing requirements |
| Control Cabinet Wiring | Routes power and other electrical connections | Maintain the required cable separation and installation practices |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro RH926KM | I/A Series 200 Power Supply Cable | Same general cable family with a 1.2-meter length | Consider when the installed supply and baseplate are closer together |
| Foxboro RH926KN | I/A Series 200 Power Supply Cable | Same general cable family with a 1.5-meter length | Verify that the shorter routing distance is sufficient |
| Foxboro RH926KQ | I/A Series 200 Power Supply Cable | Same general cable family with a 2.1-meter length | Consider when a longer connection is needed |
| Foxboro RH926KK | I/A Series 200 Power Supply Cable | Shorter cable variant with a 0.4-meter length | Suitable only when the connector locations and required routing permit |
| Foxboro RH926CE | Legacy Baseplate Power Supply Cable | Older cable variant associated with P0914XA/XB baseplates | Check the legacy baseplate and connector configuration before selection |
| Foxboro FPS400-24 | Standard 200 Series Power Supply | Associated power supply for the cable’s application | Verify the output connection and total power requirements |
Key Advantages
- Connects compatible power supplies to Standard 200 Series baseplates.
- Provides a 1.8-meter cable length for cabinet interconnection.
- Supports the intended power distribution path for compatible control hardware.
- Uses a distinct part number for replacement and inventory identification.
- Helps accommodate power supply and baseplate layouts within industrial control cabinets.
Technical FAQs
What does the Foxboro RH926KP connect?
The RH926KP connects a compatible power supply output to a baseplate in the applicable Standard 200 Series configuration. It carries power rather than process input/output signals or controller communication data.
How does the RH926KP differ from the RH926KM and RH926KN?
The main difference is cable length. The RH926KP is 1.8 meters long, the RH926KM is 1.2 meters, and the RH926KN is 1.5 meters. The replacement must also match the installed supply and baseplate interfaces.
Can the RH926KP be used with an older P0914XA or P0914XB baseplate?
The RH926KP belongs to the newer modular-baseplate cable family. Older P0914XA/XB installations have a corresponding legacy cable family, so the exact baseplate and connector arrangement should be verified before selecting a replacement.
What should be checked if a baseplate does not receive power after cable replacement?
Check that the power supply is operating, both cable ends are correctly connected, the connectors are undamaged and the selected cable matches the installed equipment. Also inspect the power supply’s connection capacity and the baseplate power arrangement.
