Product Overview

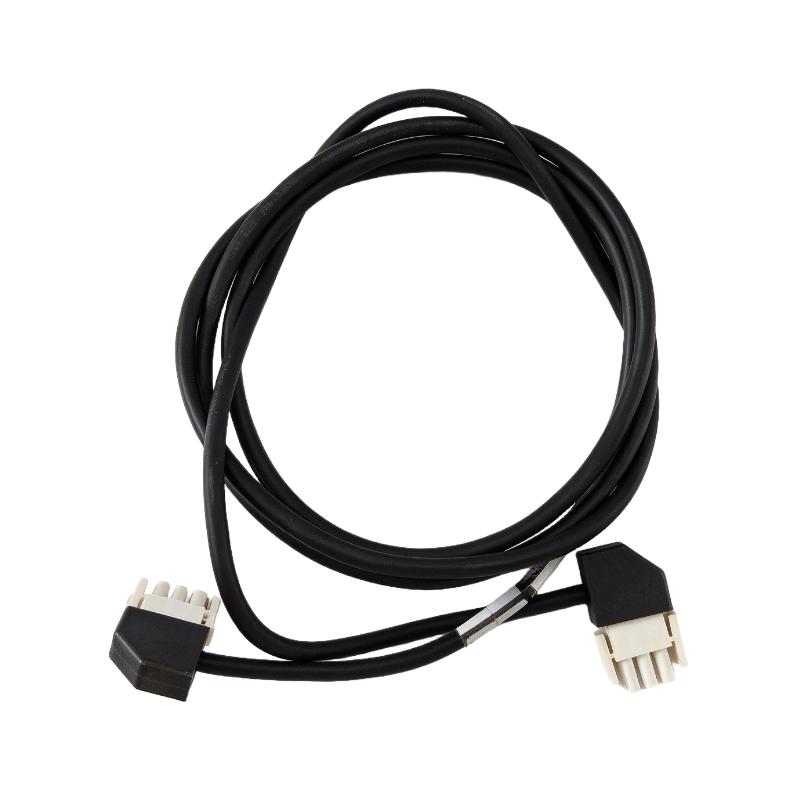

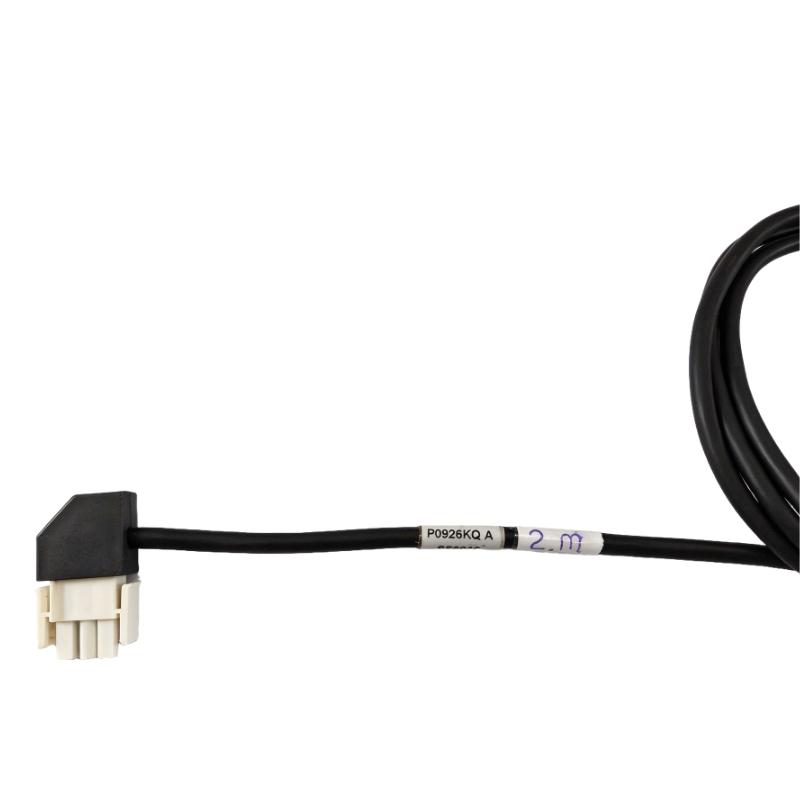

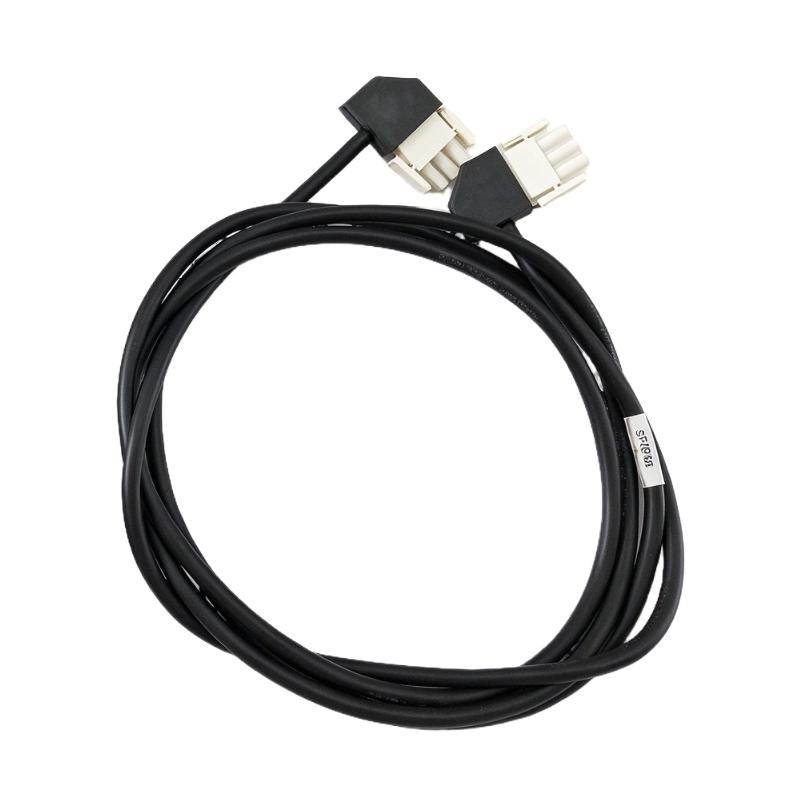

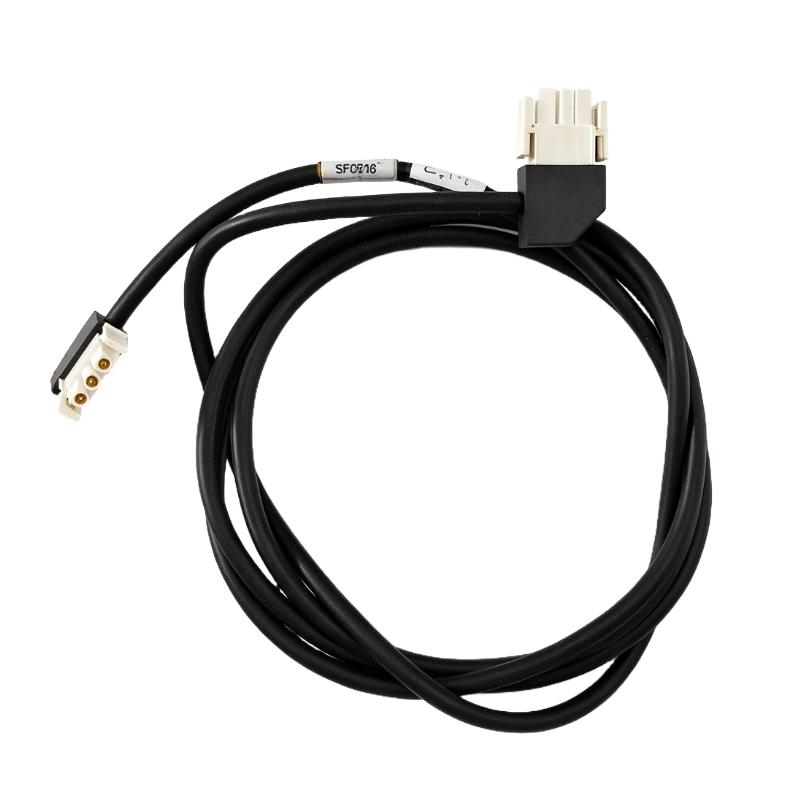

The Foxboro P0926KQ I/A Series 200 Power Supply Output Cable is a dedicated power interconnection cable used with compatible Foxboro modular baseplates and power supply equipment. It belongs to the P0926K cable family, which provides different cable lengths for arranging power connections within industrial control cabinets.
The P0926KQ has a cable length of 2.1 meters and is associated with the FPS400-style power supply arrangement. It connects the power supply to a compatible baseplate, allowing electrical power to reach the installed control hardware through the intended distribution path. This is a power connection component rather than a field signal cable or a communication cable.
In a distributed control system cabinet, power supplies and baseplates may be mounted at different positions to accommodate wiring ducts, module layouts and maintenance access. The 2.1-meter cable provides additional routing distance compared with shorter members of the same family. The selected cable must still match the installed connectors and baseplate configuration.
The P0926KQ is the original part reference for the cable, while RH926KQ is the corresponding later reference used for this cable length. When replacing an existing cable, the distinction between newer modular-baseplate arrangements and older P0914XA/XB baseplates is important because the legacy cable family uses different part references.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model / Part Number | P0926KQ |
| Related Part Number | RH926KQ |
| Product Family | I/A Series 200 |
| Product Type | Power Supply Output Cable |
| Primary Function | Power supply-to-baseplate connection |
| System Application | Standard 200 Series subsystem |
| Associated Power Supply Arrangement | FPS400-style power supply |
| Cable Length | 2.1 meters |
| Connection Type | Power supply output to compatible baseplate |
| Shipping Weight | 3 kg |
Product Features
- Dedicated power connection: Connects compatible power supply equipment to the intended baseplate.
- 2.1-meter cable length: Accommodates installations where the power supply and baseplate are separated within the cabinet.
- Standard 200 Series application: Supports compatible Foxboro modular control hardware arrangements.
- Part-number identification: Uses the P0926KQ reference, with RH926KQ as the corresponding later reference.
- Cabinet wiring support: Helps organize power connections between separately mounted components.
- Multiple length options: Belongs to a cable family with shorter and longer alternatives for different cabinet layouts.
- System-specific compatibility: Requires the correct power supply output and baseplate connection arrangement.
Working Principle
The P0926KQ provides the electrical path between a compatible power supply output and a modular baseplate. Once correctly connected, it carries the supply power to the baseplate’s designated power input, supporting the operation of the control hardware installed in the associated system.
For example, a process control cabinet may contain several baseplates serving different groups of input/output modules. The power supply can be mounted separately from a baseplate to accommodate the cabinet layout. The 2.1-meter cable allows the connection to follow the planned wiring route without requiring the two components to be adjacent.
The cable does not process controller instructions, transmit process measurements or perform signal conditioning. Its role is limited to the intended power interconnection. Control and communication functions are handled by the corresponding automation modules and their designated interfaces.
During replacement, technicians should confirm the cable reference, connector compatibility and routing requirements. A cable that reaches the baseplate physically is not necessarily the correct replacement if its termination or system application differs.
Role in a Foxboro I/A Series 200 Control System
The P0926KQ forms part of the power distribution arrangement for compatible Standard 200 Series equipment. It connects the power supply output to the designated baseplate so that the installed control hardware can receive power through the intended connection.
Power Supply → P0926KQ Cable → Modular Baseplate → Installed Control Hardware
| System Component | Function | Relationship to the Cable |
|---|---|---|
| FPS400-Style Power Supply | Supplies electrical power | Provides the output connected through the cable |
| P0926KQ Power Supply Output Cable | Carries power between compatible components | Establishes the electrical connection |
| Modular Baseplate | Supports compatible control modules and their electrical interfaces | Receives power through the designated connection |
| Fieldbus Modules (FBMs) | Perform configured process input/output functions | Operate as part of the powered control system |
| Field Control Processor | Executes configured control functions | Coordinates system operation through the applicable architecture |
| Cabinet Wiring Ducts | Organize and route electrical wiring | Provide a planned route for the cable |
| Additional Baseplates, Where Required | Accommodate further control modules | Require power connections that meet the system’s electrical limits |
Industrial Applications
| Application | Typical Equipment | Role of the Cable |
|---|---|---|
| Process Automation | Foxboro I/A Series 200 control cabinets | Connects the power supply to a compatible baseplate |
| Chemical Processing | Process monitoring and control systems | Supports the power distribution arrangement for installed control hardware |
| Oil and Gas Facilities | Distributed control system cabinets | Provides the designated power interconnection |
| Power Generation | Plant monitoring and control equipment | Connects compatible power supply and baseplate components |
| Manufacturing Plants | Modular industrial control systems | Accommodates power wiring between separately mounted components |
| Water and Wastewater Treatment | Process automation cabinets | Supports the intended electrical power path |
| Control System Expansion | Additional compatible modular baseplates | Provides a connection where the supply capacity and system arrangement permit |
| Maintenance and Replacement | Existing I/A Series 200 installations | Replaces a matching cable when required by service condition or installation changes |
Installation and Maintenance
- Verify the part reference: Confirm that P0926KQ or its corresponding RH926KQ reference matches the required cable configuration.
- Check equipment compatibility: Identify the installed power supply and baseplate before disconnecting the existing cable.
- Isolate the power supply: Follow the equipment’s electrical isolation procedure before installation or maintenance.
- Inspect the connectors: Check both cable ends for damaged contacts, contamination or mechanical wear.
- Plan the routing path: Route the cable between the supply and baseplate without excessive tension or sharp bends.
- Inspect the cable jacket: Check accessible sections for cuts, crushing, abrasion or other damage.
- Connect the supply end: Fit the connector to the designated power supply output according to the equipment’s connection requirements.
- Connect the baseplate end: Secure the other connector to the compatible baseplate power input.
- Secure the cable route: Keep the cable away from sharp cabinet edges, moving parts and unsuitable heat sources.
- Check power distribution limits: Confirm that the connected baseplates and their loads remain within the applicable power supply ratings.
- Verify system operation: Restore power according to the approved procedure and check that the connected equipment receives power normally.
- Record the replacement: Document the cable reference, replacement date, connection points and any damage found during inspection.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Foxboro FPS400-Style Power Supply | Supplies power to compatible control hardware | Verify the output interface and system power requirements |
| Standard 200 Series Modular Baseplate | Houses compatible control modules | Confirm the correct baseplate family and power connection |
| Foxboro RH926KK | Power supply output cable | 0.4-meter version for compatible modular-baseplate installations |
| Foxboro RH926KL | Power supply output cable | 0.9-meter version |
| Foxboro RH926KM | Power supply output cable | 1.2-meter version |
| Foxboro RH926KN | Power supply output cable | 1.5-meter version |
| Foxboro RH926KP | Power supply output cable | 1.8-meter version |
| Foxboro RH926KQ | Power supply output cable | Corresponding later reference for the 2.1-meter cable |
| Foxboro RH926CF | Legacy baseplate power supply cable | Associated with older P0914XA/XB baseplates; verify the legacy connection arrangement |
| Cabinet DIN Rail | Supports mounted power supplies and baseplates | Confirm mounting positions and cable routing requirements |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro P0926KP | I/A Series 200 Power Supply Output Cable | Shorter cable variant, 1.8 meters | Consider where the installed routing distance permits |
| Foxboro P0926KN | I/A Series 200 Power Supply Output Cable | Shorter cable variant, 1.5 meters | Verify the cable route and connector positions |
| Foxboro P0926KM | I/A Series 200 Power Supply Cable | Shorter cable variant, 1.2 meters | Suitable only when the shorter connection reaches correctly |
| Foxboro RH926KQ | I/A Series 200 Power Supply Output Cable | Corresponding later reference for P0926KQ | Verify the installed equipment and required replacement reference |
| Foxboro P0926CF | Legacy Baseplate Power Supply Cable | Older cable family for P0914XA/XB baseplates, 2.1 meters | Do not substitute without checking the legacy baseplate interface |
| Foxboro FPS400-24 | Standard 200 Series Power Supply | Associated power supply type in this system family | Confirm the exact output connection and system power requirements |
Key Advantages
- Provides a 2.1-meter power connection for compatible baseplate installations.
- Supports the intended power distribution path in Standard 200 Series systems.
- Helps accommodate separated mounting positions within control cabinets.
- Has identifiable original and corresponding later part references.
- Offers a cable-length option for cabinet layouts that require additional routing distance.
Technical FAQs
What is the difference between P0926KQ and RH926KQ?
P0926KQ is the original part reference, while RH926KQ is the corresponding later reference for the 2.1-meter cable used with compatible modular baseplates. The installed equipment and connector arrangement should still be checked before replacement.
Which power supply arrangement is associated with the P0926KQ?
The cable is associated with the FPS400-style power supply arrangement used in compatible Standard 200 Series systems. Confirm the specific power supply output and baseplate connection before installation.
Can P0926KQ replace the older P0926CF cable?
Not automatically. P0926CF belongs to the legacy cable family used with P0914XA/XB baseplates, while P0926KQ belongs to the newer modular-baseplate cable family. The baseplate interface must be verified before selecting a replacement.
What should be checked if the baseplate loses power intermittently?
Inspect the cable connectors, cable jacket and connection seating, then verify the power supply output and baseplate power input. Also check whether the connected load and overall power distribution remain within the system’s specified limits.
