Product Overview

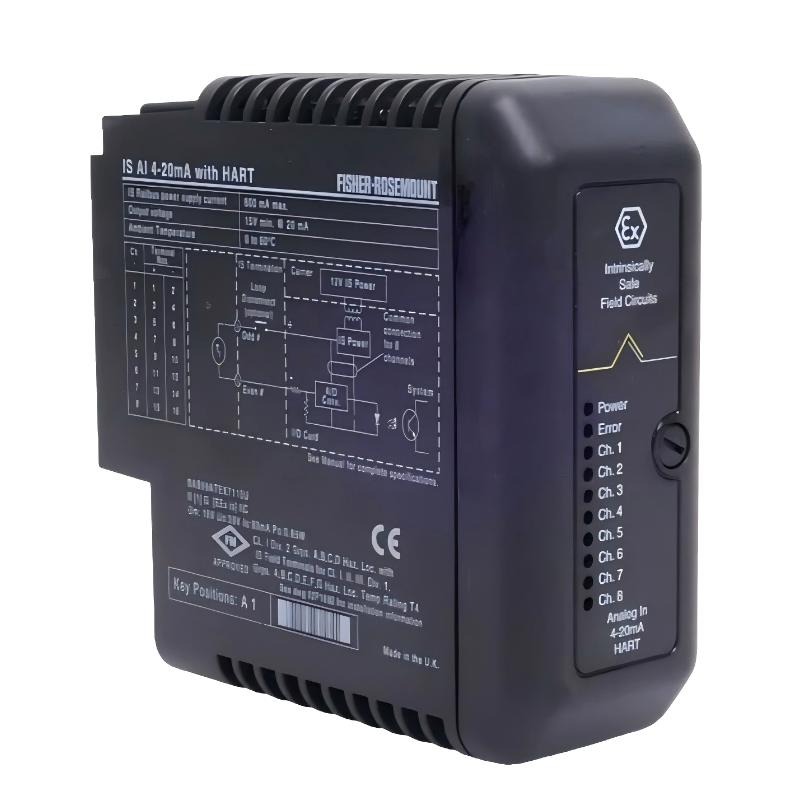

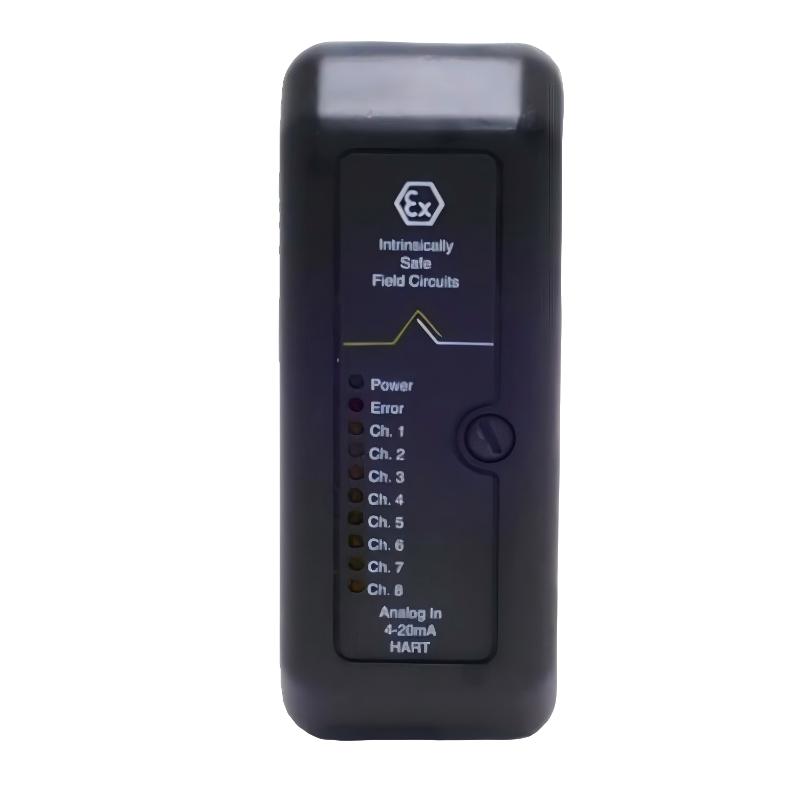

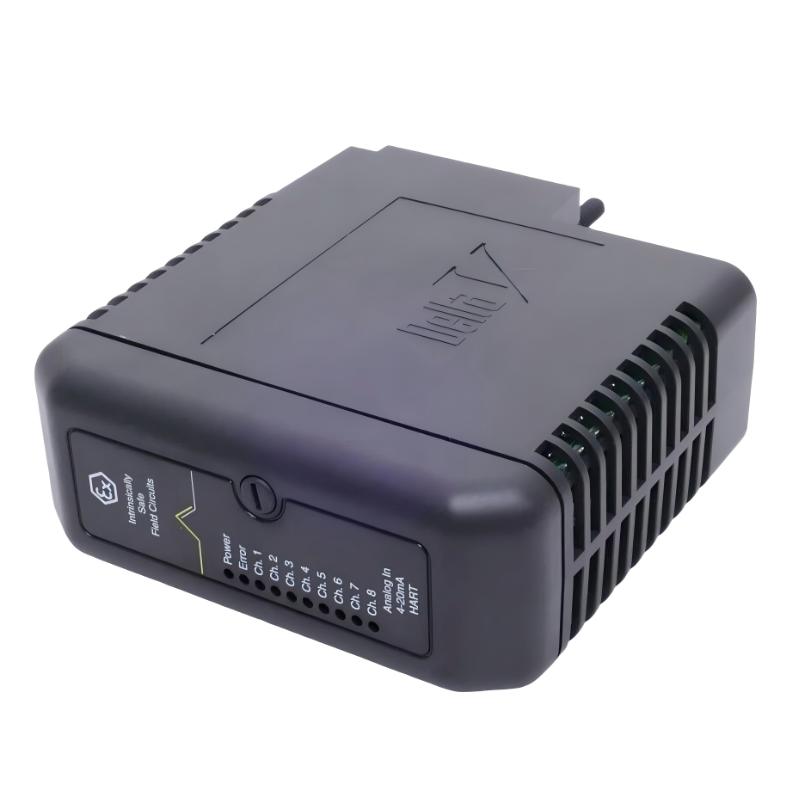

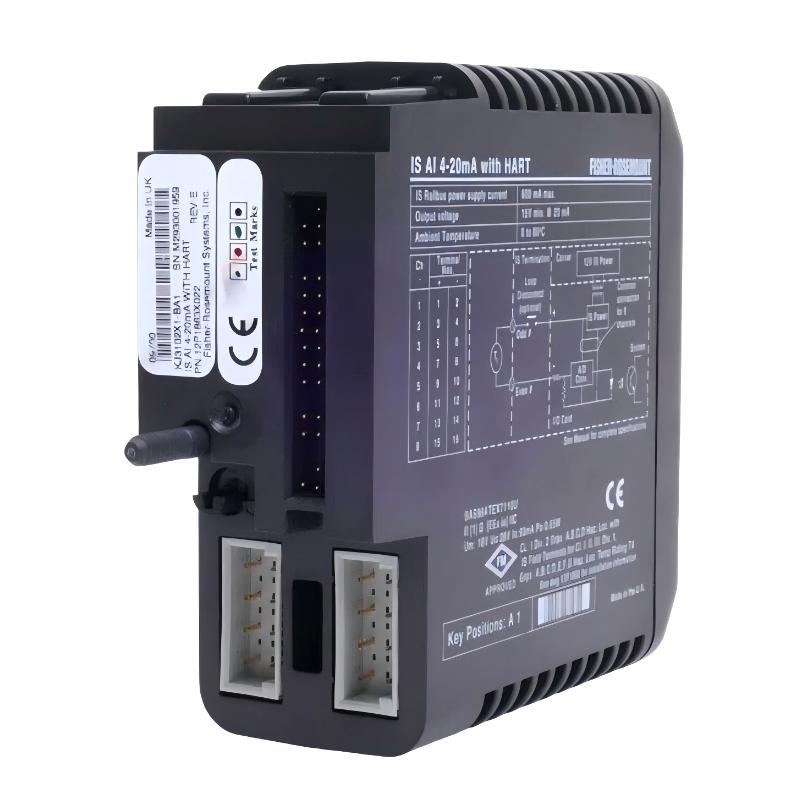

The Emerson VE4013S1 Analog Input Card is an industrial process I/O component designed to provide analog signal acquisition within a compatible Emerson automation and process control architecture. It serves as an interface between field instrumentation and the control system, allowing continuously varying process measurements to be collected and used for monitoring, control, alarming, trending, and operational analysis.
In industrial environments, many important process variables are represented by analog signals rather than simple discrete states. Pressure, temperature, flow, level, and other continuously changing parameters can be monitored through appropriate field transmitters and sensors. The VE4013S1 provides the I/O-level interface required to incorporate these measurements into the automation system.
The VE4013S1 has listed dimensions of 107 × 41 × 105 mm and a weight of approximately 0.281 kg. Its compact form factor makes it suitable for control cabinets where multiple I/O cards and associated field-interface equipment must be installed within a limited space.
The card should be considered as one part of a complete measurement chain. The field instrument, wiring, terminal hardware, I/O configuration, controller logic, and operator interface all contribute to the final measurement available to the process-control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4013S1 |
| Product Type | Analog Input Card |
| Product Family | Emerson VE4000 Series |
| Primary Function | Analog process signal acquisition |
| Signal Category | Analog Input |
| Interface Role | Field instrumentation to control system |
| Application | Industrial process automation |
| Typical Field Devices | Sensors and process transmitters |
| Installation | Compatible Emerson industrial control architecture |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.281 kg |
| Typical Applications | Process monitoring, measurement and control |
Specification note: Exact input-channel quantity, electrical signal range, input impedance, isolation characteristics, accuracy, resolution, terminal assignment, and other detailed electrical specifications should be verified against the applicable VE4013S1 documentation and installed system configuration.
What Is the Emerson VE4013S1?
The Emerson VE4013S1 Analog Input Card is used to bring suitable analog process signals from field instrumentation into an industrial control system.
A field sensor or transmitter measures a physical process condition and generates a corresponding electrical signal. The VE4013S1 forms part of the interface that allows this measurement to enter the control architecture.
A simplified signal path is:
Process → Sensor / Transmitter → Field Wiring → VE4013S1 → Controller → HMI / SCADA
Once the measurement is acquired, the control system can apply engineering scaling and programmed logic to transform the input into useful process information.
The resulting data can be used for:
- Continuous process monitoring
- Control-loop feedback
- Alarm generation
- Process trending
- Equipment supervision
- Operator visualization
- Data acquisition
- Process optimization
- Maintenance analysis
The exact application depends on the connected instrumentation and the configuration of the Emerson control system.
How an Analog Input System Works
Analog input systems are designed to handle continuously varying measurements.
For example, a pressure transmitter may produce an electrical signal that changes as pressure changes. A temperature transmitter can similarly provide a signal corresponding to process temperature.
The general measurement process is:
- A field instrument detects a process variable.
- The instrument produces an analog electrical signal.
- The signal travels through the field wiring.
- The VE4013S1 receives the applicable input signal.
- The input electronics process the signal.
- The control system receives the measurement.
- Engineering software converts the signal into a meaningful process value.
- The controller uses the measurement for monitoring or control.
This arrangement provides a direct connection between physical process conditions and automated control functions.
Main Functions of the VE4013S1
Analog Signal Acquisition
The primary purpose of the VE4013S1 is to acquire compatible analog information from field instrumentation.
This allows process variables to be monitored continuously rather than simply represented as ON or OFF conditions.
Signal Processing
The incoming electrical signal must be processed so that it can be interpreted by the control architecture.
The specific signal-processing characteristics depend on the hardware configuration and associated system design.
Process Data Transfer
After acquisition, the measurement becomes available to the appropriate control-system functions.
The controller can use the data for logic, calculations, alarming, control loops, and operator displays.
Continuous Monitoring
Analog measurement provides more information than a simple status signal because it allows the system to observe how a process variable changes over time.
This is valuable for both real-time operation and historical analysis.
Role in Industrial Process Control
The VE4013S1 operates at the field I/O level of an industrial automation architecture.
A typical system can be represented as:
Field Instrumentation → Analog Input Card → Control Processor → Operator Interface → Supervisory Layer
The analog input card forms the connection between physical instrumentation and digital control logic.
For example, a process transmitter may continuously measure a variable. The VE4013S1 acquires the associated signal, while the controller processes the measurement according to the configured application.
If the measured value reaches a configured alarm threshold, the control system may notify the operator. If the value is part of a control loop, the controller may calculate a corresponding output action.
Industrial Applications
Water and Wastewater Treatment
Water-treatment facilities use continuous measurements to monitor process conditions throughout treatment stages.
Analog instrumentation may be associated with:
- Flow
- Pressure
- Level
- Temperature
- Water-quality measurements
The VE4013S1 can form part of the I/O infrastructure used to collect suitable analog process signals.
Chemical Processing
Chemical processes frequently require continuous measurement of process conditions. Analog signals can provide feedback for control loops and help operators monitor process stability.
Oil and Gas
Oil and gas installations contain large numbers of field transmitters and sensors. Analog I/O systems allow suitable measurements to be incorporated into process-control architectures.
Power and Utilities
Power-generation and utility systems use instrumentation to monitor equipment and process conditions. Analog input cards can provide the connection between field transmitters and control systems.
Manufacturing
Manufacturing equipment can use analog measurements to monitor temperature, pressure, flow, machine conditions, and other process variables.
Industrial Process Skids
Packaged process systems often combine sensors, transmitters, I/O modules, controllers, and operator interfaces within compact equipment packages. The VE4013S1 can serve as an analog measurement interface where compatible with the system design.
System Integration Architecture
A reliable analog input application normally contains several layers.
Field Instrumentation
Sensors and transmitters detect physical process conditions.
Field Wiring
Instrumentation cables carry the electrical signals from the field to the control cabinet.
VE4013S1 Analog Input Card
The card receives the applicable analog signals and provides the I/O interface to the control system.
Controller
The controller processes the measurement according to programmed logic.
HMI
The operator interface displays process values, alarms, and trends.
SCADA or Supervisory System
Where implemented, supervisory systems can collect measurements for plant-wide monitoring, reporting, and historical analysis.
Installation Guidelines
Verify the Model
Before installation, confirm that the hardware is identified as:
Emerson VE4013S1 Analog Input Card
The complete model designation should be compared with the existing installation and system documentation.
Inspect the Card
Before installation, inspect the card for:
- Physical damage
- Damaged connectors
- Contamination
- Corrosion
- Loose components
- Signs of improper storage
Confirm the Installation Position
Verify that the card is installed in the appropriate location within the compatible Emerson I/O system.
Check Field Wiring
Compare the field wiring with the approved control drawings before energizing the system.
Check:
- Terminal assignments
- Cable identification
- Signal connections
- Shielding
- Grounding
- Terminal tightness
Check Cabinet Conditions
The installation environment should be suitable for industrial electronic equipment.
Excessive heat, moisture, dust, vibration, or electrical interference can negatively affect equipment reliability and signal quality.
Analog Signal Wiring
Proper wiring is particularly important for analog measurements because electrical interference can affect the accuracy and stability of the acquired signal.
Engineering teams should consider:
Cable Routing
Instrumentation cables should be routed appropriately and separated from high-power conductors where required.
Shielding
Where shielded instrumentation cable is specified, the shield should be installed according to the system’s grounding practice.
Grounding
Improper grounding can contribute to unwanted signal behavior and measurement instability.
Terminal Connections
Loose terminals can cause intermittent or unstable measurements.
Cable Condition
Damaged insulation, moisture ingress, or excessive mechanical stress can affect signal integrity.
The exact wiring method should be established from the applicable VE4013S1 system configuration.
Commissioning Procedure
A structured commissioning procedure helps verify the complete signal chain.
1. Verify Hardware
Confirm the VE4013S1 model and installation position.
2. Inspect Connections
Check the card, terminal hardware, and field wiring.
3. Verify the Field Instrument
Confirm that the associated sensor or transmitter operates correctly.
4. Check I/O Configuration
Verify that the corresponding input is correctly configured in the control system.
5. Apply a Known Input
Where practical, apply a known process condition or suitable test signal.
6. Verify Engineering Scaling
Confirm that the control system converts the acquired input into the correct engineering value.
7. Check Alarm Functions
Verify that configured process alarms respond at the appropriate conditions.
8. Monitor the Measurement
Observe the input for stability during normal operation.
Troubleshooting the VE4013S1
No Analog Input
If a process measurement is not visible in the control system, inspect the signal path systematically.
Check:
- Field instrument
- Transmitter power
- Field wiring
- Terminal connections
- VE4013S1 installation
- I/O configuration
- Controller diagnostics
- HMI or SCADA configuration
A missing measurement does not automatically indicate an I/O card failure.
Incorrect Measurement
If the displayed value does not correspond to the expected process condition, investigate:
- Sensor calibration
- Transmitter configuration
- Field wiring
- Input configuration
- Engineering scaling
- Electrical interference
- Process conditions
- Hardware condition
The source of an incorrect measurement can be located anywhere in the measurement chain.
Unstable Analog Signal
An unstable signal may be caused by:
- Electrical interference
- Poor grounding
- Inadequate shielding
- Loose terminals
- Damaged cable
- Unstable transmitter output
- Process fluctuations
- Connector problems
Trend monitoring can help distinguish a real process fluctuation from an instrumentation problem.
Intermittent Measurement
An intermittent signal can be associated with:
- Loose wiring
- Connector problems
- Vibration
- Cable damage
- Environmental changes
- Field-device instability
Physical inspection and historical trend analysis can help isolate the source.
Preventive Maintenance
Inspect Connections
Regularly inspect terminals and connectors for looseness, contamination, oxidation, or physical damage.
Check Field Wiring
Instrumentation cables should be inspected for insulation damage, mechanical stress, moisture, and poor routing.
Maintain Field Instruments
Sensors and transmitters should be maintained according to their respective maintenance requirements.
Review Process Trends
Long-term trends can reveal gradual sensor degradation or changes in process behavior.
Maintain Cabinet Conditions
Good cabinet housekeeping and suitable environmental conditions help protect electronic I/O equipment.
Maintain Spare-Part Records
The complete VE4013S1 model should be recorded accurately in the plant’s spare-parts and maintenance system.
Replacement Considerations
When replacing the Emerson VE4013S1 Analog Input Card, technicians should record the existing hardware information before removing it.
Important information includes:
- Model number
- Hardware revision
- Card markings
- Installation position
- Connector arrangement
- Field wiring
- Terminal configuration
- Associated instrumentation
- I/O configuration
The physical dimensions provided for the VE4013S1 are:
107 × 41 × 105 mm
The listed weight is:
0.281 kg
These specifications are useful for cabinet planning, storage, transportation, and replacement logistics.
However, physical dimensions alone should not be used to establish electrical compatibility.
Cabinet Installation and Space Planning
The compact 107 × 41 × 105 mm form factor allows the VE4013S1 to be incorporated into relatively dense industrial I/O installations.
When planning a control cabinet, engineers should also consider:
- Adjacent module clearance
- Wiring access
- Connector accessibility
- Cable bending radius
- Heat dissipation
- Maintenance access
- Identification labels
- Future replacement requirements
A well-planned cabinet layout makes inspection and troubleshooting easier and reduces the time required for maintenance.
Compatible System Components
The VE4013S1 may operate as part of a broader Emerson process automation system containing:
| Component | Typical Function |
|---|---|
| Process Sensor | Detects the physical process condition |
| Transmitter | Converts the measurement into an electrical signal |
| Field Cable | Transfers the measurement signal |
| VE4013S1 | Analog signal acquisition |
| I/O Terminal Hardware | Provides field connections |
| Controller | Executes process-control logic |
| HMI | Displays process values and alarms |
| SCADA System | Supervisory monitoring and data management |
| Process Equipment | Performs the required industrial operation |
Actual compatibility depends on the host Emerson system, hardware revision, I/O configuration, and application requirements.
Related Emerson Models
| Model | Product Type | General Function |
|---|---|---|
| VE4012S2 | Analog Input Module | Analog process signal acquisition |
| VE4012S2B1 | Analog Input Module | Analog measurement interface |
| VE4003S1 | Analog Input Module | Analog process measurement |
| VE4003S2 | Analog Input Card | Analog signal acquisition |
| VE4003S6B1 | Analog Input Card | Process analog input |
| VE4003S7 | Isolated Input Module | Isolated process input |
| VE4005S2 | Analog Output Card | Analog process output |
| VE4006P | Serial Interface Module | Serial communication |
| VE4007 | Fieldbus Card | Industrial fieldbus interface |
These products are related Emerson automation components, but they should not be treated as direct replacements for the VE4013S1 without verifying the complete electrical and system requirements.
Engineering Best Practices
Verify the Complete Product Identification
Use VE4013S1 consistently in purchasing, maintenance, and equipment records.
Document Field Connections
Before replacing a card, record its installation position and associated field wiring.
Test the Field Device
When troubleshooting an incorrect input, check the sensor or transmitter before assuming that the I/O card has failed.
Verify Engineering Scaling
Confirm that the control system correctly converts the acquired signal into the intended engineering units.
Protect Analog Signal Quality
Use appropriate grounding, shielding, cable routing, and terminal practices.
Monitor Historical Trends
Trend information can help identify gradual changes in sensor performance or process conditions.
Key Advantages
- Compact 107 × 41 × 105 mm physical design
- Approximate weight of 0.281 kg
- Dedicated analog input functionality
- Suitable for continuous process measurement
- Provides an interface between field instrumentation and control systems
- Supports process monitoring and automation
- Suitable for dense industrial I/O installations
- Can contribute to alarms, trends, calculations, and control loops
- Practical for industrial maintenance and replacement applications
- Suitable for integration into compatible Emerson process-control architectures
Technical FAQs
What is the Emerson VE4013S1?
The Emerson VE4013S1 is an Analog Input Card designed to acquire suitable analog signals from field instrumentation within a compatible Emerson industrial automation system.
What is the primary function of the VE4013S1?
Its primary function is to provide analog signal acquisition so that continuously varying process measurements can be transferred into the control architecture.
What types of measurements can be connected to an analog input?
Depending on the specific input configuration, analog inputs can be associated with process variables such as pressure, temperature, flow, level, and other continuously changing measurements.
What are the dimensions of the VE4013S1?
The listed dimensions are 107 × 41 × 105 mm.
What is the weight of the VE4013S1?
The listed weight is approximately 0.281 kg.
Is the VE4013S1 a PLC CPU?
No. The VE4013S1 is an Analog Input Card that operates as part of a larger industrial I/O and process-control architecture.
What can cause an incorrect analog measurement?
Possible causes include sensor calibration issues, transmitter problems, wiring faults, signal interference, incorrect engineering scaling, I/O configuration errors, process fluctuations, or hardware problems.
Why might an analog signal fluctuate?
Signal fluctuations can be caused by electrical interference, grounding problems, poor shielding, loose connections, damaged wiring, unstable field instrumentation, or genuine changes in the process.
Can another Emerson analog card replace the VE4013S1?
A different Emerson analog card should not automatically be considered interchangeable. The complete model, hardware revision, electrical characteristics, terminal arrangement, and host-system configuration should be verified.
What should be checked before replacing the card?
Technicians should verify the model number, hardware revision, installation location, field wiring, terminal arrangement, associated field instrumentation, and control-system configuration.
Conclusion
The Emerson VE4013S1 Analog Input Card is a compact industrial process I/O component designed to acquire suitable analog signals from field instrumentation and integrate those measurements into a compatible Emerson automation system. It provides an important interface between field-level measurement equipment and control-system logic, supporting continuous process monitoring, control-loop feedback, alarms, trending, and operational analysis.
With listed dimensions of 107 × 41 × 105 mm and a weight of 0.281 kg, the VE4013S1 is suitable for industrial control cabinets where compact I/O components are required.
Reliable performance depends on the complete measurement chain rather than the card alone. Field sensors, transmitters, wiring, terminal connections, I/O configuration, engineering scaling, controller logic, and HMI settings all influence the final process value.
For installation, maintenance, and replacement applications, the Emerson VE4013S1 model designation should be carefully matched with the existing system. Proper hardware identification, correct field wiring, systematic commissioning, and preventive maintenance help ensure stable analog signal acquisition and dependable industrial process control.
