Product Overview

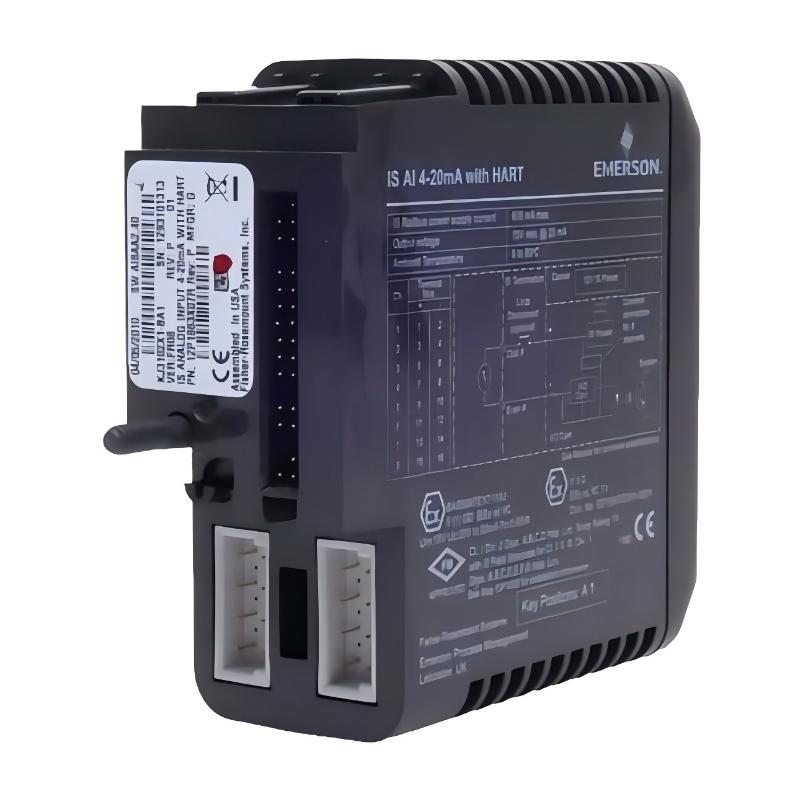

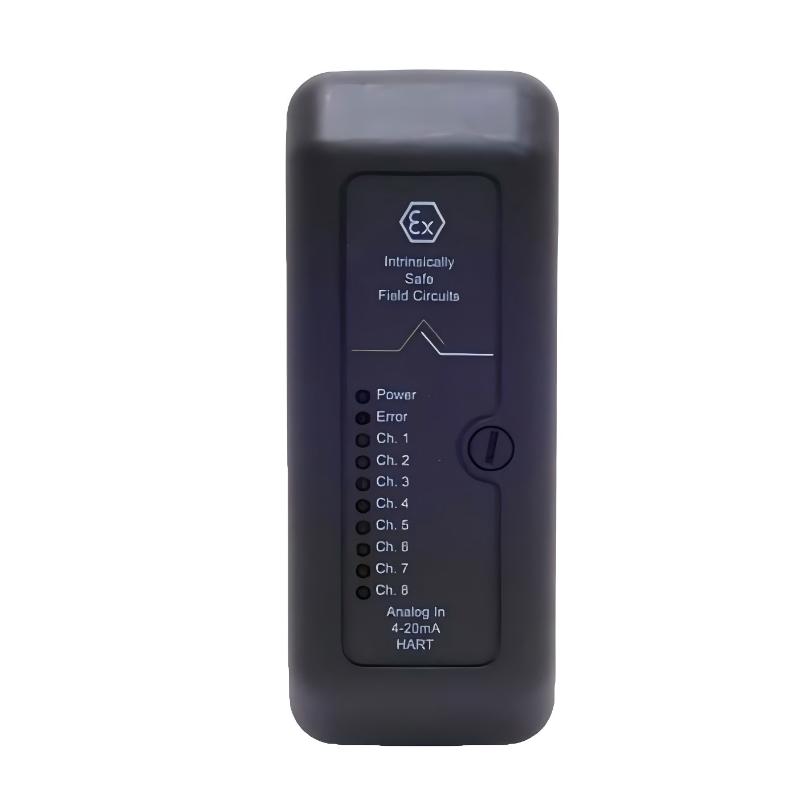

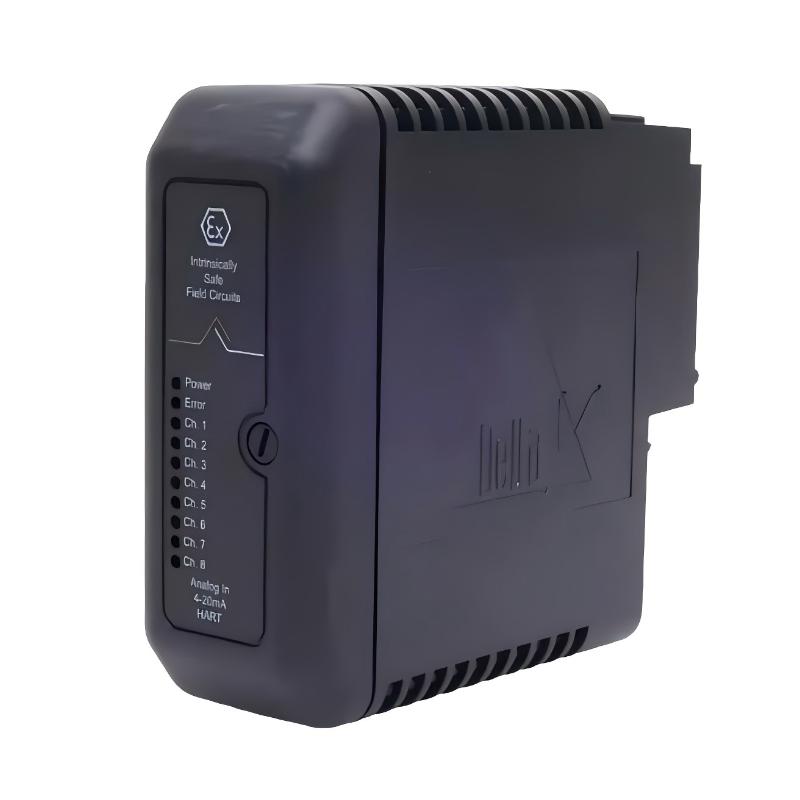

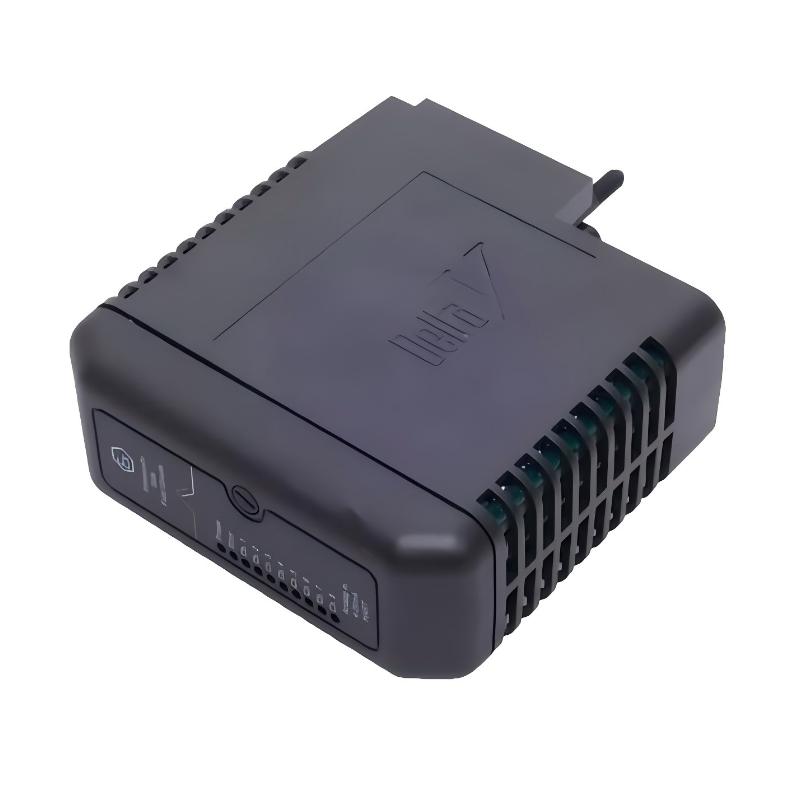

The Emerson VE4012S2B1 KJ3102X1-BA1 12P1863X072 Analog Input Module is an industrial process I/O component designed to acquire analog signals from field instrumentation and transfer measurement information into a compatible Emerson process control architecture. It provides an important interface between field-level transmitters and the higher-level control system, allowing continuously changing process variables to be monitored, displayed, recorded, and incorporated into control strategies.
The complete identification VE4012S2B1 KJ3102X1-BA1 12P1863X072 is particularly useful when sourcing replacement hardware because Emerson I/O assemblies can have similar physical appearances while serving different electrical and process-interface functions. The model, associated KJ part number, and 12P identification should therefore be checked together before replacement.
The module has listed dimensions of 107 × 41 × 105 mm and a weight of approximately 0.22 kg. Its compact construction is suitable for industrial control cabinets where multiple I/O modules and terminal assemblies must be accommodated within a limited installation area.
The VE4012S2B1 is intended to operate as part of a larger automation system rather than as an independent controller. Its actual signal characteristics, channel configuration, terminal assignments, isolation behavior, and engineering parameters depend on the applicable hardware and system configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4012S2B1 |
| Associated Part Number | KJ3102X1-BA1 |
| Identification Number | 12P1863X072 |
| Product Type | Analog Input Module |
| Product Family | Emerson VE4000 Series |
| Primary Function | Analog process signal acquisition |
| Application | Industrial process automation |
| Interface Role | Field instrumentation to control system |
| Signal Category | Analog input |
| Installation | Compatible Emerson process control equipment |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.22 kg |
| Typical Applications | Process measurement, monitoring, control and data acquisition |
Note: Exact input count, signal range, accuracy, electrical isolation, terminal assignments, power requirements, and other electrical specifications should be verified against the applicable Emerson documentation and the installed system configuration before commissioning.
What Is the Emerson VE4012S2B1 KJ3102X1-BA1?
The Emerson VE4012S2B1 KJ3102X1-BA1 12P1863X072 is an analog input module used within a compatible industrial process-control system.
Its fundamental purpose is to receive analog information generated by field instrumentation. The acquired information can then become available to the control system for process supervision and automation.
A simplified signal path is:
Process Variable → Sensor / Transmitter → Field Wiring → KJ3102X1-BA1 → VE4012S2B1 I/O Processing → Controller → HMI / SCADA
This architecture enables continuously changing physical process conditions to be represented within the automation system.
Depending on the application, analog measurements can support:
- Process monitoring
- Control-loop feedback
- Alarm management
- Process trending
- Operator visualization
- Equipment supervision
- Data acquisition
- Process optimization
- Maintenance analysis
The exact application depends on the connected field device and the engineering configuration of the host control system.
Understanding the Complete Part Identification
For industrial automation replacement work, the complete product identification is important.
VE4012S2B1
This is the primary Emerson product model used to identify the analog input module.
KJ3102X1-BA1
This associated KJ-series identification provides additional information for hardware sourcing and system matching.
12P1863X072
This identification number can be useful when matching the physical module and replacement inventory against existing system records.
When purchasing a replacement, technicians should compare all available markings rather than relying only on a shortened model number.
This is especially important in process-control systems where different revisions and configurations may have similar mechanical characteristics.
Analog Input Measurement Principle
Analog input systems are designed to acquire continuously varying electrical signals associated with process variables.
A field transmitter may measure a physical condition and generate an electrical output proportional to that measurement. The analog input module receives the signal and makes the measurement available to the control system.
The general process is:
- The field instrument measures a process variable.
- The transmitter produces an analog electrical signal.
- The signal travels through the field wiring.
- The VE4012S2B1 receives the signal through its associated interface.
- The input electronics process the signal.
- The control system interprets the measurement.
- The value becomes available for monitoring or control.
This architecture allows analog process measurements to be incorporated into automated industrial operations.
Function and Working Principle
Field Signal Acquisition
The first stage is the reception of an appropriate analog signal from field instrumentation.
Depending on the installed application, the field device may represent a process measurement such as pressure, temperature, flow, level, or another continuously varying parameter.
The field wiring must be correctly connected for the module to acquire the expected signal.
Signal Conditioning
Industrial analog signals can be affected by electrical noise, grounding conditions, cable quality, and environmental interference.
The module’s input circuitry provides the required interface and signal-processing functions so that the associated control system can work with the acquired measurement.
The exact conditioning method and electrical characteristics should be confirmed from the applicable technical documentation.
Measurement Conversion
The analog measurement is processed into a form that can be interpreted by the control architecture.
The controller can then apply engineering scaling and control logic to convert the input into meaningful process information.
Control-System Processing
Once the measurement reaches the control system, it can be used for:
- Feedback control
- Alarm thresholds
- Interlocks
- Process calculations
- Trending
- Operator displays
- Historical data collection
The analog input module therefore forms part of the overall measurement and control chain.
Role in Emerson Process Automation
The VE4012S2B1 is an I/O-level component rather than a standalone controller.
In a typical Emerson process automation system, the architecture can be represented as:
Field Devices → I/O Modules → Control Processing → Operator Interface → Plant-Level Monitoring
The analog input module connects field instrumentation with the control layer.
For example, a process transmitter may continuously measure a variable. The VE4012S2B1 receives the corresponding analog signal, while the controller evaluates the measurement according to the configured control strategy.
The resulting information can be displayed to operators or used to automatically adjust valves, pumps, heaters, motors, or other process equipment.
Industrial Applications
Water and Wastewater Treatment
Water-treatment systems require continuous measurement of numerous process parameters. Analog instrumentation can provide information about flow, pressure, level, temperature, and other process conditions.
The VE4012S2B1 can serve as part of the I/O infrastructure used to acquire these measurements.
Chemical Processing
Chemical production processes frequently depend on accurate continuous measurements. Analog signals can be used to monitor process conditions and provide feedback to control loops.
Oil and Gas
Industrial oil and gas installations use extensive field instrumentation to monitor process equipment. Analog input modules can provide the interface between suitable transmitters and the automation system.
Power and Utility Systems
Utility systems often require continuous monitoring of pressure, temperature, flow, level, and other variables. Analog I/O provides a practical connection between instrumentation and control logic.
Manufacturing
Manufacturing equipment can use analog measurements for monitoring machine conditions, process parameters, and production variables.
Process Skids
Packaged process skids frequently integrate sensors, transmitters, I/O assemblies, and controllers into a compact automation system. The VE4012S2B1 can form part of the measurement interface within such architectures when correctly configured.
System Integration
A reliable analog measurement system consists of multiple interconnected components.
Field Sensor
The sensor detects the physical process condition.
Transmitter
The transmitter converts the measured condition into an appropriate electrical signal.
Field Wiring
The signal is transferred from the field device to the I/O assembly.
VE4012S2B1
The analog input module receives and processes the applicable field signal.
Controller
The control processor interprets the measurement and executes the configured control logic.
HMI / Operator Interface
Operators can view process measurements, alarms, and trends.
SCADA / Supervisory Layer
Where implemented, supervisory software can collect and visualize process information for broader plant monitoring.
The complete architecture should be verified against the actual Emerson installation.
Installation Guidelines
Verify the Complete Model
Before installation, confirm all available product markings:
VE4012S2B1
KJ3102X1-BA1
12P1863X072
The replacement should match the existing hardware identification and system requirements.
Inspect the Module
Before installation, inspect the module for:
- Physical damage
- Bent connectors
- Contamination
- Corrosion
- Damaged terminals
- Loose components
- Signs of improper storage
Verify the Installation Position
Confirm that the module is installed in the correct location within the Emerson I/O architecture.
Incorrect positioning or an incompatible mounting location may prevent proper system operation.
Check Field Wiring
Field wiring should be compared against the approved system drawings before energizing the installation.
Pay particular attention to:
- Terminal assignments
- Signal polarity where applicable
- Cable identification
- Shielding
- Grounding
- Connection tightness
Confirm Environmental Conditions
The control cabinet should be maintained in an environment appropriate for the installed equipment.
Excessive heat, moisture, dust, vibration, or electrical interference can reduce system reliability.
Analog Signal Wiring Considerations
Analog measurement quality depends heavily on the complete signal path.
Poor wiring practices can produce symptoms that appear to be an I/O module fault.
Recommended engineering practices include:
- Keep instrumentation wiring properly organized.
- Separate low-level analog wiring from high-power conductors where required.
- Use appropriate shielding practices.
- Maintain secure terminal connections.
- Inspect cables for insulation damage.
- Avoid unnecessary cable loops and mechanical stress.
- Follow the grounding strategy specified for the control system.
The exact wiring method should be based on the applicable VE4012S2B1 configuration.
Commissioning Procedure
After installation, a structured commissioning process helps verify the complete measurement chain.
1. Confirm Hardware Identification
Verify the VE4012S2B1, KJ3102X1-BA1, and 12P1863X072 markings.
2. Inspect Connections
Check the module, terminal assemblies, field wiring, and associated connectors.
3. Verify Field Instrumentation
Confirm that the connected transmitter or sensor is operating correctly.
4. Verify I/O Configuration
Review the engineering configuration assigned to the corresponding analog input.
5. Check the Measurement
Apply a known process condition or suitable test reference where practical.
6. Verify Engineering Scaling
Confirm that the controller and operator interface display the expected engineering-unit value.
7. Check Alarms
Verify that configured alarm limits respond correctly.
8. Monitor Trends
Observe the input over an appropriate operating period to confirm measurement stability.
Troubleshooting the VE4012S2B1
No Analog Measurement
If the control system does not receive an expected analog value, check the complete signal path.
Start with:
- Field instrument
- Instrument power
- Field cable
- Terminal connections
- VE4012S2B1 installation
- I/O configuration
- Controller diagnostics
- HMI or SCADA display
A missing measurement does not necessarily mean that the input module has failed.
Incorrect Analog Value
An incorrect value may be caused by:
- Sensor calibration
- Transmitter configuration
- Wiring errors
- Incorrect engineering scaling
- Signal interference
- Process changes
- Incorrect I/O configuration
- Hardware problems
The field instrument should therefore be checked before replacing the module.
Unstable Reading
An unstable reading may indicate:
- Electrical noise
- Loose terminals
- Poor shielding
- Grounding problems
- Damaged field cable
- Unstable process conditions
- Transmitter problems
- Connector issues
Trend analysis can help distinguish a process fluctuation from an electrical or hardware problem.
Intermittent Signal
An intermittent input can be associated with:
- Loose connections
- Cable damage
- Vibration
- Connector degradation
- Environmental changes
- Field-device instability
- Electrical interference
Physical inspection combined with trend monitoring can help isolate the cause.
Preventive Maintenance
Preventive maintenance should cover the entire analog measurement chain.
Inspect Module Connections
Check connectors and terminals for looseness, contamination, oxidation, or mechanical damage.
Check Field Cables
Inspect instrumentation cables for damage, moisture ingress, excessive bending, or improper routing.
Review Process Trends
Long-term trend analysis can reveal gradual sensor degradation or abnormal process behavior.
Maintain Cabinet Conditions
Keep the control cabinet clean and appropriately ventilated, while protecting the equipment from excessive environmental stress.
Verify Spare-Part Identification
Critical installations should maintain accurate spare-part records using the complete product identification.
Replacement and Spare-Part Considerations
The complete identification should be recorded before ordering a replacement:
Emerson VE4012S2B1 KJ3102X1-BA1 12P1863X072
Important information includes:
- Model number
- KJ part number
- 12P identification
- Hardware revision
- Terminal arrangement
- Installation position
- Associated I/O hardware
- Control-system configuration
The listed physical dimensions are:
107 × 41 × 105 mm
The listed weight is:
0.22 kg
Physical dimensions are useful for cabinet planning and inventory management, but mechanical similarity alone should never be used to determine electrical compatibility.
Cabinet Integration and Space Planning
The compact 107 × 41 × 105 mm dimensions allow the VE4012S2B1 to be incorporated into relatively dense I/O installations.
When planning cabinet installation, engineers should consider more than the module’s basic dimensions.
Relevant factors include:
- Adjacent module clearance
- Wiring access
- Connector access
- Cable bending radius
- Heat dissipation
- Service accessibility
- Terminal identification
- Maintenance space
A cabinet layout should allow technicians to inspect and replace the module without unnecessary disturbance to adjacent equipment.
Compatible System Components
The VE4012S2B1 can form part of a broader Emerson process automation system containing:
| Component | Typical Function |
|---|---|
| Process Sensor | Detects a physical process condition |
| Transmitter | Generates an analog measurement signal |
| Field Cable | Transfers the signal |
| KJ3102X1-BA1 | Associated I/O hardware identification |
| VE4012S2B1 | Analog input processing |
| Controller | Executes control logic |
| HMI | Provides operator visualization |
| SCADA System | Supervisory monitoring and data management |
| Process Equipment | Performs the required industrial operation |
The exact combination of components depends on the installed Emerson control architecture.
Related Emerson Models
| Model | Product Type | General Function |
|---|---|---|
| VE4012S2 | Analog Input Module | Analog process signal acquisition |
| VE4003S1 | Analog Input Module | Process measurement input |
| VE4003S2 | Analog Input Card | Analog signal acquisition |
| VE4003S6B1 | Analog Input Card | Process analog input |
| VE4003S7 | Isolated Input Module | Isolated process input |
| VE4005S2 | Analog Output Card | Analog process output |
| VE4006P | Serial Interface Module | Serial communication |
| VE4007 | Fieldbus Card | Industrial fieldbus interface |
These models are related Emerson I/O and communication components, but their electrical characteristics and system compatibility can differ. They should not be substituted for the VE4012S2B1 without appropriate verification.
Engineering Best Practices
Use the Complete Identification
When ordering or documenting the module, use VE4012S2B1 KJ3102X1-BA1 12P1863X072 rather than relying on a shortened model number.
Verify Configuration Before Replacement
Record the original module position and associated field connections before removing it.
Document Analog Scaling
The relationship between the electrical input and the displayed engineering value should be documented.
Maintain Wiring Quality
Proper cable routing, shielding, grounding, and termination can significantly improve analog measurement stability.
Monitor Trends
Trend data can help identify gradual changes in sensor performance before they develop into major process-control problems.
Maintain Accurate Spare Inventory
Similar-looking I/O modules should be separated and clearly labeled to reduce the risk of incorrect installation.
Key Advantages
- Compact 107 × 41 × 105 mm design
- Approximate weight of 0.22 kg
- Dedicated analog input functionality
- Supports continuous process measurement
- Interfaces suitable field instrumentation with the control architecture
- Suitable for process monitoring and automation applications
- Compact design for dense I/O cabinet installations
- Can support monitoring, alarms, trending, and control functions
- Complete identification includes VE4012S2B1, KJ3102X1-BA1, and 12P1863X072
- Suitable for maintenance and replacement applications when system compatibility is verified
Technical FAQs
What is the Emerson VE4012S2B1?
The Emerson VE4012S2B1 is an Analog Input Module used to acquire suitable analog process signals within a compatible Emerson industrial automation system.
What is the complete identification of this module?
The complete identification supplied for this product is:
VE4012S2B1 KJ3102X1-BA1 12P1863X072
These identifiers should be retained when sourcing replacement hardware.
What does the VE4012S2B1 do?
The module provides an interface for acquiring analog information from compatible field instrumentation and transferring the measurement into the associated control architecture.
What are the dimensions of the module?
The listed dimensions are 107 × 41 × 105 mm.
How much does the VE4012S2B1 weigh?
The listed weight is approximately 0.22 kg.
Is the VE4012S2B1 a controller?
No. It is an Analog Input Module and normally operates as part of a larger Emerson process-control and I/O architecture.
What can cause an incorrect analog reading?
Possible causes include field-device calibration issues, wiring faults, signal interference, incorrect engineering scaling, configuration problems, process fluctuations, or hardware faults.
Should another Emerson analog module be used as a replacement?
A different Emerson analog module should not automatically be considered interchangeable. The complete model, KJ part number, hardware revision, electrical characteristics, terminal arrangement, and host-system configuration should be verified.
What should be checked before replacing the module?
Technicians should record the complete part identification, installation position, terminal connections, associated field instrumentation, I/O configuration, and hardware revision before replacement.
Why is the complete part number important?
Emerson industrial I/O products can have similar physical characteristics while serving different functions. Using the complete VE4012S2B1 KJ3102X1-BA1 12P1863X072 identification reduces the risk of selecting an incompatible replacement.
Conclusion
The Emerson VE4012S2B1 KJ3102X1-BA1 12P1863X072 Analog Input Module is a compact industrial process I/O component designed to acquire suitable analog signals from field instrumentation and integrate those measurements into a compatible Emerson automation architecture.
Its role in the control system is to provide a connection between field-level measurement devices and the process-control environment. Acquired analog information can support continuous monitoring, control-loop feedback, alarms, process trending, operator visualization, and other automation functions.
The module has listed dimensions of 107 × 41 × 105 mm and a weight of 0.22 kg, making it suitable for compact industrial control cabinets and dense I/O installations.
For replacement, maintenance, and inventory management, the complete identification VE4012S2B1 KJ3102X1-BA1 12P1863X072 should be retained. Correct installation also requires attention to field wiring, signal integrity, I/O configuration, engineering scaling, and the condition of the connected instrumentation.
Because exact electrical specifications can depend on the hardware revision and system configuration, the applicable Emerson documentation and existing installation records should be checked before commissioning. Proper identification and system-level verification are essential for reliable analog measurement and stable industrial process control.
