Product Overview

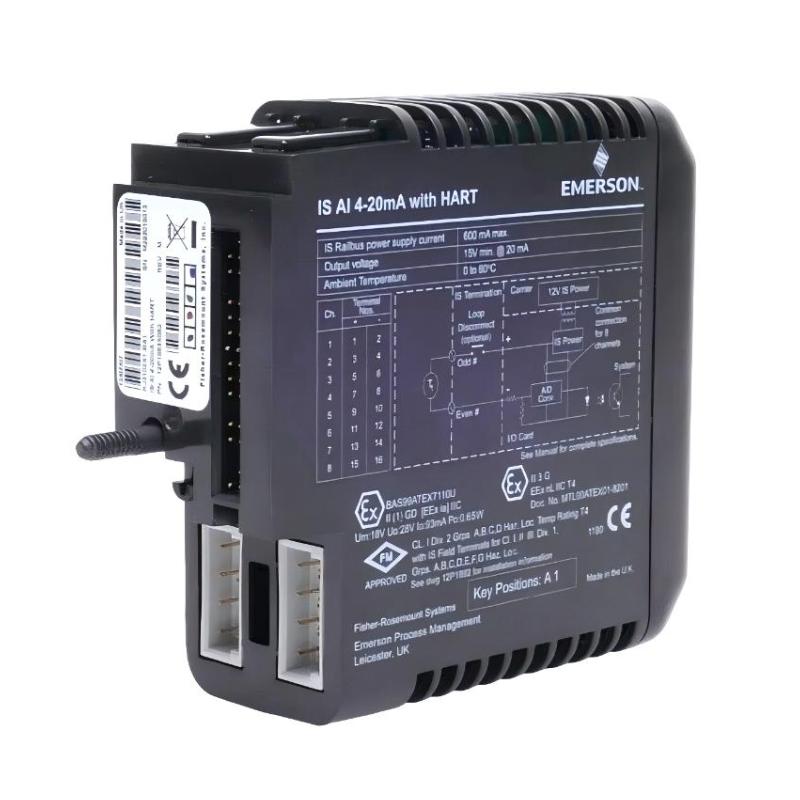

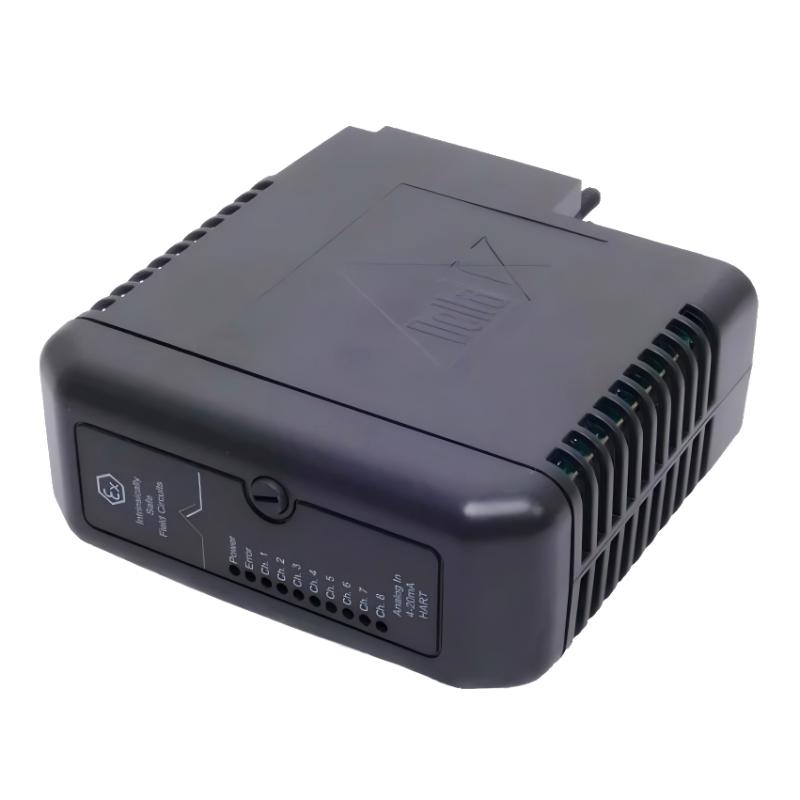

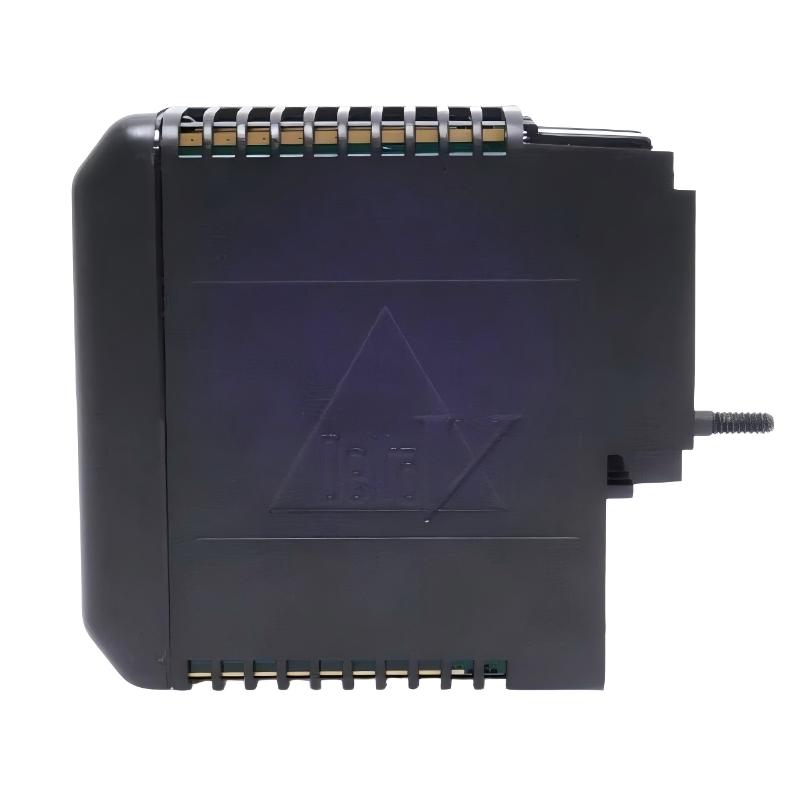

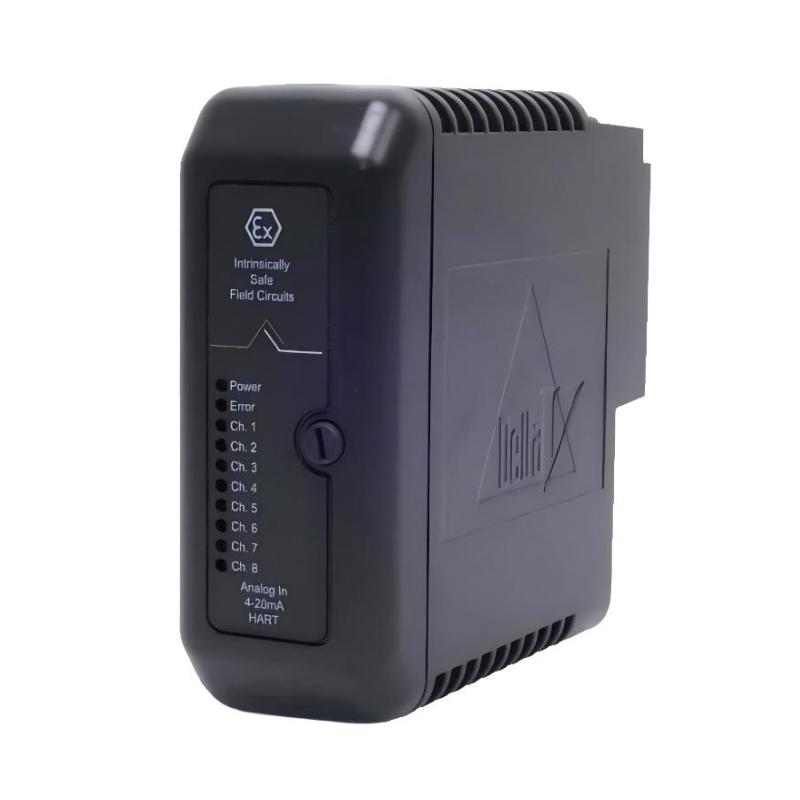

The Emerson VE4012S2 Analog Input Module is an industrial process automation I/O component designed to acquire continuous analog signals from field instrumentation and make the resulting process information available to a compatible Emerson control system. Analog input modules are essential in process industries because many important operating parameters vary continuously rather than simply switching between ON and OFF states.

Temperature, pressure, flow, level, composition, and other process variables are commonly represented by analog electrical signals. The analog input module provides the interface between these field instruments and the controller, allowing the automation system to monitor changing process conditions and use the measured information for control, alarming, trending, and optimization.

The VE4012S2 is suitable for integration into industrial control architectures where reliable analog signal acquisition is required. It can participate in process monitoring, closed-loop control, equipment diagnostics, alarm management, and supervisory applications.

The module has listed dimensions of 107 × 41 × 105 mm and a weight of approximately 0.22 kg. Its compact construction is suitable for industrial control cabinets and I/O assemblies where efficient use of panel space is important.

Exact input signal ranges, channel count, signal conditioning, isolation characteristics, accuracy, resolution, terminal assignments, and supported transmitter types should be verified against the applicable Emerson documentation and hardware revision before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4012S2
Product Type	Analog Input Module
Functional Category	Analog Input
Primary Function	Continuous process signal acquisition
Signal Type	Analog
Application	Industrial Process Automation
Interface Role	Field transmitter to control-system interface
Dimensions	107 × 41 × 105 mm
Weight	0.22 kg
Installation	Compatible Emerson control-system equipment
Typical Applications	Temperature, pressure, flow, level, process monitoring

Note: Exact analog input range, channel configuration, current/voltage signal compatibility, transmitter requirements, isolation, resolution, accuracy, and terminal configuration should be confirmed from the applicable VE4012S2 technical documentation.

---

What Is the Emerson VE4012S2?

The Emerson VE4012S2 Analog Input Module is designed to receive analog process signals from compatible field instruments and transfer the measurement information into an Emerson control system.

Unlike a digital input, which primarily identifies discrete states such as ON or OFF, an analog input represents a continuously changing process variable.

A simplified measurement chain is:

Process → Sensor / Transmitter → VE4012S2 → Controller → HMI / SCADA

For example, a pressure transmitter may produce a changing electrical signal as process pressure increases or decreases. The analog input module receives this signal, conditions and converts it as required by the system, and makes the corresponding process information available to the control architecture.

The controller can then use the measurement for:

• Process regulation
• Alarm generation
• Trend monitoring
• Equipment protection
• Sequence control
• Performance analysis

---

Analog Input Measurement Principle

Industrial analog instruments convert physical process conditions into electrical signals.

For example:

Temperature → Transmitter → Analog Signal

or:

Pressure → Transmitter → Analog Signal

The signal is then transferred through field wiring to the analog input interface.

The general signal path can be represented as:

Physical Variable → Sensor → Transmitter → Analog Input → Controller → Control Action

The analog input module is therefore a critical part of the measurement chain.

The exact electrical representation depends on the field instrument and system configuration. Common industrial instrumentation architectures may use standardized current or voltage signals, but the supported signal types for a particular VE4012S2 installation should always be confirmed before wiring.

---

Function and Working Principle

Field Signal Acquisition

The connected field transmitter continuously measures a process condition.

Examples include:

• Pressure
• Temperature
• Flow
• Level
• Position
• Chemical or process-related variables

The transmitter converts the physical measurement into a compatible analog electrical signal.

Signal Conditioning

The analog input interface receives the field signal and performs the necessary input processing.

Signal conditioning is important because field signals can be affected by:

• Electrical noise
• Cable resistance
• Grounding conditions
• Electromagnetic interference
• Installation distance
• Field-device condition

The module and associated system architecture are designed to handle the signal according to the applicable input configuration.

Analog-to-Digital Conversion

The control system ultimately needs measurement information in a form that can be processed by digital control logic.

The analog input path therefore converts the received electrical representation into digital measurement information for the controller.

The exact resolution and conversion characteristics depend on the module and configuration and should be verified from the relevant documentation.

Controller Processing

Once the measurement is available to the controller, it can be used in application logic.

For example:

Pressure Measurement → Controller → PID Logic → Control Output → Valve

This creates a closed-loop process-control system.

---

Role in Emerson Process Automation

The VE4012S2 can serve as an important measurement interface within an Emerson process automation architecture.

A typical system can be represented as:

Process → Instrumentation → Analog Input → Controller → Output System → Process

The analog input module provides the measurement path.

The controller interprets the measured process variable and compares it with configured limits, setpoints, or control requirements.

The resulting information can then be used for:

• Automatic process control
• Alarm handling
• Equipment monitoring
• Data trending
• Operator visualization
• Process optimization

This makes analog input functionality essential in applications where process conditions change continuously.

---

Industrial Applications

Pressure Monitoring

Pressure transmitters can provide continuous measurements for process vessels, pipelines, pumps, compressors, and other equipment.

The analog measurement can be used for:

• High-pressure alarms
• Low-pressure alarms
• Process regulation
• Equipment protection
• Control-loop operation

Temperature Measurement

Temperature transmitters can provide continuous temperature information from process equipment.

Applications include:

• Reactors
• Heat exchangers
• Furnaces
• Storage vessels
• Process pipelines
• Utility systems

Flow Measurement

Flow transmitters are commonly connected to analog input systems to monitor process-fluid movement.

Flow information can support:

• Flow control
• Production monitoring
• Mass-balance calculations
• Alarm functions
• Equipment diagnostics

Level Measurement

Continuous level measurements are useful for:

• Storage tanks
• Process vessels
• Water-treatment systems
• Chemical systems
• Utility equipment

The controller can use the level signal to control pumps, valves, or other process equipment.

Chemical Processing

Analog instrumentation is widely used in chemical processing for continuously monitoring process variables and maintaining stable operating conditions.

Water and Wastewater

Water-treatment systems use analog measurements to monitor process conditions and control pumps, valves, dosing systems, and other equipment.

Manufacturing and Process Industries

The VE4012S2 can participate in measurement architectures supporting production equipment, utilities, material processing, and automated plant systems.

---

System Integration Architecture

The VE4012S2 is normally integrated into a complete control system rather than used as a standalone measurement device.

A simplified architecture is:

Field Instrument → VE4012S2 → Emerson Controller → HMI / SCADA

For closed-loop control, an output path is added:

Field Instrument → Analog Input → Controller → Analog / Digital Output → Final Control Element

For example:

Flow Transmitter → VE4012S2 → Controller → Control Logic → Valve

The controller continuously evaluates the measured process variable and determines whether the control output needs to change.

This architecture enables automatic process regulation without requiring continuous manual intervention.

---

Installation Guidelines

Verify Module Identification

Before installation, confirm:

• Model: VE4012S2
• Product type: Analog Input Module
• Hardware revision
• Installation location
• Associated terminal hardware
• Host Emerson control system

The module should be matched to the intended system configuration rather than selected solely based on physical appearance.

Confirm Field Instrument Compatibility

Before connecting a transmitter, verify the required input interface.

Important considerations include:

• Signal type
• Signal range
• Transmitter power requirements
• Wiring arrangement
• Isolation requirements
• Hazardous-area requirements where applicable

Exact supported characteristics should be confirmed using the applicable technical documentation.

Inspect Field Wiring

Check the field wiring for:

• Damaged insulation
• Loose terminals
• Corrosion
• Moisture
• Incorrect connections
• Poor shielding
• Excessive mechanical stress

Cable Routing

Analog signal cables should be routed carefully to reduce exposure to electrical interference.

Where appropriate, analog instrumentation wiring should be separated from:

• Motor cables
• Variable-frequency drive cables
• High-current power conductors
• Switching equipment

---

Commissioning Procedure

A systematic commissioning procedure helps verify the entire analog measurement chain.

Step 1: Verify Module Installation

Confirm that the VE4012S2 is correctly installed and securely connected.

Step 2: Check Field Wiring

Compare all transmitter connections with the approved wiring documentation.

Step 3: Verify Transmitter Configuration

Confirm that the connected field instrument is configured for the intended signal and process range.

Step 4: Check Input Configuration

Verify that the control-system software configuration matches the physical input assignment.

Step 5: Apply a Known Input Condition

Where practical, use a suitable test method or known process condition to verify the measurement path.

Step 6: Check Controller Reading

Confirm that the controller receives a stable and reasonable process value.

Step 7: Verify Scaling

Ensure that the raw input is correctly converted into the engineering unit used by the control system.

Step 8: Test Alarms and Control Logic

Verify configured limits, alarms, and control responses.

Step 9: Record Commissioning Information

Document the input tag, transmitter, signal configuration, engineering range, and test results.

---

Troubleshooting the VE4012S2

Analog input problems should be investigated from the field instrument through to the controller.

No Analog Signal

If the controller receives no valid measurement, check:

• Transmitter power
• Field wiring
• Terminal connections
• Sensor condition
• Input configuration
• VE4012S2 installation
• Controller diagnostics

The field transmitter should be checked before assuming that the analog input module has failed.

Reading Is Too High or Too Low

An incorrect measurement can result from:

• Incorrect transmitter configuration
• Incorrect scaling
• Wiring errors
• Sensor problems
• Process conditions
• Signal interference
• Input configuration problems

Verify the actual field signal before replacing hardware.

Unstable Analog Reading

An unstable measurement may be associated with:

• Electrical interference
• Poor shielding
• Grounding problems
• Loose connections
• Damaged cables
• Unstable transmitter output
• Process fluctuations

Trend the measurement to determine whether the instability is electrical or process-related.

Reading Is Fixed

If the measurement remains at one value despite changes in the process, investigate:

• Transmitter operation
• Field wiring
• Input configuration
• Signal path
• Controller scaling
• Module diagnostics

A fixed reading can be caused by either an instrumentation problem or an input-processing problem.

Incorrect Engineering Units

If the displayed value appears numerically incorrect but the raw input behaves normally, check the controller’s scaling and range configuration.

For example:

Raw Analog Signal → Input Conversion → Engineering Scaling → Displayed Value

An error in the scaling stage can make a healthy field signal appear incorrect.

Multiple Analog Inputs Affected

If several analog channels show abnormal behavior at the same time, investigate common elements before replacing individual modules.

Possible common causes include:

• Power supply problems
• Shared wiring
• Common grounding
• I/O infrastructure
• Controller configuration
• Environmental interference

---

Preventive Maintenance

Regular maintenance helps preserve measurement reliability.

Inspect Transmitters

Check field instruments for physical damage, contamination, incorrect installation, and calibration-related issues.

Inspect Wiring

Look for damaged insulation, loose terminals, corrosion, moisture, and poor cable routing.

Check Shielding and Grounding

Proper signal grounding and shielding practices can reduce measurement interference.

Monitor Measurement Trends

Long-term trends can reveal gradual sensor drift, process changes, or developing instrumentation problems.

Review Diagnostics

Available controller and I/O diagnostics should be reviewed during routine maintenance.

Maintain Cabinet Conditions

Protect the module from excessive dust, moisture, heat, vibration, and other unsuitable environmental conditions.

---

Physical Dimensions and Weight

The Emerson VE4012S2 Analog Input Module has the following listed physical characteristics:

Mechanical Parameter	Value
Dimensions	107 × 41 × 105 mm
Weight	0.22 kg

The compact size allows the module to be integrated into industrial control cabinets containing multiple I/O assemblies.

Cabinet planning should also provide adequate space for:

• Field wiring
• Connectors
• Cable bending radius
• Maintenance access
• Adjacent modules
• Ventilation
• Identification labels

The listed weight of 0.22 kg is useful for spare-parts management and equipment logistics.

---

Analog Signal Integrity Considerations

Analog measurements are more sensitive to installation conditions than simple discrete signals. Good engineering practices are therefore important.

Use Suitable Instrumentation Cable

The cable should be appropriate for the signal type and installation environment.

Minimize Electrical Interference

Keep analog wiring away from high-power switching circuits where practical.

Maintain Proper Grounding

Grounding and shielding should follow the system’s approved instrumentation design.

Check Terminal Connections

Loose connections can create unstable or inaccurate measurements.

Verify Transmitter Calibration

If the input signal is stable but the measured process value is incorrect, the field transmitter and calibration should also be investigated.

Check Scaling

The engineering range configured in the controller must correspond to the transmitter and input configuration.

---

Compatible System Components

The VE4012S2 may operate as part of a larger Emerson process automation architecture containing:

Component	Typical Function
Temperature Transmitter	Provides temperature measurement
Pressure Transmitter	Provides pressure measurement
Flow Transmitter	Provides flow measurement
Level Transmitter	Provides continuous level measurement
VE4012S2	Analog signal acquisition
I/O Infrastructure	Connects field instrumentation to control electronics
Emerson Controller	Executes process-control logic
Analog Output Module	Provides analog control commands
Digital I/O Modules	Handles discrete status and control signals
HMI	Displays process information
SCADA System	Supervises and trends process data

The exact combination depends on the host Emerson control architecture.

---

Related Emerson Models

Model / Family	Product Type	General Function
VE3006	Digital Input Module	Discrete signal acquisition
VE4002	Discrete Output Module	Digital equipment control
VE4003	Analog Input Module	Analog process measurement
VE4005	Analog Output Module	Analog process control
VE4006P	Serial Interface Module	Serial communication
VE4007	Fieldbus Card	Industrial field communication
VE4009	ASI Interface Card	ASI field-device integration
VE4010B1	IS DI Module	Discrete input acquisition
VE4011B1	Digital Output Module	Discrete output control
VE4011B2	Digital Output Module	Discrete output control
VE4012S2	Analog Input Module	Continuous process measurement

These components may be used in related Emerson automation environments, but a different module should not be assumed to be interchangeable with the VE4012S2 without verifying its electrical and functional characteristics.

---

Engineering Best Practices

For reliable operation of the Emerson VE4012S2, engineers and maintenance personnel should:

• Verify the complete module identification before installation.
• Confirm the field transmitter’s electrical interface.
• Match input configuration with the actual transmitter signal.
• Maintain accurate engineering-unit scaling.
• Keep analog wiring separated from high-power circuits where practical.
• Use appropriate shielding and grounding methods.
• Inspect field wiring and terminals regularly.
• Monitor long-term measurement trends.
• Compare abnormal readings with an independent reference where appropriate.
• Maintain accurate I/O documentation.
• Verify alarms and control-loop responses during commissioning.

A complete sensor-to-controller approach makes troubleshooting much more effective than replacing the input module without checking the field instrumentation.

---

Key Advantages

Dedicated Analog Measurement Interface

The VE4012S2 provides a dedicated interface for bringing continuous process measurements into a compatible Emerson control system.

Compact Construction

With listed dimensions of 107 × 41 × 105 mm, the module is suitable for space-efficient industrial control cabinets.

Supports Continuous Process Monitoring

Analog measurements allow the control system to monitor changing process conditions rather than only discrete equipment states.

Suitable for Process Control

Measured variables can be used in control loops, alarms, equipment monitoring, and process optimization.

Flexible Industrial Application

Analog input architectures are widely applicable to pressure, temperature, flow, level, and other process measurements when the field instrument and module interface are correctly matched.

Integration With Automation Systems

The module can form part of a broader Emerson control architecture connecting field instrumentation with controllers and supervisory systems.

---

Technical FAQs

What is the Emerson VE4012S2?

The Emerson VE4012S2 is an Analog Input Module designed to acquire continuous process signals from compatible field instrumentation and provide the measurement information to an Emerson control system.

What is the main function of an analog input module?

An analog input module receives continuously varying electrical signals from field instruments and makes the corresponding process information available to the control system.

What process variables can an analog input system monitor?

Typical applications include temperature, pressure, flow, level, and other continuously measured process conditions. The exact supported signal types depend on the module and system configuration.

What are the dimensions of the VE4012S2?

The listed dimensions are 107 × 41 × 105 mm.

How much does the VE4012S2 weigh?

The listed weight is approximately 0.22 kg.

Is the VE4012S2 a digital input module?

No. The VE4012S2 is identified as an Analog Input Module, while digital input modules are intended primarily for discrete ON/OFF or state-based signals.

Can the VE4012S2 be connected to a pressure transmitter?

An appropriate pressure transmitter can be used in an analog input architecture when its signal interface and electrical requirements are compatible with the VE4012S2 installation.

Why is an analog input reading unstable?

Potential causes include electrical interference, poor shielding, grounding problems, loose connections, damaged cables, transmitter instability, or actual process fluctuations.

Why is the displayed process value incorrect?

Possible causes include transmitter configuration, wiring, incorrect input configuration, signal problems, or incorrect engineering-unit scaling in the controller.

Can another Emerson analog input module replace the VE4012S2?

A different analog input module should not automatically be considered interchangeable. The signal type, range, channel configuration, electrical characteristics, hardware revision, and host-system compatibility should all be verified.

How should the VE4012S2 be maintained?

Maintenance should include inspection of field transmitters, signal wiring, terminals, grounding, shielding, cabinet conditions, diagnostics, and long-term measurement trends.

---

Conclusion

The Emerson VE4012S2 Analog Input Module is an industrial process automation component designed to acquire continuous analog signals from compatible field instrumentation and integrate those measurements into an Emerson control architecture. It provides an important connection between physical process conditions and digital control logic.

Applications can include monitoring of pressure, temperature, flow, level, and other process variables. Once acquired, these measurements can support automatic control, alarm management, equipment monitoring, process trending, and optimization.

With listed dimensions of 107 × 41 × 105 mm and a weight of 0.22 kg, the VE4012S2 provides a compact solution for industrial I/O assemblies and control cabinets.

For installation and replacement, the complete VE4012S2 identification should be verified together with the applicable hardware revision and system configuration. Exact input signal characteristics, channel arrangement, electrical ratings, isolation, scaling requirements, and terminal assignments should be confirmed before field instrumentation is connected.

Reliable analog measurement depends on the complete signal chain: field transmitter, wiring, VE4012S2 interface, controller configuration, scaling, and process instrumentation. Proper installation, signal-integrity practices, systematic commissioning, and preventive maintenance can help maintain accurate and dependable process measurement in industrial automation applications.
