Product Overview

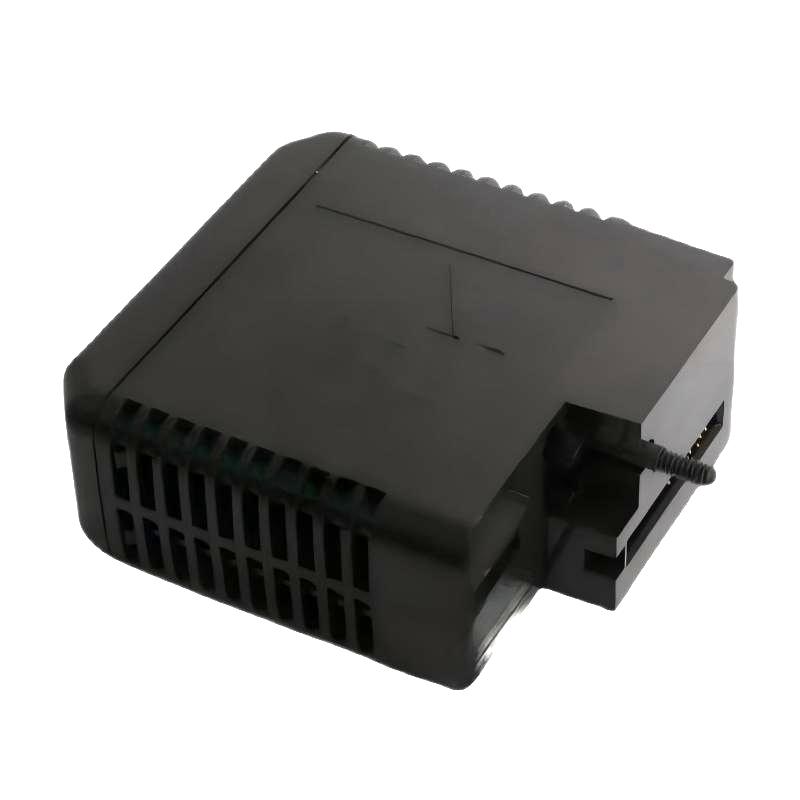

The Emerson VE4003S6B1 KJ3225X1-BA1 Analog Input Card is an industrial process control I/O component designed for analog signal acquisition within Emerson automation systems. As part of the DeltaV-style process control architecture, the card provides an interface between field instrumentation and the control system, allowing continuously varying process signals to be acquired and incorporated into monitoring, control, alarming, and data-management functions.

Analog input cards are essential in industrial automation because many important process variables are represented by continuously changing electrical signals rather than simple ON/OFF states. Pressure transmitters, temperature transmitters, flow instruments, level transmitters, analytical instruments, and other field devices can provide analog information that must be reliably transferred to the control system. The VE4003S6B1 KJ3225X1-BA1 serves this signal-acquisition role within a compatible Emerson control configuration.

The supplied physical specifications for this model are 107 × 41 × 105 mm, with a listed weight of 0.5 kg. Its compact form factor allows the card to be integrated into industrial control cabinets and I/O assemblies where space efficiency and organized signal wiring are important.

The exact electrical characteristics, channel configuration, signal ranges, isolation arrangement, terminal assignments, and supported field-device types should always be verified against the applicable hardware revision and system documentation before installation or replacement.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Product Family	VE Series / DeltaV Process Automation
Model	VE4003S6B1
Associated Part Number	KJ3225X1-BA1
Product Type	Analog Input Card
Primary Function	Analog process signal acquisition
Application	Industrial process control and automation
Interface Role	Field instrument to control-system interface
Signal Type	Analog process signals
Installation	Compatible Emerson I/O architecture
Dimensions	107 × 41 × 105 mm
Weight	0.5 kg
Typical Applications	Process measurement, monitoring, control, alarming and data acquisition

---

What Is the Emerson VE4003S6B1 KJ3225X1-BA1?

The Emerson VE4003S6B1 KJ3225X1-BA1 is an analog input card used to bring continuously variable process measurements into a compatible Emerson industrial automation system.

In a typical process plant, sensors and transmitters are installed throughout the production environment. These instruments measure variables such as:

• Pressure
• Temperature
• Flow
• Level
• Chemical concentration
• Process composition
• Equipment operating conditions

The resulting signals need to be collected by the control system before the controller can make decisions based on them.

The analog input card provides the electronic interface between the field instrumentation and the control architecture.

A simplified signal path is:

Process → Sensor/Transmitter → Field Wiring → KJ3225X1-BA1 → I/O Architecture → Controller → HMI/Operator

The exact architecture depends on the Emerson system in which the card is installed.

---

Function and Working Principle

Analog Signal Acquisition

The primary role of the VE4003S6B1 KJ3225X1-BA1 is analog signal acquisition. A field transmitter generates an electrical signal corresponding to a measured process variable.

For example, a pressure transmitter may continuously change its output as process pressure changes. Rather than simply reporting whether pressure is high or low, the analog signal provides proportional measurement information.

The input card receives this signal and makes the measurement available to the control system.

Signal Conditioning

Industrial analog signals can be affected by electrical noise, cable characteristics, grounding conditions, and environmental factors. An analog input interface therefore forms an important part of the signal-conditioning chain.

The card’s input circuitry works with the compatible system architecture to ensure that the received signal can be interpreted by the controller.

Exact signal-conditioning and isolation characteristics should be confirmed for the specific KJ3225X1-BA1 hardware revision before engineering or replacement work.

Analog-to-Digital Conversion

Industrial controllers operate using digital processing, while many field instruments provide continuously varying electrical signals.

The analog input system therefore converts the received analog information into digital measurement data that the control processor can use.

The simplified process is:

Analog Field Signal → Input Interface → Signal Conditioning → Digital Measurement → Control Logic

This conversion allows the controller to compare process values against configured limits and control strategies.

Measurement Processing

Once the analog value becomes available to the control system, engineering software can apply scaling, alarming, filtering, monitoring, and control functions according to the application.

For example, a transmitter signal can be associated with a configured engineering range so that operators see a process value in appropriate units rather than only a raw electrical signal.

---

Role in Emerson Process Automation

The VE4003S6B1 KJ3225X1-BA1 Analog Input Card can form part of a larger distributed control system in which field measurements are collected and processed continuously.

A typical architecture may include:

Field Instrumentation
↓
Analog Input Card
↓
I/O Subsystem
↓
Controller
↓
Control Strategy
↓
HMI / Operator Station / Historian

This architecture enables plant personnel to monitor process conditions while allowing control algorithms to respond automatically to changing operating conditions.

Analog inputs are especially important in applications where process variables must be maintained within a defined operating range.

---

Typical Industrial Applications

Oil and Gas Processing

Oil and gas facilities use numerous analog transmitters to monitor pressure, temperature, flow, and level. An analog input card can provide the connection between these field measurements and the process control system.

Chemical Processing

Chemical plants require continuous monitoring of process conditions. Analog measurements can provide information about pressure, temperature, flow, level, and other process variables.

Water and Wastewater Treatment

Water-treatment systems use instrumentation to monitor pumps, tanks, pipelines, treatment stages, and water-quality conditions. Analog input interfaces allow these measurements to become part of the automation system.

Power Generation

Power plants use analog instrumentation throughout boilers, turbines, generators, cooling systems, and auxiliary equipment. Continuous measurement allows operators and control algorithms to maintain stable operating conditions.

Pharmaceutical Manufacturing

Pharmaceutical processes require carefully controlled operating conditions. Analog measurements can be incorporated into automation systems for process monitoring, control, alarms, and data recording.

Food and Beverage Production

Temperature, pressure, flow, and level measurements are commonly required throughout food and beverage production systems. Analog input cards provide an important connection between field instrumentation and automation equipment.

General Manufacturing

Industrial production lines can also use analog inputs to monitor equipment conditions, material flow, pressure, temperature, and other continuously variable parameters.

---

System Integration

The VE4003S6B1 KJ3225X1-BA1 should be considered as one component within a complete I/O architecture rather than as an independent controller.

A typical installation can include:

• Field transmitters
• Analog input card
• Terminal or field connection hardware
• I/O carrier or interface equipment
• Emerson controller
• Engineering workstation
• HMI
• Alarm system
• Historian
• Plant communication network

The exact combination depends on the host Emerson system and project configuration.

---

Field Instrument Integration

Before connecting a field instrument to an analog input card, engineers should verify the electrical characteristics of the instrument and the input interface.

Important considerations include:

• Transmitter output type
• Signal range
• Wiring configuration
• Power arrangement
• Grounding requirements
• Cable shielding
• Isolation requirements
• Terminal assignment
• Engineering-unit scaling
• Alarm limits

These parameters should be confirmed from the actual project drawings and applicable Emerson documentation rather than assumed from the physical appearance of the card.

---

Installation Guidelines

Verify the Part Number

Before installation, confirm both major identification references:

VE4003S6B1

and

KJ3225X1-BA1

The complete reference should be compared with the existing card, system configuration, and replacement documentation.

Inspect the Card

Before installation, inspect the card for:

• Physical damage
• Bent connectors
• Contamination
• Corrosion
• Damaged components
• Signs of overheating
• Loose hardware

A damaged card should not be installed into an operating control system.

Verify the I/O Position

The card should be installed in the correct compatible I/O position. Incorrect placement can result in communication errors, configuration mismatches, or improper signal operation.

Check Field Wiring

Field wiring should be compared against the approved control-system drawings.

Particular attention should be given to:

• Signal polarity
• Cable termination
• Shielding
• Grounding
• Terminal identification
• Instrument power connections

Confirm Configuration

The control-system configuration should correspond to the installed hardware. The input point should be associated with the correct process variable, engineering range, alarm limits, and control strategy.

---

Commissioning Procedure

After installation, commissioning should be performed systematically.

Step 1: Hardware Inspection

Confirm that the card is properly seated and all required connections are secure.

Step 2: Power and System Checks

Verify that the associated I/O system is operating correctly and that there are no hardware diagnostic indications.

Step 3: Verify Field Signals

Check the connected transmitter or sensor and confirm that the expected signal is reaching the input interface.

Step 4: Confirm Engineering Scaling

Verify that the control system converts the input signal into the correct engineering value.

Step 5: Compare With a Reference

Where appropriate, compare the displayed measurement with a calibrated instrument, reference source, or independent process measurement.

Step 6: Test Alarms

Verify configured high, low, deviation, or other process alarms where applicable.

Step 7: Confirm Control Logic

If the analog input participates in a closed-loop control strategy, confirm that the control system responds correctly to changes in the process variable.

---

Troubleshooting the VE4003S6B1

Analog input problems should be diagnosed from the field instrument through the wiring and I/O system to the control software.

No Analog Signal

If an input point remains unavailable or shows an invalid value, inspect:

• Field transmitter
• Instrument power
• Field wiring
• Terminal connections
• I/O card seating
• I/O diagnostics
• System configuration

A missing measurement does not automatically indicate a defective analog input card.

Incorrect Analog Reading

An incorrect measurement may be caused by:

• Incorrect scaling
• Incorrect transmitter configuration
• Wiring problems
• Sensor calibration issues
• Grounding problems
• Electrical interference
• Incorrect input configuration
• Hardware problems

The measurement should therefore be checked at several points in the signal chain.

Unstable Measurement

A fluctuating analog value can result from:

• Electrical noise
• Poor shielding
• Loose wiring
• Ground-loop conditions
• Instrument instability
• Process fluctuations
• Cable damage
• Input-interface problems

Trend analysis can help distinguish between an actual process fluctuation and an electrical measurement problem.

Intermittent Input

An intermittent input may indicate a loose connection, damaged cable, unstable transmitter, connector problem, or temperature-related hardware issue.

Inspection should include both the field side and the control-system side.

---

Preventive Maintenance

Regular maintenance can reduce unexpected I/O failures.

Inspect Connections

Check terminal connections and associated field wiring for looseness, corrosion, or physical damage.

Monitor Diagnostic Information

Use available system diagnostics to identify communication or hardware conditions before they develop into process failures.

Check Signal Trends

Long-term signal trending can help identify sensor degradation, process abnormalities, or intermittent measurement problems.

Maintain the Control Cabinet

Keep the cabinet environment clean and properly ventilated. Excessive dust, moisture, heat, and vibration can negatively affect electronic control equipment.

Verify Spare Parts

For critical process applications, maintain correctly identified spare cards and associated I/O hardware according to plant maintenance requirements.

---

Replacement Considerations

When replacing an Emerson VE4003S6B1 KJ3225X1-BA1 Analog Input Card, the exact identification should be verified before installation.

Recommended checks include:

• Complete model number
• Associated part number
• Hardware revision
• Existing I/O location
• Connector arrangement
• Field termination arrangement
• System configuration
• Application requirements
• Existing engineering database configuration

The supplied physical dimensions are:

107 × 41 × 105 mm

The supplied weight is:

0.5 kg

These specifications are useful for cabinet planning, spare-parts inventory, transportation, and mechanical replacement planning.

Physical similarity between two Emerson I/O cards should not be treated as proof of electrical compatibility.

---

Physical Design and Cabinet Planning

The compact dimensions of the VE4003S6B1 KJ3225X1-BA1 make physical integration an important consideration when designing or maintaining an industrial control cabinet.

The listed dimensions are 107 × 41 × 105 mm.

The listed weight is 0.5 kg.

When replacing the card, engineers should also consider the available clearance around connectors, wiring paths, adjacent I/O modules, terminal assemblies, and cabinet ventilation.

Mechanical fit is only one part of successful integration. Electrical compatibility and system configuration must also be confirmed.

---

Compatible System Components

Depending on the host architecture, the analog input card may work as part of a system containing:

System Component	Typical Function
Process Transmitter	Measures a physical process variable
Field Wiring	Transfers analog signals
Terminal Assembly	Provides field termination
Analog Input Card	Acquires analog measurement signals
I/O Carrier	Provides module interconnection
Emerson Controller	Executes control logic
Engineering Station	Provides configuration and maintenance functions
HMI / Operator Station	Displays process information
Historian	Stores process data and trends
Alarm System	Reports abnormal process conditions

The exact compatible components should be verified against the target Emerson system architecture.

---

Related Emerson I/O Models

Model	Product Type	General Function
VE4003S1	Analog Input Module	Analog process signal acquisition
VE4003S2	Analog Input Card	Analog input processing
VE4003S2B3	Analog Input Module with Terminal Blocks	Analog input and field termination
VE4003S2B4	Analog Input Module with Terminal Blocks	Analog signal interface
VE4003S2B5	Analog Input Card	Process analog input
VE4003S2B6	Analog Input Module	Analog measurement acquisition
VE4003S2B7	Analog Input Module	Process signal acquisition
VE4003S2B9	Analog Input Module with Terminal Blocks	Analog I/O and field connection
VE4002S2	Discrete Output Card	Discrete output control
VE4002S2T1	Standard I/O Terminal Block	Field termination
VE3006	Digital Input Module	Digital field signal acquisition

These models belong to related Emerson automation and I/O product families, but they should not be considered direct substitutes for the VE4003S6B1 KJ3225X1-BA1 without confirming the required system configuration.

---

Engineering Best Practices

For reliable operation of the Emerson VE4003S6B1 KJ3225X1-BA1, several engineering practices are recommended.

First, maintain accurate documentation for every analog input point. The documentation should identify the connected field instrument, signal type, engineering range, alarm limits, and control-system tag.

Second, keep field wiring properly organized and separated from high-power electrical conductors where necessary. Good cable routing can reduce electrical interference.

Third, use appropriate shielding and grounding practices according to the installation design.

Fourth, maintain calibration records for critical transmitters. A correctly functioning input card cannot compensate for an incorrectly calibrated field instrument.

Finally, verify replacement cards against the complete system configuration rather than relying only on model appearance or physical dimensions.

---

Key Advantages

Reliable Analog Signal Interface

The VE4003S6B1 KJ3225X1-BA1 provides a dedicated interface for integrating analog process measurements into a compatible Emerson control system.

Compact Physical Design

With listed dimensions of 107 × 41 × 105 mm, the card is suitable for compact industrial I/O installations.

Industrial Process Monitoring

Analog measurement data can be used for continuous monitoring of pressure, temperature, flow, level, and other process variables.

Supports Automated Control

Once acquired by the control system, analog process data can participate in control loops, alarms, interlocks, monitoring, and process optimization.

Integration With Emerson Automation Architecture

The card can form part of a larger Emerson process automation system when correctly matched to the applicable I/O architecture and configuration.

---

Technical FAQs

What is the Emerson VE4003S6B1 KJ3225X1-BA1?

The Emerson VE4003S6B1 KJ3225X1-BA1 is an Analog Input Card designed for analog process signal acquisition within a compatible Emerson industrial automation system.

What is the primary function of this card?

Its primary function is to receive analog information from compatible field instrumentation and make that measurement data available to the industrial control system.

What types of process variables can analog inputs monitor?

Depending on the connected instrumentation and system configuration, analog inputs can be used for variables such as pressure, temperature, flow, level, and other continuously varying process conditions.

What are the dimensions of the VE4003S6B1?

The listed dimensions are 107 × 41 × 105 mm.

How much does the KJ3225X1-BA1 weigh?

The supplied weight is 0.5 kg.

Is the VE4003S6B1 a controller?

No. It is an Analog Input Card. Its primary role is signal acquisition and interface functionality rather than executing the complete plant control strategy.

Can the VE4003S6B1 be replaced by another Emerson analog input card?

Not automatically. Even cards that appear physically similar may have different electrical characteristics, signal configurations, termination requirements, or system compatibility. The complete model and host-system configuration should be verified before replacement.

What can cause an incorrect analog reading?

Possible causes include field-instrument calibration problems, incorrect scaling, wiring faults, electrical interference, grounding issues, configuration errors, or problems within the I/O hardware.

How should the card be maintained?

Maintenance should include inspection of the card, connectors, field wiring, cabinet environment, system diagnostics, and connected instruments. Critical field transmitters should also be maintained and calibrated according to the plant’s maintenance procedures.

---

Conclusion

The Emerson VE4003S6B1 KJ3225X1-BA1 Analog Input Card is an industrial process-control I/O component designed to provide analog measurement acquisition within a compatible Emerson automation architecture. By connecting field instrumentation with the control system, it allows continuously varying process information to become available for monitoring, alarming, data acquisition, and automated control.

With supplied dimensions of 107 × 41 × 105 mm and a weight of 0.5 kg, the card offers a compact form factor for industrial control cabinets and I/O assemblies. Its practical role extends beyond simple signal acquisition because reliable analog measurement is fundamental to closed-loop process control and effective plant monitoring.

For installation, commissioning, troubleshooting, or replacement, engineers should verify the complete VE4003S6B1 KJ3225X1-BA1 identification together with the applicable Emerson system architecture, hardware revision, field wiring, and configuration. Correct identification and systematic commissioning are essential for maintaining stable analog measurements and reliable industrial process automation.
