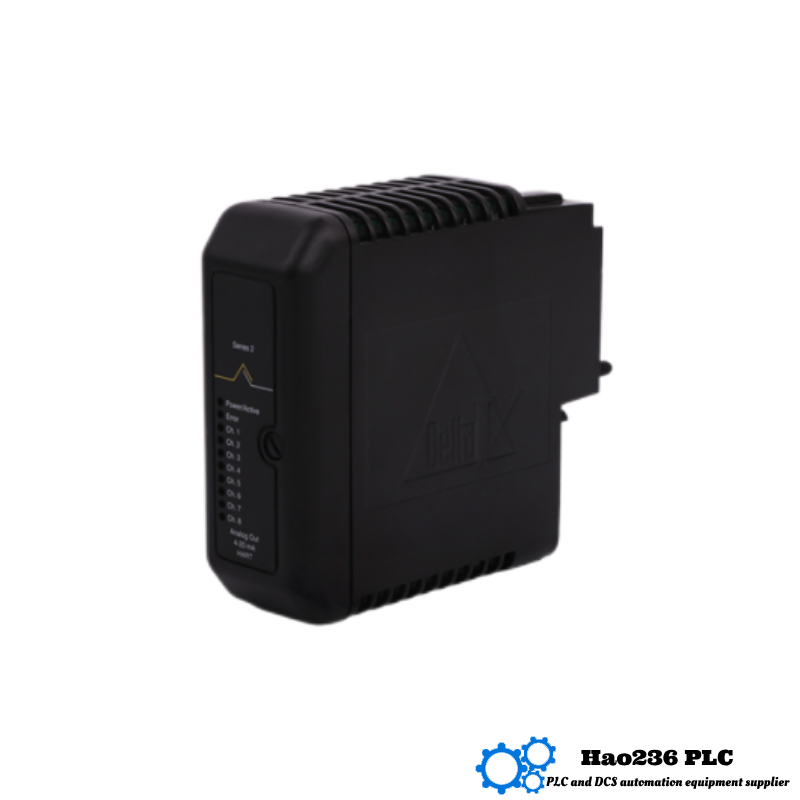

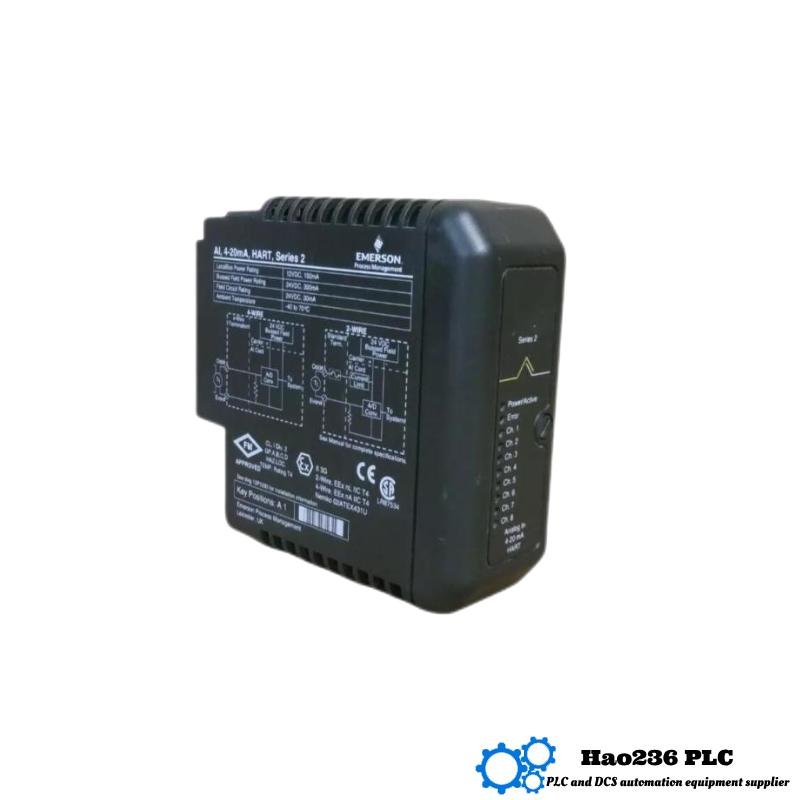

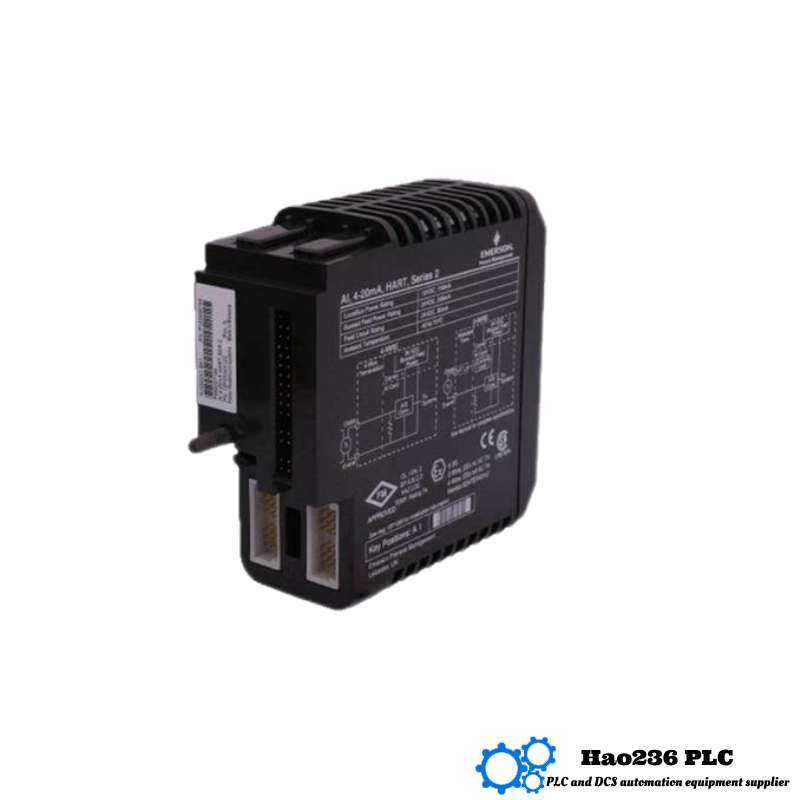

Emerson VE4003S2B10 Product Profile
1. Product Introduction
The VE4003S2B10 is a high-performance 16-channel, 4-wire analog input module designed for use within Emerson’s DeltaV™ Series 2 Plus Distributed Control Systems (DCS). This module is engineered to provide precise and reliable measurement of analog signals from field devices such as sensors and transmitters, supporting various input types including 4–20 mA and HART-enabled devices. Its modular design ensures flexibility and scalability, making it suitable for a wide range of industrial applications.
2. Brand and Series
-
Brand: Emerson
-
Series: DeltaV™ Series 2 Plus
-
Module Type: Analog Input Module
3. Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Model | VE4003S2B10 | |
| Input Channels | 16 analog inputs | 4-wire configuration |
| Input Types Supported | 4–20 mA, HART-enabled | Configurable per channel |
| Resolution | 16-bit | |
| Accuracy | ±0.1% of span | Varies by input type and range |
| Input Impedance | >1 MΩ (Voltage input) | |
| Isolation | Channel-to-channel and field isolation | Optical isolation |
| Operating Temperature | –40°C to +70°C | Industrial grade |
| Storage Temperature | –40°C to +85°C | |
| Humidity | 5% to 95% non-condensing | |
| Shock Resistance | 10 g, 11 ms half-sine | |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) | |
| Power Consumption | 150 mA typical at 12 V DC | |
| Dimensions (H x W x D) | 263 mm x 58 mm x 28 mm | |
| Weight | 0.32 kg |
4. Product Applications
The VE4003S2B10 module is widely utilized in various industries for precise analog signal acquisition, including:
-
Chemical and Petrochemical Plants: Monitoring of process variables such as pressure, temperature, and flow.
-
Power Generation: Measurement of parameters in turbines, boilers, and generators.
-
Oil & Gas: Data acquisition from sensors in upstream, midstream, and downstream operations.
-
Water & Wastewater Treatment: Continuous monitoring of water quality and process parameters.
-
Pharmaceutical and Food Processing: Ensuring compliance by tracking environmental and process variables.
5. Product Advantages
-
High Channel Density: Supports 16 analog inputs in a compact module, optimizing rack space.
-
Superior Accuracy: Provides high-resolution data acquisition with minimal drift and noise.
-
Robust Industrial Design: Built to withstand harsh operating conditions, including extreme temperatures and humidity.
-
Seamless Integration: Easily integrates with DeltaV™ control systems with plug-and-play capability.
-
Flexible Input Types: Supports a wide variety of input signals, including thermocouples, RTDs, and standard analog signals.
-
Advanced Diagnostics: Built-in self-tests and diagnostics enable proactive maintenance and reduce downtime.
-
Optical Isolation: Provides isolation for input channels to reduce electrical interference and ground loop issues.
-
Low Power Consumption: Designed to operate efficiently with minimal power draw.
-
Extended Temperature Range: Operates reliably from –40°C to +70°C, suitable for extreme environments.
-
Reliable Communication: Ensures stable and secure data transfer within the DeltaV™ system.
6. Related / Same Series or Similar Models
| Model | Key Features | Application Notes |
|---|---|---|
| VE4003S2B10 | 16-channel, 4-wire analog input module | Standard module for broad analog input needs |
| VE4003S2B1 | 8-channel version with thermocouple and RTD support | Smaller channel count, specific sensor focus |
| VE4003S2B4 | Enhanced diagnostics and faster response | For critical control loops requiring quick feedback |
| VE4003S2B6 | High-density 16-channel input module | Space-saving solution for large systems |
| VE4003S2B7 | Special support for high-precision RTD measurements | For temperature-sensitive processes |
7. Other Popular Models from Emerson
| Model | Function | Specifications |
|---|---|---|
| VE4006P2 | Dual-port serial interface module | Facilitates communication with legacy devices |
| VE4015S2B1 | 8-channel analog input module | Supports multiple sensor types |
| VE4020S2B1 | 16-channel digital output module | Controls a variety of actuators and relays |
| VE4050S2B1 | Mixed analog and digital I/O module | Versatile I/O handling |
| VE4060S2B1 | High-speed digital input module | For fast digital signal acquisition |
8. Frequently Asked Questions (FAQ)
Q1: What types of input signals does VE4003S2B10 support?
A: It supports thermocouples, RTDs, 4–20 mA current loops, and 0–10 V voltage inputs.
Q2: How many channels are available on the VE4003S2B10?
A: The module offers 16 analog input channels.
Q3: What is the accuracy of this input module?
A: It provides an accuracy of approximately ±0.1% of the input span.
Q4: Can the module operate in harsh temperature conditions?
A: Yes, it operates from –40°C to +70°C reliably.
Q5: Does the module provide isolation between channels?
A: Yes, it has optical isolation between input channels and the system to reduce noise and interference.
Q6: What is the power consumption of the VE4003S2B10?
A: The typical power consumption is 150 mA at 12 V DC.
Q7: What is the physical size and weight of the module?
A: Dimensions are 263 mm × 58 mm × 28 mm, and it weighs about 0.32 kg.
Q8: Is the VE4003S2B10 compatible with the DeltaV control system?
A: Yes, this module is fully compatible and designed specifically for integration within the Emerson DeltaV™ Distributed Control System.
Q9: What is the response time of the VE4003S2B10?
A: The module typically responds to input signal changes within 100 milliseconds, suitable for most process control applications.
Q10: Does the VE4003S2B10 provide built-in diagnostics?
A: Yes, it features advanced self-test and diagnostic capabilities that allow early detection of faults to reduce downtime and simplify maintenance.
