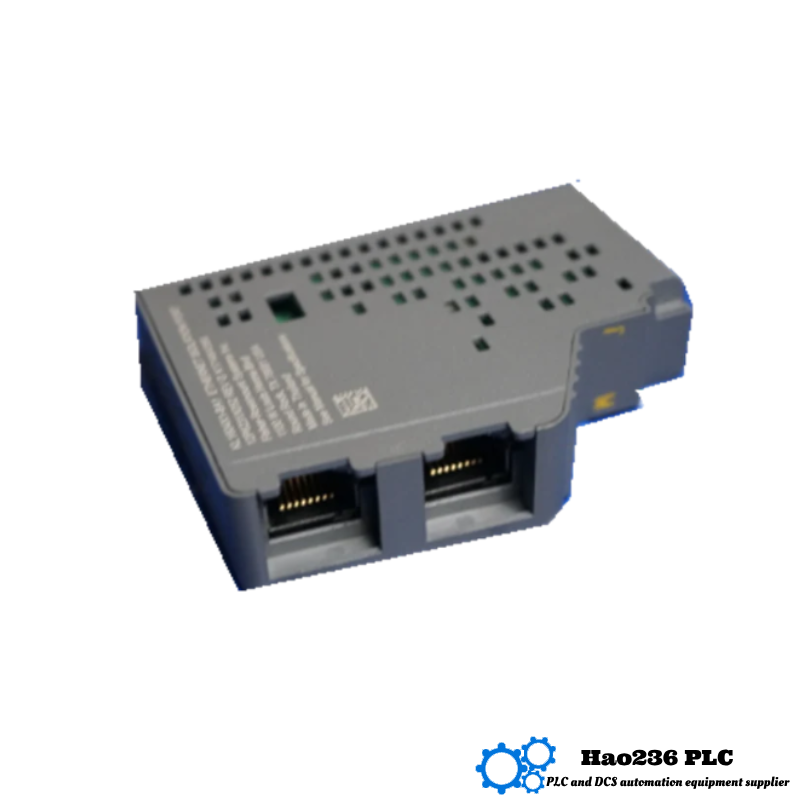

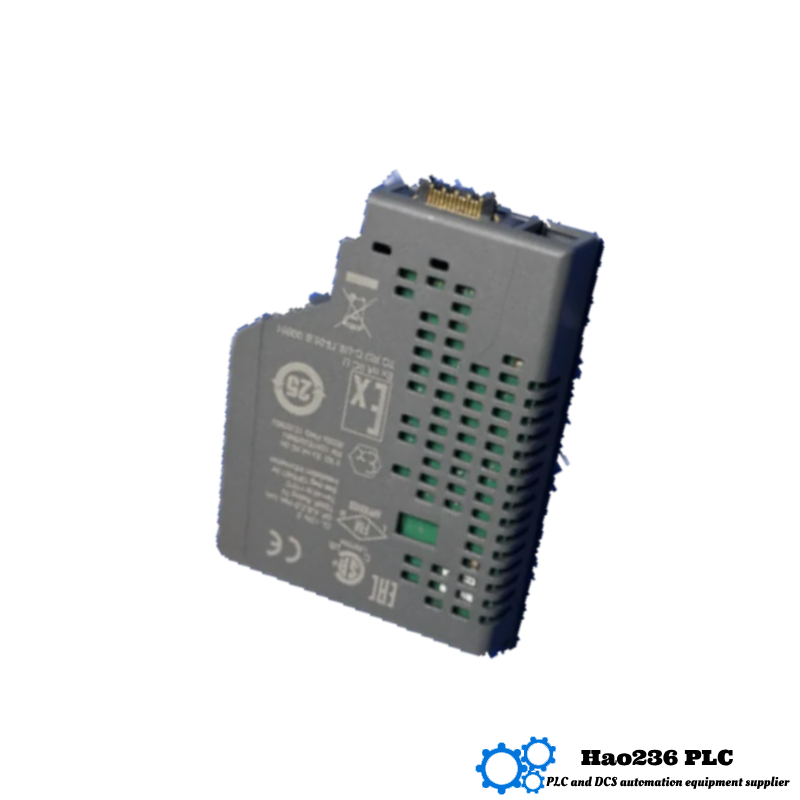

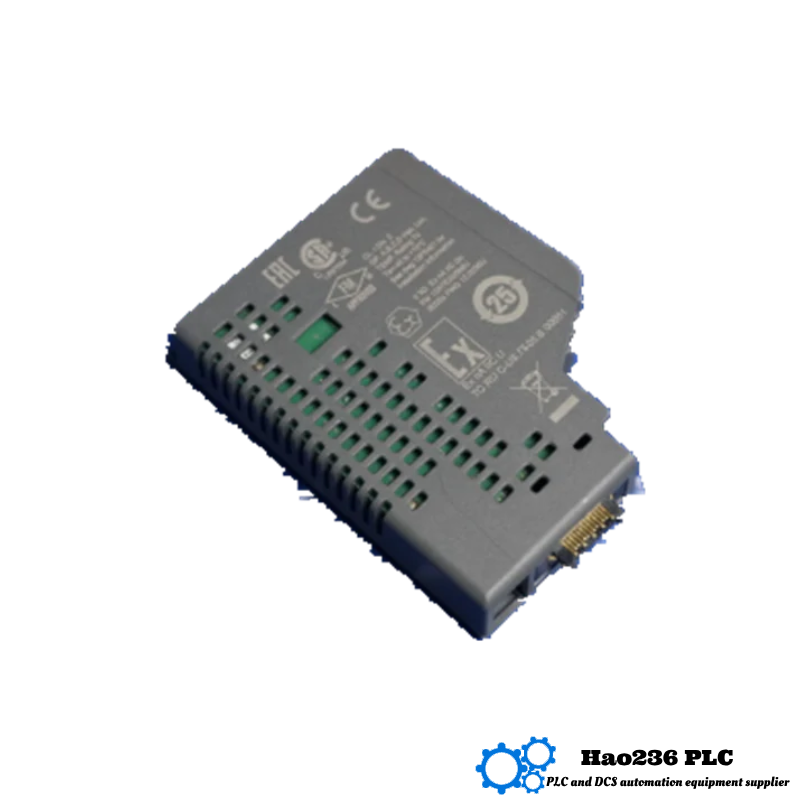

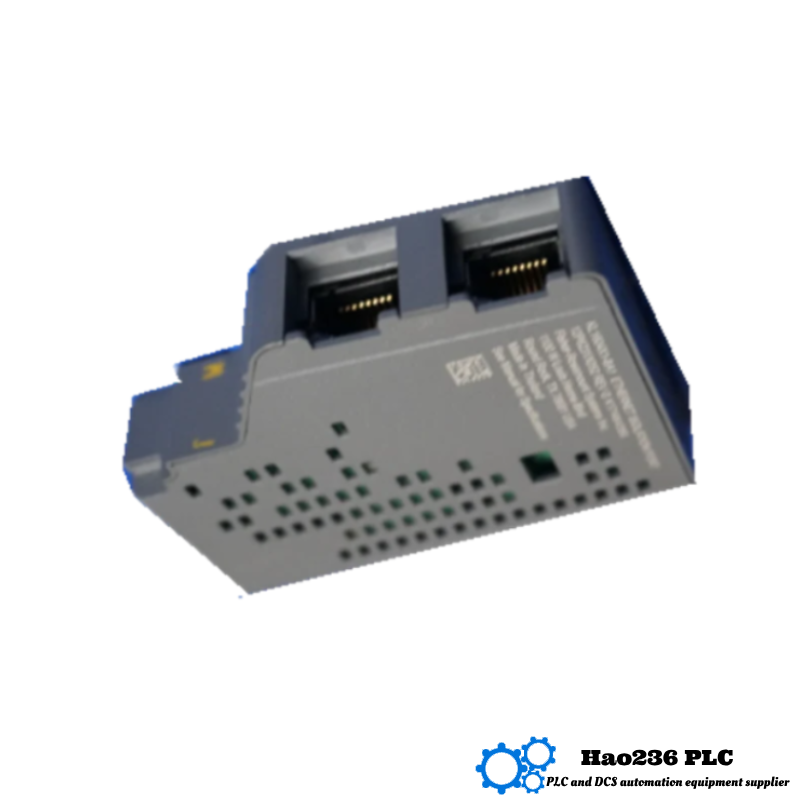

Emerson KL1604X1-BA1 Ethernet Isolation Port
Product Introduction
The Emerson KL1604X1-BA1 is a dedicated Ethernet isolation port module designed to enhance network reliability and protect sensitive equipment within the Emerson DeltaV Distributed Control System (DCS). This isolation port serves as a robust barrier between Ethernet network segments, minimizing the risk of electrical noise, ground loops, and transient voltage spikes that could otherwise damage communication equipment or disrupt network performance.
With its compact dimensions (110 x 80 x 30 mm) and lightweight design (0.2 kg), the KL1604X1-BA1 is engineered for easy installation and integration into existing DeltaV systems. Its sophisticated isolation technology ensures that network communication remains stable and secure, contributing to increased uptime and improved operational safety in demanding industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | KL1604X1-BA1 |
| Module Type | Ethernet Isolation Port |
| Series | Emerson DeltaV Series |
| Dimensions (L × W × H) | 110 x 80 x 30 mm |
| Weight | 0.2 kg |
| Isolation Voltage | 1500 V RMS |
| Data Rate | 10/100 Mbps |
| Network Interface | RJ-45 Ethernet Ports |
| Operating Temperature | -20°C to 70°C |
| Power Supply | Powered by DeltaV backplane |
| Installation | DIN Rail Mountable |
| Compliance | IEC/EN 61000-4-2, IEC/EN 61000-4-4 |
Product Applications
The KL1604X1-BA1 Ethernet isolation port is ideal for industrial automation environments where reliable and secure Ethernet communication is critical. Typical applications include:
-
Isolation of network segments in complex DeltaV systems to prevent ground loop issues.
-
Protection of communication equipment in oil & gas, chemical, and refining plants.
-
Use in power generation facilities where transient voltages and electrical noise are common.
-
Enhancing network reliability in pharmaceutical and food processing plants with stringent operational standards.
-
Integration into large-scale manufacturing systems to ensure consistent, interference-free data transfer.
Product Advantages
-
High Voltage Isolation: Protects equipment from damaging voltage spikes and ground loops with up to 1500 V RMS isolation.
-
Reliable Network Performance: Maintains stable 10/100 Mbps Ethernet communication under harsh industrial conditions.
-
Compact and Lightweight: Measures only 110 x 80 x 30 mm and weighs 0.2 kg, making installation flexible and space-efficient.
-
Easy Integration: Designed for seamless compatibility with Emerson DeltaV systems and DIN rail mounting.
-
Wide Operating Temperature Range: Operates effectively between -20°C and 70°C for use in diverse environments.
-
Standards Compliance: Meets stringent IEC/EN electromagnetic compatibility standards for industrial equipment.
Brand Information
Emerson is a renowned global leader in automation and control solutions, delivering advanced technologies for industrial operations worldwide. The DeltaV series represents Emerson’s cutting-edge distributed control systems, known for reliability, scalability, and ease of use. The KL1604X1-BA1 Ethernet isolation port reflects Emerson’s commitment to quality and innovation, ensuring secure and uninterrupted communication in critical control applications.
Related Models in DeltaV Series
| Model Number | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KL1604X1-BA1 | Ethernet Isolation Port | Network isolation | 110 x 80 x 30 | 0.2 |
| KL1604X1-BB1 | Ethernet Switch Module | Industrial Ethernet switching | 110 x 80 x 30 | 0.25 |
| KL1604X1-BC1 | Fiber Optic Interface Module | Fiber optic communication | 110 x 80 x 30 | 0.22 |
| KL1604X1-BD1 | Ethernet Repeater Module | Signal boosting | 110 x 80 x 30 | 0.23 |
| KL1604X1-BE1 | Ethernet Media Converter | Copper to fiber media conversion | 110 x 80 x 30 | 0.24 |
Popular Emerson DeltaV Series Models
| Model Number | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KJ4000X1-BA1 | Analog Input Module | Precise analog data input | 130 x 80 x 65 | 0.3 |
| KJ4110X1-BB1 | Loop Breaker Module | Loop isolation | 130 x 80 x 65 | 0.35 |
| KJ4110X1-BC2 | Digital Output Module | Relay outputs | 130 x 80 x 65 | 0.33 |
| KL1604X1-BA1 | Ethernet Isolation Port | Network isolation | 110 x 80 x 30 | 0.2 |
| KJ4000X1-BE1 | Analog Output Module | High accuracy analog output | 130 x 80 x 65 | 0.34 |
Frequently Asked Questions (FAQs)
Q1: What is the primary purpose of the KL1604X1-BA1?
A1: It isolates Ethernet network segments to protect communication equipment and ensure reliable data transmission.
Q2: Which Emerson system is this module designed for?
A2: It is designed specifically for the Emerson DeltaV distributed control system.
Q3: What are the module’s physical dimensions?
A3: The module measures 110 x 80 x 30 mm.
Q4: How much does the KL1604X1-BA1 weigh?
A4: It weighs approximately 0.2 kg.
Q5: What is the maximum isolation voltage?
A5: The module provides isolation up to 1500 V RMS.
Q6: What data rates does it support?
A6: It supports 10/100 Mbps Ethernet communication.
Q7: Can it be installed on a DIN rail?
A7: Yes, it supports DIN rail mounting for easy installation.
Q8: What temperature range can it operate in?
A8: It operates effectively between -20°C and 70°C.
Q9: Does it comply with industrial electromagnetic standards?
A9: Yes, it meets IEC/EN 61000-4-2 and IEC/EN 61000-4-4 standards.
Q10: Is this module compatible with fiber optic communication?
A10: This specific module focuses on Ethernet isolation; fiber optic modules are available separately.
