Product Overview

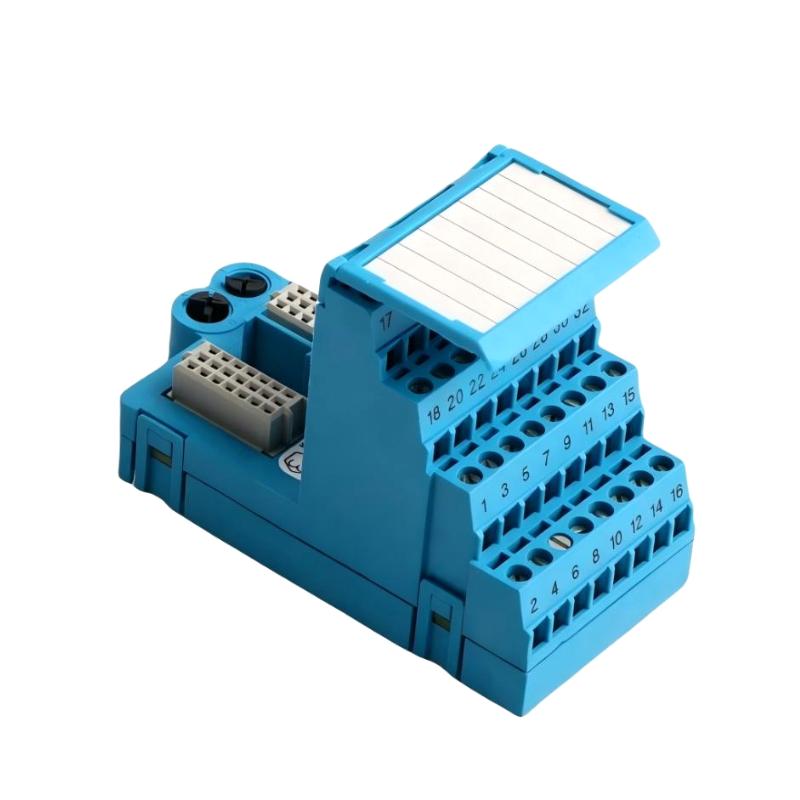

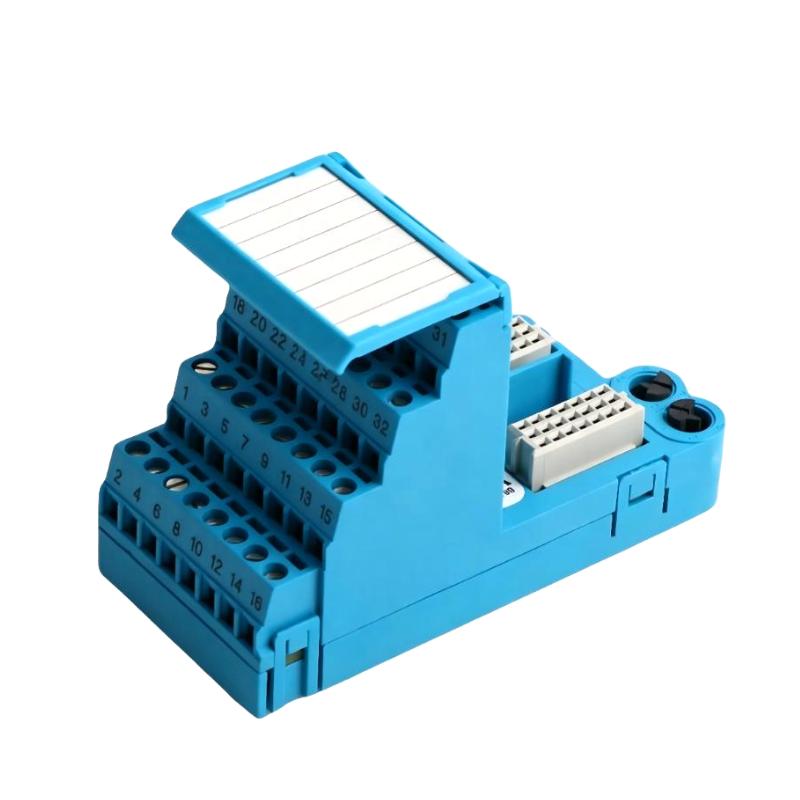

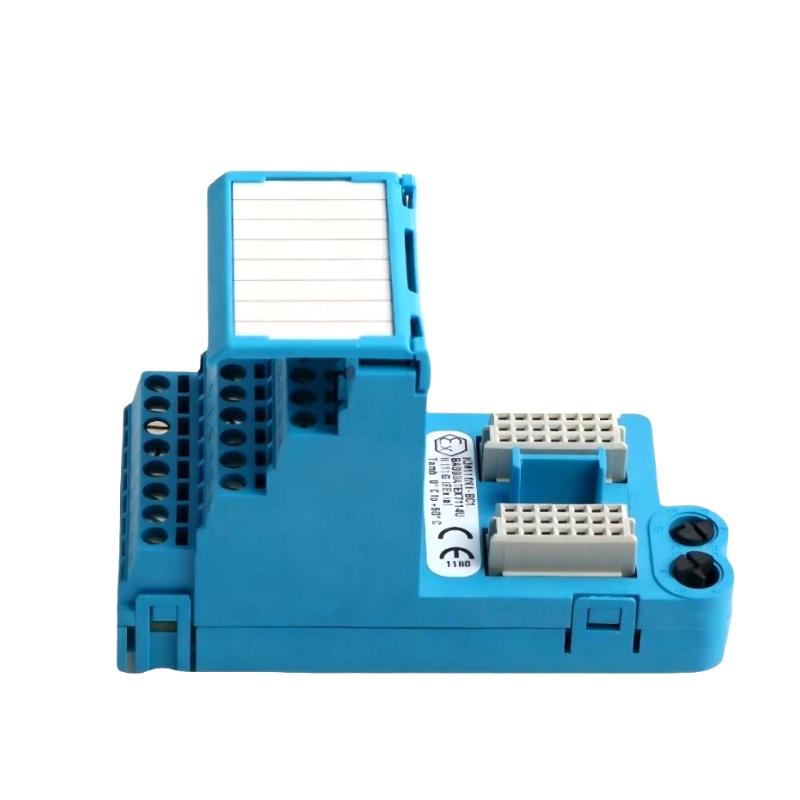

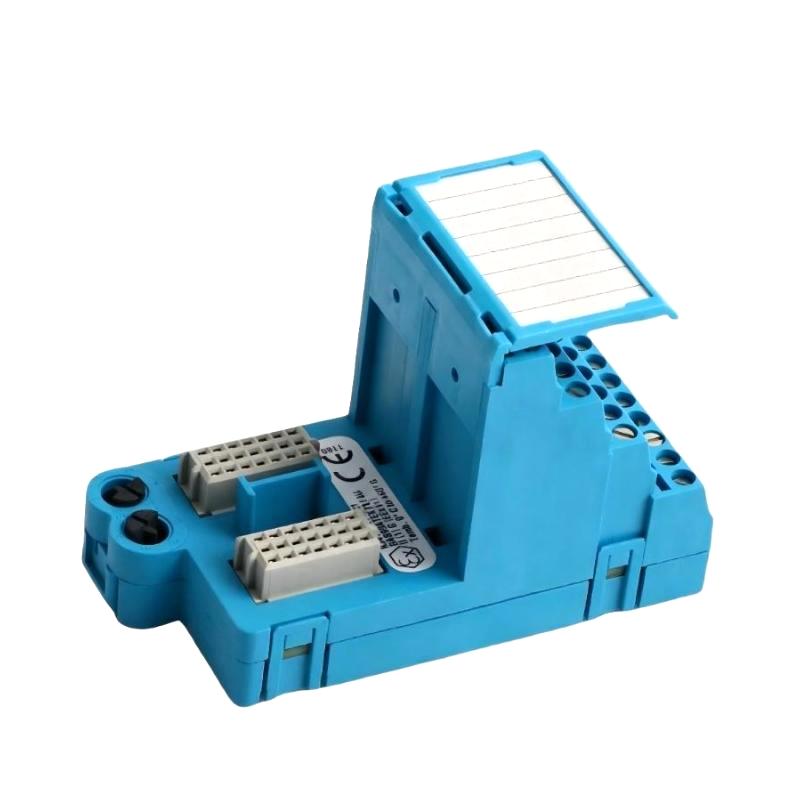

The Emerson KJ4110X1-BC1 DeltaV I.S. 16-Channel Terminal Block is a field wiring interface component used in Emerson DeltaV intrinsically safe (I.S.) system installations. It provides organized termination and connection points for compatible I.S. I/O channels, allowing field devices to connect with DeltaV control hardware through a structured wiring arrangement.
Unlike DeltaV I.S. I/O modules that perform signal processing, channel diagnostics, or control system communication, the KJ4110X1-BC1 functions as a connection interface. Its main purpose is to simplify field wiring management while supporting the requirements of intrinsically safe instrumentation systems.
In hazardous-area process applications, clear separation and organized routing of field circuits are important for system maintenance and operational reliability. The KJ4110X1-BC1 supports these requirements by providing a dedicated 16-channel terminal connection solution for DeltaV I.S. architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ4110X1-BC1 |
| Product Family | DeltaV |
| Product Type | I.S. 16-Channel Terminal Block |
| Primary Function | Intrinsically Safe Field Wiring Interface |
| System Role | Signal Connection Layer |
| Application | Industrial Automation / Distributed Control Systems |
| Installation | DeltaV I.S. I/O System |
| Dimensions | 130 × 20 × 80 mm |
| Weight | 0.11 kg |
Product Features
The Emerson KJ4110X1-BC1 provides structured field connection support for DeltaV intrinsically safe I/O applications.
Key characteristics include:
- Emerson DeltaV I.S. 16-Channel Terminal Block
- Model KJ4110X1-BC1
- Designed for intrinsically safe signal connections
- Supports multi-channel field wiring termination
- Provides organized connection between field devices and I/O hardware
- Helps simplify hazardous-area wiring management
- Supports DeltaV modular I.S. architectures
- Suitable for control cabinet integration
- Used in system installation and replacement projects
- Supports industrial process automation applications
The terminal block should be matched with the appropriate DeltaV I.S. module configuration and field wiring requirements.
Working Principle
The KJ4110X1-BC1 operates as an interface point between hazardous-area field wiring and DeltaV I.S. I/O hardware.
A simplified connection path can be represented as:
Hazardous Area Field Device → KJ4110X1-BC1 Terminal Block → DeltaV I.S. I/O Module → DeltaV Controller
The terminal block does not perform signal conversion, logic processing, or communication tasks. Instead, it provides a structured electrical termination point that allows field signals to be routed correctly between external instrumentation and the control system.
The 16-channel design allows multiple field circuits to be organized within a single connection assembly, reducing cabinet wiring complexity and improving maintenance efficiency.
Role in DeltaV Control Architecture
The KJ4110X1-BC1 belongs to the field interface layer of the DeltaV intrinsically safe control architecture.
A typical structure can be represented as:
DeltaV Controller → I.S. I/O Module → I.S. Terminal Block → Hazardous Area Instrumentation
| System Layer | Typical Function |
|---|---|
| DeltaV Controller | Executes control strategies |
| DeltaV I.S. I/O Module | Processes protected field signals |
| I.S. Terminal Block | Provides field wiring termination |
| Intrinsically Safe Wiring | Transfers protected signals |
| Field Instruments | Measure process conditions |
The terminal block provides the connection foundation required for integrating hazardous-area instruments with the DeltaV system.
Industrial Applications
The Emerson KJ4110X1-BC1 is suitable for DeltaV installations where intrinsically safe field connections are required.
| Application | Typical Use |
|---|---|
| Oil and Gas Facilities | Hazardous-area instrumentation connection |
| Chemical Processing Plants | I.S. field signal termination |
| Refineries | Process monitoring interface |
| Pharmaceutical Production | Protected automation wiring |
| Power Generation | Instrumentation connection management |
| Industrial Process Control | Field device integration |
| Plant Expansion Projects | Adding I.S. connection points |
| Control Cabinet Integration | Structured signal wiring |
The actual application depends on the DeltaV I.S. hardware configuration and field instrument requirements.
Installation and Maintenance
Correct wiring identification is important before installing or replacing the terminal block.
Recommended maintenance checks include:
- Confirm the correct KJ4110X1-BC1 model.
- Verify compatibility with DeltaV I.S. modules.
- Record existing channel assignments.
- Check field wiring labels.
- Inspect terminal connections.
- Verify cable termination quality.
- Check for loose connection points.
- Inspect surrounding I.S. hardware.
- Confirm correct installation position.
- Test field signal availability after replacement.
When troubleshooting I.S. signal problems, the terminal block, field wiring, I/O module, and connected instruments should be inspected together.
Related Components
The KJ4110X1-BC1 works together with multiple DeltaV system components.
| Component | Function |
|---|---|
| Emerson DeltaV Controllers | Execute control applications |
| DeltaV I.S. I/O Modules | Process intrinsically safe signals |
| I.S. Terminal Blocks | Provide field wiring interface |
| I.S. Carriers | Support module installation |
| Field Sensors | Provide process measurements |
| Field Actuators | Receive control outputs |
| Power Supply Components | Provide system power |
| Engineering Workstations | Configure system operation |
These components form a complete DeltaV intrinsically safe field connection structure.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ4110X1-BC1 | DeltaV I.S. 16-Channel Terminal Block | Intrinsically safe field wiring |
| Emerson KJ4110X1-BA1 | DeltaV M-Series Standard I/O Terminal Block | Standard field connection |
| Emerson KJ4101X1-BA1 | DeltaV I.S. 8-Wide Carrier | I.S. module installation |
| Emerson KJ4101X1-BC1 | I.S. Power Supply Carrier | I.S. power hardware support |
| Emerson KJ4010X1-BC1 | Fuse for Fused Terminal Block | Circuit protection |
| Emerson DeltaV I.S. Terminal Block Series | Wiring Interface Components | Hazardous-area applications |
Selection should be based on channel requirements, I.S. module type, and DeltaV system architecture.
Key Advantages
- Emerson DeltaV intrinsically safe terminal component
- Supports 16-channel field connections
- Provides organized hazardous-area wiring interface
- Integrates with DeltaV I.S. hardware
- Simplifies control cabinet wiring management
- Supports modular system expansion
- Improves maintenance accessibility
- Suitable for process automation environments
- Maintains structured signal routing
- Supports reliable field device integration
Technical FAQs
How many field channels can the KJ4110X1-BC1 support?
The KJ4110X1-BC1 is a 16-channel I.S. terminal block designed to provide organized connection points for compatible DeltaV intrinsically safe field circuits.
What is the difference between a DeltaV I.S. terminal block and a standard I/O terminal block?
An I.S. terminal block is used within intrinsically safe system configurations for hazardous-area applications, while standard terminal blocks are intended for conventional I/O wiring arrangements.
Why is channel identification important when replacing an I.S. terminal block?
Accurate channel mapping helps prevent field wiring errors and ensures that each instrument remains connected to the correct DeltaV I/O channel after replacement.
What components should be checked when an I.S. field signal is lost?
Troubleshooting should include the KJ4110X1-BC1 terminal block, field wiring, connected I.S. I/O module, power conditions, and the associated field instrument.
