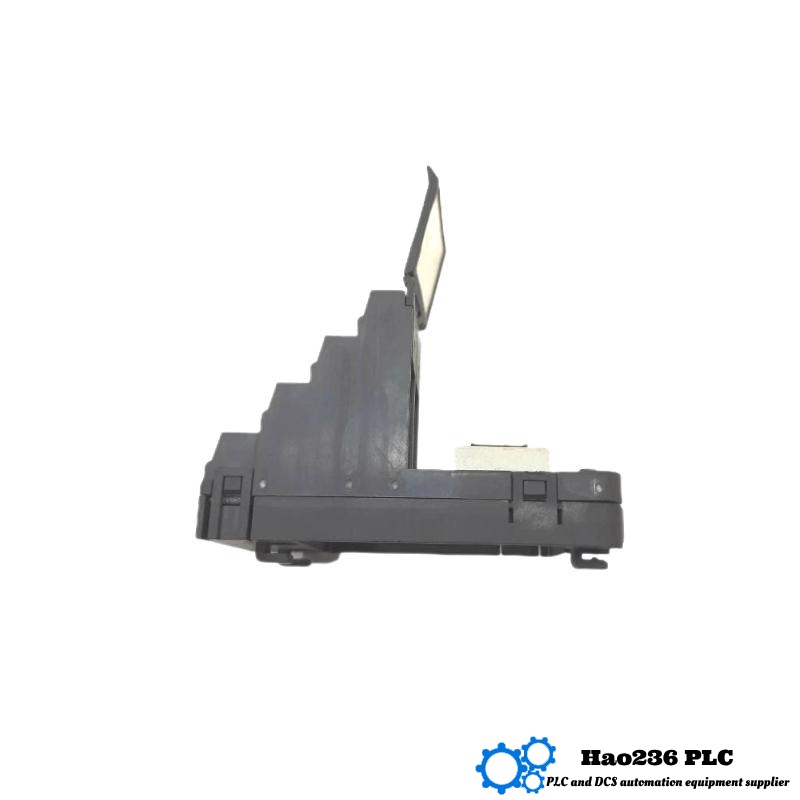

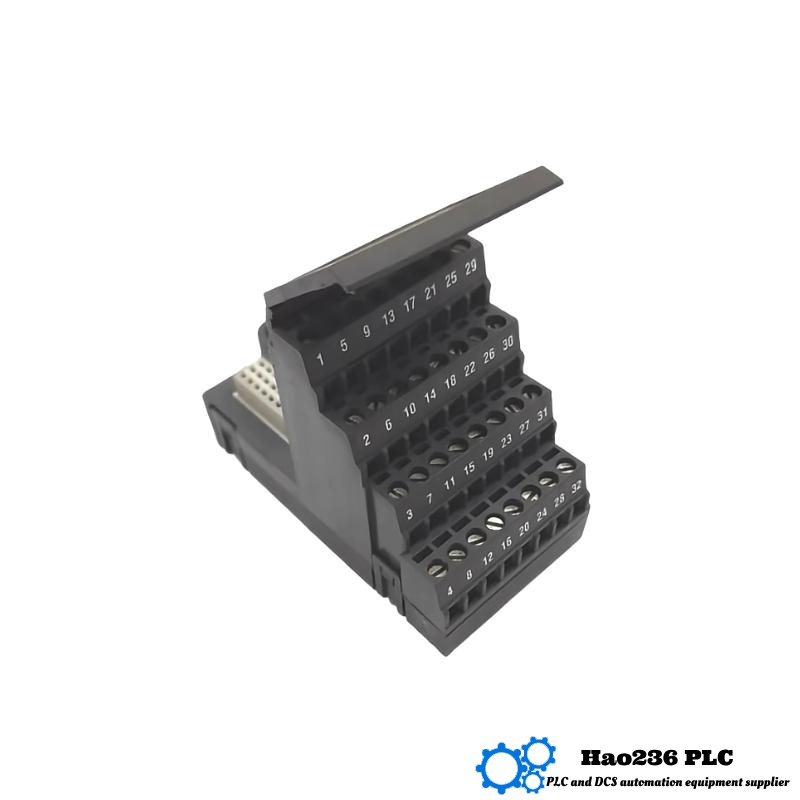

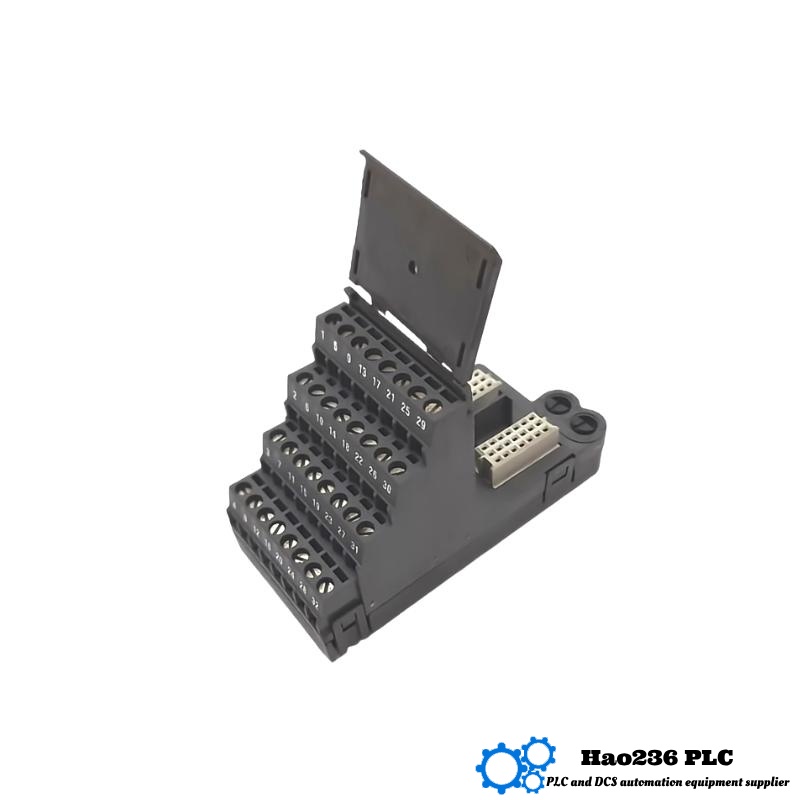

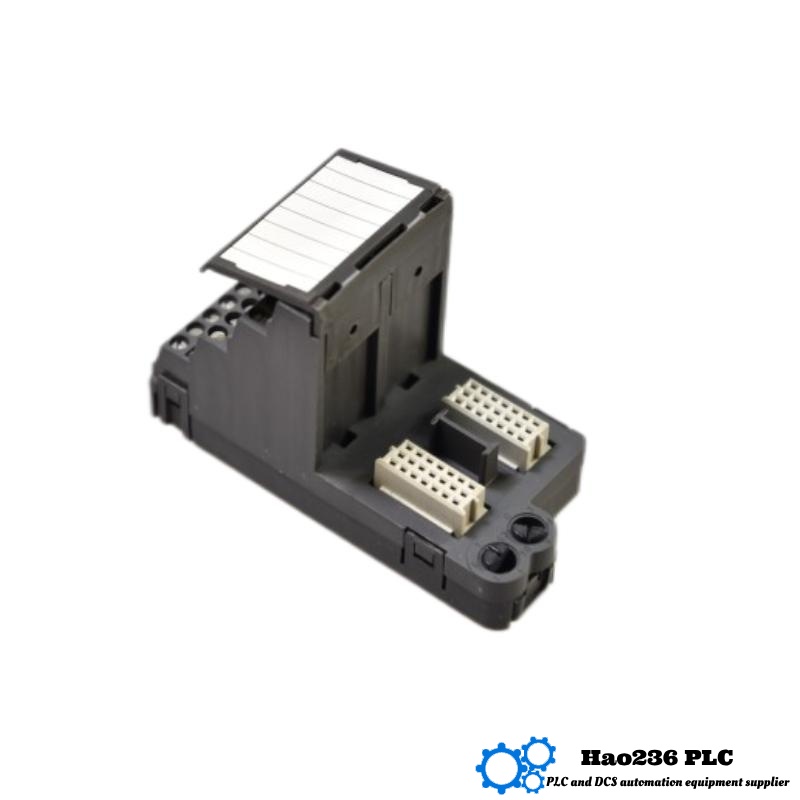

Emerson KJ4001X1-CJ1 Terminal Block
Product Overview
The Emerson KJ4001X1-CJ1 terminal block is a reliable and efficient wiring interface designed specifically for use within the DeltaV distributed control system (DCS). This terminal block supports secure electrical connections for various field devices, enabling streamlined signal transmission and robust system integration. With a compact design and durable construction, it offers consistent performance in industrial automation environments.
Product Features & Benefits
-
Compact and Lightweight: The small form factor (110 x 100 x 30 mm) and low weight (0.3 kg) allow easy installation and minimal space consumption within control panels.
-
Reliable Connectivity: Designed with precision-engineered screw terminals, ensuring secure and stable electrical contacts that reduce signal loss and interruptions.
-
Robust Construction: Manufactured with high-quality materials resistant to industrial conditions such as vibration, temperature variations, and mechanical stress.
-
Easy Installation: DIN rail mounting capability simplifies integration and replacement, minimizing downtime during maintenance.
-
Compatibility: Fully compatible with Emerson’s DeltaV system and other industry-standard components for seamless system integration.
-
Versatile Application: Suitable for wiring a wide range of sensors, actuators, and control devices in process control environments.
Applications
The KJ4001X1-CJ1 terminal block is widely used in various industrial sectors, including:
-
Process Automation: Used to connect field instruments like temperature sensors, pressure transmitters, and flow meters to the DeltaV control system.
-
Power Generation: Facilitates wiring in power plants for reliable instrumentation and control signal management.
-
Chemical and Petrochemical Plants: Ensures secure connections in hazardous and demanding process environments.
-
Manufacturing: Supports industrial automation systems requiring dependable signal wiring for effective process control.
-
Oil & Gas: Provides rugged connections suited for upstream, midstream, and downstream applications.
Advantages
-
High Durability: Built to withstand harsh industrial environments, reducing the risk of failure or downtime.
-
Improved Signal Integrity: Precision terminals help prevent electrical noise and signal degradation.
-
Space Efficiency: Its compact dimensions allow more terminal blocks to fit in limited panel space.
-
Reduced Maintenance Time: Tool-friendly terminals and simple mounting reduce installation and servicing times.
-
Trusted Brand: Emerson’s reputation ensures quality, support, and compatibility within DeltaV systems.
Brand & Series
-
Brand: Emerson
-
Series: DeltaV
Technical Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 110 x 100 x 30 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Maximum Voltage | 30 V DC |
| Maximum Current | 10 A |
| Operating Temperature | –40°C to +85°C |
| Housing Material | High-grade thermoplastic |
| Connection Type | Field wiring interface |
Related Models in DeltaV Series
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ4001X1-CE1 | Large capacity terminal block | 120 x 70 x 25 | 0.15 |
| KJ4001X1-CC1 | Standard terminal block | 120 x 72 x 26 | 0.09 |
| KJ4001X1-CG1 | Thermocouple terminal block | 150 x 120 x 45 | 0.7 |
| KJ4001X1-CT1 | Temperature sensor interface block | 140 x 110 x 40 | 0.6 |
| KJ4001X1-CB1 | High-speed signal terminal block | 130 x 110 x 35 | 0.5 |
Popular Emerson Products
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ5001X1-CC1 | Advanced control module | 150 x 130 x 40 | 0.9 |
| KJ4001X1-CM1 | Modular connection terminal | 160 x 120 x 45 | 0.7 |
| KJ1001X1-CB1 | Temperature probe interface | 140 x 100 x 30 | 0.45 |
| KJ2001X1-CA1 | Signal transmission terminal block | 160 x 130 x 40 | 0.8 |
| KJ5001X1-CX1 | Industrial I/O terminal block | 150 x 120 x 50 | 0.9 |
Frequently Asked Questions (FAQ)
Q1: What is the maximum current supported by the KJ4001X1-CJ1?
A1: The terminal block supports a maximum current of 10 A, sufficient for most signal wiring applications.
Q2: Is the KJ4001X1-CJ1 compatible with other Emerson DeltaV components?
A2: Yes, it is fully compatible and designed for seamless integration within the DeltaV control system.
Q3: What types of wiring connections does it support?
A3: The block uses screw terminals to provide secure and reliable field wiring connections.
Q4: What are the operating temperature limits?
A4: It operates reliably between –40°C and +85°C, suitable for most industrial environments.
Q5: Can it be mounted on standard DIN rails?
A5: Yes, the terminal block supports standard DIN rail mounting for easy installation.
Q6: How does the terminal block handle electrical noise?
A6: Precision screw terminals ensure stable connections, minimizing electrical noise and signal loss.
Q7: What materials are used in the housing?
A7: The housing is made of high-grade thermoplastic, providing durability and resistance to environmental stresses.
Q8: What are the physical dimensions?
A8: The terminal block measures 110 x 100 x 30 mm, designed to optimize space in control panels.
Q9: Is maintenance required regularly?
A9: Minimal maintenance is required; periodic checks to ensure terminal tightness are recommended.
Q10: Does Emerson provide warranty and support for this product?
A10: Yes, Emerson offers warranty coverage and technical support for all DeltaV terminal blocks.
