Product Overview

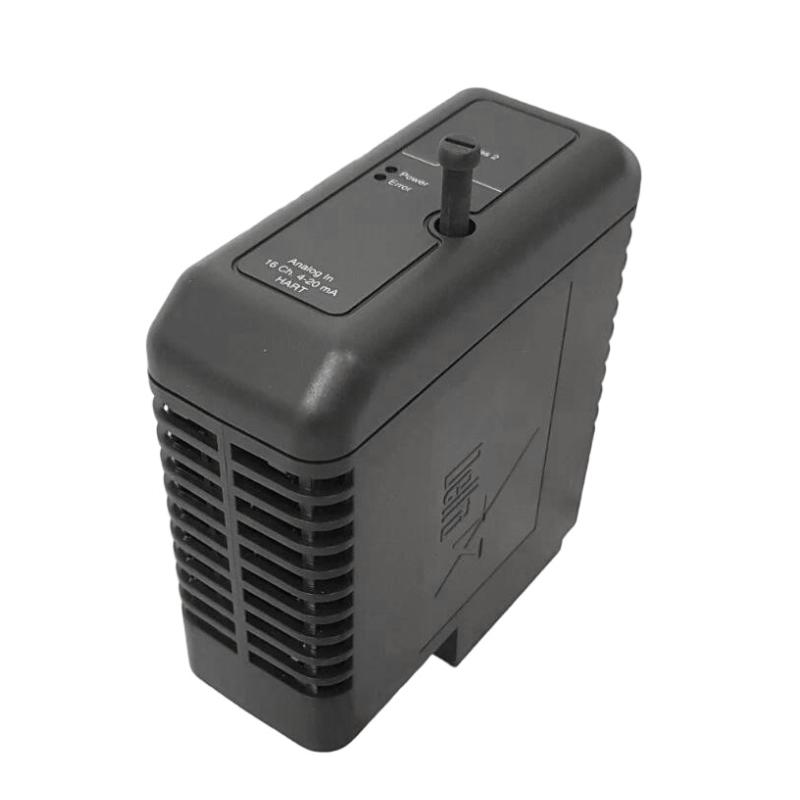

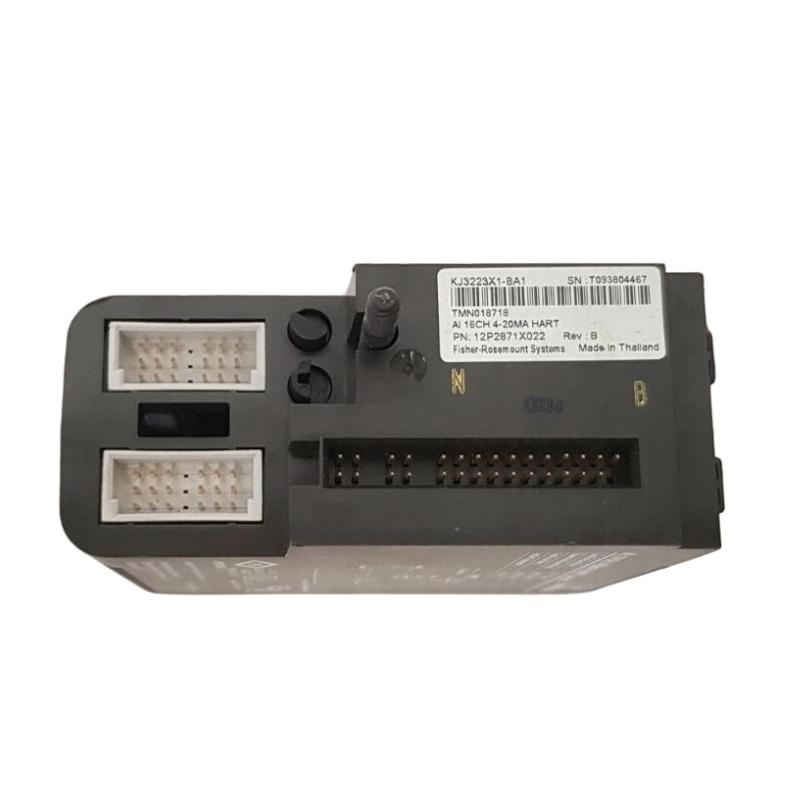

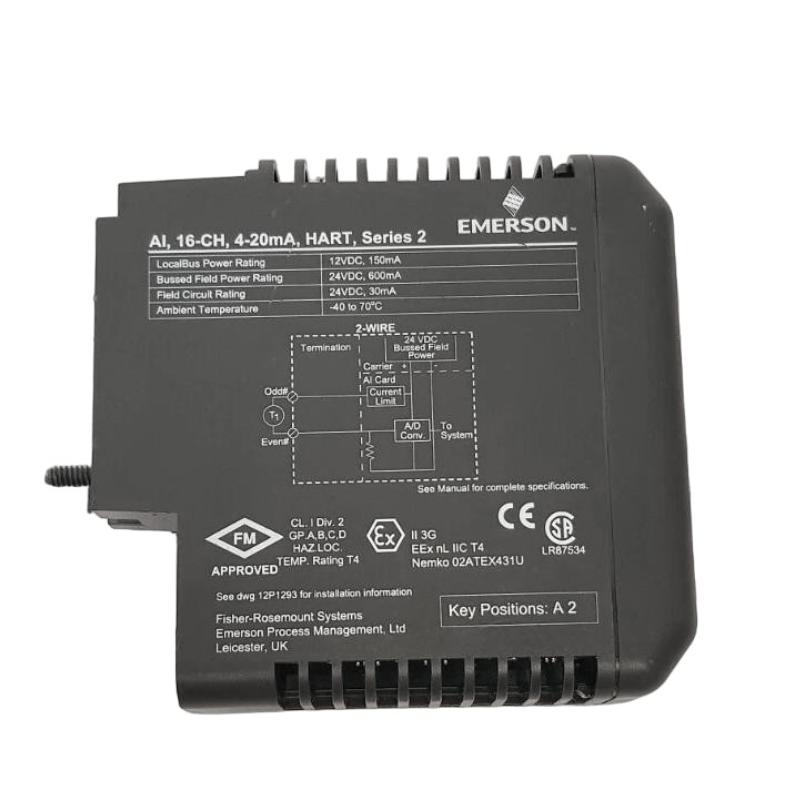

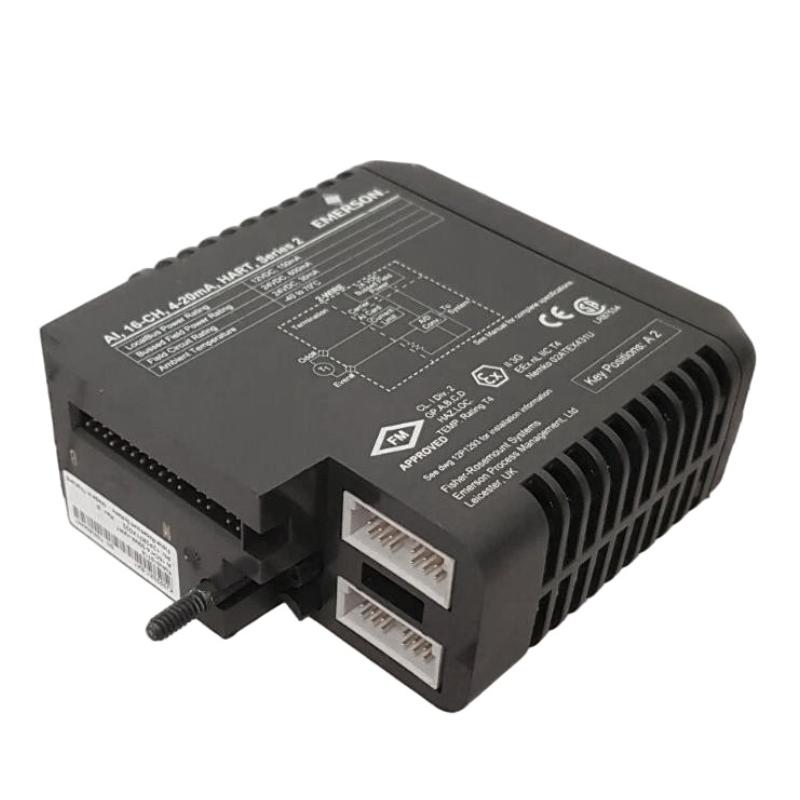

The Emerson KJ3223X1-BA1 12P2871X022 DeltaV Analog Input Card is an analog input module used within the Emerson DeltaV distributed control system (DCS). Its main task is to bring continuous electrical signals from field instruments into the DeltaV control system, where those signals can be monitored, processed, alarmed, and used by control strategies.
In a typical process plant, instruments such as pressure transmitters, temperature transmitters, flow transmitters, and level transmitters generate analog signals representing actual process conditions. The KJ3223X1-BA1 sits on the I/O side of the control architecture and transfers these field measurements into the DeltaV system.
For example, a pressure transmitter installed on a process line may continuously change its output as system pressure varies. The analog input channel receives the corresponding electrical signal and makes the measured value available to the DeltaV controller and operator interface.
This type of I/O module is commonly encountered in process automation, chemical plants, oil and gas facilities, power generation, water treatment, and other continuous-process installations where large numbers of field measurements need to be collected by a central control system.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3223X1-BA1 |
| Part Number | 12P2871X022 |
| Product Type | DeltaV Analog Input Card |
| System | Emerson DeltaV DCS |
| Module Type | Analog Input |
| Main Function | Field Analog Signal Acquisition |
| Application | Process Control and Monitoring |
| Typical Signals | Analog Process Measurement Signals |
| System Role | I/O Interface |
| Installation | DeltaV I/O System |
| Dimensions | 118 × 102 × 30 mm |
| Weight | 1.13 kg |
Product Features
The KJ3223X1-BA1 serves as the interface between field measurement devices and the DeltaV control system.
Key characteristics include:
- Emerson DeltaV system compatibility
- Analog input signal acquisition
- Interface between field instruments and the DCS
- Suitable for continuous process measurements
- Used with process transmitters and analog field devices
- Supports centralized process monitoring
- Suitable for industrial I/O architectures
- Applicable to process automation systems
- Part number 12P2871X022
- Dimensions of 118 × 102 × 30 mm
- Stated weight of 1.13 kg
The module should be selected according to the required signal type, channel configuration, field wiring arrangement, and the DeltaV I/O architecture in which it will be installed.
Working Principle
The role of an analog input card can be understood through a typical measurement path:
Field Instrument → Field Wiring → Analog Input Card → DeltaV Controller → Operator Station
A transmitter installed in the process measures a physical variable such as pressure, temperature, flow, or level. Its electrical output changes according to the measured condition.
The KJ3223X1-BA1 receives this field signal through the I/O wiring and passes the measurement into the DeltaV control system. The controller can then use the signal for display, alarming, calculation, interlocking, trending, or closed-loop process control.
For example, consider a flow transmitter installed on a chemical process line. As the flow changes, the transmitter output changes accordingly. The analog input channel acquires that changing signal, allowing the DeltaV system to display the process value and use it as part of the control strategy.
The accuracy of the overall measurement depends not only on the I/O card but also on the transmitter, wiring, grounding, signal configuration, and system scaling.
Industrial Applications
The KJ3223X1-BA1 is relevant to process-control systems where continuous analog measurements must be collected from field instrumentation.
| Application | Typical Use |
|---|---|
| Chemical Processing | Pressure, temperature, flow, and level measurement |
| Oil and Gas | Process and equipment monitoring |
| Power Generation | Plant process measurements |
| Water Treatment | Flow, pressure, and level monitoring |
| Pharmaceutical Processing | Continuous process measurement |
| Food and Beverage | Process parameter monitoring |
| Refining | Field instrumentation acquisition |
| General Process Automation | Centralized analog signal collection |
The module is particularly useful in systems where field measurements are continuously monitored and incorporated into a larger DeltaV control strategy.
Compatible System Components
The KJ3223X1-BA1 normally operates as part of a larger DeltaV I/O and control architecture.
| Component | Function |
|---|---|
| DeltaV Controller | Executes control logic and process strategies |
| Field Transmitter | Measures process variables |
| Analog Input Module | Receives field analog signals |
| I/O Carrier | Provides the physical mounting and system connection structure |
| Field Wiring | Carries signals between instruments and I/O |
| Terminal Block | Provides field-side wiring connections |
| DeltaV Operator Station | Displays process information and alarms |
| Engineering Workstation | Used for system configuration and maintenance |
| Power Supply | Supplies required electrical power to system components |
| Process Instrumentation | Provides pressure, flow, temperature, or level measurements |
Compatibility should be evaluated at the complete system level. The correct I/O carrier, terminal arrangement, field wiring, signal configuration, and DeltaV software configuration all matter when installing or replacing an I/O card.
Installation and Maintenance
The KJ3223X1-BA1 should be installed within the appropriate DeltaV I/O architecture and handled according to the requirements of the control system.
Before replacing an existing module, record the existing channel configuration and field wiring. This is especially important in operating process plants where an incorrect signal assignment can affect process monitoring or control.
Recommended checks include:
- Confirm the complete KJ3223X1-BA1 model.
- Verify part number 12P2871X022.
- Confirm the DeltaV system configuration.
- Check the associated I/O carrier.
- Verify field wiring and terminal assignments.
- Confirm the connected transmitter type.
- Check signal configuration in the DeltaV system.
- Inspect connectors and terminals.
- Verify module seating and mechanical installation.
- Check power and grounding arrangements.
- Review channel diagnostics.
- Compare the measured process value with the field instrument.
- Confirm correct scaling after replacement.
- Perform a controlled verification before returning the channel to normal service.
When an analog measurement appears incorrect, the I/O card should not automatically be considered the source of the problem. The transmitter, field cable, terminal connections, grounding, channel configuration, and scaling should also be checked.
Recommended Related Models
For the KJ3223X1-BA1, the most useful related products are other DeltaV I/O components and modules that perform complementary functions within the same control architecture.
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson KJ3223X1-BA1 12P2871X022 | Analog Input Card | Analog field signal acquisition | DeltaV process control |
| Emerson DeltaV Analog Input Modules | I/O Module Family | Continuous signal acquisition | Process instrumentation |
| Emerson DeltaV Analog Output Modules | I/O Module | Analog control signal output | Valves and actuators |
| Emerson DeltaV Digital Input Modules | I/O Module | Discrete signal acquisition | Switches and status signals |
| Emerson DeltaV Digital Output Modules | I/O Module | Discrete control output | Relays, solenoids, and actuators |
| Emerson DeltaV Controllers | Controller | Process control execution | Distributed control systems |
When replacing the KJ3223X1-BA1, another analog input module should not be selected solely because it has a similar physical size. Channel type, signal requirements, carrier compatibility, system revision, and field wiring must be checked together.
Key Advantages
- DeltaV DCS analog input functionality
- Continuous field signal acquisition
- Interface for process instrumentation
- Suitable for pressure, temperature, flow, and level measurements
- Supports centralized process monitoring
- Integrates into DeltaV I/O architectures
- Suitable for industrial process-control applications
- Part number 12P2871X022
- Dimensions of 118 × 102 × 30 mm
- Stated weight of 1.13 kg
Technical FAQs
What is the primary function of the KJ3223X1-BA1 in a DeltaV system?
The KJ3223X1-BA1 serves as an analog input interface between field instrumentation and the DeltaV control system. It allows continuous process measurement signals to enter the DCS for monitoring, alarming, calculations, and control strategies.
Which field instruments are typically connected to an analog input module?
Typical applications include transmitters measuring pressure, flow, temperature, and level. The exact field-device compatibility depends on the signal type and configuration supported by the particular I/O channel.
Why can an analog input show an incorrect process value even when the I/O card is functioning?
Incorrect readings can originate from the field transmitter, wiring, terminal connections, grounding, signal configuration, or scaling in the control system. Troubleshooting should therefore follow the complete signal path rather than replacing the I/O card immediately.
What should be checked before replacing a KJ3223X1-BA1 in an operating DeltaV system?
The existing module configuration, field wiring, I/O carrier, channel assignments, transmitter type, and DeltaV configuration should be documented first. After replacement, the channel should be verified against the actual field instrument before the signal is returned to normal process control.
