Product Overview

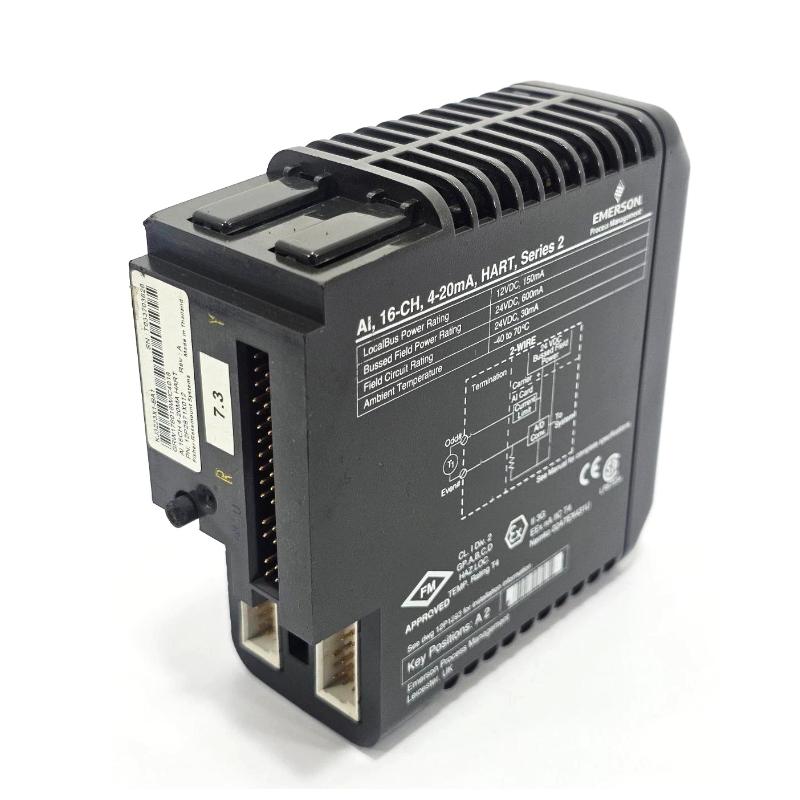

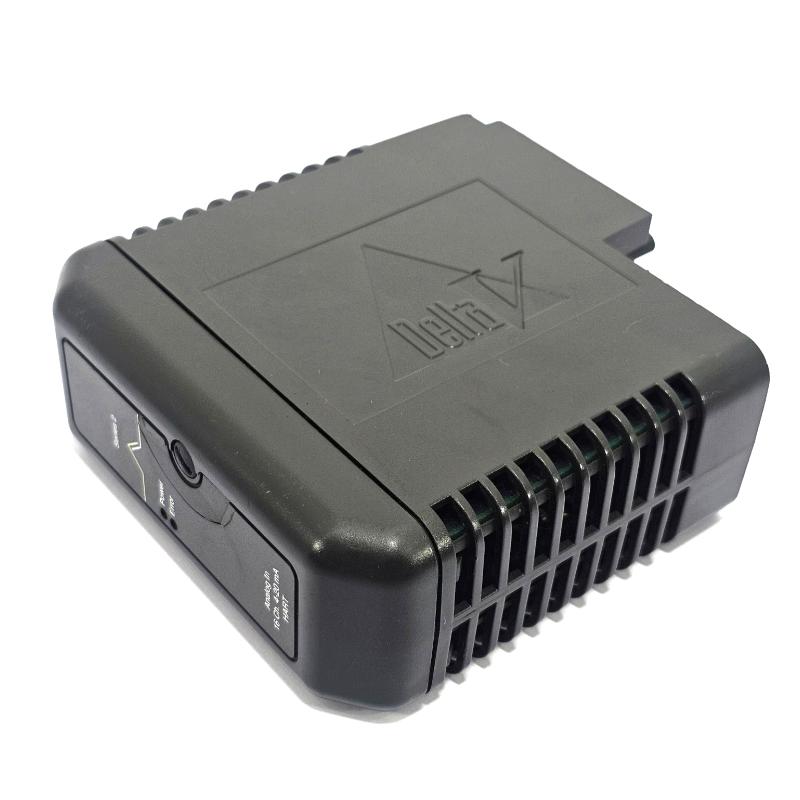

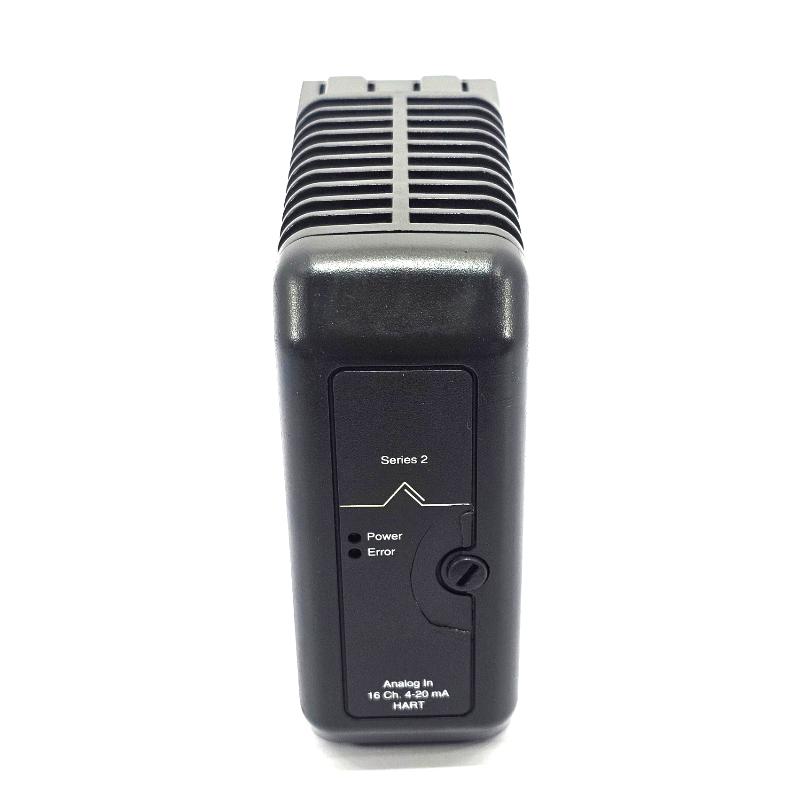

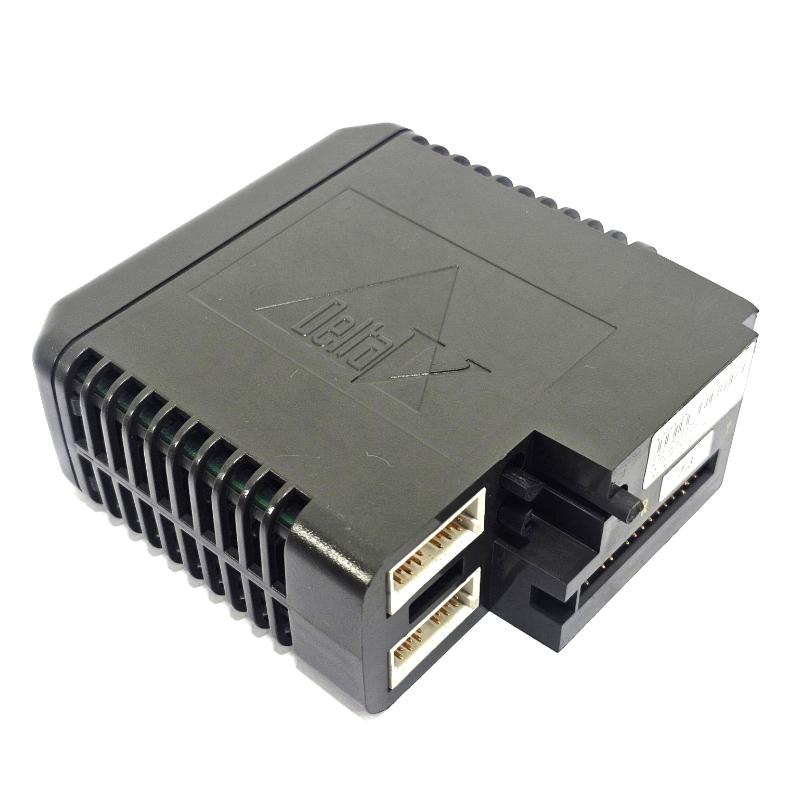

The Emerson KJ3223X1-BA1 12P2871X012 Analog Input Card is an industrial automation I/O module designed to collect analog process signals from field instruments and transfer the measured information into a control system. It is intended for applications where process variables change continuously and need to be monitored as numerical values rather than simple digital states.
Analog input cards are commonly used with field transmitters measuring pressure, temperature, flow, level, and other process conditions. The input card provides the interface between these instruments and the control system, allowing the collected signals to be used for monitoring, alarms, process calculations, trends, and closed-loop control.
The KJ3223X1-BA1 provides 12 analog input channels, allowing multiple field signals to be handled through a single I/O card. This higher channel density can be useful in process installations where many instruments are concentrated within the same control area.
The card is an I/O interface rather than the main process controller. Its primary job is to receive field-level analog information and make that information available to the associated automation system.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3223X1-BA1 |
| Part Number | 12P2871X012 |
| Product Type | Analog Input Card |
| Channel Count | 12 Channels |
| Signal Type | Analog Input |
| Main Function | Analog Process Signal Acquisition |
| Application | Industrial Process Automation |
| I/O Function | Field Analog Signal Interface |
| Installation | Industrial Control System |
| Dimensions | 118 × 102 × 30 mm |
| Weight | 1.13 kg |
| Application Area | Process Monitoring and Control |
Product Features
The KJ3223X1-BA1 is designed for process applications that require multiple analog measurements to be collected by a centralized or distributed automation system.
Key features include:
- 12-channel analog input configuration
- Supports multiple process measurement points
- High-density analog signal acquisition
- Designed for industrial automation applications
- Provides an interface between field instruments and control systems
- Suitable for process monitoring and control
- Compact 30 mm module depth
- Supports organized I/O system construction
- Suitable for industrial control cabinet installation
- Useful for applications with multiple analog field signals
The 12-channel configuration allows several process instruments to be grouped within the same I/O architecture, reducing the need to allocate a separate card for each individual measurement point.
Working Principle
The KJ3223X1-BA1 receives analog electrical signals from connected field instruments and transfers the corresponding process information into the automation system.
A typical application begins with a transmitter measuring a physical process variable. The transmitter produces an analog electrical output that is connected to one of the card’s input channels. The input circuitry receives the signal and converts the field measurement into usable process data for the control system.
The general operating sequence includes:
- Receiving an analog signal from a field transmitter
- Monitoring the electrical value of the incoming signal
- Processing the input measurement
- Associating the measurement with the corresponding input channel
- Transferring the process value to the control system
- Allowing the controller and operator interface to use the measured information
The resulting process values can be used for control loops, alarm limits, historical trends, operator displays, calculations, and equipment monitoring.
Role in Industrial Control Systems
The KJ3223X1-BA1 operates at the field I/O level and provides the connection between process instrumentation and the automation system.
| Function | Description |
| Analog Signal Acquisition | Receives continuously varying process measurements |
| Field Instrument Interface | Connects transmitters with the control system |
| Process Monitoring | Provides measured process values |
| I/O Expansion | Adds multiple analog measurement channels |
| Signal Collection | Transfers field measurements into the automation architecture |
| Control Support | Supplies process values required by control strategies |
The card itself is not normally responsible for executing the complete process control strategy. Instead, it supplies the controller with the analog information required to make control and monitoring decisions.
Industrial Applications
The KJ3223X1-BA1 can be used in industrial environments where multiple analog process variables must be monitored through a common automation infrastructure.
| Industry | Typical Applications |
| Oil & Gas | Pressure, flow, and process measurement |
| Chemical Processing | Temperature and process monitoring |
| Power Generation | Plant instrumentation and equipment monitoring |
| Water Treatment | Level, pressure, and flow measurement |
| Pharmaceutical | Process parameter acquisition |
| Food Processing | Temperature and production process monitoring |
| Manufacturing | Equipment and production monitoring |
| Energy | Analog equipment measurements |
A 12-channel input card can be particularly useful in process areas where several transmitters are installed close to one another and need to be integrated into the same control system.
Installation and System Integration
The KJ3223X1-BA1 should be installed as part of a properly engineered I/O system. Before connecting field instruments, the signal characteristics, wiring arrangement, and control system configuration should be verified.
Recommended installation steps include:
- Confirm the KJ3223X1-BA1 model and part number.
- Verify compatibility with the existing automation architecture.
- Identify the twelve input channels required by the application.
- Install the card in the designated system position.
- Connect field transmitter wiring correctly.
- Check signal polarity and terminal assignments.
- Verify grounding and shielding arrangements.
- Configure the corresponding input channels.
- Check the displayed process values after startup.
- Compare readings with field instruments during commissioning.
Analog signals can be sensitive to electrical interference. Proper cable routing, shielding, grounding, and terminal connections are therefore important, especially when instrumentation wiring runs near motors, variable speed drives, contactors, or other high-power equipment.
Compatible System Components
The KJ3223X1-BA1 is normally integrated with several components to form a complete industrial process control system.
| Compatible Component | Function |
| Process Transmitters | Measure pressure, flow, temperature, level, and other variables |
| DeltaV Controller | Processes input data and executes control strategies |
| I/O Carrier or Interface Hardware | Provides physical system integration |
| Terminal Blocks | Provide field wiring connections |
| Control Network | Transfers process information |
| Operator Station | Displays process measurements and alarms |
| Engineering Workstation | Used for system configuration and maintenance |
| Process Instruments | Generate analog measurement signals |
The exact hardware arrangement depends on the control system architecture and the type of field instrumentation used by the plant.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
| Emerson KJ3222X1-BK1 | Analog Input Module | 8-channel analog signal acquisition | Process monitoring |
| Emerson KJ3223X1-BA1 | 12-Channel Analog Input Card | Higher-density analog input configuration | Industrial process automation |
| Emerson DeltaV Analog Input Modules | Analog Input | Multi-point process signal acquisition | Process control systems |
| Emerson DeltaV Universal I/O Modules | Universal I/O | Flexible field signal integration | Distributed automation |
| Emerson DeltaV I/O Modules | I/O Module | Modular field instrumentation interface | Industrial control systems |
When choosing an alternative, channel count should not be the only consideration. The required signal type, electrical characteristics, system generation, field wiring, software configuration, installation arrangement, and controller compatibility should also be verified.
Key Advantages
- Provides 12 analog input channels
- Supports multiple process measurement points
- High-density analog signal acquisition
- Suitable for distributed industrial I/O architectures
- Provides an interface between field transmitters and the control system
- Supports process monitoring and control applications
- Compact 118 × 102 × 30 mm dimensions
- Stated weight of 1.13 kg
- Suitable for industrial control cabinet installation
- Useful for applications requiring multiple analog measurements
- Helps organize large numbers of process signals within a structured I/O system
Technical FAQs
What is the advantage of using a 12-channel analog input card in a process plant?
A 12-channel card allows multiple analog measurements to be collected through one I/O assembly. This can simplify panel organization and make it easier to group related process signals, particularly when several transmitters are located within the same plant area.
Which process variables are commonly connected to analog input channels?
Typical measurements include pressure, temperature, flow, level, differential pressure, and other continuously varying process parameters. The actual signal type must match the electrical and configuration requirements of the input system.
Why can analog input readings fluctuate even when the process itself is stable?
Unstable readings may result from transmitter problems, poor cable shielding, grounding issues, loose terminals, electromagnetic interference, or unsuitable cable routing. Troubleshooting should therefore examine the complete signal path from the field instrument to the I/O card.
Is the 12P2871X012 identification important when replacing the KJ3223X1-BA1?
Yes. The additional identification helps distinguish the specific hardware configuration. When replacing an installed card, the complete model and part number should be compared with the existing hardware and system configuration rather than relying only on the general description of an analog input card.
