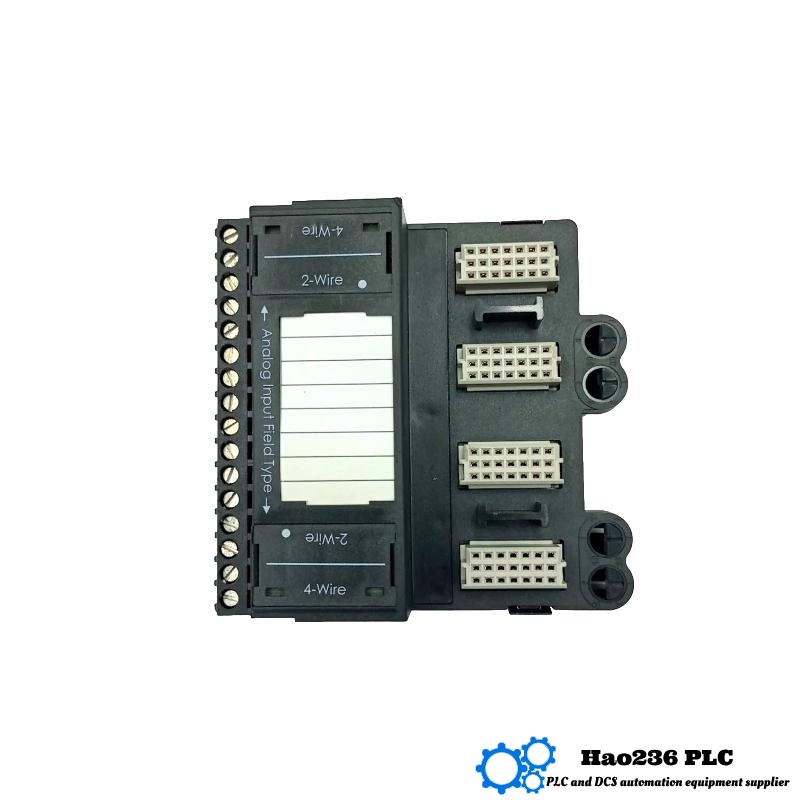

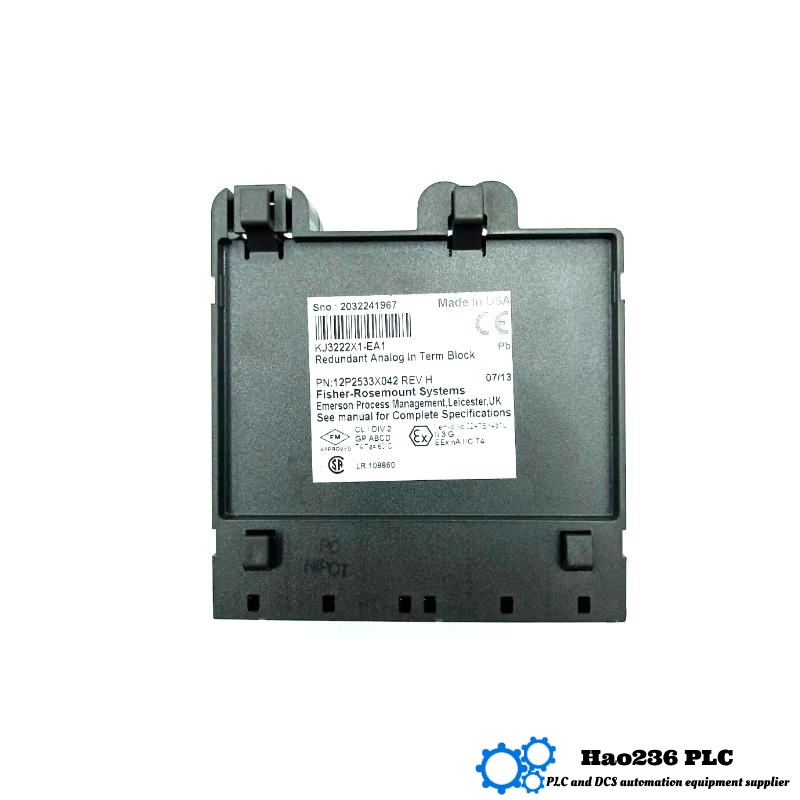

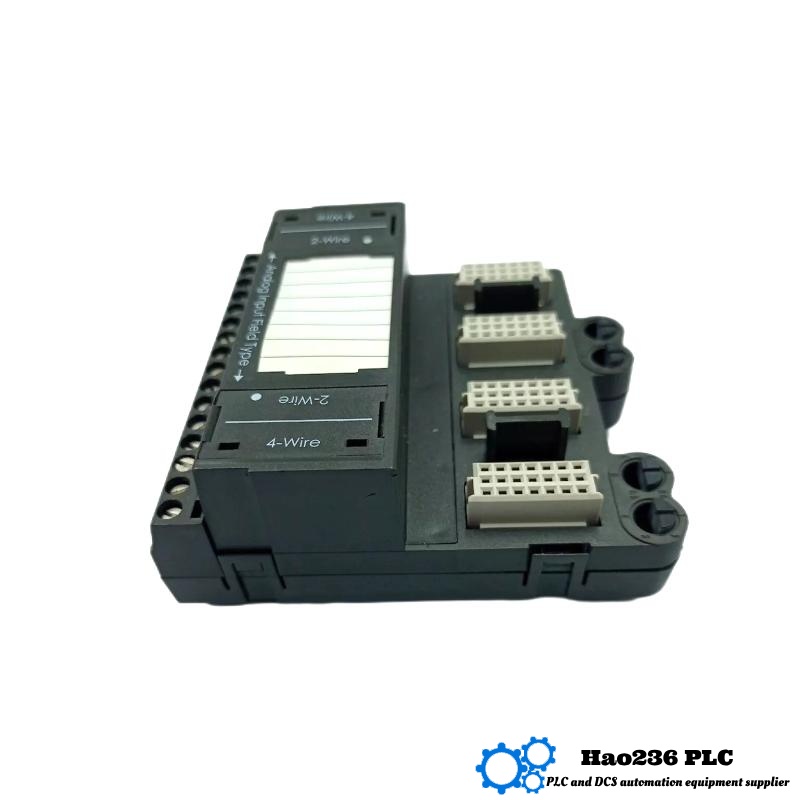

Emerson KJ3222X1-EA1 Redundant Analog Input Terminal Block
Product Introduction:
The Emerson KJ3222X1-EA1 is a redundant analog input terminal block that is part of the DeltaV system, providing enhanced reliability and fault tolerance for critical control systems. It allows seamless integration with Emerson’s DeltaV process control platform, offering redundancy to ensure continuous operation in environments where system reliability is crucial. This module supports multiple input signal types and is engineered to perform under demanding industrial conditions, providing precise measurements for process control.
The KJ3222X1-EA1 is designed to handle analog signals from sensors such as pressure, temperature, or flow measurement devices. It ensures high accuracy and low signal drift, providing continuous real-time feedback on critical parameters. As a redundant system, it helps ensure that process control systems remain operational even if one component fails, making it ideal for use in industries where uptime is essential, such as chemical processing, oil and gas, power generation, and more.
Product Applications:
-
Process Control Systems: The module is ideal for controlling and monitoring industrial processes where precise analog measurements are required for continuous operation.
-
Chemical and Petrochemical Plants: It is used to monitor parameters such as temperature, pressure, and flow in chemical processing environments.
-
Oil and Gas Industry: The KJ3222X1-EA1 helps maintain continuous operation in critical systems by monitoring sensors used in drilling, refining, and pipeline systems.
-
Power Generation: The terminal block is critical for monitoring sensors in power generation systems, ensuring stable operation and safety in turbines, generators, and boilers.
-
Water and Wastewater Treatment: The module is utilized in treatment facilities to monitor parameters like pH, turbidity, and chemical levels, ensuring effective treatment processes.
Product Advantages:
-
Redundancy for Reliability: The KJ3222X1-EA1 ensures continuous operation by providing redundant paths for analog input signals, minimizing the risk of downtime due to sensor failures.
-
High Precision and Accuracy: This module delivers highly accurate and reliable measurements, critical for ensuring proper process control and safety.
-
Flexible Input Signals: The module can handle various analog input signals, including 4-20 mA and 0-10 V, offering compatibility with different industrial sensors.
-
Real-Time Monitoring and Diagnostics: Provides real-time feedback and early detection of potential system issues, allowing for timely intervention and system maintenance.
-
Seamless DeltaV Integration: The KJ3222X1-EA1 integrates easily with the DeltaV system, enabling simplified operation and configuration in process control systems.
-
Compact and Robust Design: With a compact design, the terminal block is easy to install and requires minimal space, while being durable enough to perform in demanding industrial environments.
Brand and Series:
-
Brand: Emerson
-
Series: DeltaV
Parameters:
| Parameter | Value |
|---|---|
| Dimensions | 118 x 102 x 30 mm |
| Weight | 0.2 kg |
| Number of Channels | 8 channels |
| Signal Type Supported | 4-20 mA, 0-10 V |
| Input Range | –10 to 10 V, 4-20 mA |
| Power Supply | 24 V DC |
| Mounting Type | DIN Rail Mount |
| Operating Temperature | –40°C to 70°C |
| Response Time | Fast (real-time processing) |
| Conformance Standards | CE, UL, CSA |
Recommended Models from the Same Series or Related Models:
| Model | Dimensions | Weight | Number of Channels | Input Signal Types | Power Supply | Protocol |
|---|---|---|---|---|---|---|
| KJ3212X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3222X2-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3243X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3233X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3253X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
Recommended Popular Models from Emerson:
| Model | Dimensions | Weight | Number of Channels | Input Signal Types | Power Supply | Protocol |
|---|---|---|---|---|---|---|
| KJ3001X1-EA1 | 120 x 105 x 35 mm | 1.15 kg | 16 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3012X1-EA1 | 120 x 105 x 35 mm | 1.2 kg | 16 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3123X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3242X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
| KJ3212X1-EA1 | 118 x 102 x 30 mm | 0.2 kg | 8 channels | 4-20 mA, 0-10 V | 24 V DC | HART |
FAQ for Emerson KJ3222X1-EA1 Redundant Analog Input Terminal Block
Q1: What is the primary function of the KJ3222X1-EA1 module?
A1: The KJ3222X1-EA1 is a redundant analog input terminal block designed to enhance reliability and provide fault tolerance in process control systems.
Q2: How many channels does the KJ3222X1-EA1 support?
A2: The KJ3222X1-EA1 supports 8 channels of analog input.
Q3: What types of signals can the module handle?
A3: The module supports 4-20 mA and 0-10 V input signals.
Q4: What is the power supply requirement for the module?
A4: The KJ3222X1-EA1 requires a 24 V DC power supply.
Q5: Can the module be mounted on a DIN rail?
A5: Yes, the KJ3222X1-EA1 is designed for DIN rail mounting.
Q6: What is the operating temperature range for the KJ3222X1-EA1?
A6: The module operates within a temperature range of –40°C to 70°C.
Q7: Is the KJ3222X1-EA1 compatible with the HART communication protocol?
A7: Yes, the KJ3222X1-EA1 supports HART communication, allowing integration with smart field devices.
Q8: What industries can benefit from using this module?
A8: The module is ideal for use in industries such as oil and gas, chemical processing, power generation, and water treatment.
Q9: Is the KJ3222X1-EA1 compliant with industry standards?
A9: Yes, the module is compliant with CE, UL, and CSA standards for safety and reliability.
Q10: How does the redundancy feature work in the KJ3222X1-EA1?
A10: The KJ3222X1-EA1 provides redundant analog input channels, ensuring continuous data transmission even if one channel fails.
