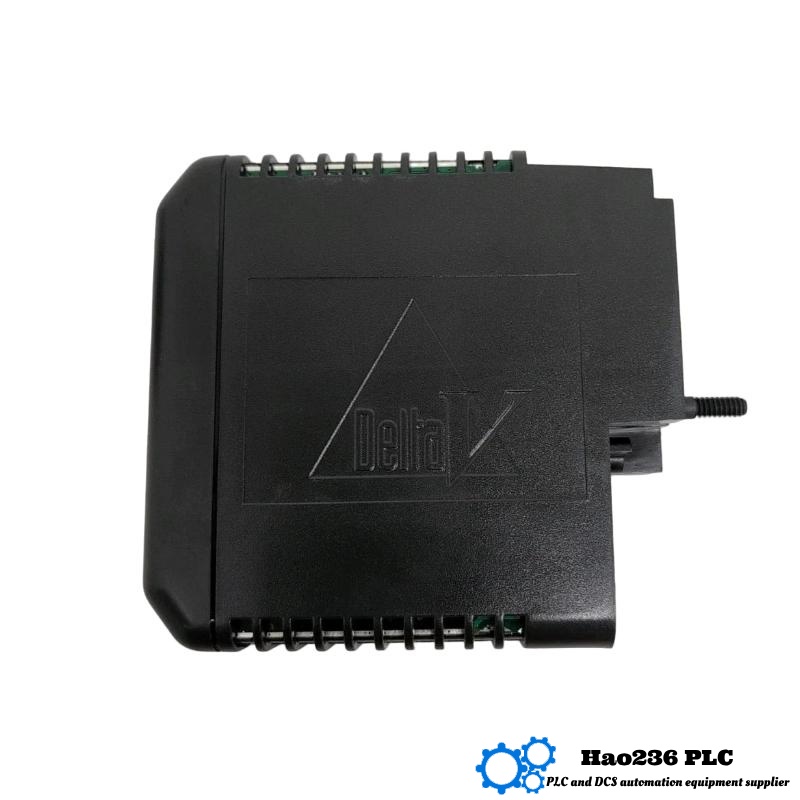

Emerson KJ3102X1-BB2 8-Channel Input Module
Product Overview
The Emerson KJ3102X1-BB2 is a robust and versatile 8-channel input module designed for use in Emerson’s DeltaV series of distributed control systems. This module is specifically designed to provide efficient and accurate data acquisition from analog input signals in industrial environments. With eight channels, it offers flexibility and can handle multiple inputs from a variety of sensors or devices, including temperature, pressure, level, and flow sensors.
The KJ3102X1-BB2 input module ensures real-time monitoring, control, and feedback within industrial automation systems, supporting both standard and customized inputs to meet the needs of various applications. As part of the DeltaV series, the module is engineered for high reliability, ease of integration, and operational flexibility. It plays a critical role in the effective control and automation of processes in industries such as manufacturing, power generation, oil and gas, and chemical production.
Key Specifications
| Parameter | Value |
|---|---|
| Dimensions | 107 × 41 × 105 mm |
| Weight | 1.36 kg |
| Number of Channels | 8 |
| Input Types | Voltage (0-10V, ±10V), Current (4-20mA) |
| Signal Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | > 1 MΩ |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Rack or Panel Mountable |
| Operating Voltage | 24 VDC |
| Protection Rating | IP20 |
Product Features
-
High Channel Count: The KJ3102X1-BB2 features 8 channels, enabling the monitoring of multiple parameters simultaneously, making it ideal for applications requiring data from several sources at once.
-
Multiple Input Types: This module supports both voltage (0-10V, ±10V) and current (4-20mA) inputs, providing flexibility to accommodate a variety of sensor types and measurement needs.
-
High-Resolution Data Acquisition: Offering 16-bit resolution, it ensures accurate and precise measurements for critical industrial processes.
-
Compact and Robust Design: The module’s compact dimensions (107 × 41 × 105 mm) and relatively lightweight (1.36 kg) design make it easy to integrate into existing control systems and tight spaces.
-
Wide Operating Temperature Range: Designed to operate in temperatures ranging from -20°C to +60°C, the KJ3102X1-BB2 can withstand a wide range of environmental conditions, from cold storage facilities to hot industrial plants.
-
Seamless DeltaV Integration: As part of Emerson’s DeltaV series, the module integrates easily into the DeltaV system, ensuring smooth communication with other control components and enhancing system efficiency.
Applications
The Emerson KJ3102X1-BB2 input module is widely used in several industries where real-time data monitoring and control are essential. Common applications include:
-
Power Generation: The module is used for monitoring key parameters such as temperature, pressure, and flow within power plants, helping maintain safe and efficient operation.
-
Oil and Gas: It is crucial for monitoring oil and gas extraction and processing facilities, providing real-time data on pressure, flow rates, and temperature.
-
Chemical Processing: In chemical manufacturing plants, the KJ3102X1-BB2 monitors various chemical reactions, ensuring precise control of temperature, pH, and chemical flow rates.
-
Water and Wastewater Treatment: It is used in water treatment plants to measure critical parameters such as pH, turbidity, and flow rate, helping optimize water treatment processes.
-
Industrial Automation: The module provides the foundation for industrial automation systems that require real-time monitoring of various variables, ensuring smooth production operations and process stability.
Advantages
-
High-Precision Measurement: The 16-bit resolution and ±0.1% accuracy make the module ideal for applications requiring precise and reliable data, ensuring optimal process control.
-
Flexible Input Options: The ability to handle both voltage and current signals allows it to interface with a wide range of sensors, providing greater flexibility in system design.
-
Compact Footprint: Despite its powerful capabilities, the KJ3102X1-BB2 has a compact form factor that allows for space-efficient installations in crowded control cabinets or panel racks.
-
Durability and Reliability: The module is built for industrial environments with an IP20 protection rating, ensuring it performs well in typical industrial settings with exposure to dust and other environmental factors.
-
Seamless Integration: The module is fully compatible with Emerson DeltaV systems, offering smooth integration and optimized performance across the control system.
Brand and Series
-
Brand: Emerson
-
Series: DeltaV
Recommended Products from the Same Series or Related Models
| Model | Parameters | Description |
|---|---|---|
| KJ3102X1-BA1 | 107 × 41 × 105 mm, 1.36 kg | Another 8-channel input module with similar functionality and improved noise immunity. |
| KJ3102X1-BB1 | 107 × 41 × 105 mm, 1.36 kg | Features a slightly higher input impedance for sensitive measurement applications. |
| KJ3102X1-AA2 | 107 × 41 × 105 mm, 1.36 kg | Designed for high-accuracy industrial measurement systems in precision applications. |
| KJ3102X1-CA2 | 107 × 41 × 105 mm, 1.36 kg | Offers additional diagnostic features to help with fault detection and maintenance. |
| KJ3102X1-AB3 | 107 × 41 × 105 mm, 1.36 kg | Enhanced for high-temperature applications, suitable for harsh industrial environments. |
Other Popular Emerson Models
| Model | Parameters | Description |
|---|---|---|
| KJ3502X1-AA1 | 150 × 50 × 150 mm, 2.0 kg | High-performance input module with extended capabilities for specialized applications. |
| KJ3700X1-AA2 | 150 × 60 × 180 mm, 2.5 kg | Advanced input/output module with faster data transmission capabilities for large systems. |
| KJ5002X1-BB3 | 200 × 70 × 180 mm, 3.0 kg | A more powerful controller module, ideal for large-scale industrial systems. |
| KJ5000X1-CA1 | 200 × 80 × 200 mm, 3.2 kg | Modular solution for critical process control with advanced safety features. |
| KJ5100X1-BB2 | 250 × 70 × 220 mm, 4.0 kg | A robust module with integrated diagnostic and fault detection features, designed for hazardous locations. |
Frequently Asked Questions (FAQ)
-
How many channels does the KJ3102X1-BB2 module support?
-
The module supports 8 analog input channels.
-
-
What input signal types are supported by the KJ3102X1-BB2?
-
It supports both voltage (0-10V, ±10V) and current (4-20mA) input signals.
-
-
What is the accuracy of the KJ3102X1-BB2 input module?
-
The module provides an accuracy of ±0.1% of full scale.
-
-
What is the signal resolution for this module?
-
The signal resolution is 16-bit, ensuring high-precision measurements.
-
-
What is the operating temperature range of the KJ3102X1-BB2?
-
It operates in temperatures from -20°C to +60°C.
-
-
What is the weight of the KJ3102X1-BB2 module?
-
The module weighs 1.36 kg.
-
-
What protection rating does the KJ3102X1-BB2 have?
-
The module has an IP20 protection rating.
-
-
Can the KJ3102X1-BB2 module handle high-voltage inputs?
-
No, the module is designed for voltage and current inputs with a range of 0-10V, ±10V, and 4-20mA.
-
-
Is the KJ3102X1-BB2 suitable for use in extreme environmental conditions?
-
Yes, with its wide operating temperature range, it can function effectively in cold and hot environments.
-
-
Can the KJ3102X1-BB2 module be used with any DeltaV system?
-
Yes, the module is fully compatible with Emerson’s DeltaV distributed control system.
