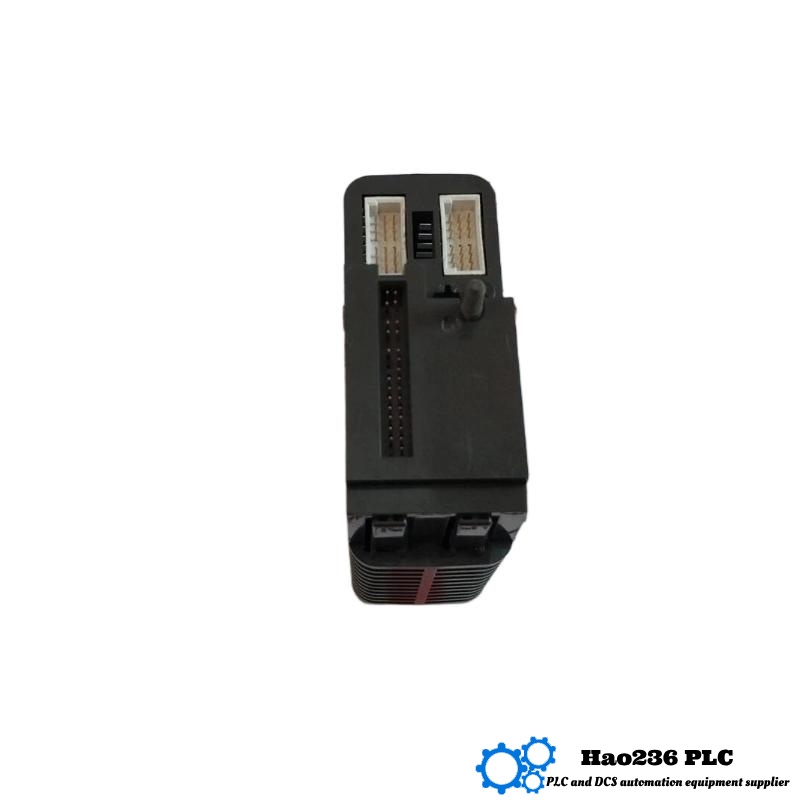

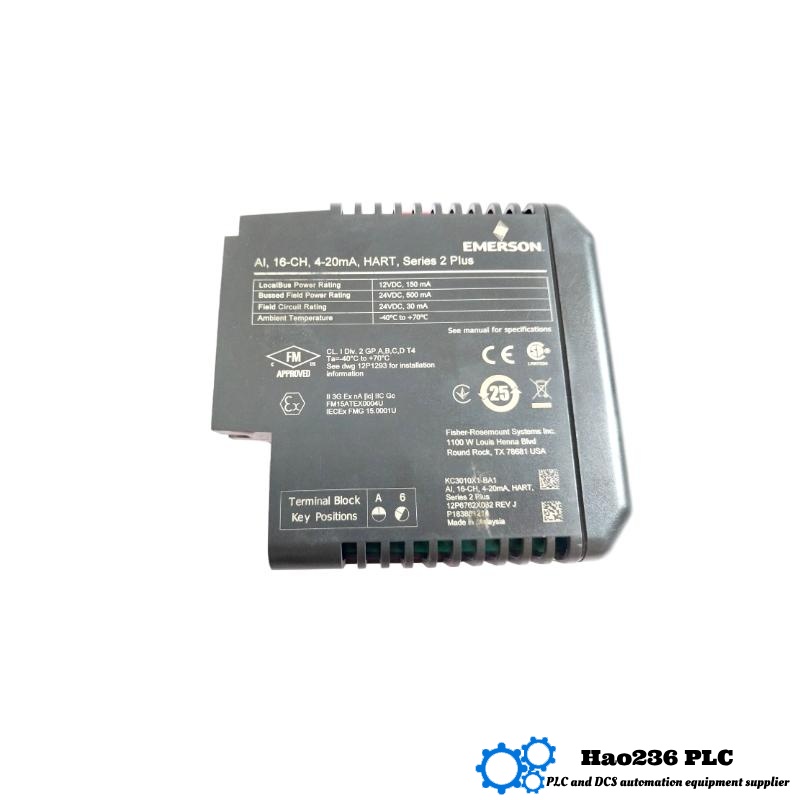

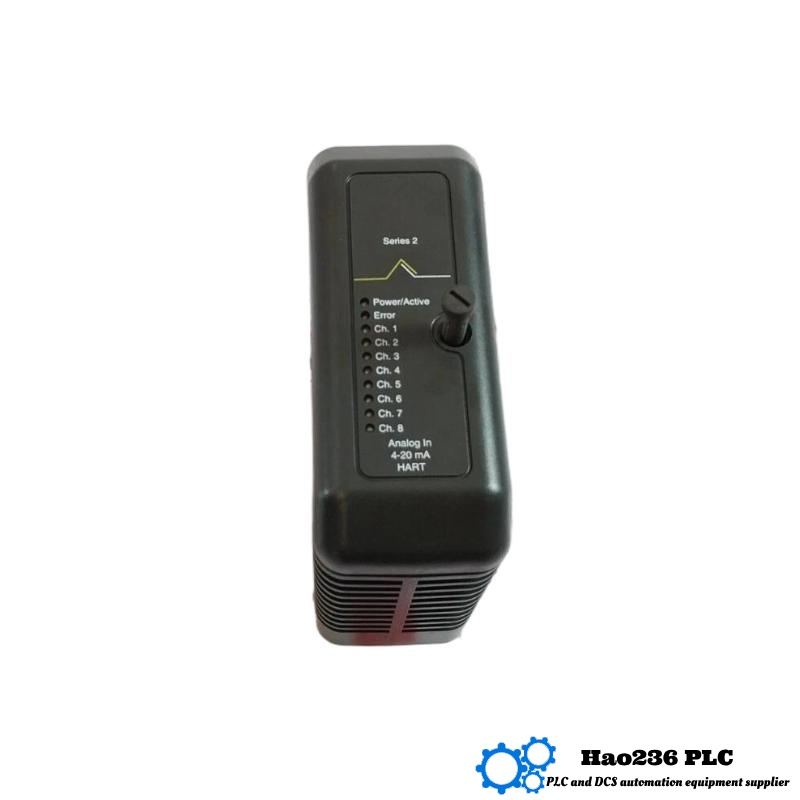

Emerson KC3010X1-BAI Analog Input Module

Product Introduction

The Emerson KC3010X1-BAI is an advanced analog input module designed for integration into Emerson’s DeltaV process control systems. This module is designed to efficiently convert analog signals from field instruments such as temperature sensors, pressure transmitters, and flow meters into digital data that can be processed by the DeltaV system. The KC3010X1-BAI module plays a crucial role in ensuring accurate monitoring and control in process industries such as chemical, oil & gas, power generation, and manufacturing.

This module provides high-precision, high-speed signal conversion, allowing for the seamless integration of a wide range of analog devices into the DeltaV control system. The KC3010X1-BAI is designed to be both reliable and scalable, supporting numerous applications that require precise analog measurements. It is ideal for systems where signal integrity and continuous monitoring are essential.

Product Parameters

Product Applications

The Emerson KC3010X1-BAI analog input module is primarily used in process control systems that require the accurate measurement of analog signals from field devices. Key applications include:

• Oil & Gas Industry: For monitoring critical process variables such as pressure, temperature, and flow in drilling operations, pipelines, and refineries.

• Chemical Processing: Used in chemical plants to monitor process parameters like pressure, temperature, and concentration in reactors, tanks, and distillation columns.

• Power Generation: Provides continuous monitoring of temperature, pressure, and flow in boilers, turbines, and cooling systems in power plants.

• Water and Wastewater Treatment: Helps in monitoring and controlling parameters like pH, turbidity, and flow in water treatment facilities.

• Manufacturing Automation: Essential for industrial automation systems where precise measurements from various analog sensors are required for machine operation, quality control, and monitoring.

The KC3010X1-BAI module ensures that these systems operate efficiently and safely by providing accurate and reliable analog data for control and optimization.

Product Advantages

• High Precision and Accuracy: The KC3010X1-BAI module offers ±0.1% accuracy of full scale, ensuring that all analog signals are processed with the highest degree of precision.

• Wide Temperature Range: With an operating temperature range from -40°C to +70°C, the module can be used in a variety of industrial environments, from extreme cold to high-temperature applications.

• Fast Response Time: With a response time of less than 20 ms, the module ensures quick data processing, which is crucial for real-time control in dynamic industrial processes.

• Easy Integration: The module is compatible with Emerson’s DeltaV system, offering seamless integration for efficient control and monitoring.

• High Isolation: The KC3010X1-BAI offers 1500 VDC isolation, ensuring that sensitive control systems are protected from electrical noise and surges in the field devices.

• Compact and Lightweight: The small form factor (107 × 41 × 105 mm) and low weight (0.23 kg) make it easy to install and integrate into existing control systems without taking up too much space.

Brand and Series

• Brand: Emerson

• Series: DeltaV Series

The DeltaV Series from Emerson is a highly flexible and scalable control system, widely regarded for its ease of use, high performance, and seamless integration with a range of industrial applications. The DeltaV platform is trusted by industries across the globe for automating complex processes and providing real-time insights to improve operational efficiency.
