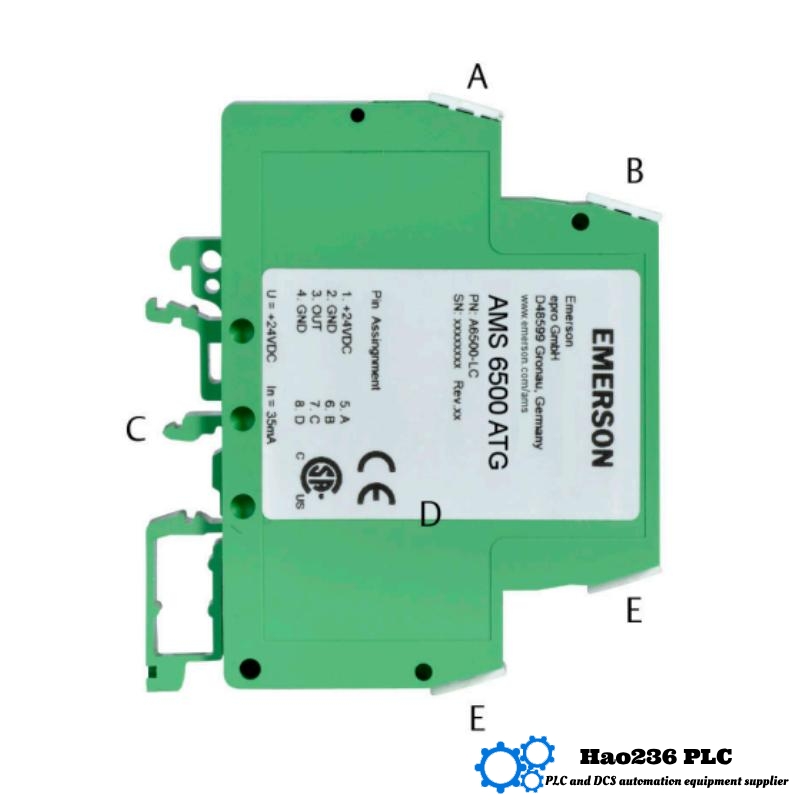

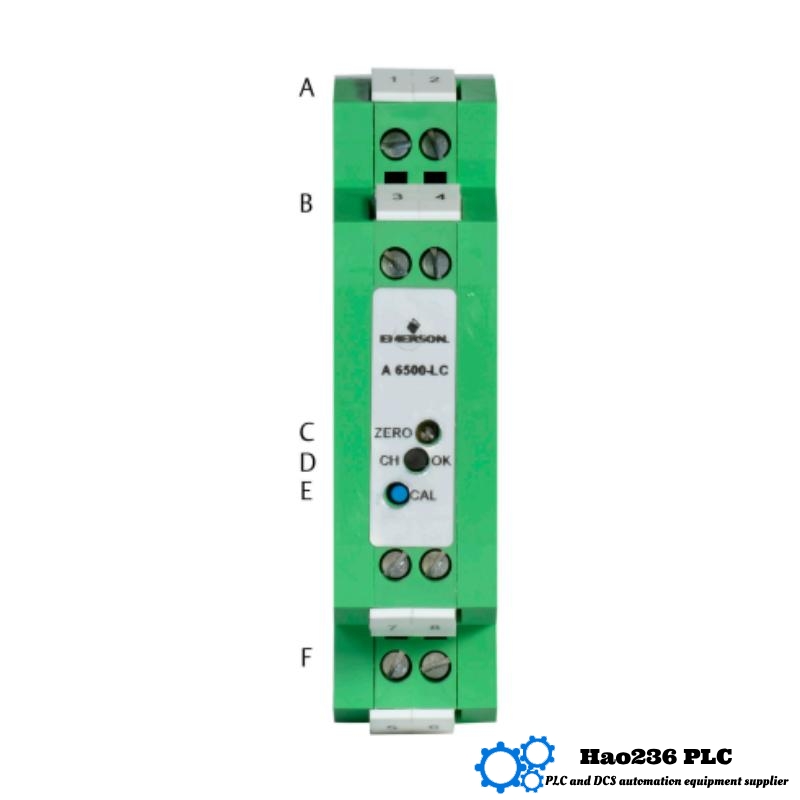

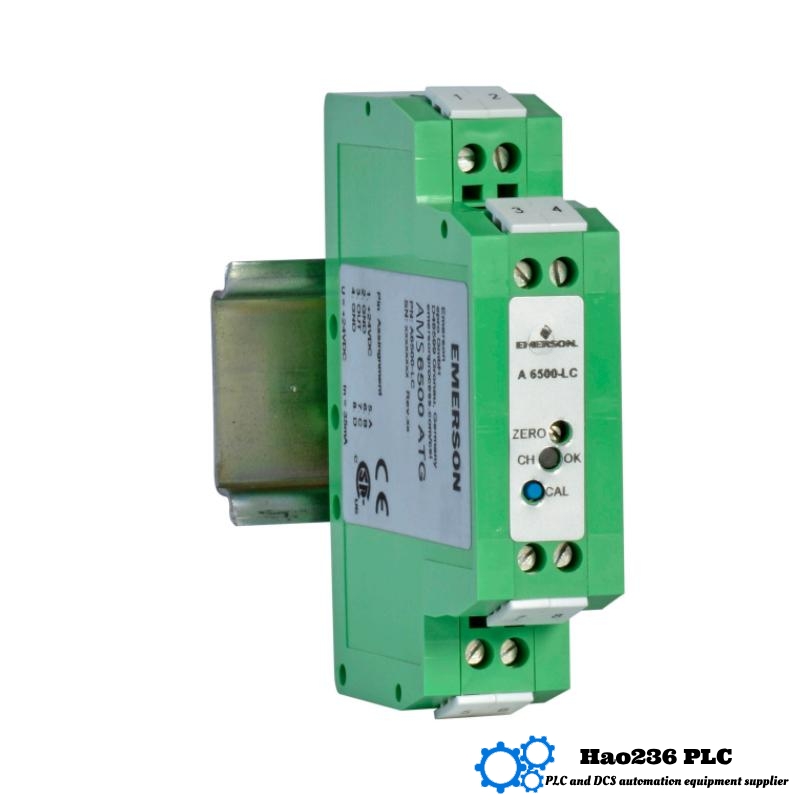

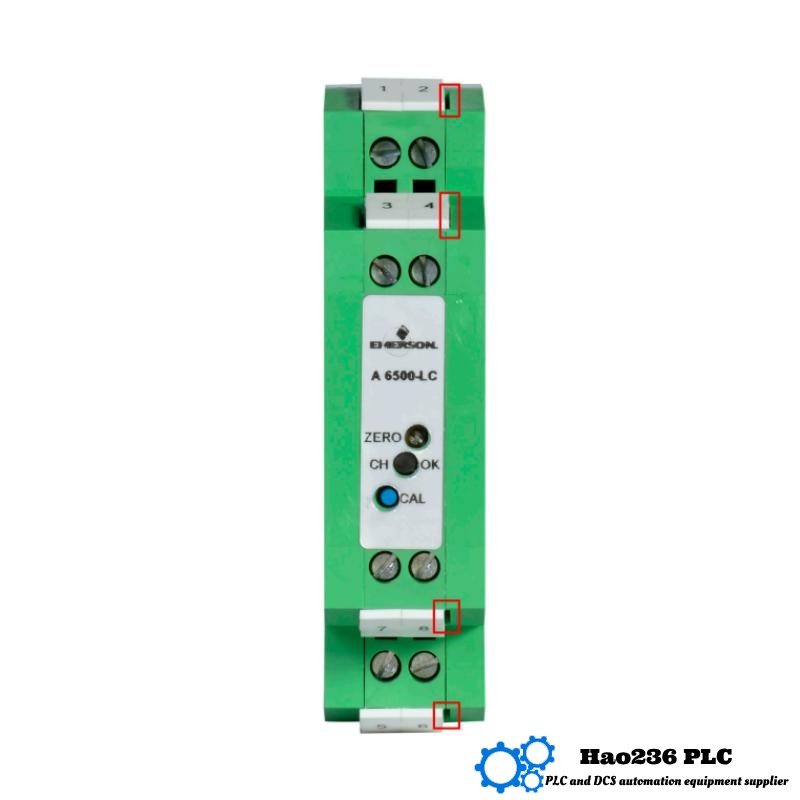

Emerson A6500-LC LVDT Converter
Product Overview:
The Emerson A6500-LC is a high-performance LVDT (Linear Variable Differential Transformer) signal converter designed for precise measurement and control in industrial and automation applications. The A6500-LC converts the electrical signal from LVDT sensors into a standard analog output, typically used for position sensing, displacement measurement, and other similar applications.
This product is part of Emerson’s A6500 series of LVDT converters, which offer reliable and accurate signal conversion in both industrial and laboratory environments. With a robust design and compatibility with various LVDT sensors, the A6500-LC provides high linearity and repeatability, making it suitable for applications requiring accurate displacement or position data.
Product Specifications:
| Parameter | Description |
|---|---|
| Model | A6500-LC |
| Brand | Emerson |
| Series | A6500 Series |
| Type | LVDT Signal Converter |
| Input Type | LVDT Sensor Signal |
| Output Type | 0-10 V or 4-20 mA (Selectable) |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 79.5 x 20 x 69.5 mm |
| Weight | 0.065 kg |
| Accuracy | ±0.25% full scale |
| Linear Output Range | 0-100% of the input signal range |
| Mounting | Surface Mount, DIN Rail Optional |
| Status Indicators | LED indicators for power and signal status |
| Protection Class | IP20 |
Product Applications:
The A6500-LC LVDT converter is ideal for a wide range of applications that require precise position and displacement measurement. Common uses include:
- Industrial Automation: In automated systems where high precision is necessary for control loops, feedback systems, and motion control.
- Position and Displacement Sensing: Used in applications such as valve position monitoring, actuators, or any system requiring precise measurement of linear displacement.
- Test and Measurement Equipment: The A6500-LC is used in testing systems for measuring mechanical movements, vibrations, or other motions that require accurate displacement readings.
- Aerospace and Defense: Provides accurate and reliable measurements for testing and operational use in critical aerospace applications, such as actuators and control systems.
- Medical Equipment: In medical devices that require precise linear displacement or position sensing, such as linear actuators in medical machinery.
Product Advantages:
- High Accuracy: The A6500-LC offers a highly accurate signal conversion with an accuracy of ±0.25% full scale, making it ideal for precision applications.
- Flexible Output Options: The module supports both 0-10 V and 4-20 mA outputs, providing compatibility with a wide range of control systems and devices.
- Compact and Lightweight: With dimensions of 79.5 x 20 x 69.5 mm and a weight of just 0.065 kg, the A6500-LC can be easily integrated into systems with space constraints.
- Wide Temperature Range: Operating from -40°C to 85°C, the A6500-LC is suitable for both harsh industrial and laboratory environments.
- Easy Integration: The converter is designed for easy integration with a variety of LVDT sensors and standard automation systems. It offers simple setup and configuration, making it a flexible solution for diverse applications.
- Status Indicators for Monitoring: LED indicators provide real-time feedback on power and signal status, simplifying troubleshooting and ensuring reliable operation.
Recommended Models in the Same Series or Related:
| Model | Description | Input Type | Output Type | Dimensions | Weight |
|---|---|---|---|---|---|
| A6500-HT | High-temperature LVDT signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 79.5 x 20 x 69.5 mm | 0.065 kg |
| A6500-LP | Low-power LVDT signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 79.5 x 20 x 69.5 mm | 0.065 kg |
| A6500-IS | Isolated version for noisy environments | LVDT Sensor Signal | 0-10 V, 4-20 mA | 79.5 x 20 x 69.5 mm | 0.065 kg |
| A6500-DIN | DIN rail mounted LVDT signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 79.5 x 20 x 69.5 mm | 0.065 kg |
| A6500-EX | Explosion-proof LVDT signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 79.5 x 20 x 69.5 mm | 0.065 kg |
Popular Models from Emerson:
| Model | Description | Input Type | Output Type | Dimensions | Weight |
|---|---|---|---|---|---|
| A4500-LC | Advanced LVDT converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 100 x 50 x 60 mm | 0.1 kg |
| A2000-1 | Standard LVDT signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 120 x 60 x 80 mm | 0.2 kg |
| A6000-EX | Explosion-proof LVDT converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 90 x 45 x 70 mm | 0.2 kg |
| A3000-SC | LVDT signal conditioner | LVDT Sensor Signal | 0-10 V, 4-20 mA | 110 x 60 x 50 mm | 0.18 kg |
| A6500-3 | High-performance signal converter | LVDT Sensor Signal | 0-10 V, 4-20 mA | 100 x 40 x 80 mm | 0.15 kg |
Frequently Asked Questions (FAQ):
-
Q: What is the input type for the A6500-LC converter?
- A: The A6500-LC supports an LVDT sensor signal as its input.
-
Q: What is the output range of the A6500-LC converter?
- A: The output is selectable between 0-10 V or 4-20 mA.
-
Q: What is the weight of the A6500-LC?
- A: The A6500-LC weighs 0.065 kg.
-
Q: What is the temperature range for the A6500-LC converter?
- A: The converter operates within a temperature range of -40°C to 85°C.
-
Q: How can I mount the A6500-LC?
- A: The module can be mounted on a surface mount or optionally with a DIN rail.
-
Q: Does the A6500-LC have status indicators?
- A: Yes, it has LED indicators to show the power and signal status.
-
Q: Can I use the A6500-LC in hazardous environments?
- A: The standard version is not designed for hazardous environments, but Emerson offers explosion-proof versions like the A6500-EX.
-
Q: What is the accuracy of the A6500-LC?
- A: The accuracy of the converter is ±0.25% full scale.
-
Q: What types of LVDT sensors can be used with the A6500-LC?
- A: The A6500-LC is compatible with most standard LVDT sensors that operate within the specified input signal range.
-
Q: Can I use the A6500-LC with other Emerson products?
- A: Yes, the A6500-LC is designed for seamless integration with a wide range of Emerson industrial automation systems.
