Product Overview

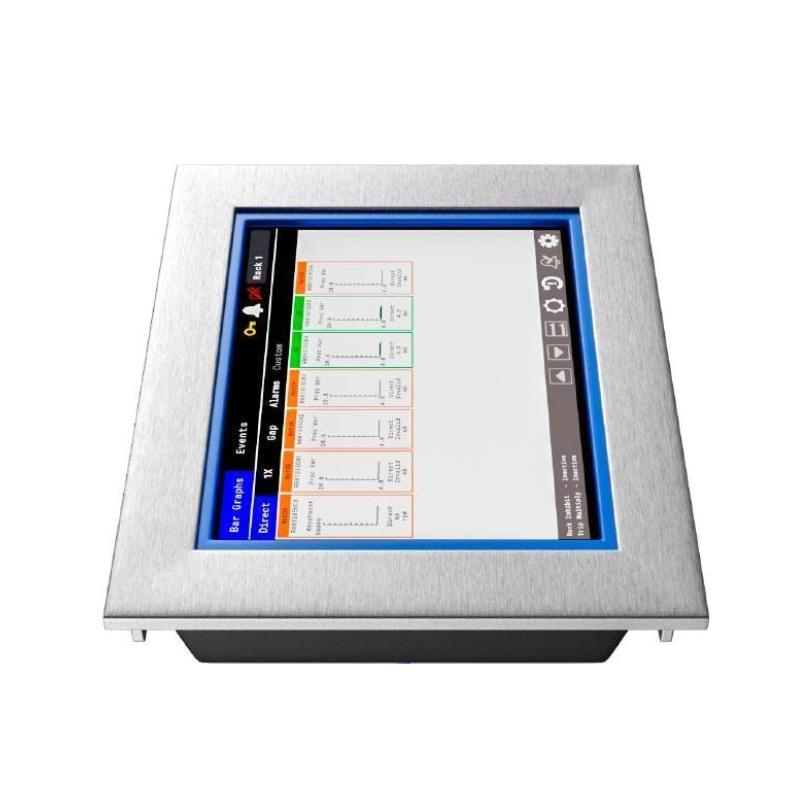

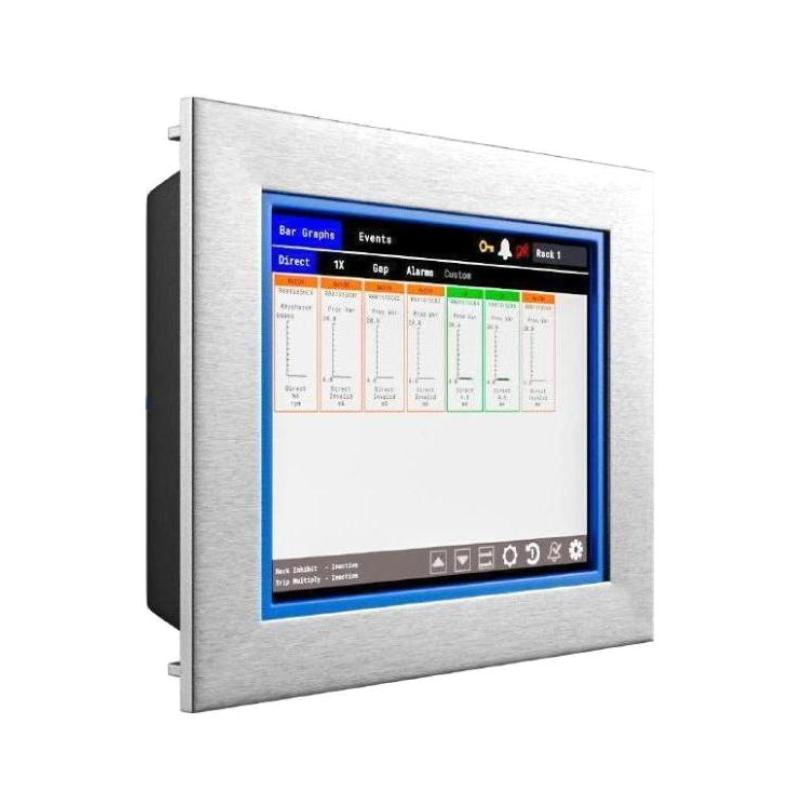

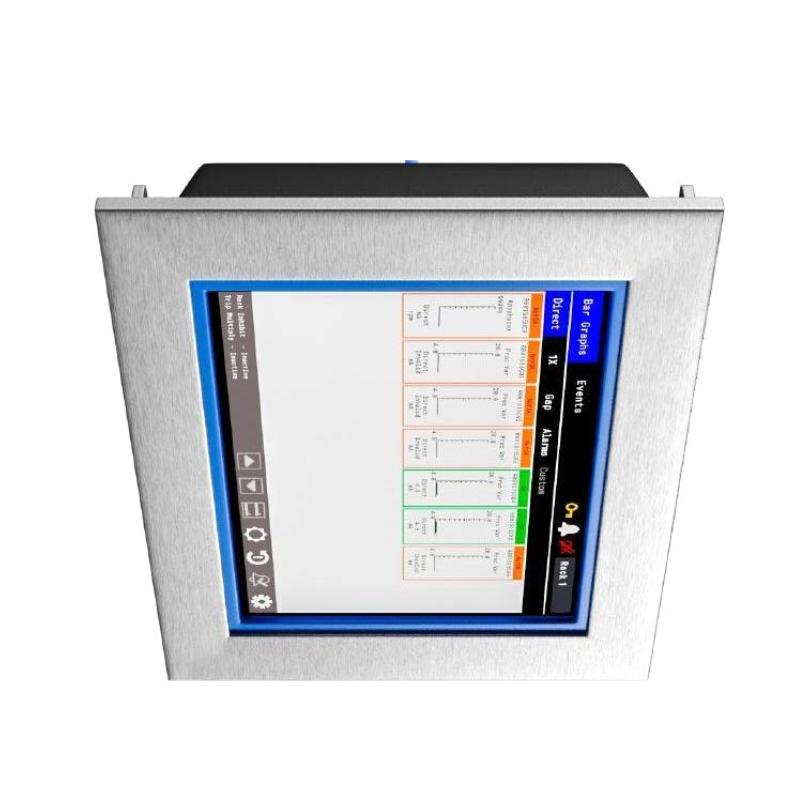

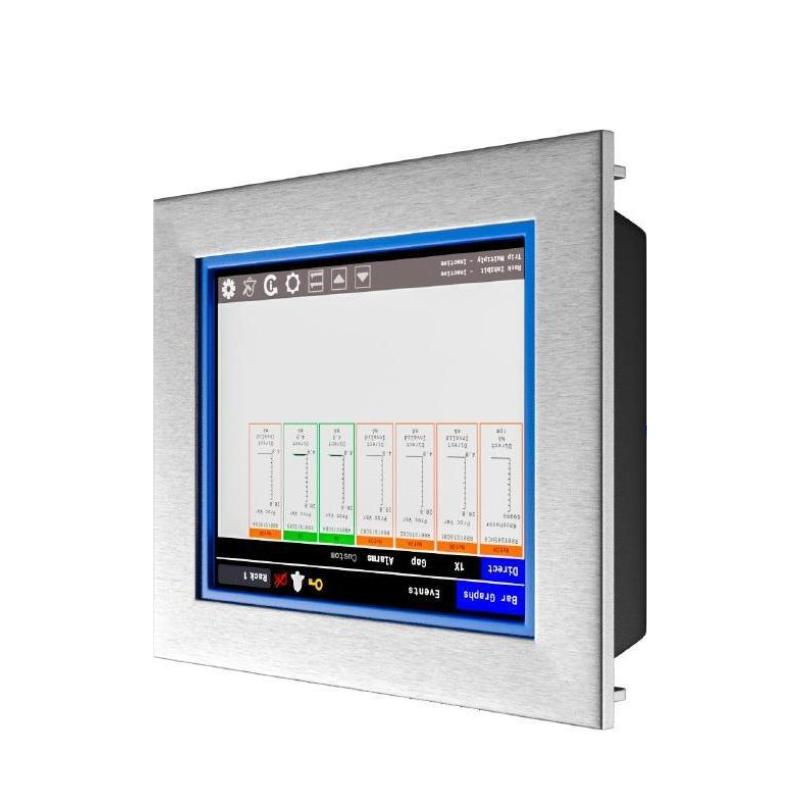

The Bently Nevada 60X/EXD01-00-02 is a 10.4-inch hazardous area display for the Orbit 60 Series, intended for situations where machinery monitoring information needs to be viewed in a hazardous industrial environment. It gives operators a local display point for monitoring information without requiring them to leave the equipment area to access a control-room workstation.
A typical installation can place the display near a compressor train, turbine auxiliary system, pump package, or other monitored rotating equipment. Operators can use the local display to review available machinery condition information, alarm status, and operating data associated with the Orbit 60 monitoring system.
The hazardous-area format is particularly relevant to process facilities where monitoring equipment is installed around hydrocarbon processing, gas handling, chemical processing, or other classified areas. The display forms part of the operator-facing side of the monitoring architecture, while dedicated Orbit 60 monitoring hardware remains responsible for acquiring and processing machinery signals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 60X/EXD01-00-02 |
| Product Family | Orbit 60 Series |
| Product Type | 10.4″ Hazardous Area Display |
| Display Size | 10.4″ |
| Application | Hazardous-area machinery monitoring display |
| Dimensions | 387.4 × 248.9 × 49 mm |
| Weight | 4 kg |
Product Features
- Orbit 60 Series 10.4″ Hazardous Area Display
- Model 60X/EXD01-00-02
- Intended for local visualization in hazardous industrial areas
- 10.4-inch display format
- Suitable for Orbit 60 machinery monitoring information
- Supports local operator access to monitoring data and alarm information
- Suitable for installation near monitored machinery
- Separates local visualization from the primary monitoring hardware
- Compact panel-style construction
- Suitable for process and rotating equipment monitoring environments
- Supports operator and maintenance activities in field locations
- Can reduce the need for operators to return to a remote monitoring workstation for routine visual checks
Working Principle
The 60X/EXD01-00-02 functions as the local visualization point in an Orbit 60 monitoring installation.
Machinery Sensors → Orbit 60 Monitoring Modules → System Interface → Hazardous Area Display → Operator
Sensors installed on rotating equipment send measurement signals to the appropriate Orbit 60 monitoring modules. The monitoring hardware processes the available machinery-condition information and transfers the relevant data through the system interface.
The 10.4-inch display presents the information at the equipment location. This arrangement is useful when an operator needs to check machinery status, monitoring values, or alarm information while working close to the equipment.
The display itself is not the primary signal-acquisition element. Its role is to make information generated elsewhere in the Orbit 60 architecture accessible at a local hazardous-area operating point.
Role in an Orbit 60 Machinery Monitoring Control Architecture
The 60X/EXD01-00-02 sits at the operator interface level of the Orbit 60 monitoring architecture, with the additional requirement of supporting display operation in a hazardous-area environment.
Field Sensors → Orbit 60 Monitoring Modules → System Interface → 60X/EXD01-00-02 → Local Operator
| System Element | Function |
|---|---|
| Machinery Sensors | Generate measurement signals from the monitored equipment |
| Orbit 60 Monitoring Modules | Acquire and process machinery-condition information |
| System Interface | Transfers monitoring information within the Orbit 60 architecture |
| 60X/EXD01-00-02 | Displays monitoring information at the hazardous-area location |
| Local Operator | Reviews machine condition, status, and alarm information |
| DCS / PLC | Handles associated plant control functions where integrated |
The actual installation depends on the hazardous-area classification, system architecture, selected Orbit 60 monitoring hardware, communication arrangement, and plant control system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Compressor Stations | Local viewing of compressor machinery monitoring information |
| Oil and Gas Facilities | Displaying machinery condition information in hazardous process areas |
| Gas Processing | Providing local access to monitoring values and alarm status |
| Refining Equipment | Supporting field-level visualization around monitored rotating equipment |
| Chemical Processing | Displaying machinery monitoring information in classified operating areas |
| Turbine Packages | Local viewing of turbine-related monitoring information |
| Pump Stations | Allowing operators to check monitored pump equipment near the installation |
| Offshore Platforms | Providing a local monitoring display where hazardous-area equipment is present |
| Process Machinery | Supporting field access to machinery condition and status information |
| Maintenance Areas | Allowing technicians to review available monitoring information close to the monitored asset |
Installation and Maintenance
- Confirm the complete 60X/EXD01-00-02 reference before installation or replacement.
- Verify that the selected installation location and area classification are appropriate for the specific display.
- Confirm the mechanical mounting arrangement and ensure the display is securely supported.
- Check the applicable power and communication connections before energizing the display.
- Inspect all external cables and connectors for damage, loose connections, or unsuitable routing.
- Verify the display communication path with the associated Orbit 60 system interface.
- Confirm that the upstream Orbit 60 monitoring modules are operating before troubleshooting the display itself.
- Check that required monitoring values, machine status, and alarm information are available after commissioning.
- Keep the display surface clean enough for operators to read monitoring information clearly without using unsuitable cleaning materials.
- Avoid mechanical impact, excessive vibration, moisture ingress, and other conditions that could affect the installed display.
- If the display is blank or unavailable, check power, communication connections, system interface status, and upstream monitoring equipment before replacing the unit.
- After replacement, verify the display function and confirm that the required Orbit 60 monitoring information is correctly presented at the local operating position.
For hazardous-area installations, replacement and maintenance procedures should follow the applicable site safety requirements and equipment certification conditions.
Related Components
| Component | Function |
|---|---|
| Bently Nevada 60R/SIM01-00-0 | Orbit 60 System Interface Module |
| Orbit 60 Monitoring Modules | Acquire and process machinery-condition signals |
| Orbit 60 Machinery Sensors | Provide measurements from monitored rotating equipment |
| Bently Nevada 60X/CMP01 | Industrial computer used for Orbit 60 display functions |
| Orbit 60 Configuration Software | Supports configuration and engineering activities |
| DCS / PLC Interface | Connects relevant monitoring information with plant control systems |
| Industrial Communication Equipment | Supports communication between monitoring and display components |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 60X/CMP01 | Orbit 60 Series Industrial Computer for Display | Computing and display functions within the Orbit 60 system |
| Bently Nevada 60R/SIM01-00-0 | Orbit 60 System Interface Module | System-level interface and monitoring data communication |
| Bently Nevada 60X/CFG | Orbit 60 Series Configuration Software | System configuration and engineering |
| Orbit 60 Monitoring Modules | Machinery Monitoring Modules | Acquisition and processing of machinery-condition signals |
| Orbit 60 Sensors | Machinery Monitoring Sensors | Measurement of machinery operating and condition parameters |
Key Advantages
- 10.4-inch local display for Orbit 60 monitoring information.
- Intended for hazardous-area display applications.
- Allows operators to view machinery information close to the equipment.
- Supports local access to monitoring values and alarm status.
- Integrates with the wider Orbit 60 monitoring architecture.
- Suitable for process and rotating equipment installations.
Technical FAQs
What is the main purpose of the Bently Nevada 60X/EXD01-00-02?
The 60X/EXD01-00-02 is a 10.4-inch hazardous area display used to present Orbit 60 machinery monitoring information at a local operating position.
Why would a hazardous area display be installed near rotating equipment?
A local display allows operators and maintenance personnel to review available machinery condition and alarm information while working near the monitored equipment. This is useful when the equipment is located in a classified process area away from the main control room.
Does the 60X/EXD01-00-02 perform the primary machinery signal acquisition?
No. The display operates at the visualization layer. Dedicated Orbit 60 monitoring modules acquire and process the machinery signals, while the display presents the resulting information to the operator.
What should be checked when replacing the 60X/EXD01-00-02 in a hazardous area?
The replacement should be checked against the installed Orbit 60 architecture and the requirements of the installation area. Power, communication, mounting, system interface, and applicable hazardous-area installation requirements should all be verified before the display is returned to service.
