Product Overview

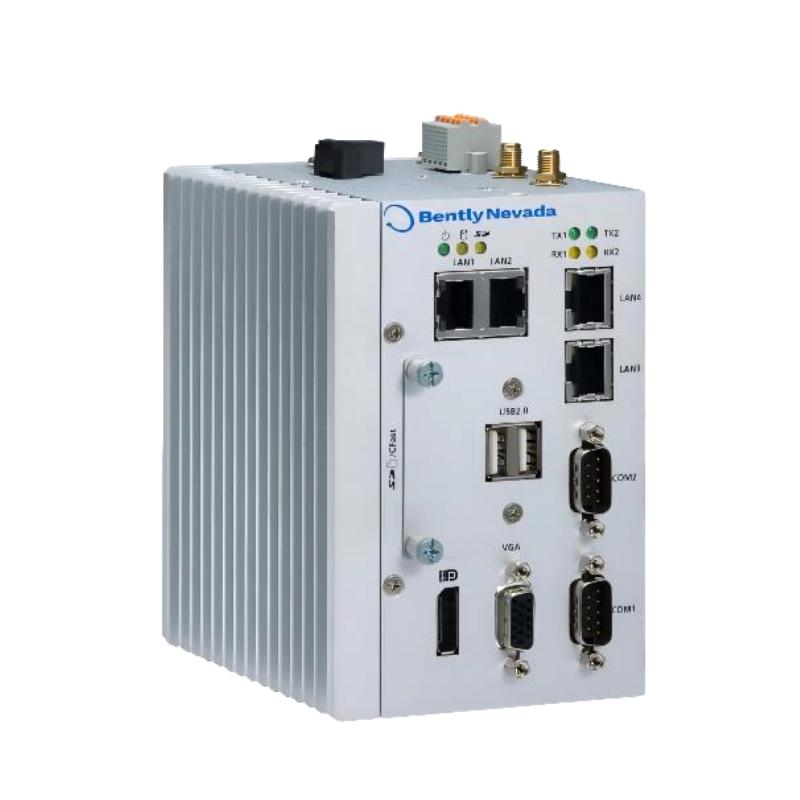

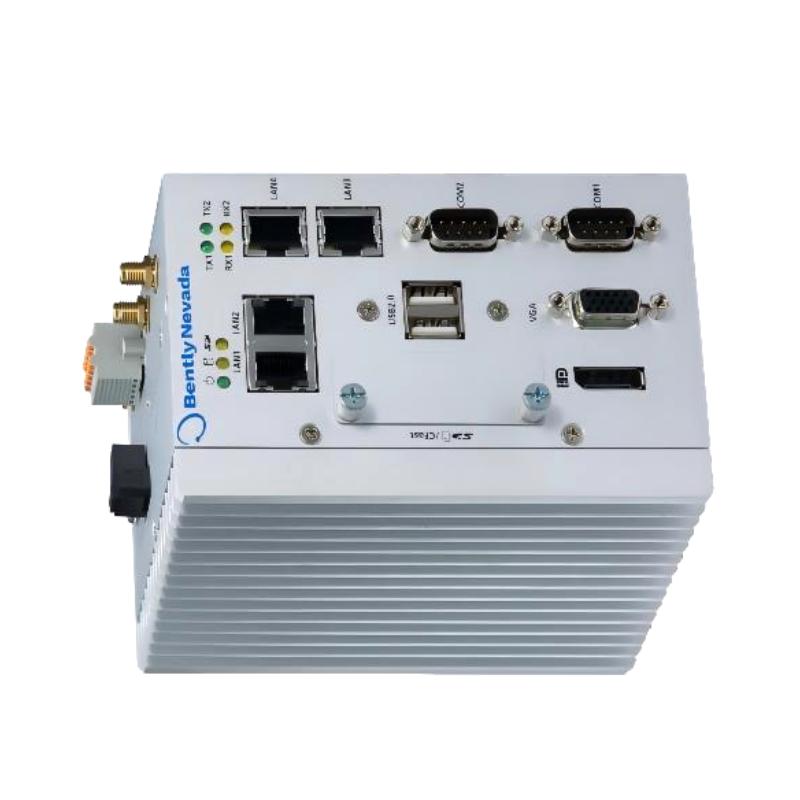

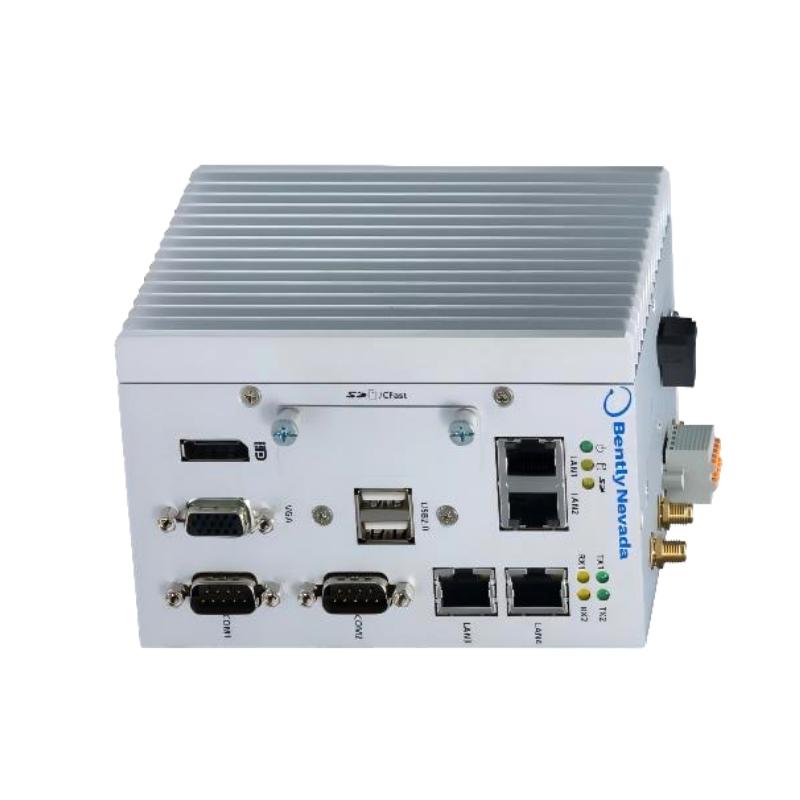

The Bently Nevada 60X/CMP01 is an Orbit 60 Series Industrial Computer for Display used to provide the computing and visualization layer within an Orbit 60 machinery monitoring system. It is intended for installations where operators need a dedicated industrial computing platform to view machinery condition information, system status, alarms, and other monitoring data.
The 60X/CMP01 works alongside the Orbit 60 monitoring hardware rather than replacing the dedicated measurement modules. Sensors and monitoring modules handle machinery signal acquisition and monitoring functions, while the industrial computer supports the display environment used by operators and maintenance personnel.
In a compressor monitoring installation, for example, the computer can be used as the operator-facing point for reviewing available monitoring information from the compressor train. The same architecture can be applied to turbines, pumps, motors, and other rotating equipment where centralized machinery-condition visualization is required.
For replacement work, the complete 60X/CMP01 reference should be checked against the installed Orbit 60 configuration, display arrangement, communication connections, and associated monitoring hardware before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 60X/CMP01 |
| Product Family | Orbit 60 Series |
| Product Type | Industrial Computer for Display |
| Application | Machinery monitoring display and operator interface |
| Dimensions | 132 × 122 × 87 mm |
| Weight | 1.75 kg |
Product Features
- Orbit 60 Series Industrial Computer for Display
- Model 60X/CMP01
- Dedicated computing platform for machinery monitoring visualization
- Suitable for operator-facing display functions
- Works with the Orbit 60 machinery monitoring architecture
- Supports presentation of monitoring information and system status
- Can be used with dedicated Orbit 60 monitoring modules
- Suitable for rotating machinery monitoring installations
- Compact physical construction for industrial system integration
- Supports operator and maintenance access to monitoring information
- Suitable for centralized machinery monitoring stations
- Separates display computing from dedicated machinery signal acquisition
Working Principle
The 60X/CMP01 sits on the computing and visualization side of an Orbit 60 monitoring system.
Machinery Sensors → Orbit 60 Monitoring Modules → System Interface → 60X/CMP01 → Display / Operator
Sensors installed on the monitored machine provide physical measurement signals to the appropriate Orbit 60 monitoring modules. These monitoring modules process the incoming signals and make the resulting machinery-condition information available to the wider monitoring architecture.
The system interface transfers the relevant information within the Orbit 60 environment. The 60X/CMP01 then provides the industrial computing resources required to present this information through the display environment.
For example, vibration or other machinery-condition information generated by monitoring hardware can be made available to an operator workstation for viewing. The computer therefore acts as the visualization and computing point rather than the primary measurement device.
This separation allows dedicated monitoring hardware to remain responsible for signal acquisition and monitoring functions while the industrial computer handles the operator-facing presentation of the available system information.
Role in an Orbit 60 Machinery Monitoring Control Architecture
The 60X/CMP01 occupies the display and computing position within an Orbit 60 machinery monitoring architecture.
Field Sensors → Orbit 60 Monitoring Modules → System Interface → 60X/CMP01 → Operator Display
| System Element | Function |
|---|---|
| Machinery Sensors | Generate physical measurement signals from the monitored equipment |
| Orbit 60 Monitoring Modules | Acquire and process machinery-condition signals |
| System Interface | Transfers monitoring information within the Orbit 60 system architecture |
| 60X/CMP01 | Provides industrial computing resources for display functions |
| Operator Display | Presents monitoring values, status information, and alarms |
| DCS / PLC | Receives or processes relevant monitoring information where integrated |
The actual architecture depends on the installed Orbit 60 monitoring modules, system interface, display equipment, communication arrangement, and plant control system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Compressor Monitoring | Displaying machinery-condition information from compressor trains |
| Turbine Monitoring | Providing operator access to monitoring information for rotating turbine equipment |
| Pump Monitoring | Viewing available condition and status information for critical pumps |
| Motor Monitoring | Supporting centralized monitoring of industrial motors and associated equipment |
| Machinery Protection | Presenting monitoring information and alarm conditions to operators |
| Process Plants | Providing a dedicated display computing point within machinery monitoring installations |
| Power Generation | Supporting visualization of rotating equipment monitoring information |
| Oil and Gas Equipment | Displaying monitoring information associated with compressors and other critical machinery |
| Manufacturing Equipment | Providing operator-facing visualization for monitored rotating assets |
| Maintenance Stations | Allowing maintenance personnel to review machinery-condition information and system status |
Installation and Maintenance
- Confirm the complete 60X/CMP01 reference before installation or replacement.
- Verify that the replacement computer matches the installed Orbit 60 monitoring architecture.
- Check the mounting arrangement and ensure that the computer is securely installed.
- Verify the applicable power connection before energizing the unit.
- Inspect display connections and associated cables for secure installation.
- Check communication connections between the computer and the associated Orbit 60 system equipment.
- Confirm that the required monitoring modules and system interface are operating correctly.
- Verify the configured display environment after installation or replacement.
- Maintain suitable environmental conditions and keep the computer away from excessive heat, moisture, and contamination.
- Confirm that required machinery monitoring values, status information, and alarms are correctly displayed after commissioning.
- If the display is unavailable, check power, display connections, communication paths, and upstream Orbit 60 components before replacing the computer.
- Record the installed configuration and verify system communication and display functions after replacement.
For troubleshooting, it is useful to determine whether the problem is limited to the display computer or originates upstream in the monitoring modules or system interface. Checking the information path from the monitoring hardware to the display can help isolate the fault.
Related Components
| Component | Function |
|---|---|
| Bently Nevada 60R/SIM01-00-0 | Orbit 60 System Interface Module |
| Orbit 60 Monitoring Modules | Acquire and process machinery-condition signals |
| Orbit 60 Sensors | Provide physical measurements from monitored machinery |
| Orbit 60 Display Equipment | Presents monitoring information to operators |
| Orbit 60 Configuration Software | Supports system configuration and engineering tasks |
| Industrial Network Equipment | Provides communication between monitoring and control-system components |
| DCS / PLC Interface | Connects relevant monitoring information with the plant control system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 60R/SIM01-00-0 | Orbit 60 System Interface Module | System-level communication and interface functions |
| Bently Nevada 60X/CFG | Orbit 60 Series Configuration Software | Orbit 60 configuration and engineering |
| Bently Nevada Orbit 60 Monitoring Modules | Machinery Monitoring Modules | Machinery signal acquisition and monitoring |
| Bently Nevada Orbit 60 Sensors | Machinery Monitoring Sensors | Measurement of machinery-condition parameters |
| Bently Nevada Orbit 60 Series | Machinery Monitoring Platform | Integrated rotating equipment monitoring |
Key Advantages
- Dedicated computing platform for Orbit 60 display functions.
- Supports operator access to machinery monitoring information.
- Separates display computing from dedicated measurement hardware.
- Compact form factor for industrial monitoring installations.
- Suitable for centralized rotating machinery monitoring.
- Integrates into the wider Orbit 60 monitoring architecture.
- Supports maintenance and operator visualization requirements.
Technical FAQs
What is the main function of the Bently Nevada 60X/CMP01?
The 60X/CMP01 is an Orbit 60 Series industrial computer used for display and operator-facing computing functions. It provides the computing platform for presenting information generated by the machinery monitoring system.
Does the 60X/CMP01 directly acquire machinery vibration signals?
The 60X/CMP01 is used for display and computing functions rather than primary sensor signal acquisition. Dedicated Orbit 60 monitoring modules handle the acquisition and processing of machinery-condition signals.
What should be checked when the 60X/CMP01 cannot display monitoring information?
Check the computer power connection, display connections, communication paths, and the associated Orbit 60 system interface. The upstream monitoring modules should also be checked to determine whether valid monitoring information is reaching the display layer.
Where does the 60X/CMP01 fit in an Orbit 60 system?
It is positioned toward the operator-facing computing and display layer. Sensors and monitoring modules handle measurement and monitoring, the system interface transfers the information, and the 60X/CMP01 supports its presentation to the operator.
