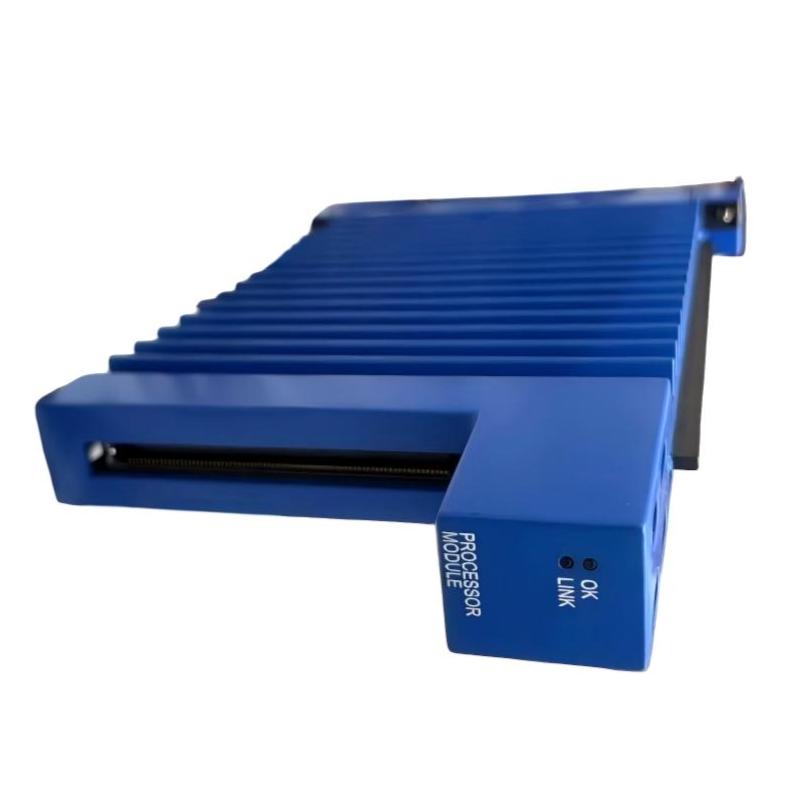

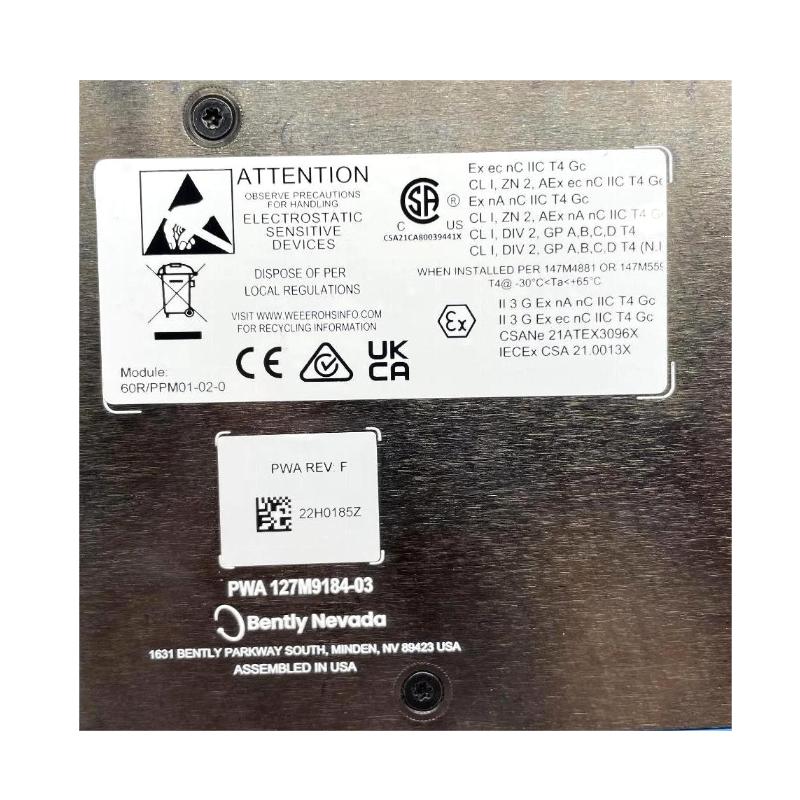

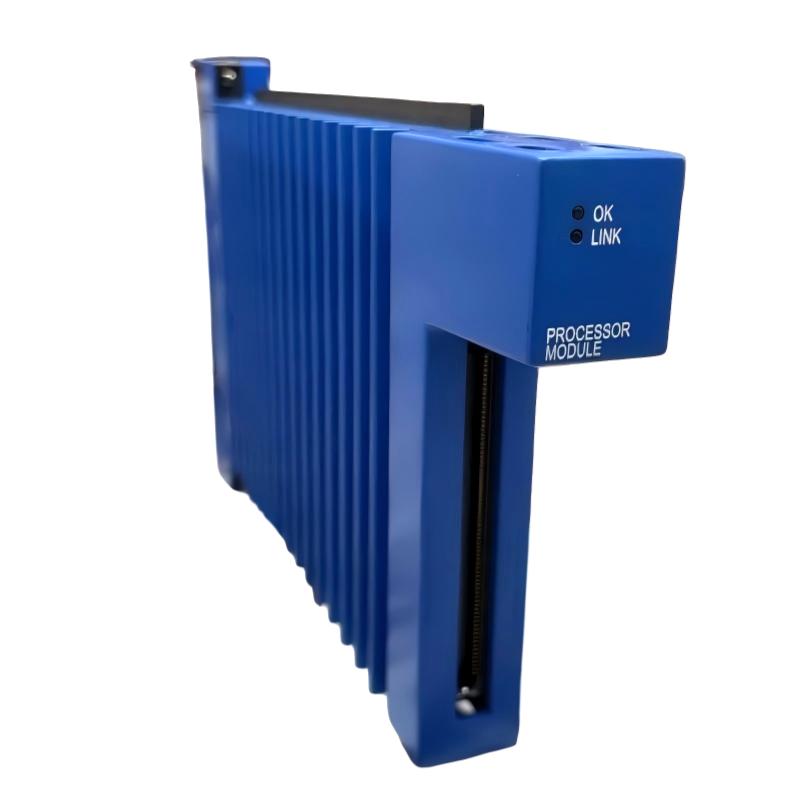

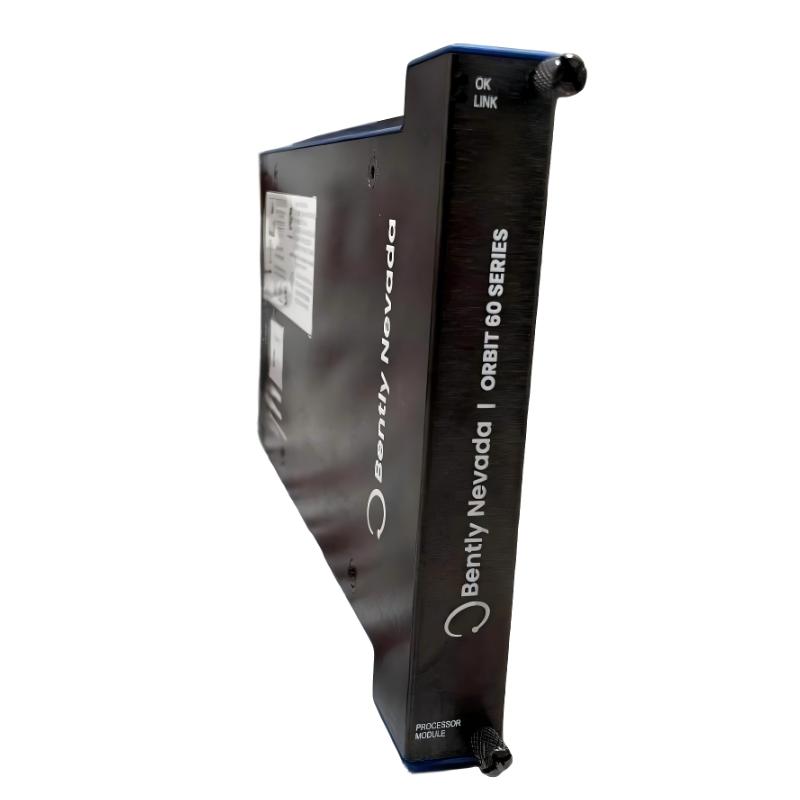

Product Overview

The Bently Nevada 60R/PPM01 is an Orbit 60 Series Protection Processor Module used within machinery monitoring and protection systems. It processes protection-related measurement information collected by compatible Orbit 60 input modules and supports the decision-making functions required for rotating equipment protection.

The module operates as part of the Orbit 60 monitoring architecture rather than as a standalone field sensor. It works with input, communication, and chassis-level components to move measured machinery conditions into protection logic. Typical applications include monitoring rotating machinery where abnormal vibration or other monitored conditions must be detected and acted upon quickly.

Technical Specifications

Product Features

• Dedicated protection processor function for Orbit 60 monitoring architectures.
• Processes measurement information received from compatible monitoring modules.
• Supports machinery protection functions where fast condition evaluation is required.
• Integrates with the Orbit 60 Series chassis and associated system modules.
• Suitable for rotating equipment monitoring applications.
• Supports centralized processing of protection-related measurement data.
• Works as part of a modular machinery monitoring architecture.
• Provides a defined processing point between measurement inputs and protection outputs.

Working Principle

The 60R/PPM01 receives processed measurement information from compatible Orbit 60 input modules installed in the same monitoring system. These input modules acquire signals from field sensors such as vibration or rotational monitoring devices.

The protection processor evaluates the incoming information according to the configured protection functions and operating limits. When monitored conditions reach a configured alarm or trip condition, the protection architecture can use the resulting status to initiate the appropriate protection response.

A typical signal path is:

Machinery → Field Sensors → Orbit 60 Input Modules → 60R/PPM01 Protection Processor → Protection Logic / System Outputs

The processor therefore sits on the decision side of the monitoring system. Sensor selection, input-module configuration, system communication, and protection settings all affect the information available to the processor.

Role in an Orbit 60 Series Machinery Protection Architecture

Within an Orbit 60 Series system, the 60R/PPM01 serves as a processing element between measurement acquisition and machinery protection functions.

The input modules handle the interface with field measurement signals, while the protection processor evaluates the resulting measurement information. This architecture separates field signal acquisition from protection processing and allows different monitoring functions to be assembled within a common chassis.

The module can be used in systems where rotating equipment requires continuous monitoring and rapid response to abnormal operating conditions. Its system role also makes compatibility with the chassis, input modules, configuration, and associated protection outputs important when replacing an existing processor.

Industrial Applications

• Steam turbine machinery protection
• Gas turbine monitoring systems
• Compressor protection
• Pump monitoring
• Generator and motor condition monitoring
• Rotating shaft vibration protection
• Industrial machinery monitoring panels
• Critical rotating equipment protection systems

Installation and Maintenance

1. Verify the module model before installation and confirm that 60R/PPM01 is the required protection processor for the existing Orbit 60 configuration.
2. Check chassis compatibility to ensure the processor is installed in the correct Orbit 60 Series chassis position.
3. Inspect the module connector for bent contacts, contamination, corrosion, or mechanical damage before insertion.
4. Confirm system power is isolated when installing or removing the processor unless the specific system procedure explicitly permits live replacement.
5. Seat the module correctly in the chassis and make sure the retaining mechanism is properly engaged.
6. Verify associated input modules because incorrect or incompatible input modules can affect the measurement information available to the protection processor.
7. Check configuration settings after replacement and confirm that protection parameters correspond to the machinery being monitored.
8. Review alarm and trip logic to ensure the processor is associated with the intended protection functions and outputs.
9. Inspect communication paths between the processor and other Orbit 60 system components for loose connections or abnormal status indications.
10. Monitor diagnostic information after startup and investigate module faults, communication errors, or unexpected protection states.
11. Keep the chassis environment clean and prevent excessive dust, moisture, vibration, or other conditions that could affect electronic module operation.
12. Document replacement and configuration changes so future maintenance personnel can verify the installed processor and protection settings.

Related Components

The 60R/PPM01 normally operates as part of a larger Orbit 60 machinery monitoring and protection system. Related components can include the Orbit 60 Series chassis, Keyphasor input modules, vibration and other measurement input modules, system communication modules, front-panel components, and compatible field sensors.

For a complete protection architecture, the processor should be matched with the correct input modules and system configuration rather than treated as an independent replacement component.

Recommended Related Models

• Bently Nevada 60R/INP06 Orbit 60 Series Keyphasor Input Module — suitable for rotational reference signal acquisition within the Orbit 60 architecture.
• Bently Nevada 60R/CHA02-00-0 Orbit 60 Series 3U Chassis Panel — associated with the mechanical chassis structure used to house Orbit 60 modules.
• Bently Nevada 60R/PNL01 Orbit 60 Series 3U Front Panel — suitable for compatible Orbit 60 chassis front-panel requirements.
• Bently Nevada 60R/PNL01-00-0 Orbit 60 Series 3U Front Panel — another related front-panel configuration for Orbit 60 installations.

Key Advantages

• Dedicated processing for machinery protection functions.
• Modular integration within the Orbit 60 Series architecture.
• Supports centralized evaluation of protection-related measurement data.
• Compatible with a modular input and chassis-based monitoring arrangement.
• Suitable for critical rotating equipment protection applications.
• Simplifies replacement within an established Orbit 60 system when configuration compatibility is confirmed.

Technical FAQs

What should be checked when replacing a Bently Nevada 60R/PPM01?

Confirm the complete module number, Orbit 60 chassis compatibility, associated input modules, configuration parameters, and protection logic before replacement. The replacement processor should match the existing system architecture and configured protection functions.

Does the 60R/PPM01 directly connect to machinery sensors?

The protection processor is part of the system processing layer rather than the primary field sensor interface. Compatible Orbit 60 input modules receive the field signals and provide measurement information for protection processing.

What can cause unexpected protection status after installing a replacement processor?

Incorrect configuration, incompatible input modules, communication problems, incorrect protection limits, or differences between the replacement module and the original system configuration can result in unexpected status indications. System diagnostics and configuration records should be checked before returning the machinery to normal operation.

Can the 60R/PPM01 be used outside an Orbit 60 Series chassis?

The module is intended for integration into the compatible Orbit 60 Series architecture. Installation should therefore be based on the specified chassis, module interfaces, and system configuration rather than treating the processor as a standalone protection device.
