Product Overview

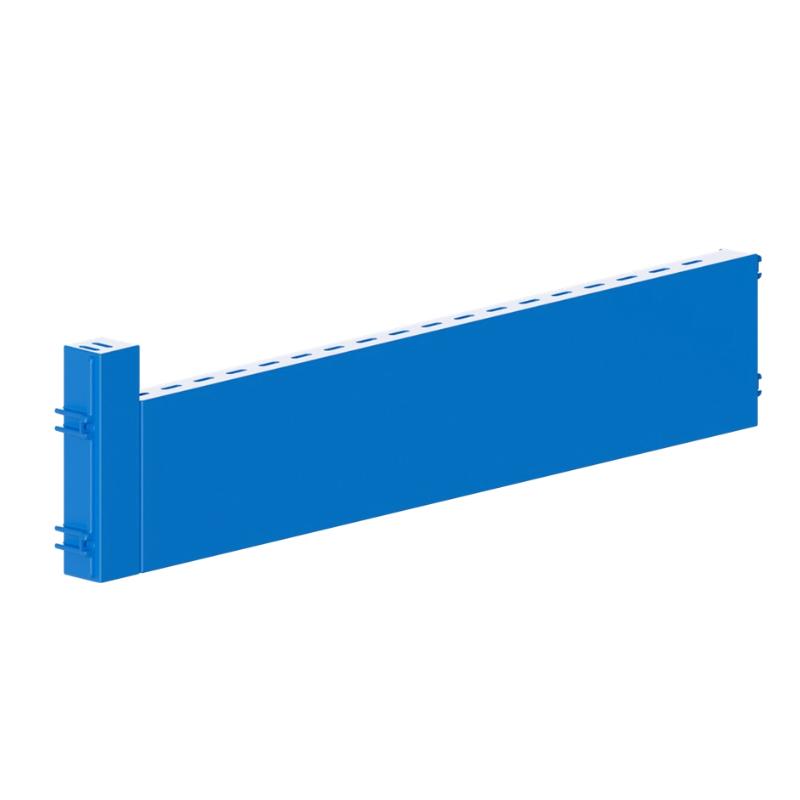

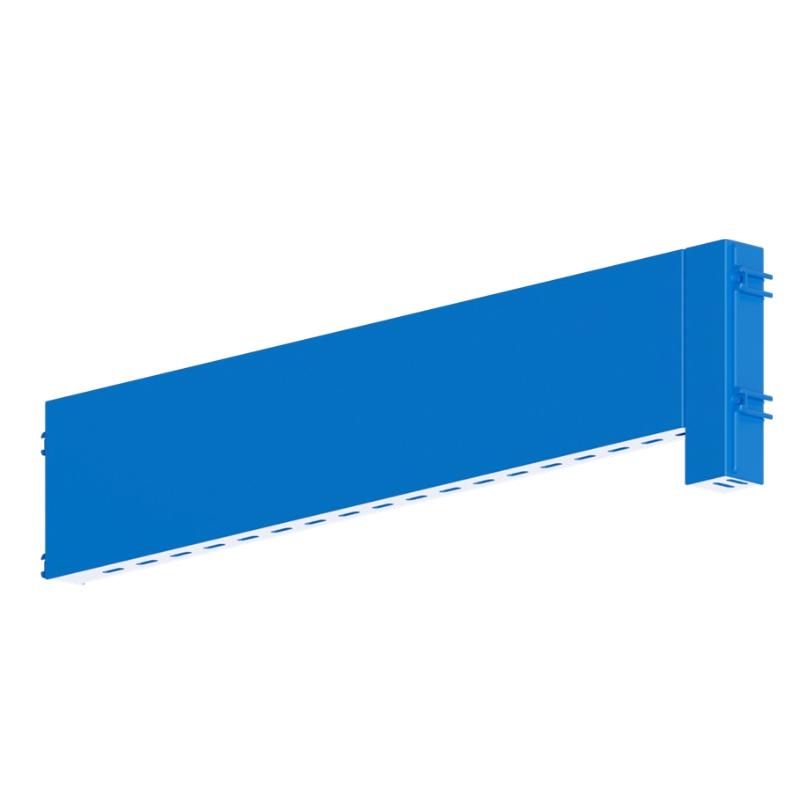

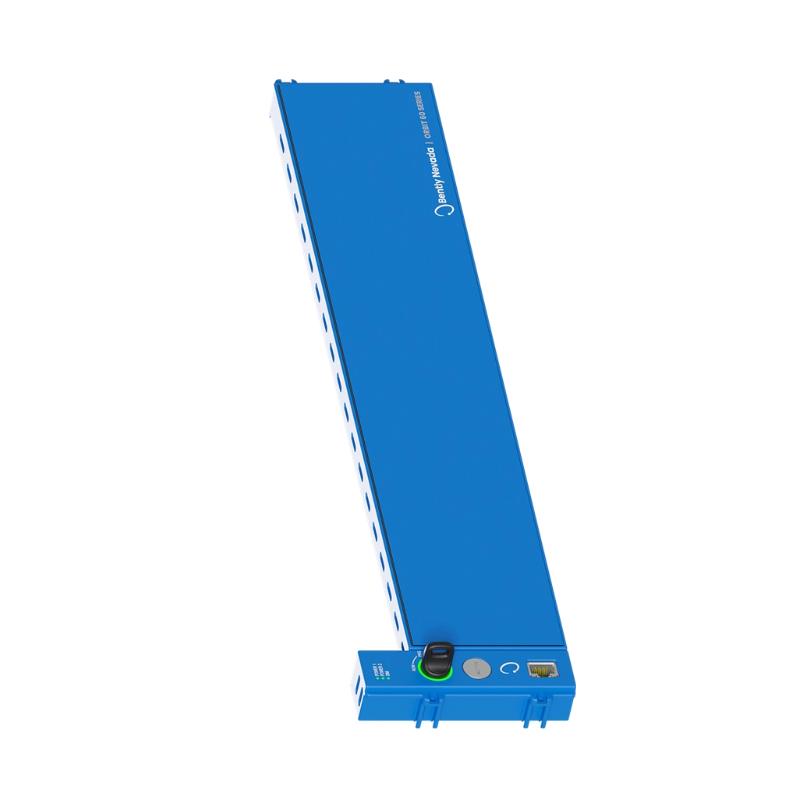

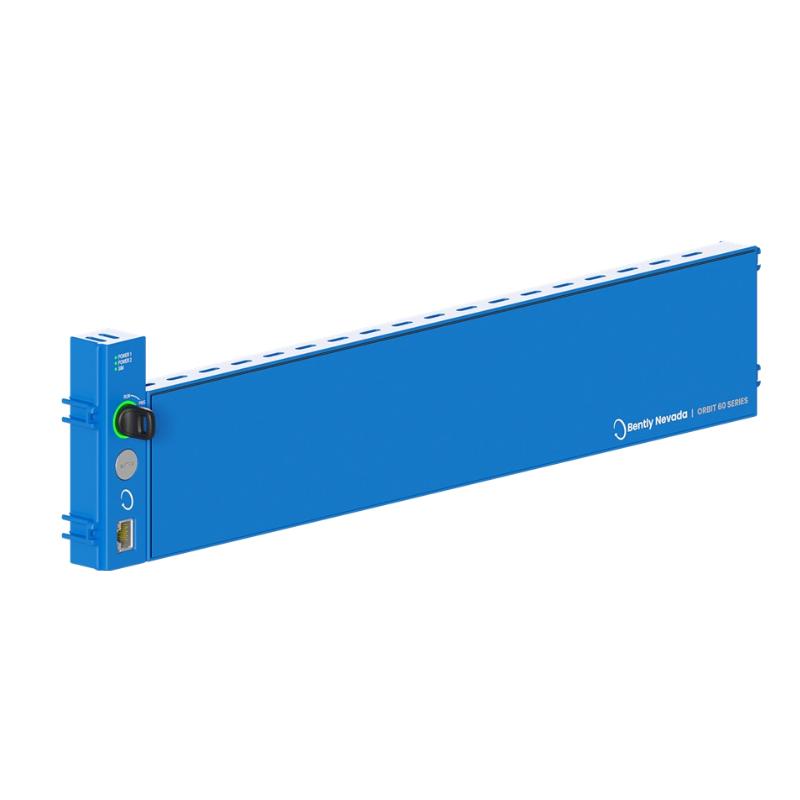

The Bently Nevada 60R/PNL01-00-0 Orbit 60 Series 3U Front Panel is a front-panel component for compatible Orbit 60 Series machinery monitoring assemblies. It forms part of the physical enclosure and front-access structure of the monitoring system.

In a rack-mounted condition monitoring installation, the front panel provides a defined mechanical interface at the front of the chassis while helping maintain an organized and protected installation of monitoring hardware. It works together with the chassis and installed monitoring modules rather than performing measurement or signal-processing functions itself.

The 60R/PNL01-00-0 is therefore primarily a mechanical integration component. Its correct selection depends on the Orbit 60 chassis configuration and the physical arrangement of the associated monitoring hardware.

Technical Specifications

Product Features

• Orbit 60 Series 3U front panel for compatible machinery monitoring installations.
• Provides a structured front-facing interface for the monitoring chassis.
• Supports physical integration of Orbit 60 system hardware.
• Helps maintain an organized enclosure arrangement.
• Suitable for rack-mounted and industrial cabinet installations.
• Supports front access and servicing of compatible monitoring assemblies.
• Provides a dedicated mechanical replacement component for compatible systems.
• Suitable for system maintenance and hardware replacement applications.

Working Principle

The 60R/PNL01-00-0 does not acquire vibration signals or process machinery data. Its operation is entirely mechanical.

When fitted to a compatible Orbit 60 chassis, the panel forms part of the front enclosure structure. It provides a finished front surface and helps maintain the intended physical configuration of the monitoring assembly.

The panel also establishes a defined interface around the installed hardware. Correct alignment and fastening help prevent unwanted movement and ensure that the front assembly remains securely attached during normal operation and maintenance activities.

Role in an Orbit 60 Series Machinery Monitoring Architecture

The Bently Nevada 60R/PNL01-00-0 belongs to the physical enclosure layer of an Orbit 60 Series monitoring system.

A simplified architecture can be represented as:

Machinery Sensors → Monitoring Modules → Orbit 60 Chassis → Front Panel / Enclosure → Monitoring Network / Control System

The sensors acquire machinery conditions, while the monitoring modules process the corresponding signals. The chassis provides the mounting and integration platform, and the front panel completes part of the physical enclosure.

The 60R/PNL01-00-0 therefore supports the mechanical implementation of the monitoring architecture without directly participating in signal acquisition or data processing.

Industrial Applications

• Orbit 60 Series machinery monitoring systems
• Rotating machinery condition monitoring cabinets
• Turbine monitoring installations
• Compressor monitoring systems
• Generator and motor monitoring
• Industrial machinery protection installations
• Process plant monitoring systems
• Rack-mounted machinery monitoring equipment

Installation and Maintenance

1. Verify the complete panel model before installation and confirm the 60R/PNL01-00-0 designation against the system documentation.
2. Confirm chassis compatibility before mounting the panel to ensure that its mechanical interface matches the intended Orbit 60 assembly.
3. Inspect the panel for deformation, cracks, scratches, corrosion, or other shipping or handling damage before installation.
4. Check mounting alignment before tightening the fasteners to prevent unnecessary mechanical stress.
5. Use suitable mounting hardware and secure the panel according to the applicable installation procedure.
6. Check internal cable clearance before fastening the panel to prevent pressure on connectors or signal cables.
7. Verify that the panel sits evenly against the chassis and does not interfere with adjacent system components.
8. Inspect fastening points periodically for looseness, especially in machinery environments subject to vibration.
9. Keep the front-panel area clean and remove accumulated dust or process contaminants during cabinet maintenance.
10. Inspect for corrosion when the monitoring equipment operates in humid, chemically exposed, or otherwise aggressive environments.
11. Record panel replacement information including the model, chassis location, maintenance date, and related service activity.
12. Use a compatible Orbit 60 replacement component when servicing the system. Similar dimensions or appearance alone should not be treated as sufficient evidence of compatibility.

Related Components

• Bently Nevada Orbit 60 Series Chassis
• Bently Nevada 60R/CHA02-00-0 3U Chassis Panel
• Bently Nevada Orbit 60 Monitoring Modules
• Bently Nevada Orbit 60 Keyphasor Input Modules
• Bently Nevada Machinery Monitoring Sensors
• Orbit 60 Series Rack Components
• Bently Nevada Monitoring System Power Components
• Bently Nevada System Communication Components

Recommended Related Models

• Bently Nevada 60R/PNL01-00-0 — Orbit 60 Series 3U Front Panel
• Bently Nevada 60R/PNL01 — Orbit 60 Series 3U Front Panel
• Bently Nevada 60R/CHA02-00-0 — Orbit 60 Series 3U Chassis Panel
• Bently Nevada 60R/INP06 — Orbit 60 Series Keyphasor Input Module
• Bently Nevada Orbit 60 Series Monitoring Modules — compatible monitoring hardware for chassis installation

Key Advantages

• 3U front-panel component for compatible Orbit 60 Series systems.
• Supports organized rack-mounted machinery monitoring installations.
• Provides a defined front-facing enclosure interface.
• Supports physical integration of monitoring hardware.
• Suitable for system maintenance and replacement.
• Designed for integration with compatible Orbit 60 chassis assemblies.

Technical FAQs

What is the function of the 60R/PNL01-00-0?

The 60R/PNL01-00-0 is a mechanical front-panel component used with compatible Orbit 60 Series 3U monitoring assemblies. It forms part of the physical enclosure and front-access structure.

Does the 60R/PNL01-00-0 perform any monitoring function?

No. It does not acquire or process vibration, speed, Keyphasor, or other machinery signals. Those functions are handled by the appropriate Orbit 60 sensors and monitoring modules.

Is 60R/PNL01-00-0 interchangeable with 60R/PNL01?

The two designations are closely related, but replacement decisions should be based on the exact system configuration and applicable equipment documentation. The complete part number should be verified before substitution.

What should be checked when installing the front panel?

Check chassis compatibility, mounting alignment, fastening points, internal cable clearance, adjacent module access, and the physical condition of the panel before completing installation.
