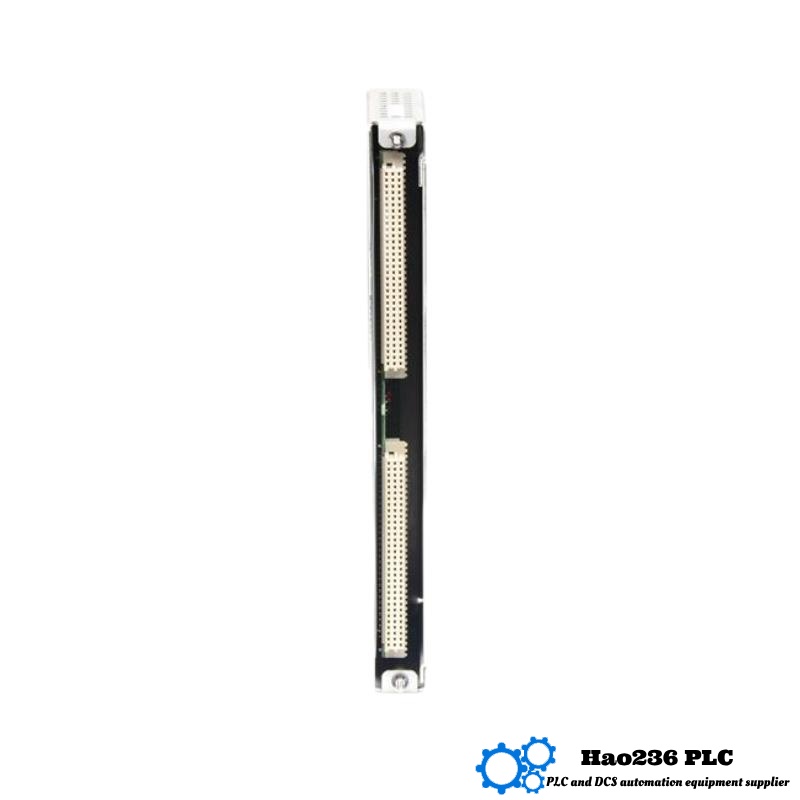

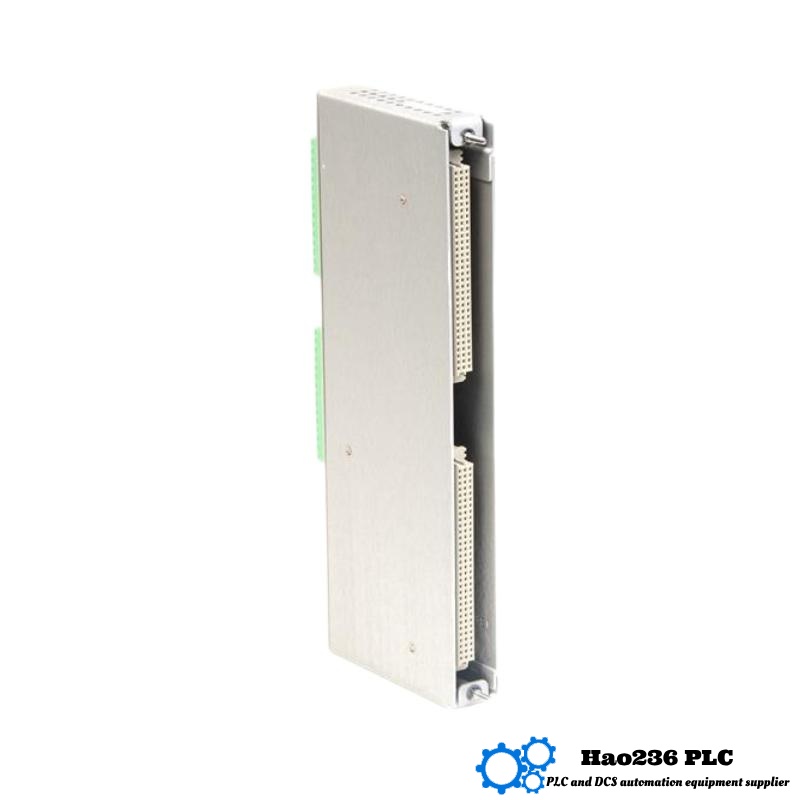

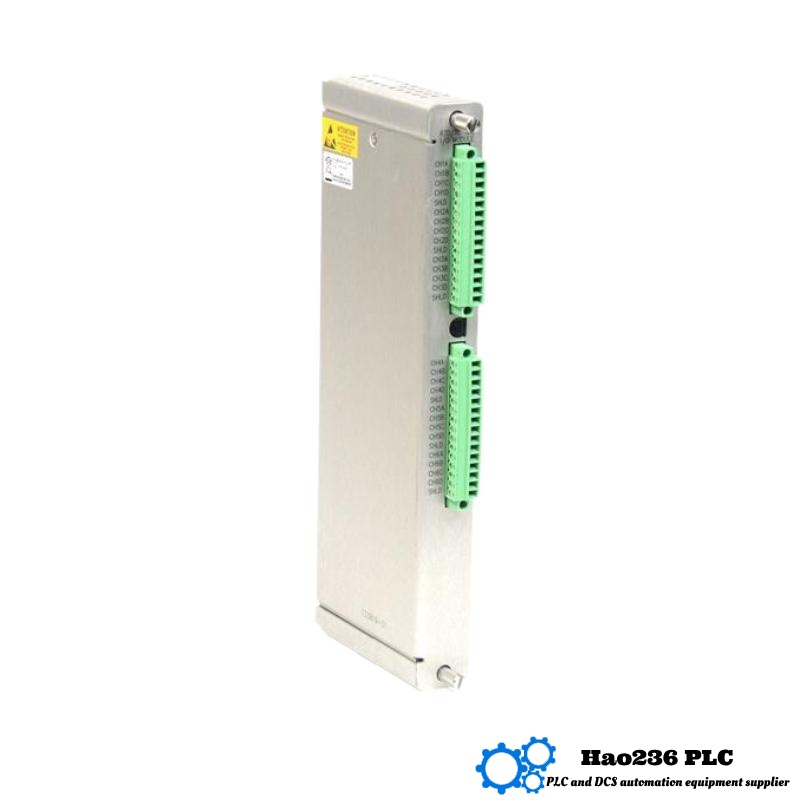

Bently Nevada 3500/60 133819-01 RTD/TC Non-Isolated I/O Module Temperature I/O Module
- Bently Nevada
- 3500/60 133819-01
- RTD/TC Non-Isolated I/O Module Temperature I/O Module
- USA
- 241.3 mm × 24.4 mm × 163.1 mm
- 0.46kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 40
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview: Bently Nevada 3500/60 133819-01
Product Introduction
The Bently Nevada 3500/60 133819-01 is a high-performance temperature monitoring module designed for use in the 3500 Series machinery protection system. This module provides six channels of temperature monitoring, accepting inputs from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs). It is engineered to detect abnormal temperature conditions in critical machinery components, enabling early intervention to prevent potential failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / Part Number | 3500/60 133819-01 |
| Product Type | Temperature Monitoring Module |
| Series | 3500 Series |
| Input Types | RTD (100Ω platinum, nickel, copper), TC (Types J, K, T, E, R, S, B) |
| Number of Channels | 6 channels |
| Input Signal Range | RTD: -200°C to +850°C; TC: Varies by type |
| Accuracy | ±1°C at 25°C (RTD); ±2°C at 25°C (TC) |
| Resolution | 1°C |
| Alarm Setpoints | Programmable, 0 to 100% of full scale |
| Alarm Time Delays | Programmable (Alert: 1 to 60 seconds, Danger: 1 to 60 seconds) |
| Power Consumption | Nominal 7 watts |
| Operating Temperature | -30°C to +65°C (with internal/external termination I/O modules); 0°C to +65°C (with internal barrier I/O module) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (L × W × H) | 241.3 mm × 24.4 mm × 163.1 mm |
| Weight | 0.46 kg |
| Environmental Protection | IP67 (when used with appropriate enclosures) |
| Communication Interface | MODBUS RTU |
Applications
The 3500/60 133819-01 module is suitable for various industrial applications, including:
-
Power Generation: Monitoring temperatures in turbines, generators, and transformers.
-
Petrochemical Processing: Ensuring safe operating temperatures in reactors and pipelines.
-
Pulp and Paper Production: Overseeing temperatures in dryers and press sections.
-
Manufacturing: Monitoring temperatures in critical machinery to prevent overheating.
-
Oil & Gas: Ensuring equipment operates within safe temperature ranges in exploration and production facilities.
Advantages
-
Multi-Input Capability: Supports both RTD and TC inputs, offering flexibility for different temperature sensing needs.
-
High Accuracy: Provides precise temperature measurements with minimal deviation.
-
Programmable Alarms: Allows customization of alarm setpoints and time delays to suit specific application requirements.
-
Compact Design: Space-saving dimensions facilitate easy integration into existing systems.
-
Robust Construction: Built to withstand harsh industrial environments with high humidity and temperature variations.
-
Seamless Integration: Compatible with the 3500 Series machinery protection system for unified monitoring and control.
Brand and Series
-
Brand: Bently Nevada
-
Series: 3500 Series
-
Product Line: 3500/60 Temperature Monitoring Module
Related Models from the Same Series
| Model | Channels | Input Types | Recorder Outputs | Termination Type | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|
| 3500/60 133819-01 | 6 | RTD, TC | No | Internal | 241.3 mm × 24.4 mm × 163.1 mm | 0.46 kg |
| 3500/60 133811-01 | 6 | RTD, TC | No | External | 241.3 mm × 24.4 mm × 163.1 mm | 0.46 kg |
| 3500/61 133819-02 | 6 | RTD, TC | Yes | Internal | 241.3 mm × 24.4 mm × 163.1 mm | 0.46 kg |
| 3500/61 133811-02 | 6 | RTD, TC | Yes | External | 241.3 mm × 24.4 mm × 163.1 mm | 0.46 kg |
| 3500/60-01 133819-03 | 6 | RTD, TC | No | Internal | 241.3 mm × 24.4 mm × 163.1 mm | 0.46 kg |
Popular Models from Bently Nevada
| Model | Function | Channels | Input Types | Recorder Outputs | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|
| 3500/53M 288062-01 | Overspeed Protection | 1 | Proximity | No | 263 mm × 58 mm × 28 mm | 1.5 kg |
| 3500/33 149986-01C | Relay Output Module | 16 | Digital | Yes | 140 mm × 110 mm × 35 mm | 0.5 kg |
| 3500/15 125840-02 | Power Supply Module | 1 | AC | No | Standard rack size | 0.4 kg |
| 3500/93 135785-01 | System Display Module | 1 | Digital | Yes | 150 mm × 120 mm × 30 mm | 0.2 kg |
| 3500/22M 149987-01 | Data Interface Module | 8 | Analog/Digital | Yes | 241 mm × 24 mm × 242 mm | 0.9 kg |
Q1: What types of temperature sensors are compatible with the 3500/60 133819-01 module?
A1: The module supports both RTD sensors (including 100 Ω platinum, nickel, and copper types) and multiple thermocouple types such as J, K, T, E, R, S, and B.
Q2: How many temperature channels does this module support?
A2: This model supports six temperature input channels.
Q3: What is the accuracy of the temperature measurement?
A3: The module offers ±1°C accuracy at 25°C for RTDs and ±2°C accuracy at 25°C for thermocouples.
Q4: Can alarm setpoints be customized on this module?
A4: Yes, both alert and danger alarm setpoints can be programmed, with adjustable time delays for each alarm type.
Q5: What is the module’s operating temperature range?
A5: It operates reliably within a temperature range of -30°C to +65°C when used with internal or external termination I/O modules.
Q6: Is remote diagnostics supported?
A6: Yes, the module supports remote diagnostics through its communication interface.
Q7: What is the power consumption of the 3500/60 133819-01?
A7: The module consumes approximately 7 watts of power.
Q8: How does this module communicate with the control system?
A8: It utilizes a MODBUS RTU communication protocol, allowing it to integrate seamlessly with compatible control systems.
Q9: What are the physical dimensions and weight of the module?
A9: The module measures approximately 241.3 mm in length, 24.4 mm in width, and 163.1 mm in height, weighing about 0.46 kg.
Q10: What industries typically use this temperature monitoring module?
A10: It is commonly used in power generation, petrochemical, manufacturing, oil & gas, and pulp and paper industries to monitor machinery temperature and prevent overheating.
