Introduction

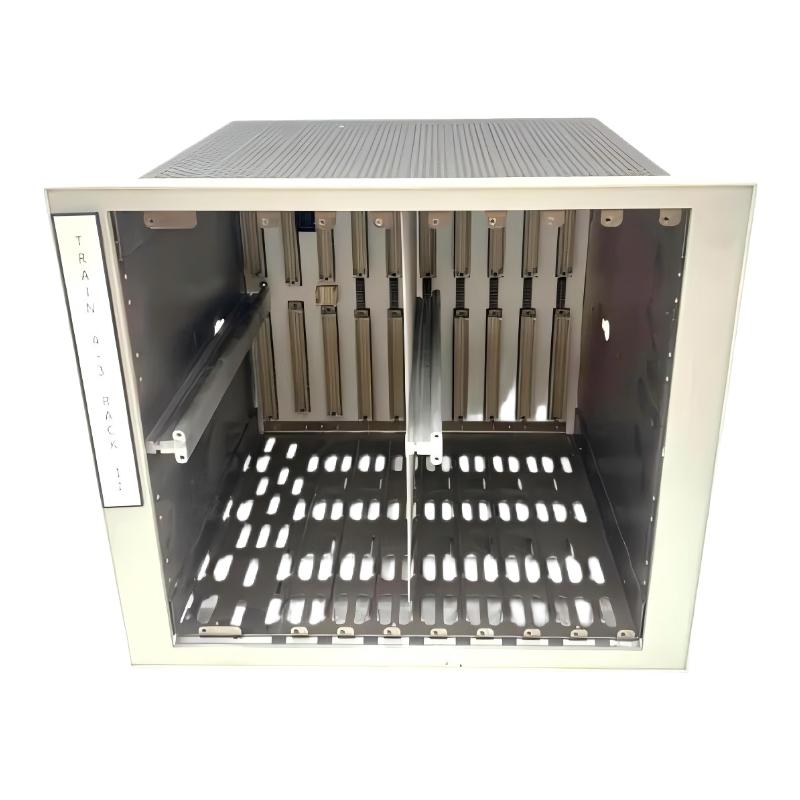

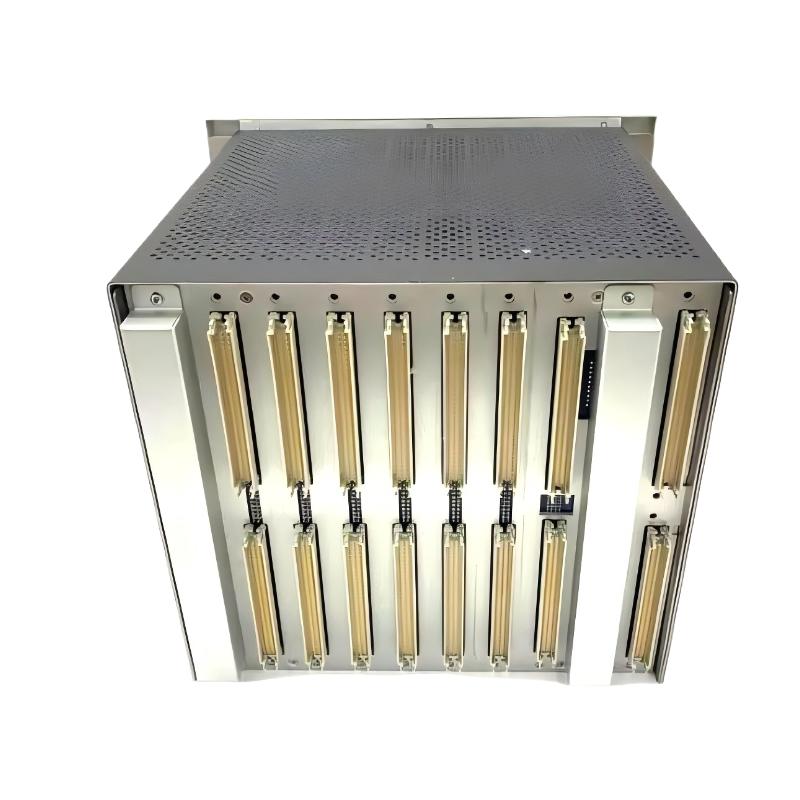

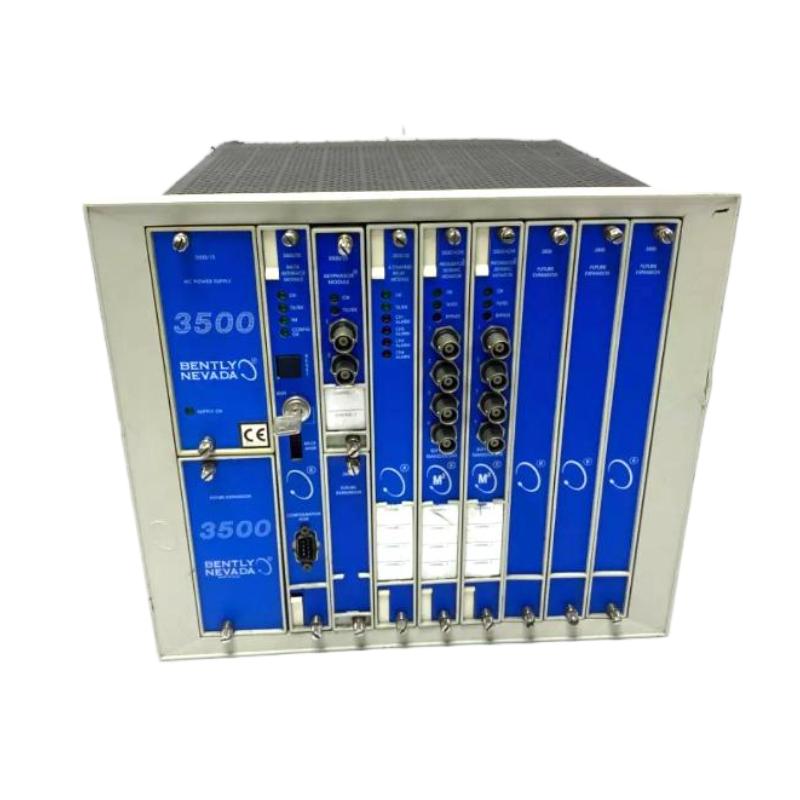

The Bently Nevada 3500/05-02-04-00 is a 3500/05 System Rack designed to provide a reliable mechanical and electrical foundation for the Bently Nevada 3500 machinery protection system. This rack serves as a central hub for multiple monitoring modules that deliver precise vibration analysis, shaft position monitoring, and overall machinery condition assessment.
Its compact design allows flexible system configurations, making it ideal for industrial facilities where efficient use of space is essential. The integrated backplane ensures coordinated power distribution and communication between all installed modules, forming the core of a fully functional machinery protection solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/05-02-04-00 |
| Product Type | 3500/05 System Rack |
| System Series | Bently Nevada 3500 Monitoring System |
| Module Capacity | 7 monitoring module slots |
| Rack Function | Housing and interconnection of monitoring modules |
| Mounting Type | Rack-mounted installation |
| System Compatibility | Compatible with Bently Nevada 3500 series modules |
| Application Environment | Industrial machinery monitoring and protection systems |
Product Overview
The 3500/05-02-04-00 system rack provides a stable foundation for installing Bently Nevada 3500 monitoring modules in a compact form. Its internal backplane distributes power and enables seamless communication among modules, ensuring reliable and coordinated operation.
Modules installed in this rack handle key functions such as vibration detection, Keyphasor signal generation, and relay outputs for alarms or emergency shutdowns. Its modular architecture allows system expansion, reconfiguration, or replacement of modules as operational requirements evolve. The rack’s robust industrial-grade construction ensures consistent performance under demanding conditions.
Applications
Turbine Condition Monitoring
Provides a compact platform for modules that monitor vibration, shaft displacement, and rotational speed in smaller turbine installations.
Compressor and Pump Monitoring
Supports modules that detect mechanical abnormalities and monitor vibration in industrial compressors and pumps.
Power Generation Equipment
Installed in generator monitoring systems to maintain safe and reliable operation of rotating machinery.
Oil and Gas Industrial Facilities
Forms a compact machinery protection hub for critical rotating equipment in space-constrained environments.
Predictive Maintenance
Acts as the central hub for early detection of mechanical faults in smaller industrial installations.
Advantages
Compact and Modular Design
Supports multiple modules for customizable monitoring system configurations.
Space-Efficient Rack
Optimized for installations where larger racks are impractical.
Integrated Backplane
Provides reliable power distribution and signal communication between modules.
Scalable Monitoring Infrastructure
Additional modules can be installed as operational needs grow.
Industrial-Grade Durability
Designed for continuous and dependable operation in demanding industrial environments.
Compatible Modules
The 3500/05-02-04-00 rack works with modules from the Bently Nevada 3500 system.
| Module | Module Type | Function |
|---|---|---|
| 3500/15 | Power Supply Module | Provides power for all modules |
| 3500/22M | Data Interface Module | Enables communication with monitoring software |
| 3500/25 | Keyphasor Module | Supplies rotational reference signals |
| 3500/42M | Proximitor / Seismic Monitor | Monitors vibration and shaft displacement |
| 3500/32M | Relay Output Module | Provides alarm and shutdown outputs |
These modules together create a complete machinery protection and condition monitoring system in a compact form.
Recommended Alternative Models
| Model | Product Type | Application | Key Feature |
|---|---|---|---|
| Bently Nevada 3500/05-02-01 | Compact System Rack | Small machinery monitoring | 7-slot modular design |
| Bently Nevada 3500/05-02-02 | Compact Rack | Space-constrained installations | Flexible module configuration |
| Bently Nevada 3500/05-02-04 | Compact Rack | Condition monitoring | Modular system design |
| Bently Nevada 3500/05 Monitoring Rack | Rack Platform | Machinery protection | High compatibility with monitoring modules |
| Bently Nevada 3500/05-01-01 | Standard System Rack | Full machinery monitoring | 14-slot rack |
Technical FAQs
What is the main function of this system rack?
It provides a stable structural and electrical platform for installing and interconnecting monitoring modules within the 3500 machinery protection system.
How many modules can this rack accommodate?
This rack supports multiple monitoring modules, allowing flexible configuration for smaller installations.
Is this rack compatible with all 3500 series modules?
Yes, it works with modules designed for 3500/05 compact rack configurations.
Where is this rack typically used?
It is installed inside industrial control cabinets in power plants, oil and gas facilities, and other industrial environments where space efficiency is critical.
